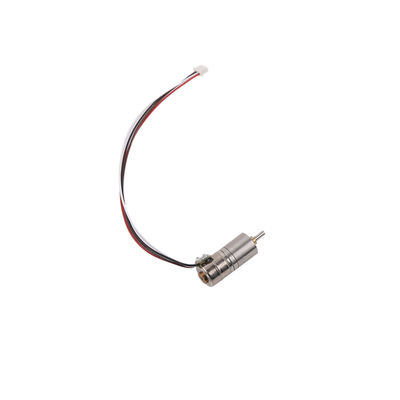

Micro 10mm stepping motor with high torque planetary gearbox stepper motor 5VDC linear motor

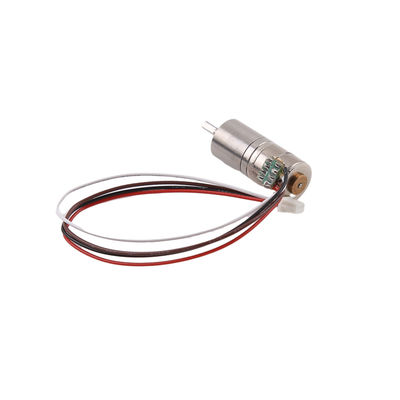

  • Micro 10mm stepping motor with high torque planetary gearbox stepper motor 5VDC linear motor

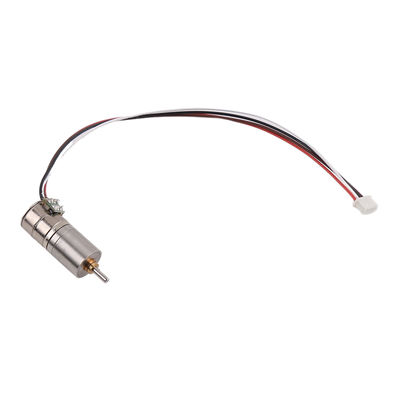

  • Micro 10mm stepping motor with high torque planetary gearbox stepper motor 5VDC linear motor

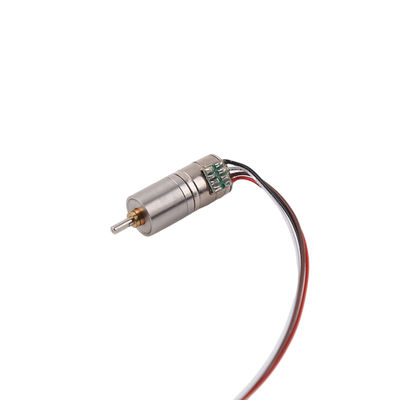

  • Micro 10mm stepping motor with high torque planetary gearbox stepper motor 5VDC linear motor

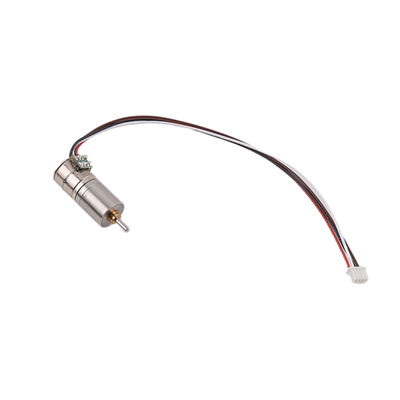

  • Micro 10mm stepping motor with high torque planetary gearbox stepper motor 5VDC linear motor

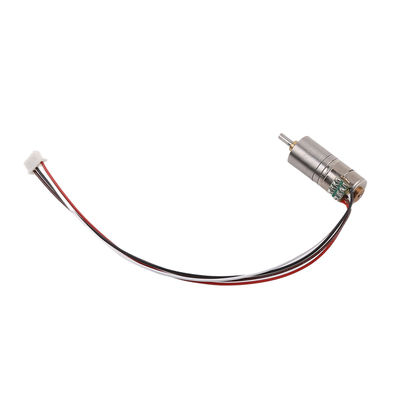

  • Micro 10mm stepping motor with high torque planetary gearbox stepper motor 5VDC linear motor
  • Micro 10mm stepping motor with high torque planetary gearbox stepper motor 5VDC linear motor
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number SM10-IG64
Minimum Order Quantity VIC-TECH
Price $29~$58/unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000Units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 5 V DC Current Per Phase 250 MA/phase
Resistance / Phase 40±7%/phase No. Of Phase 2 Phase
Step Angle 18°/64 Step Excitation Method 2 Phase Excitation
Pull-out Torque More Than 190 Gf.cm At 500 Pps Holding Torque More Than 450 Gf.cm At 0 Pps
Insulation Class Class E For Coils Insulation Strength 100 V AC For One Second
Insulation Resistance 500 MΩ DC 500 V Opearating Temperature Range 0~+55 ℃
Highlight

10mm high torque stepper motor

,

planetary gearbox stepper motor

,

5VDC linear gear motor
Leave a Message
Product Description

10mm small dc gear motor 5V Low Noise High Torque Small Brushless Dc Motor

This motor is a 10mm diameter stepper motor, paired with a planetary gearbox motor. The conventional resistance of the motor is 40 Ω. The gear reduction ratio of the planetary gearbox is different, and the height of the gearbox is also different. Please refer to our data for dimensions

Micro 10mm stepping motor with high torque planetary gearbox stepper motor 5VDC linear motor 0





Mechanical Dimension:MM

Micro 10mm stepping motor with high torque planetary gearbox stepper motor 5VDC linear motor 1

Typical Applications

  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments

  • Camera

  • label printer

  • Electtric Door Locks

  • Label stripping machine

  • ISBN printer

  •

    Medical microscope

Specifications

Rated Voltage 5 V DC
Current Per Phase 250 mA/phase
Coil Resistance 40±7%Ω/phase
No.of Phase 2 phase
Step Angle 18°/64 step
Excitatation Method 2 phase excitation
Drive Mode Bipolar drive
Pull-out Torque More than 190 gf.cm at 500 pps
Holding Torque More than 450 gf.cm at 0 pps
Max Responese Frequency More than 1000 pps
Max Starting Frequency More than 900 pps
Insulation Class Class E for coils
Insulation Strength 100 V AC for one second
Insulation Resistance 500 MΩ DC 500 V
Opearating Temperature Range 0~+55 ℃



The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.

This kind of small motor is mainly used in cameras, lenses, Medical microscope ,optical instruments and other fields, with small size and precise control. Customers can customize the motor resistance, installation size, outlet shape and size. For special occasions, the planetary gearbox can be matched with the motor to obtain low speed and high torque. The needs of customers are the direction we should strive for, and meeting the needs of customers will be our highest pursuit. Please keep in close contact with us.



Packaging and Shipping Information:


Packing: single carton/box packing, sample packing box size: 28*17*16cm
Packaging according to quantity
Shipping time:
DHL: 5~7 working days;
UPS: 5~7 working days;
TNT: 5~7 working days;
FedEx: 7~9 working days;
EMS: 12~15 working days;
China Post: Depends on which country it is sent to;
Sea: depends on which country the ship goes to

Micro 10mm stepping motor with high torque planetary gearbox stepper motor 5VDC linear motor 2
