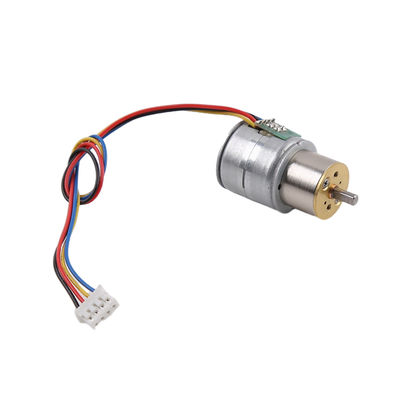

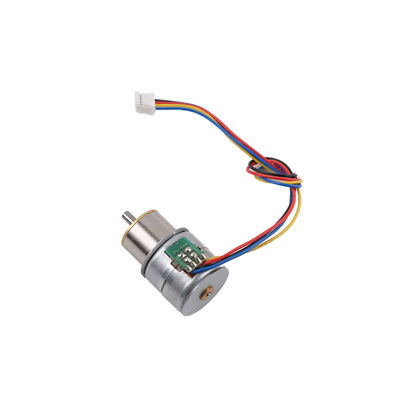

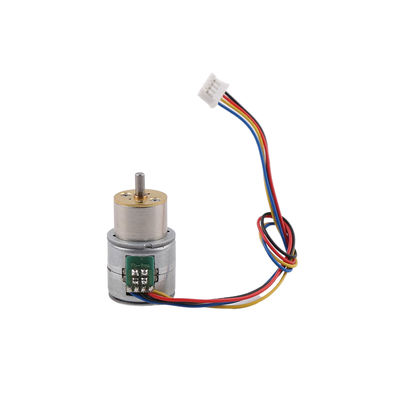

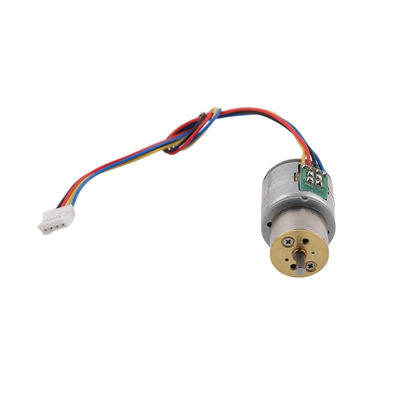

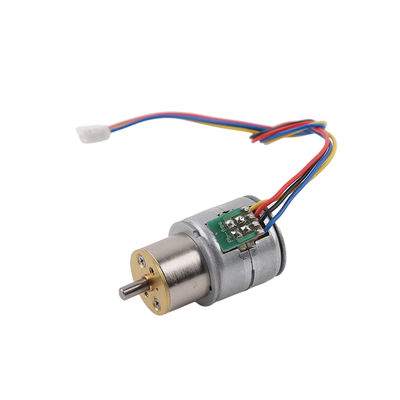

China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor

  • China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor
  • China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor
  • China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor
  • China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor
  • China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor
  • China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM20L-13GR-10G-7D
Minimum Order Quantity 1 Unit
Price $4-$8/unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms MoneyGram, T/T, Western Union, T/T
Supply Ability 1000000units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle 18 ° Voltage 3.3v~5.0 V
Resistance 10 Ω ± 10% Phase 2-2
Type Permanent Magnet Current 90 MA
Leave a Message
Product Description

Low noise stepper motor gearbox 20mm diameter stepper motor gear reduction suitable for precision equipment

This motor is a 20mm diameter reduction stepper motor with a body length of 30mm. The gearbox has two M2 threaded mounting holes, which can save space. The commonly used gear reduction ratios are 1:3 1:7 1:10 1:16 1:17 1:20 1:30 1:35 1:50 1:63 1:70 1:87 1:102 1:115 1:150 1:210 1:297 1:350. The appropriate gear reduction ratio can also be recommended according to the customer's speed and torque requirements. The output shaft of the motor is usually D-axis, but can also be customized with screw shaft, circular shaft, etc. According to the customer's installation, I have a professional R&D team to support. If you need to customize the motor, you can contact us at any time, and we will provide project support with good service and professional team. If a conference call is needed, our technicians can communicate in English to confirm the project plan. We hope to have the opportunity to discuss the project with you



Mechanical Dimension:MM



China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor 0

Typical Applications

  • Medical instruments

  • Precision instrument

  • Robot

  • Factory automation

  • Game machine

  • ATM equipment

  • Security equipment

Specifications



Product Name 20mm permanent magnet stepper motor
Model SM20L-13GR-10G-7D
Rated Voltage  3.3V  5.0 V   12v
Coil Resistance 10 Ω ± 10%
No. Of phase 2 Phases
Step Angle 18 degree
Hold Torque  450 gf.cm
Insulation Class Class E for Coils
Insulation Strength 600 V AC for One Second
Insulation Resistance 500 MΩ (DC 100 V)
Operating Temperature Range -20~+70 ℃
Weight 25g (Ref.)
OEM & ODM SERVICE AVAILABLE




Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor 1

Type of Fixture Cover



The regular models are shown in the figure, and the special sizes can be customized.

China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor 2



Product Detail Presentation

China factory micro stepper motor 20mm high-precision 2-phase 4-wire geared stepper motor 3
