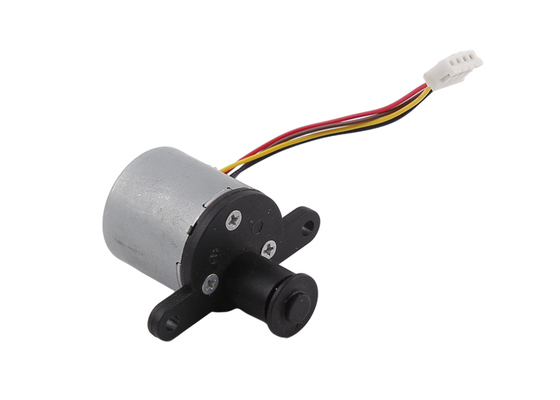

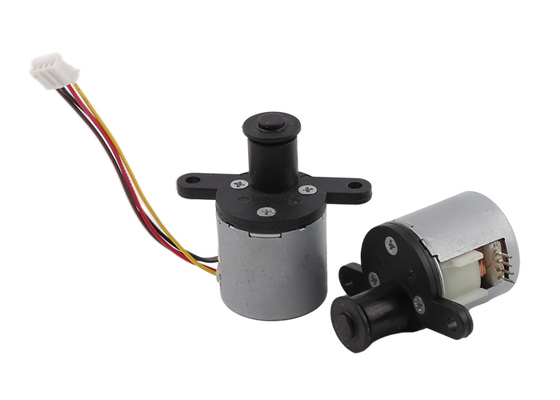

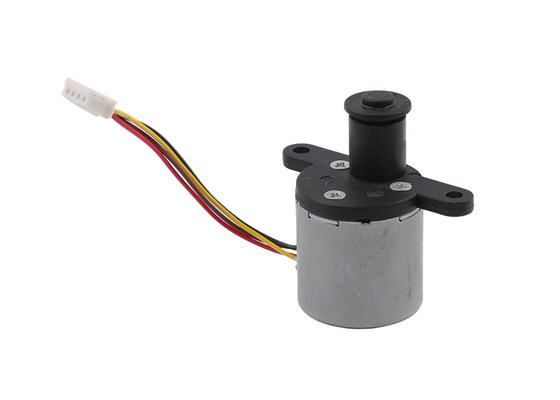

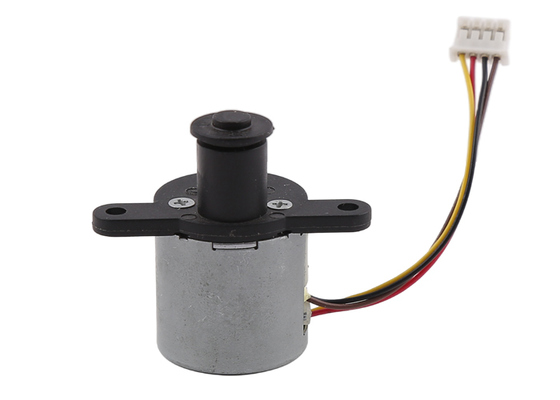

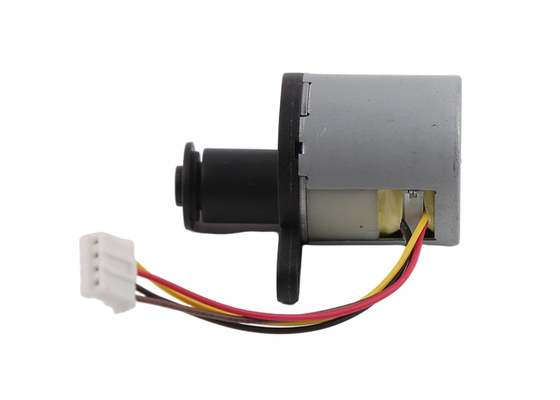

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 25BYJ412 |
| Minimum Order Quantity | 1Unit |
| Price | $2.99~5.5/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 10000Units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gear Motor | Construction | Permanent Magnet |
|---|---|---|---|
| Continuous Current(a) | Customized | Certification | ROHS |
| Voltage(v) | 3.3VDC | Gear Reduction Ratio | 1:10 |
| Rated Thrust | 70N | Stroke | 5mm |
Product Description
High Quality stepper motor valve 3.2v geared stepper motors
High torque 25mm diameter 3.3VDC low-noise linear stepper motor, suitable for intelligent TRV wireless wifi Bluetooth constant temperature radiator motor
This is a 25mm diameter stepper motor, with installation ear hole distances of 31mm and 37mm to choose from. The motor can be wired with a bare needle or a connecting wire, with a screw stroke of 5mm and a thrust of approximately 70N, depending on the customer's driving conditions
Our R&D team has over 10 years of work experience and can develop and customize motors according to customer needs
For ear installation, customization can also be made according to customer needs, and thrust can also be customized according to customer preferences
If you have any questions, please feel free to contact us at any time. We look forward to the opportunity to cooperate with your company
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 25 mm geared stepper motor |
| Model | 25BYJ412-9L |
| Resistance | 100 mΩ±7%/phase |
| Starting Frequency | 500 pps ,400 PPS min. (AT 5V DC) |
| Response Frequency | 900 pps ,450PPS min. (AT 5V DC) |
| Detent Torque | 29.4mN.m |
| Operating Temperature Range | -0~+55 ℃ |
| OEM & ODM SERVICE |
AVAILABLE |
Torque Curve For Reference
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
Product Detail Presentation
Packaging and Shipping information:
All samples are packed in foam sponges in cartons.
For mass production, mass-produced products are packaged in cartons.
For sea shipping (mass production), cartons are packed on pallets.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
Some informations about us:
Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products
The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!
The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.
For motors with special specifications (number of phases, voltage, reduction ratio) and other size modifications, we can customize them according to the actual needs of customers. If customers need more information, please feel free to contact me.
