Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Vic-Tech |
| Certification | RoHS |
| Model Number | VSM08133 |
| Minimum Order Quantity | 1 |
| Price | $2-5 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2 | Type | Permanent Magnet |
|---|---|---|---|
| Current | 150 MA | Voltage | 3.3V |
| Resistance | 40Ω±7% | Inductance | 4.0mH25% |
| Exciting Method | 2-2 Phase Exciting | Exciting Mode | Bipolar |
| Rotation | CW CCW | Outer Diameter | 8MM |
| Body Length | 8.2MM | Shaft Diameter | 1MM |
| Step Angle | 18 Degrees | Starting Frequency | 1000 PPS Min. |
| Slewing Frequency | 1200 PPS Min. | ||
| Highlight | 150 mA Micro Stepper Motor,40Ω±7% Micro Stepper Motor,4.0mH25% Micro Stepper Motor |
||
Product Description
Long Life 3V DC Diameter 8mm DC Mini Stepper Motor
2 Phase 4 Wire Micro Stepper Motor for Camera Rotation Focus
Product Overview

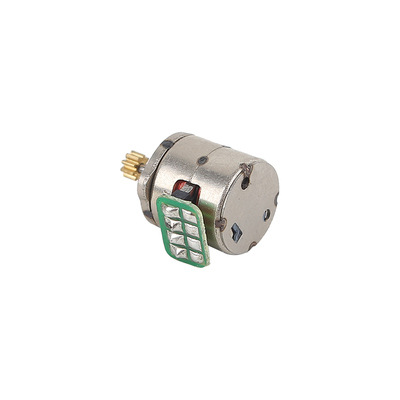

The VSM08133 is a precision micro stepping motor with 8mm outer diameter, 8.2mm body length, and 1mm outer shaft diameter. Available with 4.1mm or 3.5mm output shaft lengths (customizable). Can be equipped with gears, pulleys, or other output devices as needed.
Key Features
- Compact 8mm diameter design for space-constrained applications
- Basic step angle of 18° (20 steps per revolution)
- Customizable shaft lengths and mounting options

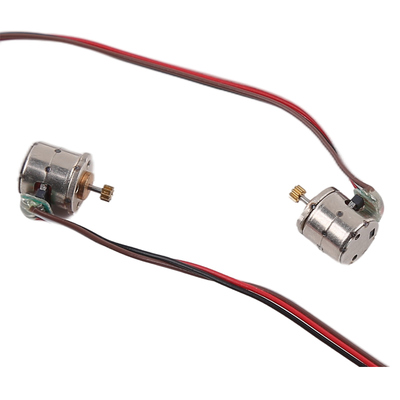

- Input options include PCB with connecting wire or alternative configurations
- Widely used in cameras, optical instruments, medical equipment, and automatic door locks
- OEM/ODM services available with 10+ years of stepper motor expertise
Technical Specifications
| Parameter | Value |
|---|---|
| Model | VSM08133 |
| Max. Starting Frequency | 1000 PPS min. (at 3.3V DC) |
| Max. Slewing Frequency | 1200 PPS min. (at 3.3V DC) |
| Pull In Torque | 0.8gf-cm min. (at 900PPS, 3.3V DC) |
| Pull Out Torque | 1.0gf-cm min. (at 900PPS, 3.3V DC) |
| Insulation Class | Class E for coils |
| Operating Temperature | -30°C to +70°C |
Global Applications
Project in Thailand
Project in Russia
About Manufacturer
Changzhou Vic-Tech Motor Technology Ltd. is a professional manufacturer and research institution specializing in brushless motor development, motor application solutions, and motor processing. Located in Changzhou, Jiangsu Province (China's "City of Micro Motors"), with 4 manufacturing facilities in Shenzhen, Changzhou, and Dongguan, all ISO9001:2008 certified.
