9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Vic-tech |
| Certification | ISO |
| Model Number | SM15-77L |
| Minimum Order Quantity | 2 |
| Price | $2.85-15 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2, 2 | Type | Permanent Magnet |
|---|---|---|---|
| Current | 400 MA | Rated Voltage | 9V |
| Coil Resistance | 15Ω±10% | Step Angle | 18 Degrees |
| Pull-out Thrust | 500g | Screw Type | M3P0.5 |
| Max Response Frequency | 1200 PPS | Max Starting Frequency | 900 PPS |
| Pull-out Torque | 230g (at 500PPS, 6V DC) | Insulation Class | Class E |
| Insulation Strength | 100 V AC For 1 Second | Insulation Resistance | 50 MΩ (DC 500 V) |
| Operating Temperature | -0 ~ +55 ℃ | ||
| Highlight | 9V Rated Voltage Linear Stepper Motor,M3P0.5 Screw Linear Stepper Motor,Customizable Nuts Linear Stepper Motor |
||
Product Description
2 Phase 4 Wire Stepper Motor 15mm Linear Actuator Screw Slider

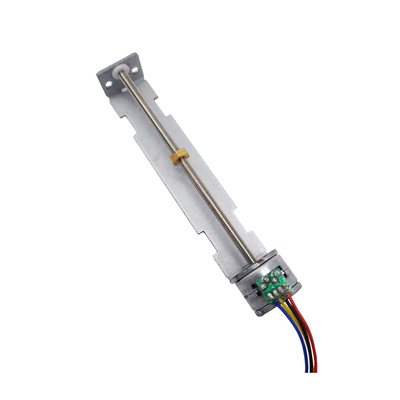

15mm Micro Slider Linear Stepping Motor
The SM15-77L Copper slider is a precision micro step motor featuring an output shaft with M3 P0.5mm pitch screw. The screw mechanism converts rotational motion into precise linear thrust.
With a basic step angle of 18 degrees (20 steps per revolution), this motor achieves displacement resolution of 0.02mm for exceptional precision control. The actuator utilizes subdivision drive technology for smooth operation.
Compact size, high precision, and easy control make this micro stepper motor ideal for applications including:
- Camera systems and optical instruments
- Lens positioning mechanisms
- Precision medical devices
- Automatic door locks
Customization options include:
- Input connection types: FPC, connecting wire needle, or PCB
- Custom mounting brackets available
- Nuts can be customized to requirements
Technical Specifications
| Product Name | 15mm Linear Stepper Motor |
| Model | SM15-77L Copper slider |
| Max. Response Frequency | ≥1200 PPS |
| Max. Starting Frequency | ≥900 PPS |
| Pull Out Torque | ≥230g (at 500PPS, 6V DC) |
| Insulation Class | Class E for coils |
| Insulation Strength | 100V AC for one second |
| Insulation Resistance | 50MΩ (DC 500V) |
| Operating Temperature | -0°C to +55°C |
| Customization | OEM & ODM services available |
Wire Connection Options
Motor input methods include pin type, FPC, PCB, or lead wire configurations. Custom solutions available to meet specific application requirements.
Basic Drawing: NEMA6 Linear Stepper Motor
12VDC bipolar 15mm micro slider screw motor with bracket, suitable for disinfection equipment and other precision applications.
About Changzhou Vic-Tech Motor Technology Ltd.
We are professional manufacturers and research institution specializing in brushless motor development, motor application solutions, and motor processing. Located in Changzhou, Jiangsu Province (known as the 'City of Chinese Micro Motor'), we benefit from excellent logistics and proximity to major transportation hubs.
Our capabilities include:
- Decades of motor research and development experience
- Professional engineering team for custom solutions
- 4 manufacturing facilities in Shenzhen, Changzhou and Dongguan
- ISO9001:2008 certified production
- Capacity for large volume orders
Frequently Asked Questions
1. How about the quality of your products?
We maintain high quality standards with positive feedback from global clients. Our product complaint rate remains below 1%. Any issues during warranty period are addressed immediately.
2. Are you a manufacturer?
Yes, we are direct manufacturers with our own factory in Changzhou, China. We specialize in producing and exporting various motor types including this precision stepper motor series.
