8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | PM08-002 |
| Minimum Order Quantity | 1 |
| Price | $2-6.50 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diameter | 8mm | Motor Height | 9.2mm |
|---|---|---|---|
| Shaft Diameter | 0.8mm | Shaft Length | 4mm |
| Phase | 2 | Wires | 4 |
| Rated Voltage | DC3.3V | Current Per Phase | 385mA |
| Step Angle | 18 Degrees | Steps Per Revolution | 20 |
| Lead Screw Diameter | φ3.5mm | Lead Screw Lead | 0.3mm |
| Linear Travel Per Step | 0.0015mm/step | Resistance Per Phase | 20.4Ω±10% |
| Inductance Per Phase | 5.0mH±20% | ||
| Highlight | 385mA Current Micro Stepper Motor,DC3.3V Rated Voltage Miniature Stepper Motor,18 Degree Step Angle PM Stepper Motor |
||
Product Description

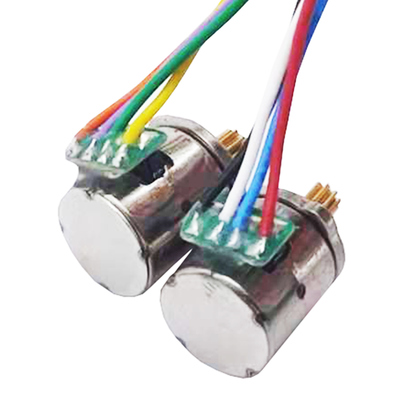

8mm Diameter 2-phase 4-wire Micro Stepper Motor with Copper Gear
The PM08-2 is a micro stepper motor featuring 2-phase 4-wire configuration. This miniature stepper motor is designed for precision applications with its compact dimensions (8mm diameter, 9.2mm height excluding bearing sleeve).
Key Features
- Rated Voltage: DC3.3V
- Output shaft diameter: 0.8mm (4mm length above belt gear)
- Basic step angle: 18 degrees (20 steps per revolution)
- Includes 2 motors with common wiring (can be separated)
- Ideal for camera focusing systems and precision applications
Applications
This high-precision miniature stepper motor is widely used in:
- Camera systems and optical instruments
- Lens mechanisms and flashlights
- Precision medical equipment
- Automatic door locks
- Other compact motion control applications
Product Images
Design Layout (Unit:mm)
Specifications
| Motor diameter | 20mm |
|---|---|
| Motor type | Hybrid stepper motor |
| Lead screw diameter | φ3.5mm |
| Lead screw lead | 0.3mm |
| Linear travel per step | 0.0015mm/step |
| Motor's phase | 2 |
| Step angle | 1.8 degree |
| Rated voltage | 5V |
| Rated current/phase | 0.24A |
| Resistance/phase | 20.4Ω±10% |
| Inductance/phase | 5.0mH±20% |
| Insulation resistance | 100MΩ（500VDC） |
| Insulation class | B |
| Heat rise | 80℃ |
| Minimal Thrust /300pps | 2.4KG |
Packing & Delivery
Selling Units: Single item in plastic box, outer paper box packaging
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has been specializing in producing micro motors and accessories since 2011. Our main products include micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers.
With an R&D team boasting 20 years of motor development experience, we provide custom design and development services. Through our commitment to honesty, dependability and quality, Vic-Tech Motor continues to pioneer in global markets by seeking international partners.
FAQ
1. Who are we?
Based in Jiangsu, China since 2011, we serve Domestic Market (35%), North America (25%), Northern Europe (20%), Western Europe (10%), and Southeast Asia (10%). Our team consists of 51-100 professionals.
2. How can we guarantee quality?
We provide pre-production samples before mass production and conduct final inspections before shipment.
3. What can you buy from us?
Our product range includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
4. Why should you buy from us?
Vic-Tech Motor specializes in micro motor production since 2011, offering custom design and development services for micro stepper motors, geared motors, underwater thrusters, and motor controllers.
5. What services can we provide?
Delivery Terms: FOB, CIF, EXW, DDP
Payment Currency: USD, EUR, CNY
Payment Type: T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
