High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments

  • High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments
  • High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments
  • High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments
  • High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments
  • High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments
  • High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments
Place of Origin Jiangsu, China
Brand Name VIC-TECH
Certification RoHS
Model Number SM20-21L-T
Minimum Order Quantity 2
Price $6.65-18

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Diameter 20mm Rated Voltage 12 V DC
No. Of Phases 2 Phases Step Angle 18°/Step
Current Per Phase 770mA/Phase Coil Resistance 15.6±7% Ohm/Phase
Excitation Method 2 Phase Excitation Drive Mode 2-2 Bipolar Drive
Pull-Out Thrust More Than 1200gf-cm AT 700 PPS Max Response Frequency More Than 1300 PPS
Max Starting Frequency More Than 1000 PPS Insulation Class Class E For Coils
Insulation Strength 50MΩ DC 500 V Operating Temperature Range -15~+55℃
Maximum Thrust 1.5 Kg
Highlight

4-wire Linear Stepper Motor

,

20mm Micro Stepper Motor

,

1.5 kg Thrust Stepper Motor with Slider
Leave a Message
Product Description
High Precision 4-wire Stepper Motor 20mm Linear Stepper Motor With Slider

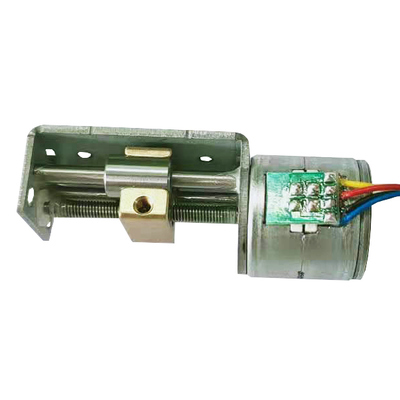

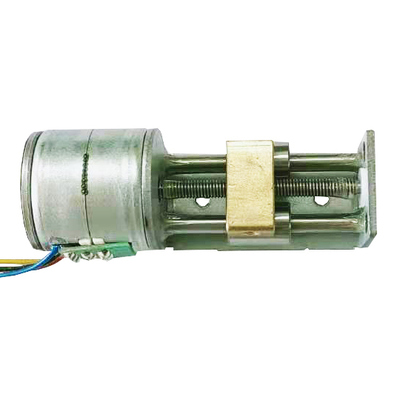

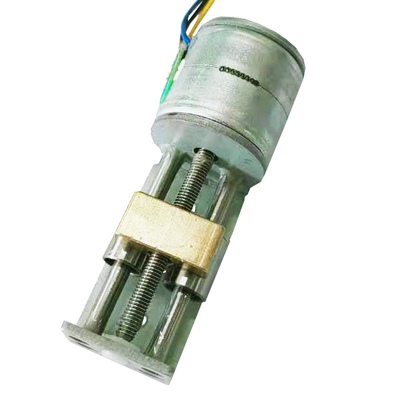

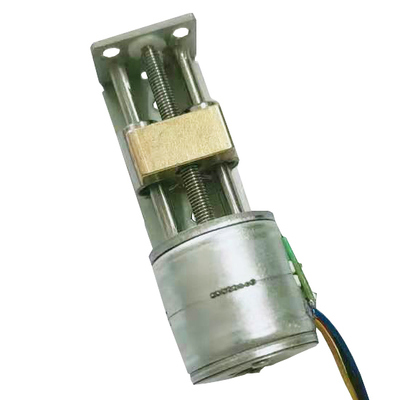

High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments 0 High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments 1

This 20mm diameter linear stepper motor features an integrated screw rod and slider assembly with a maximum thrust capacity of 1.5 kg. The motor provides precise linear motion control when paired with a compatible driver, making it ideal for integration with precision instruments and electronic devices. Custom configurations are available upon request.

Design Layout (Unit: mm)
High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments 2
Specification
Model No. SM20-21L-T
Motor diameter 20mm
Rated voltage 12 V DC
No. of phases 2 phases
Step angle 18°/Step
Current Per Phase 770mA/Phase
Coil Resistance 15.6±7% Ohm/Phase
Excitation Method 2 Phase Excitation
Drive Mode 2-2 Bipolar Drive
Pull-Out Thrust More Than 1200gf-cm AT 700 PPS
Max Response Frequency More Than 1300 PPS
Max Starting frequency More Than 1000 PPS
Insulation Class Class E For Coils
Insulation Strength 50MΩ DC 500 V
Operating Temperature Range -15~+55℃
Packing & Delivery
High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments 3

Selling Units: Single item in plastic box, outer paper box packaging

Package: Single carton packing, 100-1000 pieces per box

Lead Time: 30 days after deposit

Company Profile
High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments 4 High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments 5 High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments 6

Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an experienced R&D team offering 20 years of motor development expertise, we provide custom design services while maintaining our commitment to quality, reliability, and innovation in the global market.

FAQ
Who are we?
Based in Jiangsu, China since 2011, we serve domestic (35%), North American (25%), Northern European (20%), Western European (10%), and Southeast Asian (10%) markets with our team of 51-100 professionals.
How do we guarantee quality?
We conduct pre-production samples and final inspections before shipment to ensure consistent quality standards.
What products do we offer?
Our product line includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
Why choose us?
With our specialization in micro motors since 2011 and custom design capabilities, we offer technical expertise and reliable solutions for diverse applications.
What services do we provide?
We accept various delivery terms (FOB, CIF, EXW, DDP), payment methods (T/T, Credit Card, PayPal, Cash), and currencies (USD, EUR, CNY), with support in English and Chinese.
