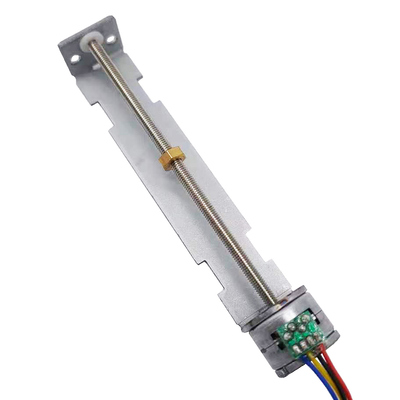

15mm 9V DC Miniature Slider Screw Stepper Motor with 0.02mm Displacement Resolution and 2 Phase Precision
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | rohs |
| Model Number | SM15-77L-T |
| Minimum Order Quantity | 1 |
| Price | $6.31-15 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2 | Current Per Phase | 385mA |
|---|---|---|---|
| Motor Diameter | 15mm | Rated Voltage | 9V DC |
| Coil Resistance | 15±10% Ohm/PHASE(20℃) | Step Angle | 18°/Step |
| Excitation Method | 1-2Phases Drive | Drive Mode | Bipolar Drive |
| Pull-out Thrust | More Than 230 G AT 700 Pps | Max Response Frequency | More Than 1300 PPS |
| Max Starting Frequency | More Than 900 PPS | Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100 V AC FOR ONE SECOND | Insulation Resistance | 50MΩ DC 500V |
| Operating Temperature Range | -0~+55℃ | ||
| Highlight | 15mm Miniature Slider Screw Stepper Motor,9V DC PM Stepper Motor,0.02mm Displacement Resolution Micro Stepper Motor |
||
Product Description
SM15-77L-T 2 Phase 15mm Miniature Slider Screw Stepper Motor 9V DC Pm Stepper Motor
Product Description
The SM15-77-TL is a precision screw motor featuring a 0.4mm pitch between the output shaft and screw. This design enables the screw to generate thrust while rotating, providing precise motion control.
Key features include:
- 18° basic step angle
- 20 steps per revolution
- 0.02mm displacement resolution for precise control
- Subdivision drive mode capability
Our team brings over 10 years of stepper motor design, development, and production experience. We offer custom product development and auxiliary design services to meet specific customer requirements.
Design Layout (Unit:mm)
Specification
| Model No. | SM20-77L-T |
|---|---|
| Motor diameter | 15mm |
| Rated Voltage | 9V DC |
| Coil Resistance | 15±10% ohm/PHASE(20℃) |
| Current Per Phase | 600 mA/Phase(1000pps) |
| No.Of Phases | 2 Phases |
| Step Angle | 18°/Step |
| Excitation Method | 1-2Phases Drive |
| Drive Mode | Bipolar Drive |
| Pull-out Thrust | More Than 230 g AT 700 pps |
| Max Response Frequency | More Than 1300 PPS |
| Max Staring Frequency | More Than 900 PPS |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 50MΩ DC 500V |
| Operating Temperature Range | -0~+55℃ |
| Motor surface temperature | 80℃ or less |
Packing & Delivery
Selling Units: Single item plastic box inner, outer paper box
Package: single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
