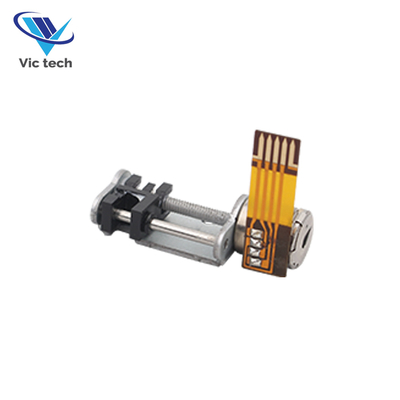

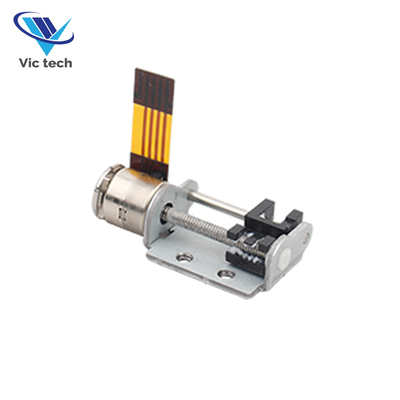

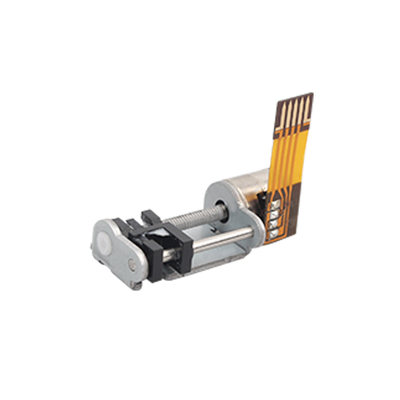

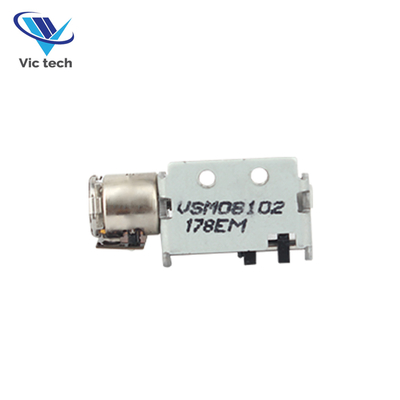

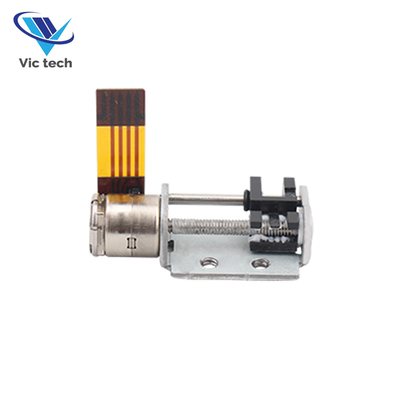

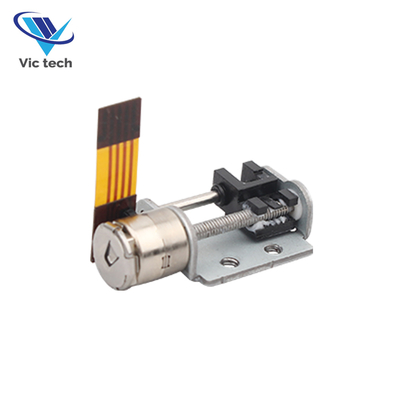

VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator

  • VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator
  • VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator
  • VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator
  • VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator
  • VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator
  • VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator
Place of Origin Jiangsu, China
Brand Name Vic-tech
Certification rohs
Model Number VSM08102
Minimum Order Quantity 5
Price $3-7

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2 Type Permanent Magnet
Current Per Phase 150 MA Rated Voltage 3.3V
Coil Resistance 20Ω±10% Step Angle 18°
Size DIA8*L24mm Max Starting Frequency 800 PPS Min.
Max Slewing Frequency 2000 PPS Min. Pull In Torque 1.5 Gf-cm Min.
Pull Out Torque 2.0 Gf-cm Min. Insulation Class CLASS E
Insulation Strength 100 V AC For 1 Second Insulation Resistance 1.0 MΩ (DC 100 V)
Operating Temperature -10 ~ +60 ℃
Highlight

8mm micro stepper motor

,

3.3V 2-phase linear actuator

,

micro stepper motor lens actuator
Leave a Message
Product Description
VSM08102 Stepper Motor Linear Actuator Screw Slider - 8mm Micro Stepper Motor for Camera Lens
Key Specifications
Attribute Value
Phase 2, 2
Type Permanent Magnet
Current / Phase 150 mA
Rated Voltage 3.3V
Coil Resistance 20Ω±10%
Step angle 18°
Size DIA8*L24mm
VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator 0 VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator 1
Product Description

This precision stepper motor features an integrated bracket and guide mechanism. When the motor rotates, the guide moves linearly with precise control:

  • Movement speed controlled by pulse frequency
  • Movement distance controlled by pulse count
  • 2-2 phase drive configuration
  • 0.02mm guide movement per pulse
Technical Parameters
PRODUCT NAME 8MM MICRO STEPPING MOTOR LENS
MODEL VSM08102
RATED VOLTAGE 3.3V
COIL RESISTANCE 20 Ω±10%
PHASE 2 PHASE
MAX. STARTING FREQUENCY 800 PPS min. (AT 3.3 V DC)
MAX. SLEWING FREQUENCY 2000 PPS min. (AT 3.3 V DC)
PULL IN TORQUE 1.5 gf-cm min. (AT 500 PPS , 3.3V DC)
PULL OUT TORQUE 2.0 gf-cm min. (AT 500 PPS , 3.3V DC)
INSULATION CLASS CLASS E FOR COILS
INSULATION STRENGTH 100 V AC FOR ONE SECOND
INSULATION RESISTENCE 1.0 MΩ (DC 100 V)
OPERATING TEMPERATURE RANGE -10 ~+60 ℃
ENVIRONMENTAL CONDITIONS USING SCREW GREASE -40 ~+90 ℃
OEM & ODM SERVICE AVAILABLE
VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator 2
Basic Drawing
VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator 3
Wire Connection Options

Motor input methods available in Pin type, FPC, PCB, or Lead wire configurations. Custom solutions available to meet specific customer requirements.

VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator 4 VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator 5 VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator 6
About Changzhou Vic-Tech Motor Technology Ltd.

We are a professional manufacturer and research institution specializing in brushless motor development, motor application solutions, and motor processing. Located in Changzhou, Jiangsu Province (known as the 'City of Chinese Micro Motor'), we benefit from:

  • Strategic location with excellent transportation links
  • Experienced R&D team with decades of motor expertise
  • Custom design capabilities for mechanical structures and drive controls
  • Four manufacturing facilities with ISO9001:2008 certification
  • Production capacity for stepper, permanent-magnet, micro, and DC motors
VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator 7 VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator 8
Frequently Asked Questions
1. How about the quality of your products?

We maintain high quality standards with positive global feedback. Our product complaint rate remains below 1%, and we provide prompt support for any issues during the guarantee period.

2. Are you a manufacturer?

Yes, we are a direct manufacturer with our own factory in Changzhou, China. We specialize in motor production and export, offering customized solutions to meet specific requirements.

VSM08102 8mm Micro Stepper Motor Lens 3.3V 2-Phase Linear Actuator 9
