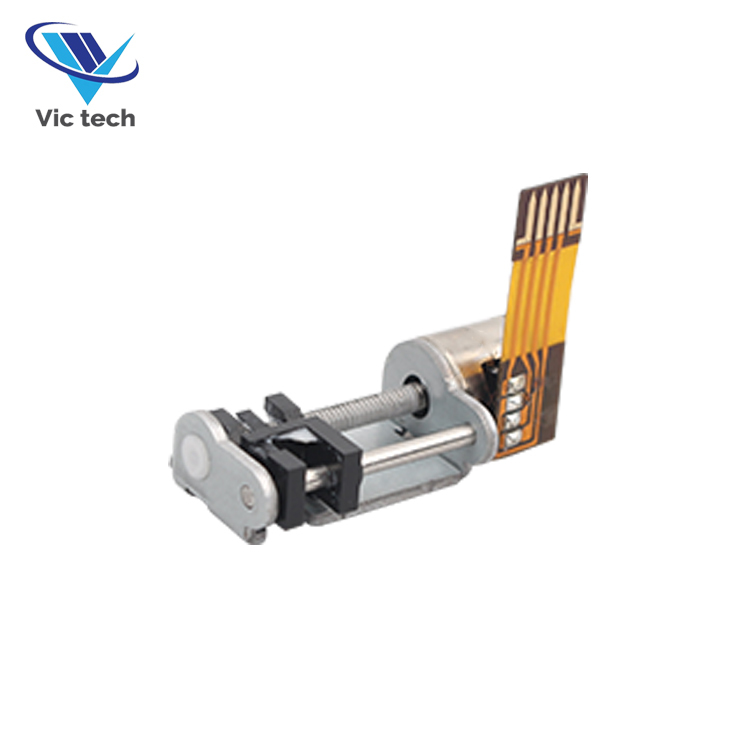

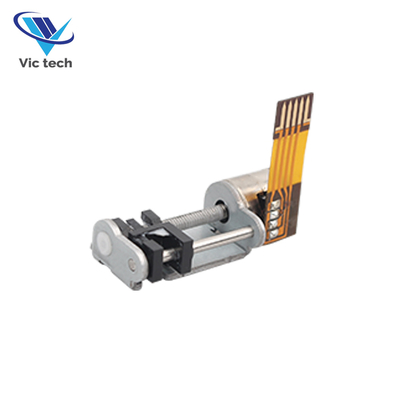

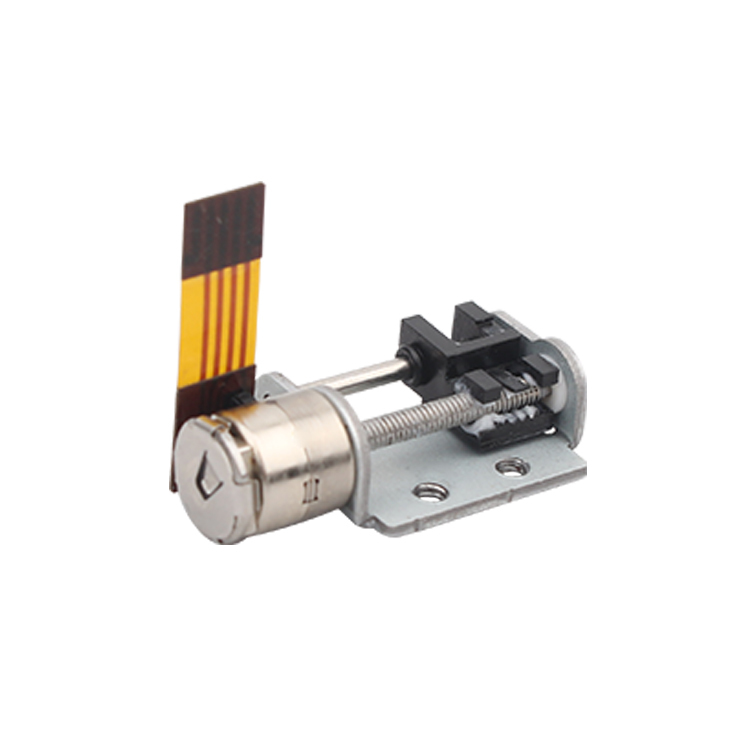

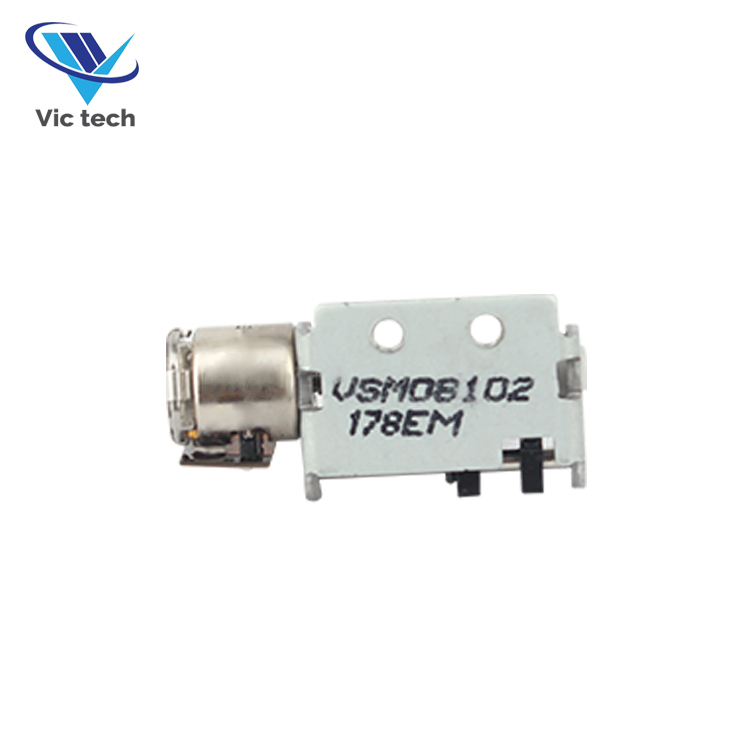

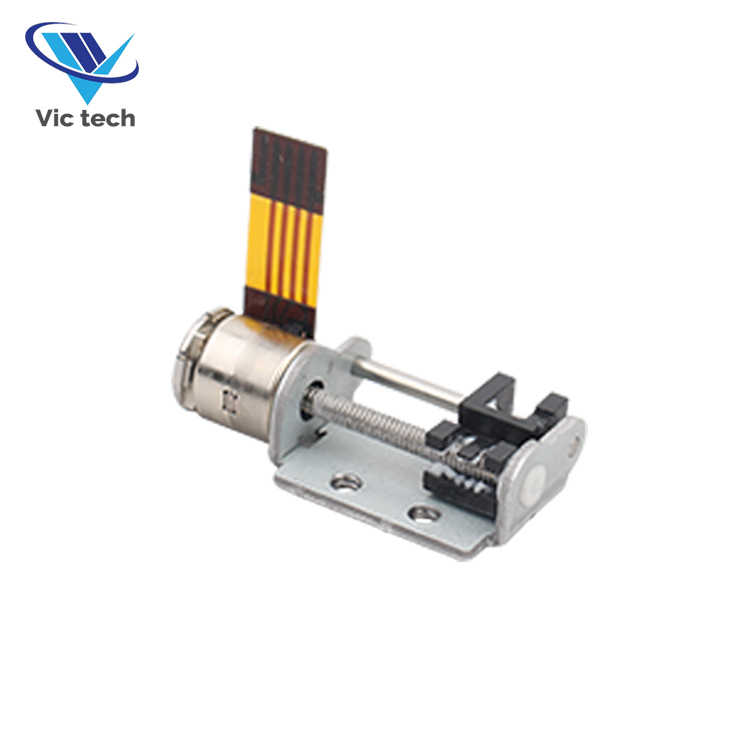

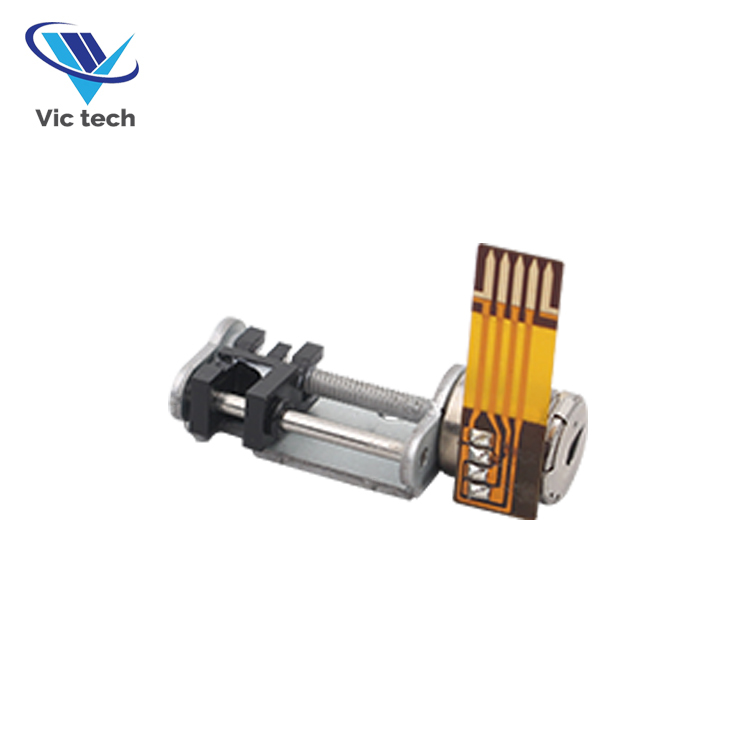

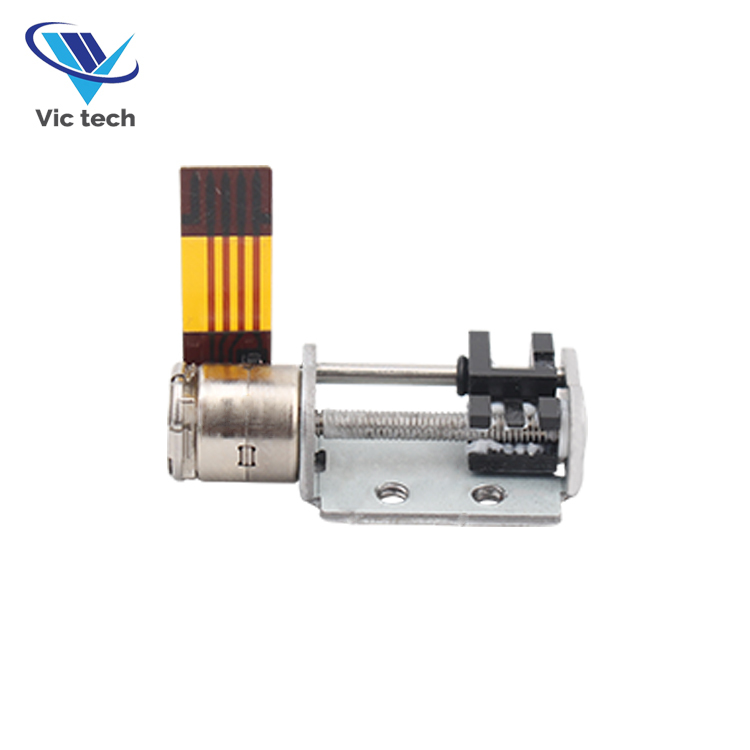

8mm Micro Stepper Motor 3.3V 2-Phase for Camera Lens
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Vic-tech |
| Certification | rohs |
| Model Number | VSM08102 |
| Minimum Order Quantity | 5 |
| Price | $3-7 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2 | Type | Permanent Magnet |
|---|---|---|---|
| Current Per Phase | 150 MA | Rated Voltage | 3.3V |
| Coil Resistance | 20Ω±10% | Step Angle | 18° |
| Size | DIA8*L24mm | Max Starting Frequency | 800 PPS Min. |
| Max Slewing Frequency | 2000 PPS Min. | Pull In Torque | 1.5 Gf-cm Min. |
| Pull Out Torque | 2.0 Gf-cm Min. | Insulation Class | CLASS E |
| Insulation Strength | 100 V AC | Insulation Resistance | 1.0 MΩ |
| Operating Temperature | -10 ~ +60 ℃ | ||
| Highlight | 8mm micro stepper motor 3.3V,2-phase stepper motor for camera lens,micro stepper motor with warranty |
||
Product Description
VSM08102 8mm Micro Stepper Motor NEMA 3 Linear Stepper Motor
Product Specifications
| Attribute | Value |
|---|---|
| Phase | 2, 2 |
| Type | Permanent Magnet |
| Current / Phase | 150 mA |
| Rated Voltage | 3.3V |
| Coil Resistance | 20Ω±10% |
| Step angle | 18° |
| Size | DIA8*L24mm |
Product Description
This precision stepper motor features a bracket and guide system (the guide moves when the motor rotates). The moving speed can be controlled by pulse frequency, while the moving distance is determined by pulse number. For this motor model, when driving 2-2 phase, 1 pulse makes the guide move 0.02 mm.
Technical Parameters
| Product Name | 8MM MICRO STEPPING MOTOR LENS |
| Model | VSM08102 |
| Max. Starting Frequency | 800 PPS min. (AT 3.3 V DC) |
| Max. Slewing Frequency | 2000 PPS min. (AT 3.3V DC) |
| Pull In Torque | 1.5 gf-cm min. (AT 500 PPS, 3.3V DC) |
| Pull Out Torque | 2.0 gf-cm min. (AT 500 PPS, 3.3V DC) |
| Insulation Class | CLASS E FOR COILS |
| Operating Temperature Range | -10 ~ +60 ℃ |
Basic Drawing
Wire Connection Options
Motor input method available with Pin type, FPC, PCB, or Lead wire. These can be customized according to customer requirements.
About Changzhou Vic-Tech Motor Technology Ltd.
We are a professional manufacturer and scientific research institution specializing in brushless motor development, motor application solutions, and motor processing. Located in Changzhou, Jiangsu Province (known as the 'City of Chinese Micro Motor'), we benefit from excellent transportation links and proximity to major cities.
Our experienced team of engineers and electric experts can design new products and provide customized solutions based on specific requirements. Our manufacturing facilities in Shenzhen, Changzhou, and Dongguan produce stepper motors, permanent-magnet motors, micro motors, and DC motors, all certified to ISO9001:2008 standards.
Frequently Asked Questions
1. How about the quality of your products?
We maintain high-quality standards with positive feedback from global clients. Under warranty, we provide immediate assistance for any product issues, maintaining a complaint rate below 1%.
2. Are you a manufacturer?
Yes, we are a direct manufacturer with our own factory in Changzhou, China. We specialize in producing and exporting various motor products and welcome your inquiries.
