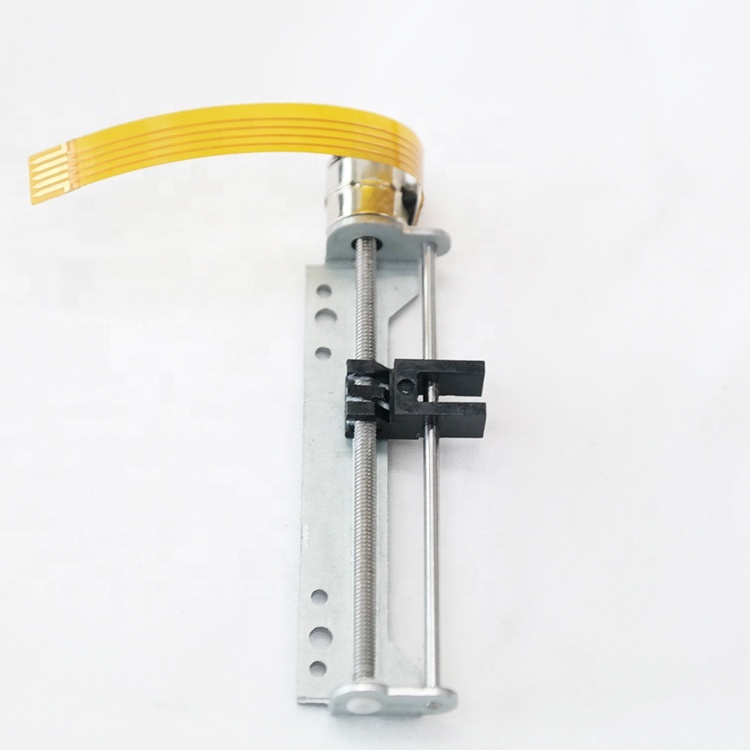

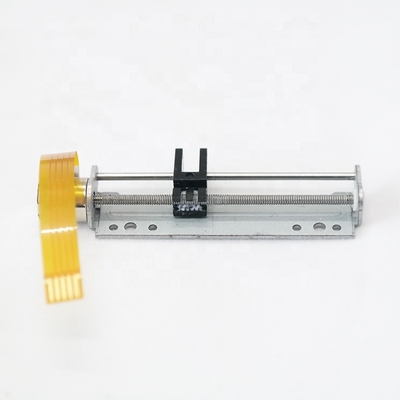

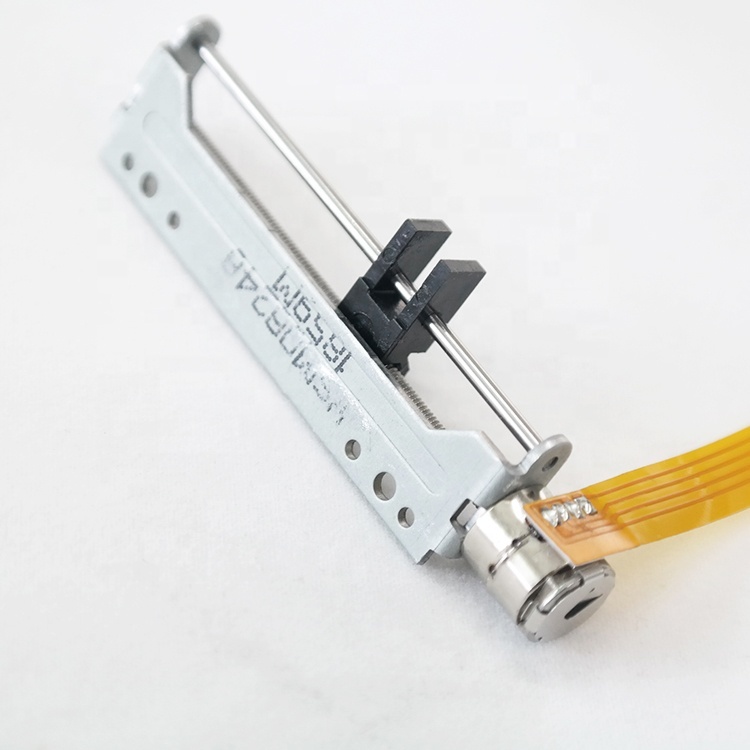

VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket

  • VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket
  • VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket
  • VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket
Place of Origin Jiangsu, China
Brand Name Vic-tech
Certification rohs
Model Number VSM08248
Minimum Order Quantity 1
Price US$2.25-7

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2, 2 Type Permanent Magnet
Current Per Phase 0.2A Rated Voltage 3.3V
Coil Resistance 16Ω±10% Step Angle 18°
Weight 8g Max Starting Frequency 800 PPS Min. (AT 3.3 V DC)
Max Slewing Frequency 1200 PPS Min. (AT 3.3 V DC) Pull In Torque 1.5 Gf-cm Min. (AT 500 PPS, 3.3V DC)
Pull Out Torque 2.0 Gf-cm Min. (AT 500 PPS, 3.3V DC) Insulation Strength 100 V AC For One Second
Insulation Resistance 1 MΩ (DC 100 V) Operating Temperature Range -20 ~ +70 ℃
Displacement Resolution 0.02mm
Highlight

8mm micro linear stepper motor

,

3.3V micro stepper motor with bracket

,

linear stepper motor with mounting bracket
Leave a Message
Product Description
VSM08248 8mm Mini Stepper Motor 3.3V Slider Linear Stepper Motor with Bracket and Screw
Product Specifications
Attribute Value
Phase 2, 2
Type Permanent Magnet
Current / Phase 0.2A
Rated Voltage 3.3V
Coil Resistance 16Ω±10%
Step Angle 18°
Weight 8g
VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket 0 VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket 1
Technical Parameters
Model VSM08248
Max. Starting Frequency 800 PPS min. (AT 3.3 V DC)
Max. Slewing Frequency 1200 PPS min. (AT 3.3 V DC)
Pull In Torque 1.5 gf-cm min. (AT 500 PPS, 3.3V DC)
Pull Out Torque 2.0 gf-cm min. (AT 500 PPS, 3.3V DC)
Insulation Class CLASS E FOR COILS
Insulation Strength 100 V AC FOR ONE SECOND
Insulation Resistance 1 MΩ (DC 100 V)
Operating Temperature Range -20 ~ +70 ℃
OEM & ODM Service AVAILABLE
Product Description
The VSM08248 is a precision micro stepper motor featuring an output shaft with a 0.4mm pitch screw. The screw mechanism converts rotational motion into linear thrust, providing precise control.
With a basic step angle of 18°, the motor completes 20 steps per revolution, achieving a displacement resolution of 0.02mm for exceptional precision control. The actuator utilizes subdivision drive technology for smooth operation.
Key Features
  • Compact size (8mm diameter) with high precision control
  • 0.02mm displacement resolution for accurate positioning
  • Subdivision drive technology for smooth operation
  • Versatile input options (FPC, PCB, lead wire, etc.)
  • Customizable mounting bracket available
Applications
This micro stepper motor is widely used in cameras, optical instruments, lenses, precision medical devices, automatic door locks, and other applications requiring compact, precise motion control.
VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket 2
Basic Drawing
VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket 3
Wire Connection Options
The motor input method can be customized with pin type, FPC, PCB, or lead wire configurations according to customer requirements.
VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket 4 VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket 5 VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket 6
Manufacturer Information
Changzhou Vic-Tech Motor Technology Ltd. is a professional manufacturer and research institution specializing in brushless motor development, motor application solutions, and motor processing. Located in Changzhou, Jiangsu Province (known as the 'City of Chinese Micro Motor'), we benefit from convenient logistics and transportation infrastructure.
Our experienced engineering team develops customized solutions including mechanical structure, drive control, and motor parameters. Our manufacturing facilities in Shenzhen, Changzhou, and Dongguan produce stepper motors, permanent-magnet motors, micro motors, and DC motors, all ISO9001:2008 certified.
VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket 7 VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket 8
Frequently Asked Questions
1. How about the quality of your products?
We maintain high-quality standards with positive feedback from global clients. Our product complaint rate is kept below 1%. Any issues during the guarantee period are addressed immediately.
2. Are you a manufacturer?
Yes, we are a direct manufacturer with our own factory in Changzhou, China. We specialize in producing and exporting various motor products and welcome custom inquiries.
VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket 9
