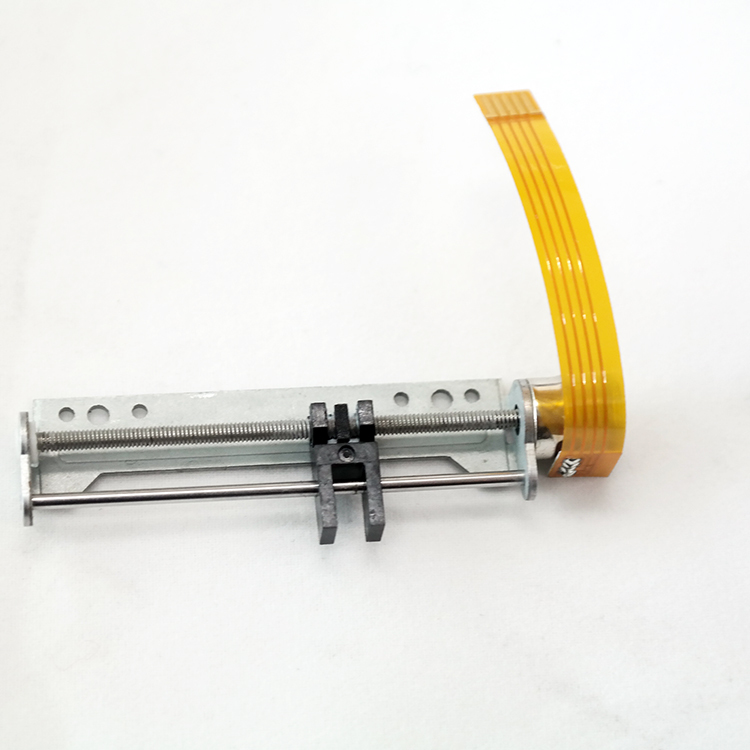

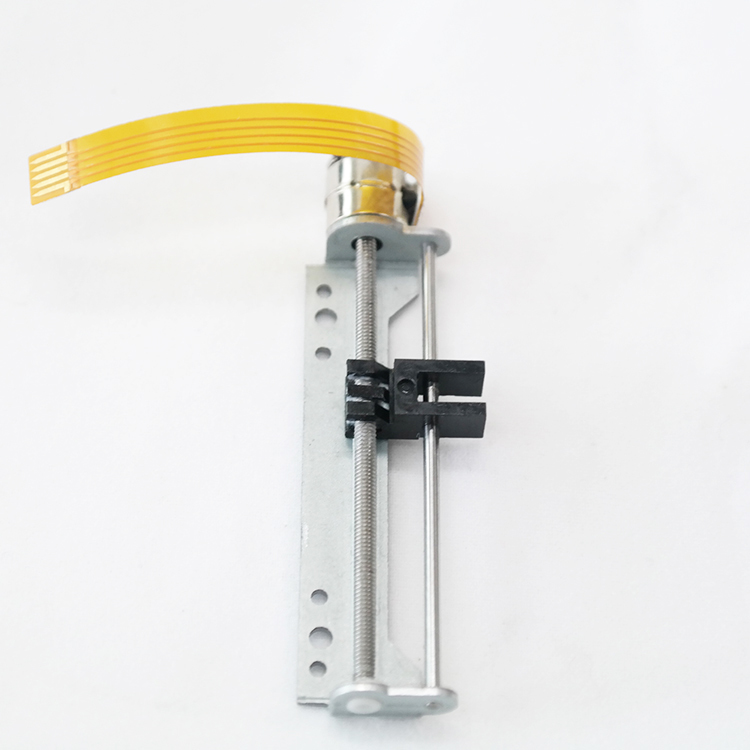

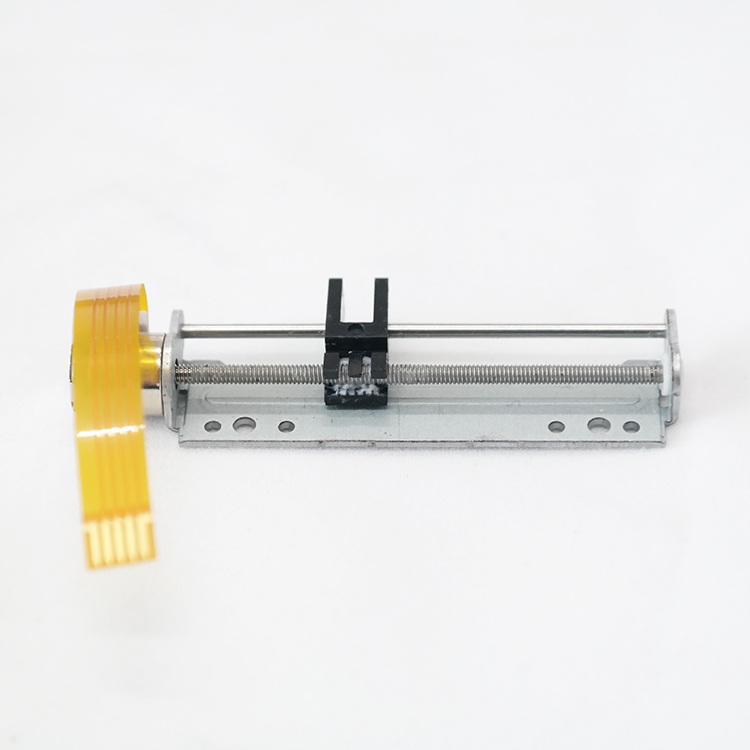

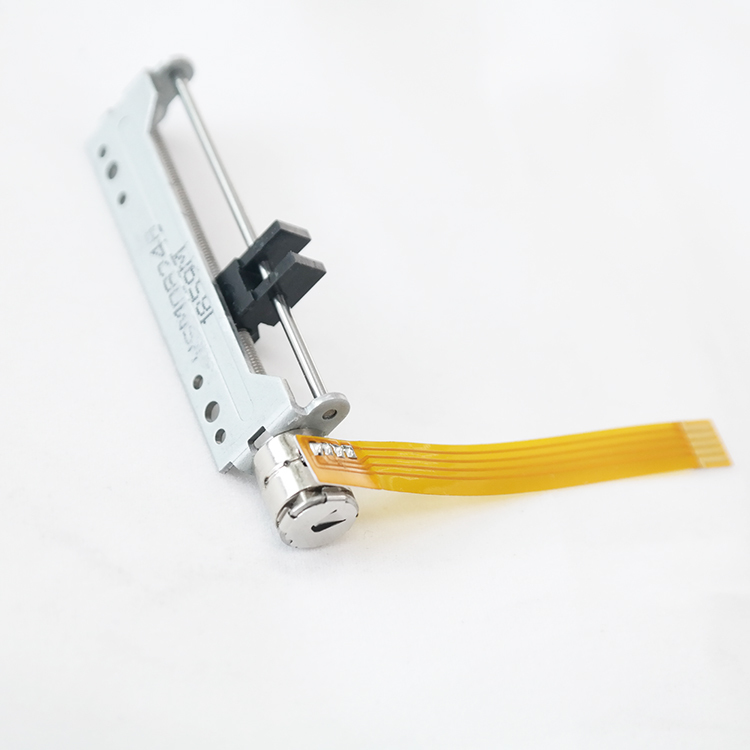

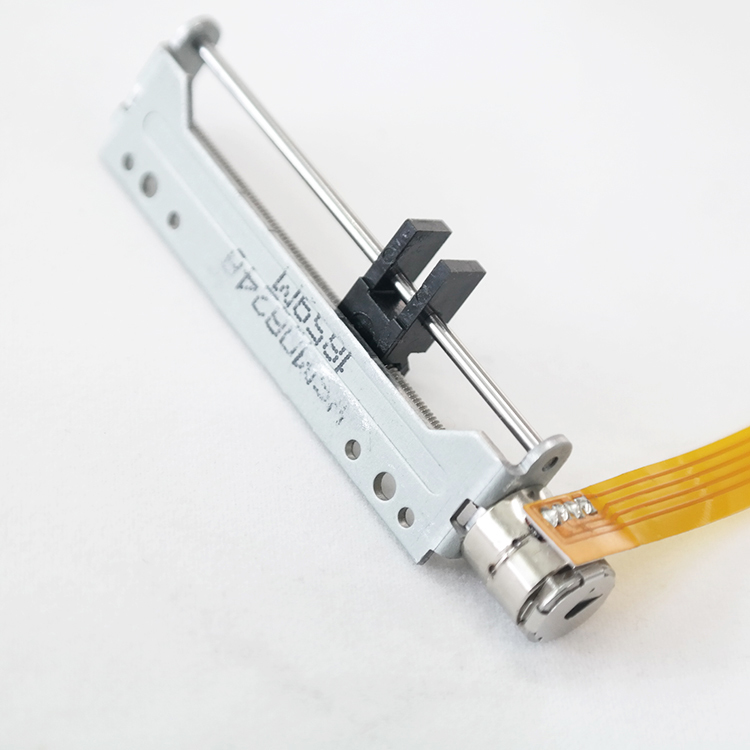

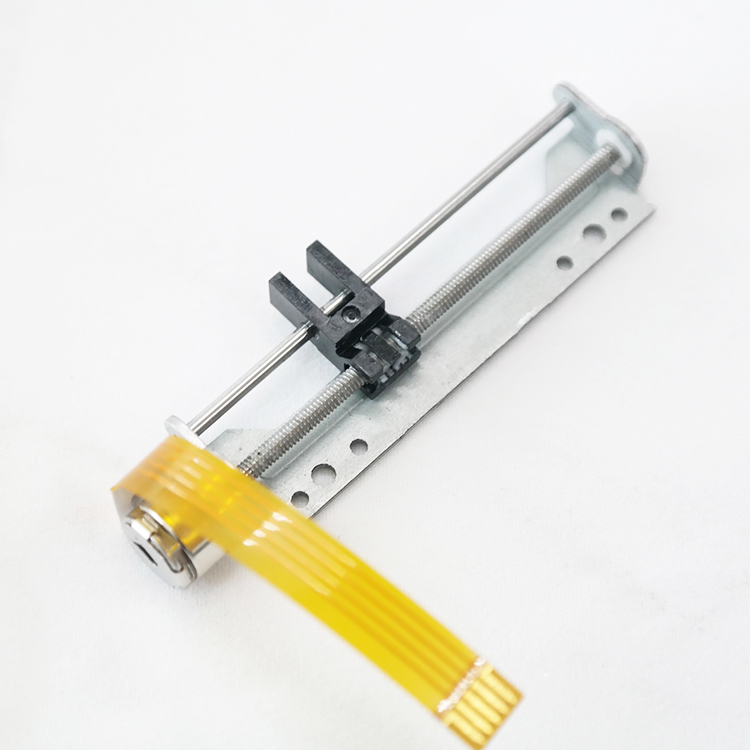

VSM08248 8mm Micro Linear Stepper Motor 3.3V with Bracket
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Vic-tech |
| Certification | rohs |
| Model Number | VSM08248 |
| Minimum Order Quantity | 1 |
| Price | US$2.25-7 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2, 2 | Type | Permanent Magnet |
|---|---|---|---|
| Current Per Phase | 0.2A | Rated Voltage | 3.3V |
| Coil Resistance | 16Ω±10% | Step Angle | 18° |
| Max Starting Frequency | 800 PPS Min. (AT 3.3 V DC) | Max Slewing Frequency | 1200 PPS Min. (AT 3.3 V DC) |
| Pull In Torque | 1.5 Gf-cm Min. (AT 500 PPS , 3.3V DC) | Pull Out Torque | 2.0 Gf-cm Min. (AT 500 PPS , 3.3V DC) |
| Insulation Class | CLASS E FOR COILS | Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 1 MΩ (DC 100 V) | Operating Temperature | -20 ~+70 ℃ |
| Screw Pitch | 0.4mm | ||
| Highlight | 8mm micro linear stepper motor,3.3V stepper motor with bracket,micro stepper motor with bracket |
||
Product Description
VSM08248 8mm Micro Slider Linear Stepper Motor 3.3V Screw Motor with Bracket Mini Stepper Motor
Product Specifications
| Attribute | Value |
|---|---|
| Phase | 2, 2 |
| Type | Permanent Magnet |
| Current / Phase | 0.2A |
| Rated Voltage | 3.3V |
| Coil Resistance | 16Ω±10% |
| Step angle | 18° |
Product Description
The VSM08248 is a precision micro stepper motor featuring an output shaft with a 0.4mm pitch screw. The screw mechanism converts rotational motion into linear thrust, enabling precise control applications.
With a basic step angle of 18° (20 steps per revolution), this motor achieves displacement resolution of 0.02mm, making it ideal for precision control applications.
Key Features
- Compact size with high precision control
- Subdivision drive capability for smooth operation
- Customizable input connections (FPC, PCB, lead wire options)
- Adjustable mounting bracket configurations
- Wide operating temperature range (-20°C to +70°C)
Technical Specifications
| Model | VSM08248 |
| Max. Starting Frequency | 800 PPS min. (at 3.3V DC) |
| Max. Slewing Frequency | 1200 PPS min. (at 3.3V DC) |
| Pull In Torque | 1.5 gf-cm min. (at 500 PPS, 3.3V DC) |
| Pull Out Torque | 2.0 gf-cm min. (at 500 PPS, 3.3V DC) |
| Insulation Class | Class E for coils |
Applications
This micro stepper motor is widely used in:
- Camera mechanisms
- Optical instruments
- Lens positioning systems
- Precision medical devices
- Automatic door locks
Customization Options
We offer flexible customization including:
- Input connection types (pin, FPC, PCB, lead wire)
- Mounting bracket configurations
- OEM/ODM services available
