VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable

  • VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable
  • VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable
  • VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable
  • VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable
  • VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable
  • VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable
Place of Origin Jiangsu, China
Brand Name Vic-tech
Certification rohs
Model Number VSM10152
Minimum Order Quantity 1
Price US$4-7

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2 Type Permanent Magnet
Current Per Phase 280mA Voltage 3.3V
Coil Resistance 10±10% Max Start Frequency 1000pps At 3.3V
Max Slewing Frequency 1200pps At 3.3V Torque 3.5gf.cm
Pull In Torque 3.5 Gf-cm Min. (AT 500 PPS , 3.3V DC) Pull Out Torque 4.5gf-cm Min. (AT 500 PPS , 3.3V DC)
Insulation Class CLASS E FOR COILS Insulation Strength 100V AC FOR ONE SECOND
Insulation Resistance 50 MΩ (DC 100 V) Operating Temperature -20~+℃
Wire Type Pin Type, FPC, PCB, Lead Wire
Highlight

3.3V micro stepper motor

,

10mm 2 phase stepper motor

,

4 wire stepper motor with FPC cable
Leave a Message
Product Description
VSM10152 3V 10mm Micro Stepper Motor
2 Phase 4 Wire 18 Degree 40mm Stroke Step Motor with FPC Cable for Intelligent Equipment

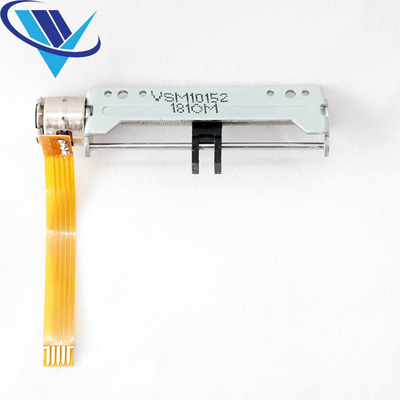

VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable 0
Product Specifications
Attribute Value
Phase 2
Type Permanent Magnet
Current / Phase 280mA
Voltage 3.3V
Directions CW/CCW
Coil resistance 10±10%
Max Start Frequency 1000pps At 3.3V
Max Slewing Frequency 1200pps At 3.3V
Torque 3.5gf.cm

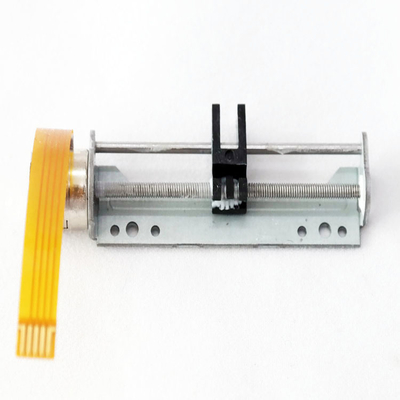

VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable 1
Technical Details
MODEL VSM10152
MAX. STARTING FREQUENCY 1000 PPS min. (AT 3.3 V DC)
MAX. SLEWING FREQUENCY 1200 PPS min. (AT 3.3 V DC)
PULL IN TORQUE 3.5 gf-cm min. (AT 500 PPS, 3.3V DC)
PULL OUT TORQUE 4.5gf-cm min. (AT 500 PPS, 3.3V DC)
INSULATION CLASS CLASS E FOR COILS
INSULATION STRENGTH 100V AC FOR ONE SECOND
INSULATION RESISTENCE 50 MΩ (DC 100 V)
OPERATING TEMPERATURE RANGE -20~+℃
OEM & ODM SERVICE AVAILABLE

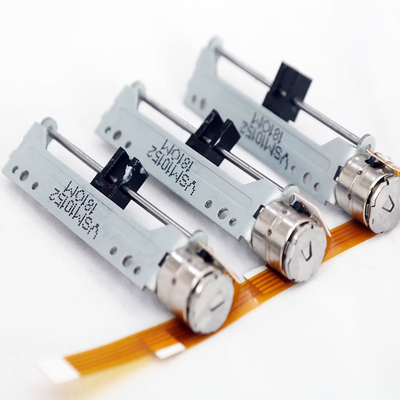

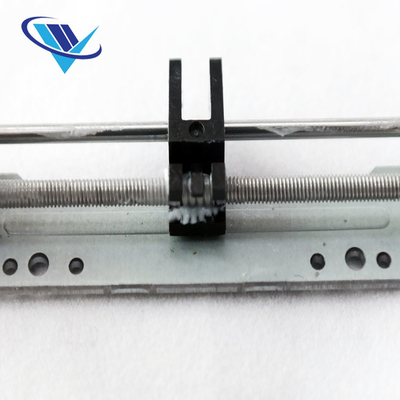

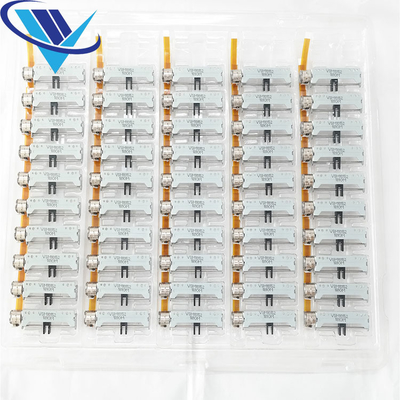

VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable 2 VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable 3 VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable 4 VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable 5

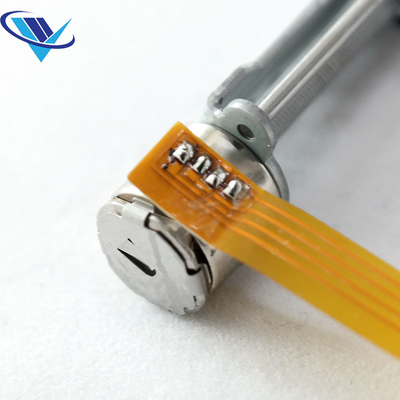

Wire Connection Options
Motor input method with Pin type, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable 6 VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable 7
About Manufacturer
Changzhou Vic-Tech Motor Technology Ltd. is a professional manufacturer and scientific research institution, dedicated to brushless motor development, motor application solutions, and motor processing and manufacturing. Located in Changzhou, Jiangsu Province (known as 'City of Chinese Micro Motor'), with convenient transportation access to major cities.
VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable 8
Frequently Asked Questions
1. How about the quality of your products?
We maintain high quality standards with less than 1% product complaints. Any issues under warranty are addressed immediately.
2. Are you a manufacturer?
Yes, we are a direct manufacturer with our own factory in Changzhou, China, specializing in stepper motor production and export.
VSM10152 3.3V 10mm Micro Stepper Motor 2 Phase 4 Wire with FPC Cable 9
