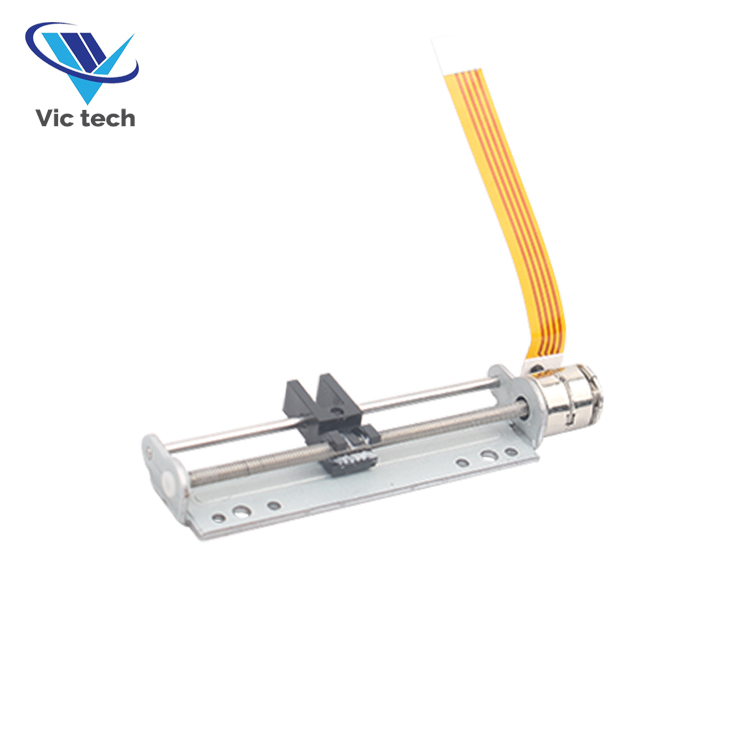

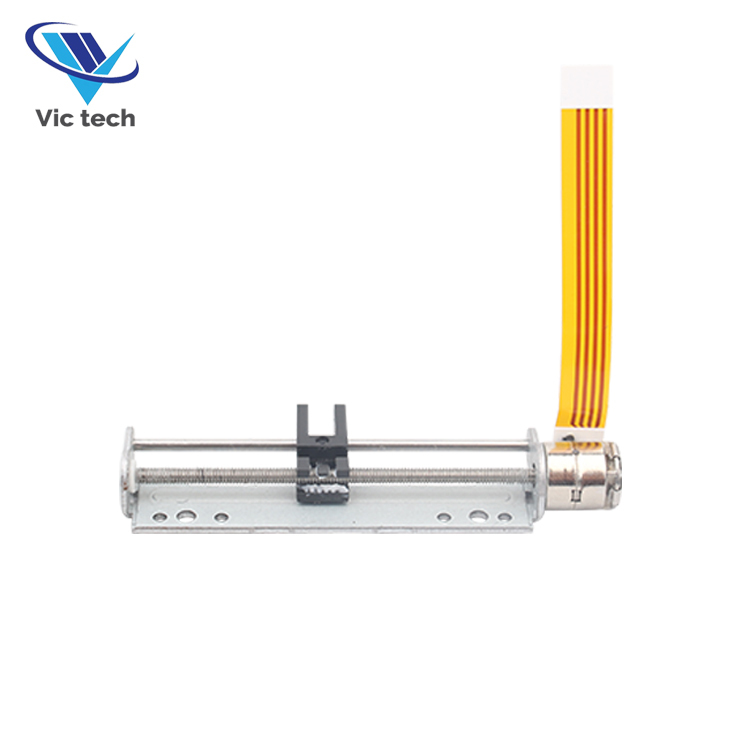

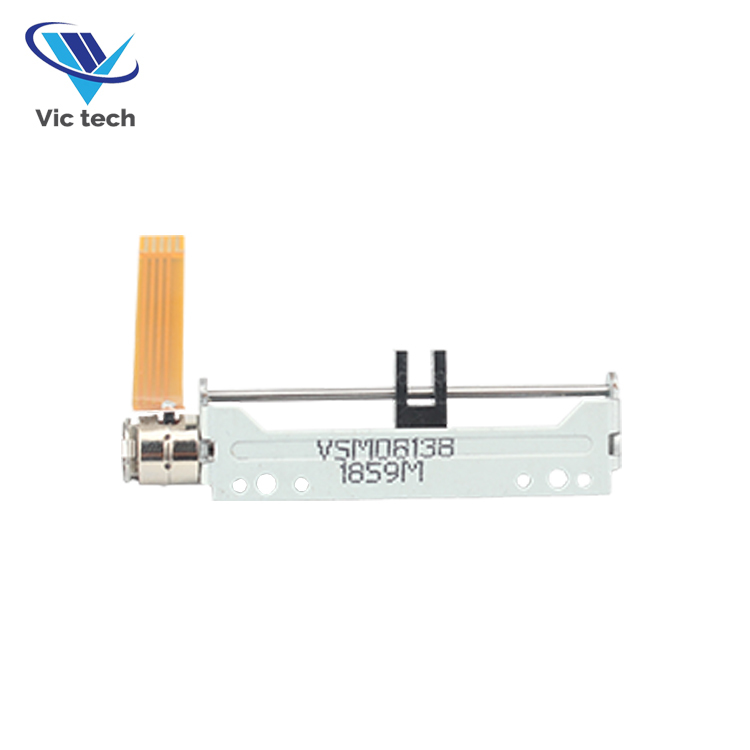

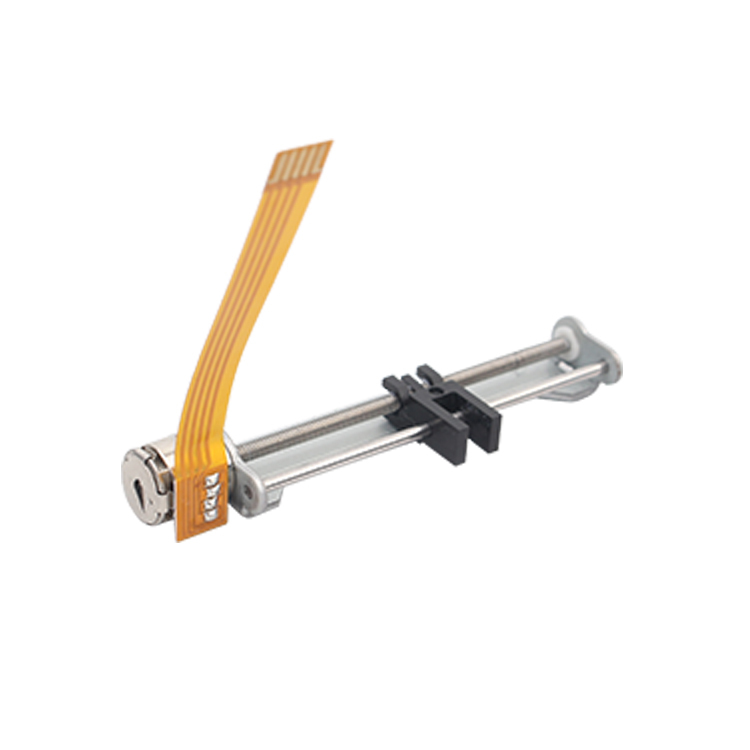

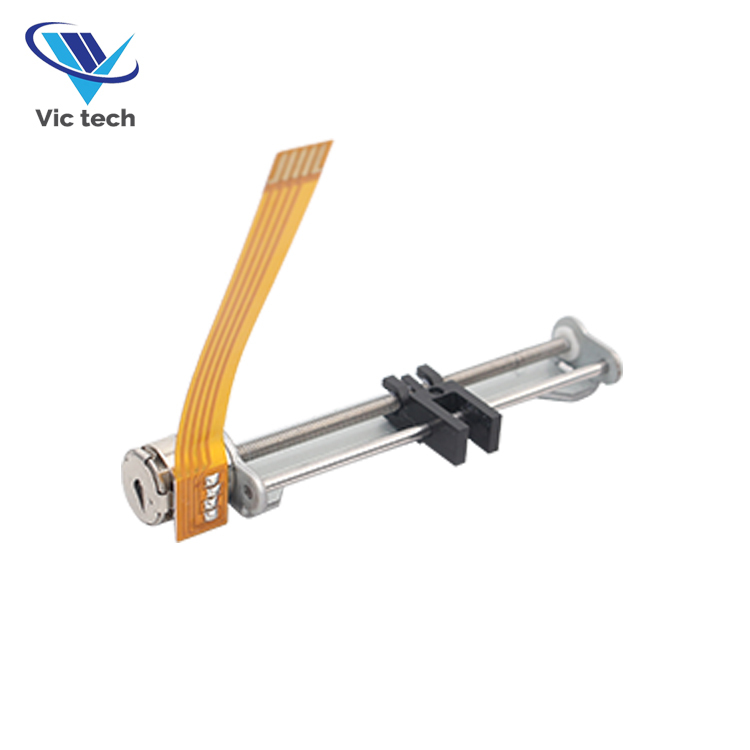

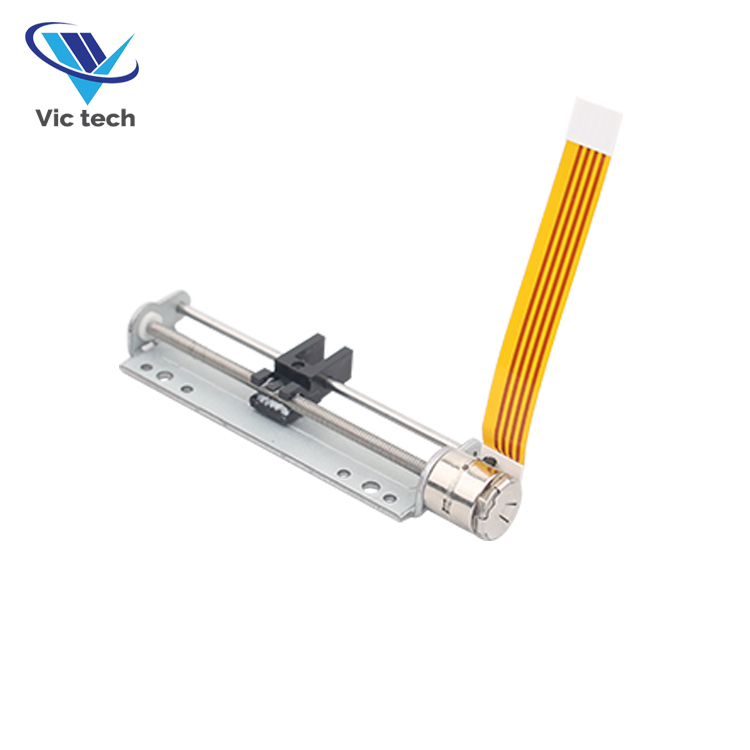

8mm Micro Linear Stepper Motor 3.3V DC with Bracket
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Vic-tech |
| Certification | rohs |
| Model Number | VSM08138 |
| Minimum Order Quantity | 1 |
| Price | US$2.25-7 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2, 2 | Type | Permanent Magnet |
|---|---|---|---|
| Current Per Phase | 0.2A | Rated Voltage | 3.3V DC |
| Coil Resistance | 16Ω±10% | Step Angle | 18° |
| Screw Pitch | 0.4mm | Displacement Resolution | 0.02mm |
| Max Starting Frequency | 800 PPS Min. (AT 3.3V DC) | Max Slewing Frequency | 1200 PPS Min. (AT 3.3V DC) |
| Pull In Torque | 1.5 Gf-cm Min. (AT 500 PPS, 3.3V DC) | Pull Out Torque | 2.0 Gf-cm Min. (AT 500 PPS, 3.3V DC) |
| Insulation Strength | 100 V AC For One Second | Insulation Resistance | 1 MΩ (DC 100V) |
| Operating Temperature | -20 ~ +70 ℃ | ||
| Highlight | 8mm micro linear stepper motor,3.3V DC stepper motor with bracket,micro stepper motor with bracket |
||
Product Description
VSM08138 8mm Micro Slider Linear Stepper Motor 3.3V DC Screw Motor with Bracket Stepping Motor
Product Specifications
| Attribute | Value |
|---|---|
| Phase | 2, 2 |
| Type | Permanent Magnet |
| Current / Phase | 0.2A |
| Rated Voltage | 3.3V DC |
| Coil Resistance | 16Ω±10% |
| Step angle | 18° |
The VSM08138 is a precision micro stepper motor featuring an output shaft with a 0.4mm pitch screw. The screw mechanism converts rotational motion into linear thrust, achieving precise control with a displacement resolution of 0.02mm (20 steps per revolution).
Key Features
- Compact size with high precision control
- 18° basic step angle with 0.02mm displacement resolution
- Subdivision drive capability for enhanced performance
- Versatile input options: FPC, pin connectors, PCB, or lead wires
- Customizable mounting bracket configurations
- Ideal for cameras, optical instruments, medical devices, and automatic door locks
Technical Parameters
| Max. Starting Frequency | 800 PPS min. (at 3.3V DC) |
| Max. Slewing Frequency | 1200 PPS min. (at 3.3V DC) |
| Pull In Torque | 1.5 gf-cm min. (at 500 PPS, 3.3V DC) |
| Pull Out Torque | 2.0 gf-cm min. (at 500 PPS, 3.3V DC) |
| Insulation Class | Class E for coils |
| Operating Temperature | -20°C to +70°C |
Customization Options
The motor input method can be customized to include pin type, FPC, PCB, or lead wire configurations according to specific requirements. Mounting brackets can also be modified to suit application needs.
Manufacturer Information
Changzhou Vic-Tech Motor Technology Ltd. specializes in motor development and manufacturing, with ISO9001:2008 certified production facilities. Our engineering team provides customized solutions for mechanical structures, drive controls, and motor parameters.
Quality Assurance
Our products maintain a complaint rate below 1% with prompt support for any quality issues during the guarantee period. As direct manufacturers, we ensure consistent quality control throughout production.
