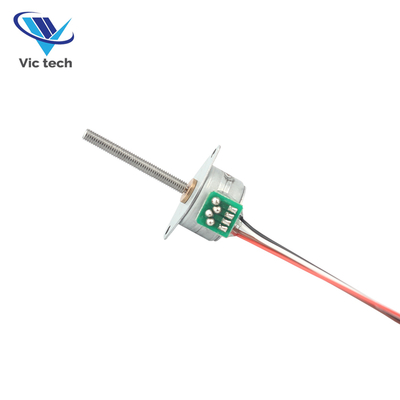

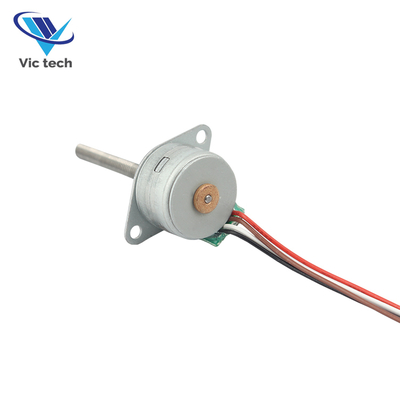

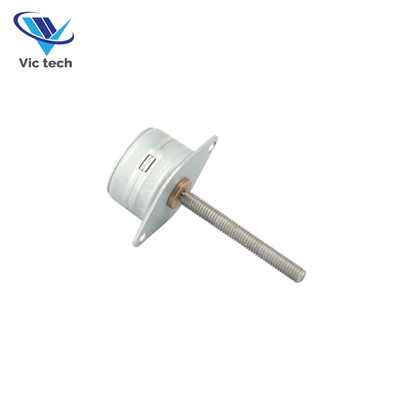

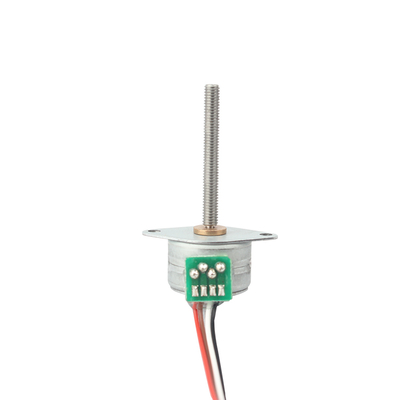

VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft

  • VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft
  • VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft
  • VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft
  • VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft
Place of Origin Jiangsu, China
Brand Name VIC_TECH
Certification rohs
Model Number VSM1519
Minimum Order Quantity 1
Price $2.50-5

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2 Type Permanent Magnet
Current Per Phase 0.3A Voltage 3V
Resistance 15 Ω±7% Speed 3000rpm
Step Angle 18 Degrees Steps Per Revolution 20
Displacement Resolution 0.025mm Max Starting Frequency 500 PPS Min. (AT 3.0 V DC)
Max Slewing Frequency 560 PPS Min. (AT 3.0 V DC) Pull In Torque 5 Gf-cm Min. (AT 200PPS , 3.0V DC)
Pull Out Torque 6 Gf-cm Min. (AT 200 PPS , 3.0V DC) Insulation Strength 100V AC For One Second
Operating Temperature -15~+55 ℃
Highlight

15mm micro stepper motor

,

2 phase stepper motor with screw shaft

,

3V 0.3A micro stepper motor
Leave a Message
Product Description
VSM1519 5V 15mm Stepper Motor
2 Phase 4 Wire 18° Permanent Magnet Stepper Motor with Screw Shaft
Product Specifications
Attribute Value
Phase 2
Type Permanent Magnet
Current / Phase 0.3A
Voltage 3V
Rotation CW/CCW
Resistance 15 Ω±7%
Speed 3000rpm
Product Overview
VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft 0 VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft 1

The VSM1519 is a precision micro stepper motor that converts rotary motion into linear movement through an integrated M3 screw shaft, generating thrust for direct actuator applications.

With a basic step angle of 18° (20 steps per revolution), this motor achieves exceptional displacement resolution of 0.025mm for precision control applications.

Key Features
  • Compact 15mm size with high precision control
  • Simple control interface with 2-phase, 4-wire configuration
  • Integrated screw shaft for direct linear motion conversion
  • Customizable input connection options (Pin, FPC, PCB, Lead wire)
  • Ideal for high-speed, small-load applications
Technical Specifications
Parameter Value
Max. Starting Frequency 500 PPS min. (AT 3.0 V DC)
Max. Slewing Frequency 560 PPS min. (AT 3.0 V DC)
Pull In Torque 5 gf-cm min. (AT 200PPS, 3.0V DC)
Pull Out Torque 6 gf-cm min. (AT 200 PPS, 3.0V DC)
Insulation Class CLASS E for coils
Operating Temperature -15°C to +55°C
Customization Options
Fixture Cover Types
VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft 2

Standard models shown, with custom sizes available upon request.

Wire Connection Types
VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft 3

Available in Pin type, FPC, PCB, or Lead wire configurations - customizable to meet specific requirements.

Shaft Types
VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft 4 VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft 5 VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft 6
  • Round Type: DIA 3mm, 4mm, 5mm
  • D-cut Type: DIA3-D2.5, DIA4-D3, etc.
  • Screw Type: M3, M4, M5 series
  • Trapezoid Type
  • I-cut Type: DIA3-I2, DIA4-I3
  • Special Types: Shaft with hole, etc.
Applications

This micro stepper motor is ideal for:

  • Camera lenses and optical instruments
  • Surveillance systems
  • Precision medical equipment
  • Automatic door locks
  • Other high-speed, small-load applications
Manufacturer Information

Changzhou Vic-Tech Motor Technology Ltd. is a professional manufacturer and research institution specializing in brushless motor development, motor application solutions, and motor manufacturing.

With over a decade of experience in micro motor design and production, our team of professional engineers can develop customized solutions to meet specific application requirements.

VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft 7 VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft 8
Quality Assurance

Q: How about the quality of your products?

A: We maintain exceptional quality standards with customer complaint rates below 1%. All products are backed by comprehensive support.

Q: Are you a manufacturer?

A: Yes, we operate our own ISO9001:2008 certified manufacturing facilities in Changzhou, Shenzhen, and Dongguan.

VSM1519 15mm 2 Phase Micro Stepper Motor 3V 0.3A with Screw Shaft 9
