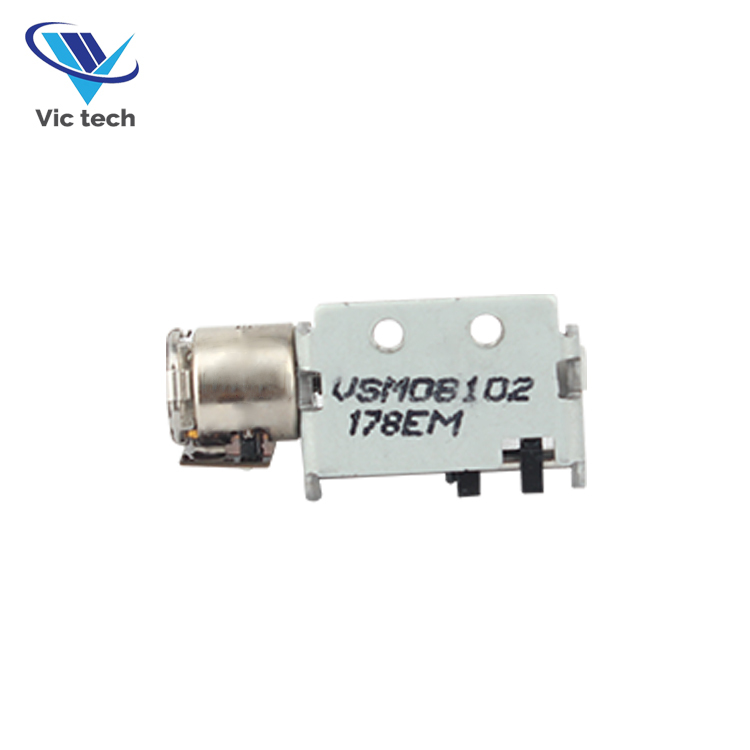

VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses

  • VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses
  • VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses
  • VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses
Place of Origin Jiangsu, China
Brand Name Vic-tech
Certification rohs
Model Number VSM08102
Minimum Order Quantity 1
Price $3-7

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2, 2 Type Permanent Magnet
Current Per Phase 150 MA Rated Voltage 3.3V
Coil Resistance 20Ω±10% Step Angle 18
Size DIA8*L24mm Max Starting Frequency 800 PPS Min. (AT 5.0 V DC)
Max Slewing Frequency 2000 PPS Min. (AT 5.0 V DC) Pull In Torque 1.5 Gf-cm Min. (AT 500 PPS , 3.3V DC)
Pull Out Torque 2.0 Gf-cm Min. (AT 500 PPS , 3.3V DC) Insulation Class CLASS E FOR COILS
Insulation Strength 100 V AC FOR ONE SECOND Insulation Resistance 1.0 MΩ (DC 100 V)
Operating Temperature -10 ~+60 ℃
Highlight

8mm micro stepper motor

,

3.3V stepper motor for camera lenses

,

micro stepper motor with warranty
Leave a Message
Product Description
VSM08102 5v 8mm Micro Stepper Motor for Camera Lenses and Door Locks
Product Specifications
Attribute Value
Phase 2, 2
Type Permanent Magnet
Current / Phase 150 mA
Rated Voltage 3.3V
Coil Resistance 20Ω±10%
Step angle 18°
Size DIA8*L24mm
VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses 0 VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses 1

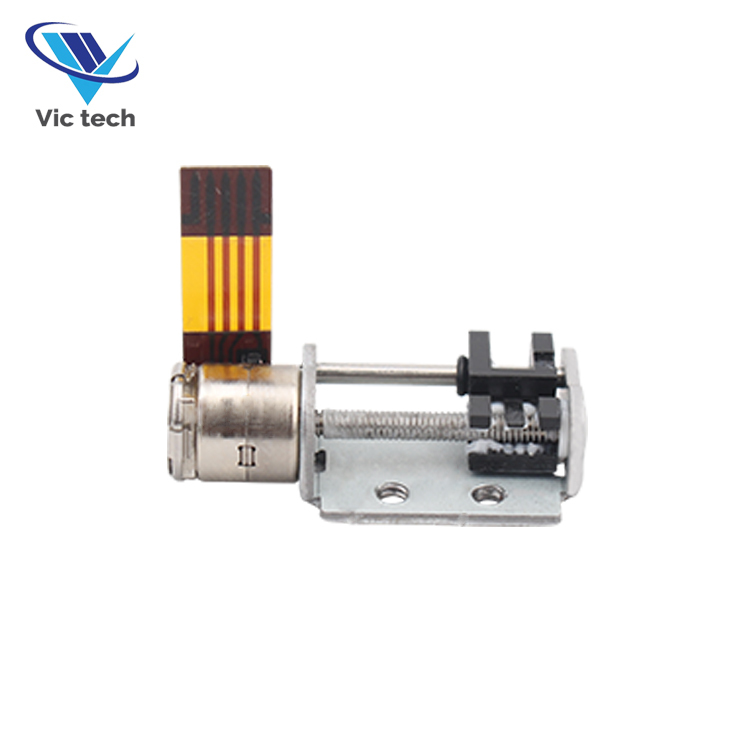

This precision stepper motor features a bracket and guide system (the guide moves when the motor rotates). The moving speed can be controlled by pulse frequency, while the moving distance is controlled by pulse number. For this motor model, when driving 2-2 phase, each pulse moves the guide by 0.02 mm.
Technical Parameters
PRODUCT NAME 8MM MICRO STEPPING MOTOR LENS
MODEL VSM08102
RATED VOLTAGE 3.3V
COIL RESISTANCE 20 Ω±10%
PHASE 2 PHASE
MAX. STARTING FREQUENCY 800 PPS min. (AT 5.0 V DC)
MAX. SLEWING FREQUENCY 2000 PPS min. (AT 5.0 V DC)
PULL IN TORQUE 1.5 gf-cm min. (AT 500 PPS , 3.3V DC)
PULL OUT TORQUE 2.0 gf-cm min. (AT 500 PPS , 3.3V DC)
INSULATION CLASS CLASS E FOR COILS
INSULATION STRENGTH 100 V AC FOR ONE SECOND
INSULATION RESISTENCE 1.0 MΩ (DC 100 V)
OPERATING TEMPERATURE RANGE -10 ~+60 ℃
ENVIRONMENTAL CONDITIONS USING SCREW GREASE -40 ~+90 ℃
OEM & ODM SERVICE AVAILABLE
VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses 2
Product Details
The VSM08102 is an 8mm stepping motor designed specifically for camera lens applications, offering precise movement control in compact spaces.
Basic Drawing
VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses 3
Wire Connection Types

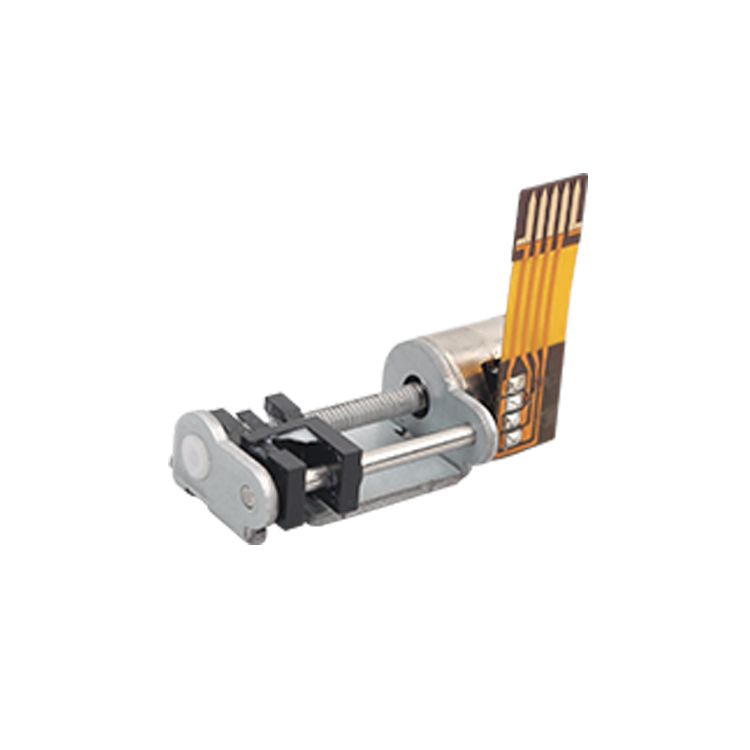

Motor input methods include Pin type, FPC, PCB, and Lead wire options. These can be customized according to customer requirements.
VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses 4 VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses 5 VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses 6
About Changzhou Vic-Tech Motor Technology Ltd.
We are a professional manufacturer and scientific research institution specializing in brushless motor development, motor application solutions, and motor processing. Located in Changzhou, Jiangsu Province (known as the 'City of Chinese Micro Motor'), we benefit from convenient logistics and transportation networks.
With decades of motor research and development experience, we maintain a team of professional engineers and electrical experts capable of designing new products and providing customized solutions for mechanical structures, drive controls, and motor parameters. Our four manufacturing facilities in Shenzhen, Changzhou, and Dongguan produce stepper motors, permanent-magnet motors, micro motors, and DC motors, all ISO9001:2008 certified.
VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses 7 VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses 8
Frequently Asked Questions
1. How about the quality of products in your company?
Our products maintain high quality standards and receive positive feedback worldwide. We provide immediate support for any issues under warranty, with a typical product complaint rate below 1%.
2. Are you a manufacturer?
Yes, we are a direct manufacturer with our own factory in Changzhou, China. We specialize in producing and exporting various motor types including this micro stepper motor series.
VSM08102 8mm Micro Stepper Motor 3.3V for Camera Lenses 9
