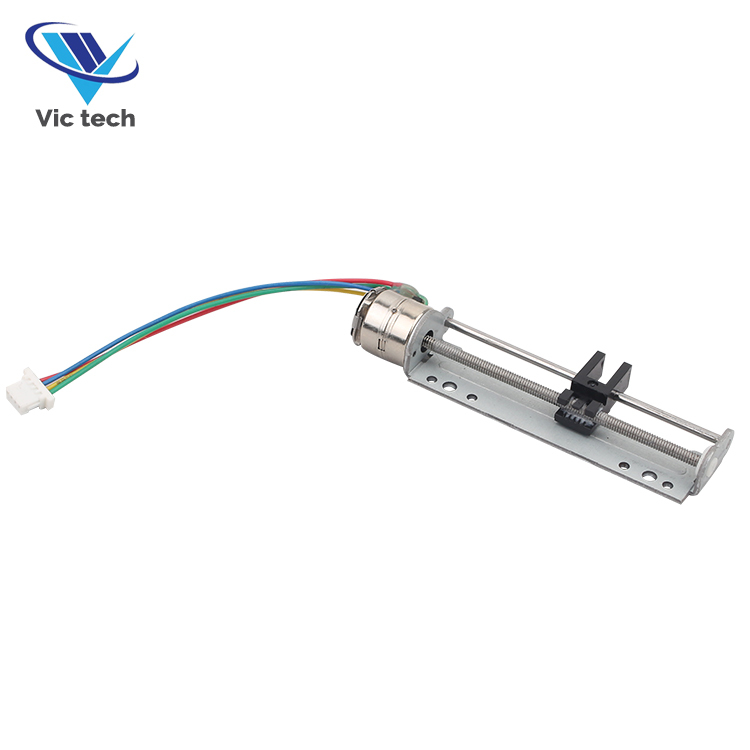

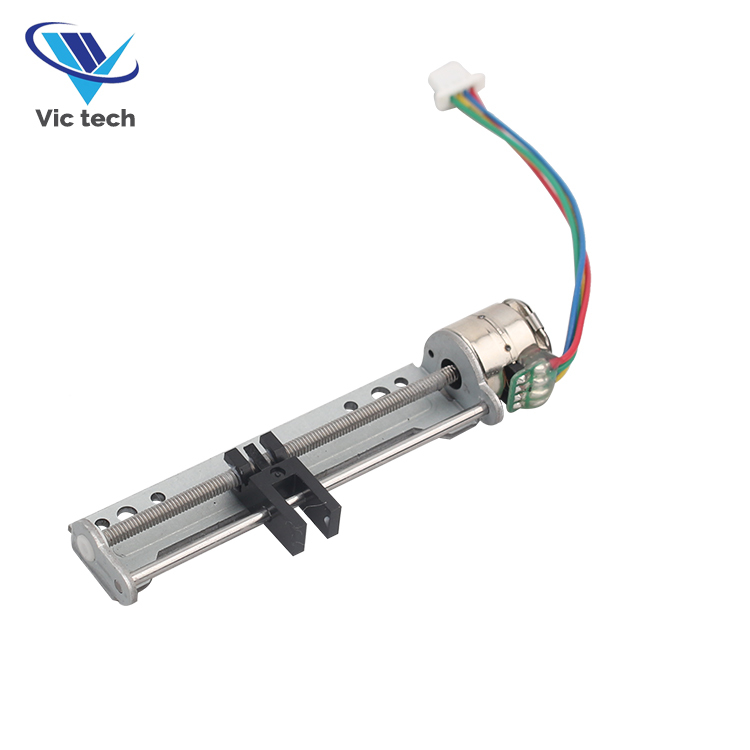

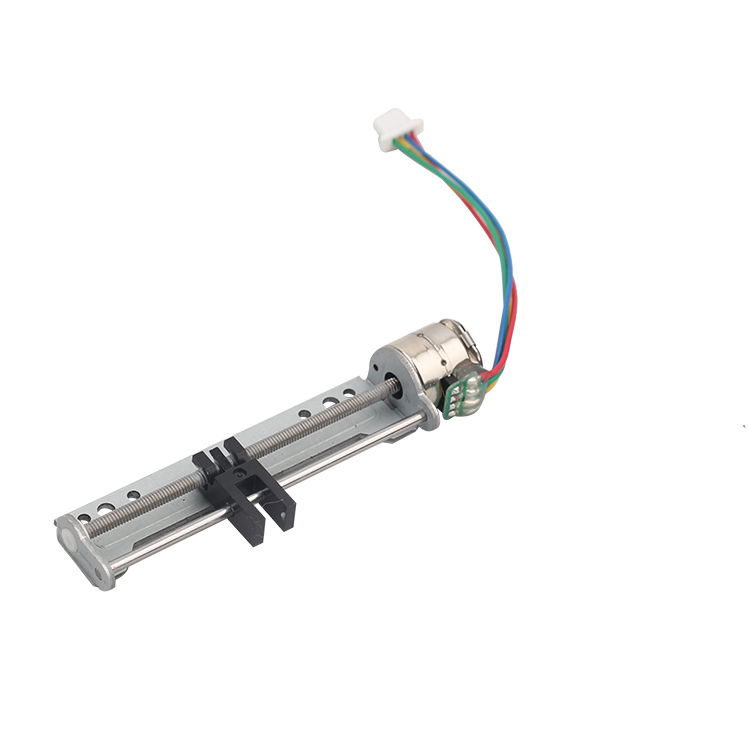

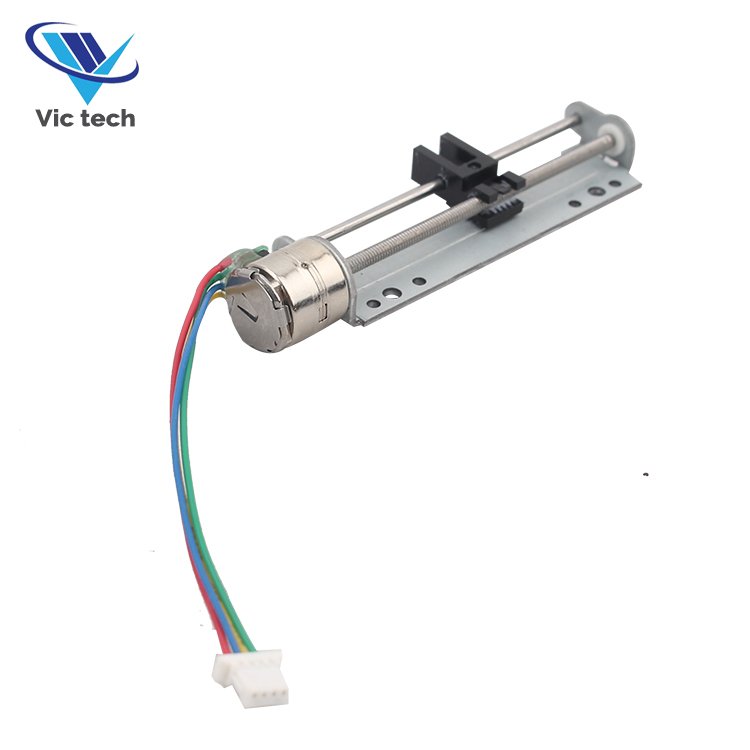

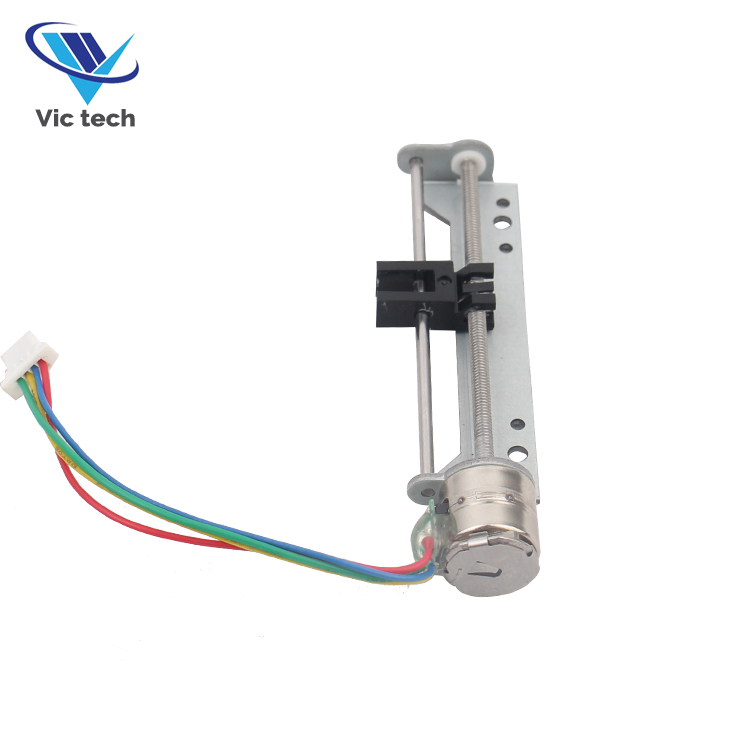

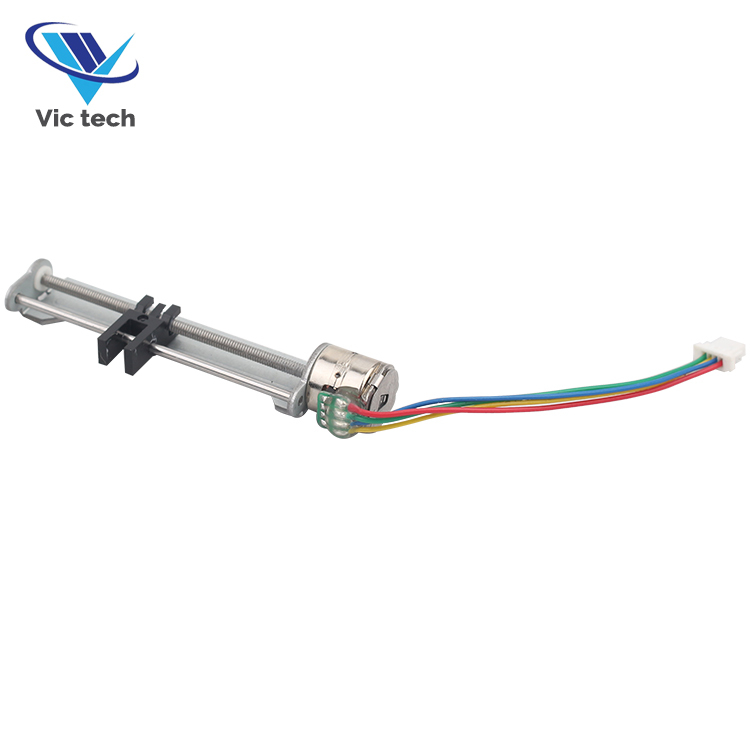

VSM10198 10mm Micro Linear Stepper Motor 3.3V 0.3A
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Vic-tech |
| Certification | RoHS |
| Model Number | VSM10198 |
| Minimum Order Quantity | 1 |
| Price | $2.20-7 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2, 2 | Motor Type | Permanent Magnet |
|---|---|---|---|
| Current Per Phase | 0.3A | Rated Voltage | 3.3V |
| Coil Resistance | 10Ω±10% | Step Angle | 18° |
| Max Starting Frequency | 1000 PPS Min. (AT 3.3 V DC) | Max Slewing Frequency | 1200 PPS Min. (AT 3.3 V DC) |
| Pull In Torque | 3.5gf-cm Min. (AT 500 PPS , 3.3V DC) | Pull Out Torque | 4.5gf-cm Min. (AT 500 PPS , 3.3V DC) |
| Insulation Class | CLASS E FOR COILS | Insulation Strength | 300 V AC FOR ONE SECOND |
| Insulation Resistance | 50 MΩ (DC 100 V) | Operating Temperature | -20 ~+70 ℃ |
| Screw Pitch | 0.4mm | ||
| Highlight | 10mm micro linear stepper motor,3.3V micro stepper motor,0.3A linear stepper motor |
||
Product Description
VSM10198 10mm Micro Slider Screw Stepper Motor
5VDC Mini Linear Stepper Motor with Camera Lens Motor
| Attribute | Value |
|---|---|
| Warranty | 3months-1year |
| Phase | 2, 2 |
| Type | Permanent Magnet |
| Current / Phase | 0.3A |
| Rated Voltage | 3.3V |
| Coil Resistance | 10Ω±10% |
| Step angle | 18° |
Product Description
The VSM10198 is a precision micro stepper motor featuring an output shaft with a 0.4mm pitch screw. The screw mechanism converts rotational motion into linear thrust, enabling precise positioning.
With a basic step angle of 18°, the motor completes 20 steps per revolution, achieving a displacement resolution of 0.02mm for exceptional control accuracy. The actuator utilizes subdivision drive technology for smooth operation.
This compact, high-precision motor is ideal for applications including cameras, optical instruments, lenses, precision medical devices, and automatic door locks. The motor input features FPC connectivity, with options for pin connectors, PCB, or lead wires based on customer requirements. Mounting brackets can also be customized.
Technical Specifications
| Product Name | 10MM MICRO LINEAR STEPPER MOTOR |
| Model | VSM10198 |
| Max. Starting Frequency | 1000 PPS min. (AT 3.3 V DC) |
| Max. Slewing Frequency | 1200 PPS min. (AT 3.3 V DC) |
| Pull In Torque | 3.5gf-cm min. (AT 500 PPS, 3.3V DC) |
| Pull Out Torque | 4.5gf-cm min. (AT 500 PPS, 3.3V DC) |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 300 V AC FOR ONE SECOND |
| Insulation Resistance | 50 MΩ (DC 100 V) |
| Operating Temperature Range | -20 ~ +70 ℃ |
| OEM & ODM Service | Available |
Motor Drawings
Connection Options
Motor input methods include Pin type, FPC, PCB, or lead wire configurations. These can be customized to meet specific customer requirements.
About Changzhou Vic-Tech Motor Technology Ltd.
We are a professional manufacturer and research institution specializing in brushless motor development, motor application solutions, and motor processing. Located in Changzhou, Jiangsu Province (known as the 'City of Chinese Micro Motor'), our facility benefits from excellent transportation links and proximity to major cities.
With decades of experience in motor research and development, we maintain a team of experienced engineers and electrical experts capable of designing new products and providing customized solutions. Our four manufacturing facilities in Shenzhen, Changzhou, and Dongguan produce stepper motors, permanent-magnet motors, micro motors, and DC motors, all ISO9001:2008 certified.
Frequently Asked Questions
1. How about the quality of your products?
We maintain high-quality standards with positive feedback from global clients. Our product complaint rate remains below 1%. For any issues under warranty, we provide immediate assistance.
2. Are you a manufacturer?
Yes, we are a direct manufacturer with our own factory in Changzhou, China. We specialize in producing and exporting various motor products and welcome your inquiries.
