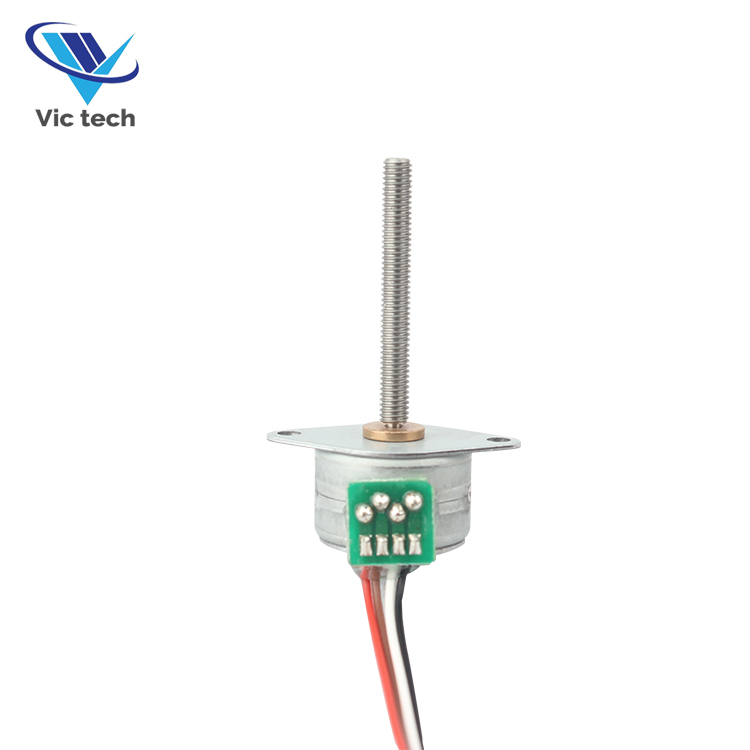

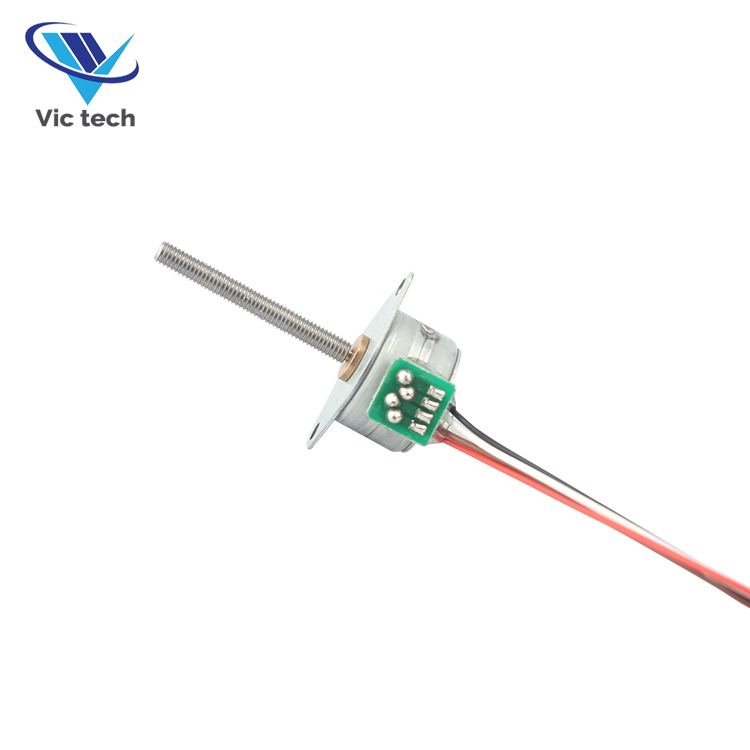

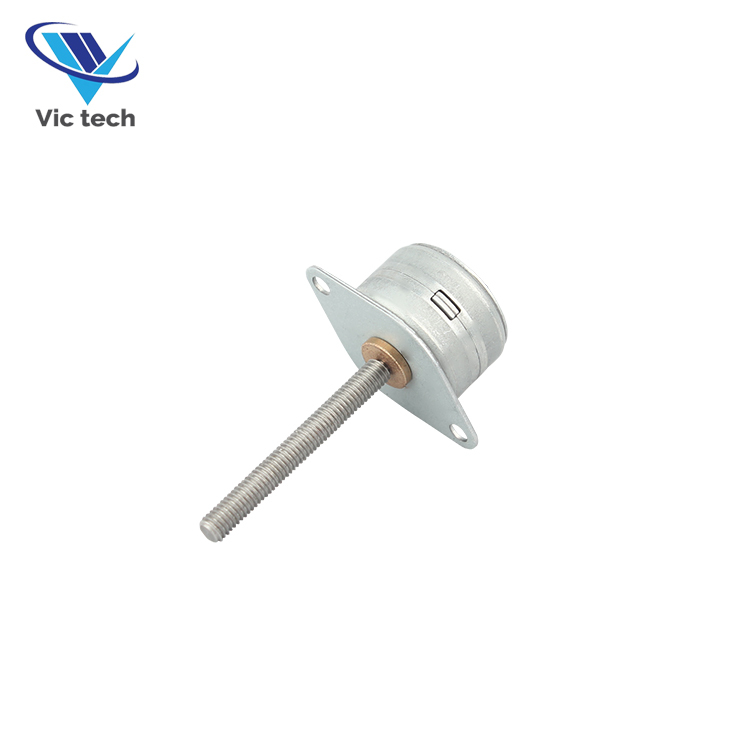

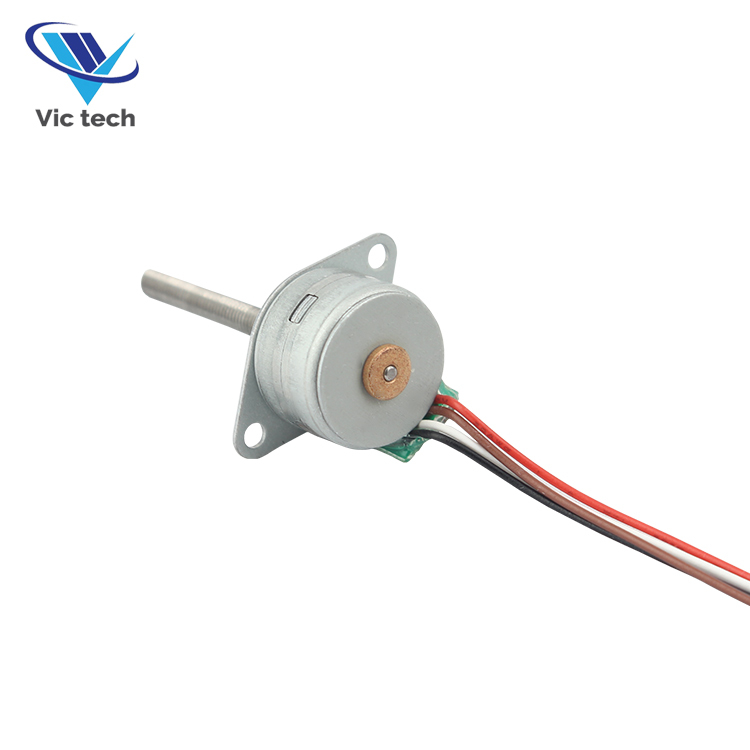

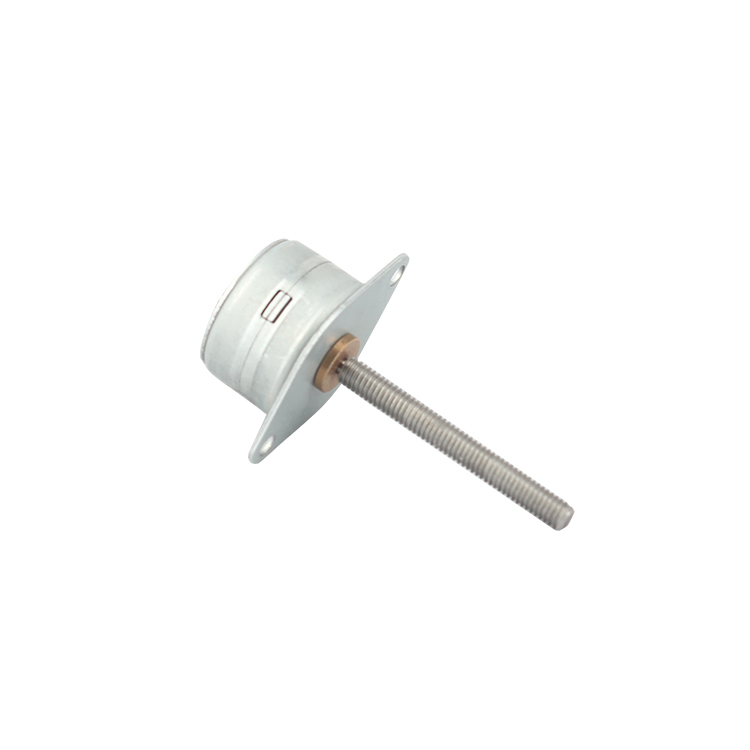

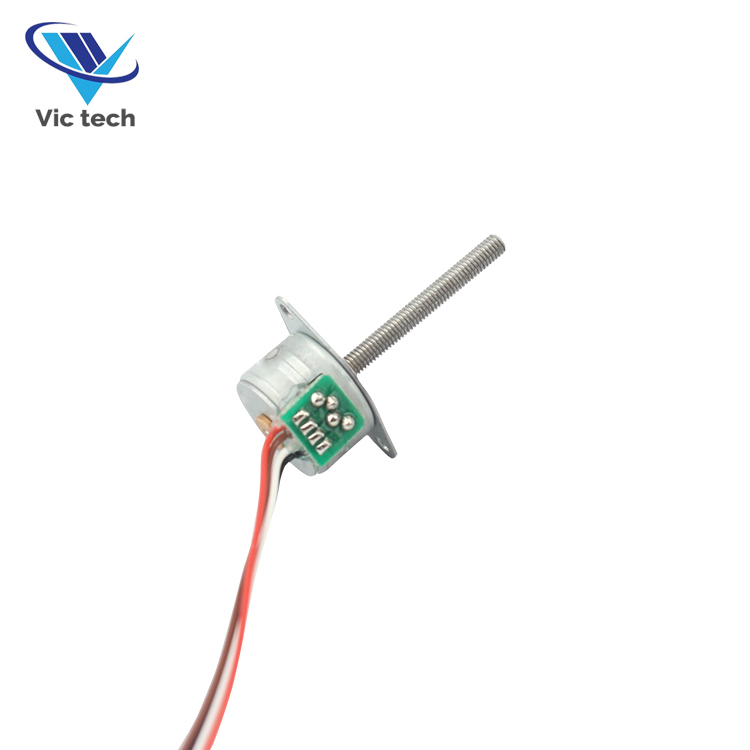

VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A

  • VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A
  • VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A
  • VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A
  • VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A
  • VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A
  • VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A
Place of Origin Jiangsu, China
Brand Name VIC_TECH
Certification rohs
Model Number VSM1519
Minimum Order Quantity 1
Price $1.50-5

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2 Type Permanent Magnet
Current Per Phase 0.3A Voltage 3V
Resistance 15 Ω±7% Speed 3000rpm
Max Starting Frequency 500 PPS Min. (AT 3.0 V DC) Max Slewing Frequency 560 PPS Min. (AT 3.0 V DC)
Pull In Torque 5 Gf-cm Min. (AT 200PPS , 3.0V DC) Pull Out Torque 6 Gf-cm Min. (AT 200 PPS , 3.0V DC)
Insulation Strength 100V AC For One Second Insulation Resistance 50MΩ (DC 500V)
Operating Temperature -15~+55 ℃ Step Angle 18 Degrees
Displacement Resolution 0.025mm
Highlight

15mm micro stepper motor

,

2-phase stepper motor 3V

,

0.3A micro stepper motor
Leave a Message
Product Description
VSM1519 5V Micro Stepper Motor 15mm PM Linear Screw Motor
VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 0 VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 1
Product Specifications
Attribute Value
Phase 2
Type Permanent Magnet
Current / Phase 0.3A
Voltage 3V
Rotation CW/CCW
Resistance 15 Ω±7%
Speed 3000rpm
Product Description
The VSM1519 is a precision micro stepper motor that converts rotary motion into linear movement using an M3 screw, generating thrust for direct use as an actuator. With a basic step angle of 18 degrees (20 steps per revolution), it achieves a displacement resolution of 0.025mm for precise control applications.
Key Features
  • Compact size with high precision control
  • Ideal for high-speed, small-load applications
  • Multiple input connection options (Pin, FPC, PCB, Lead wire)
  • Customizable drive systems available
  • Wide operating temperature range (-15°C to +55°C)
Technical Specifications
Model VSM1519
Max. Starting Frequency 500 PPS min. (AT 3.0 V DC)
Max. Slewing Frequency 560 PPS min. (AT 3.0 V DC)
Pull In Torque 5 gf-cm min. (AT 200PPS, 3.0V DC)
Pull Out Torque 6 gf-cm min. (AT 200 PPS, 3.0V DC)
Insulation Class CLASS E for coils
Insulation Strength 100V AC for one second
Insulation Resistance 50MΩ (DC 500V)
Applications
This micro stepper motor is widely used in camera lenses, optical instruments, surveillance systems, precision medical equipment, automatic door locks, and other applications requiring compact, high-precision motion control.
VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 2 VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 3 VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 4 VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 5
Customization Options
We offer various customization options including different fixture covers and wire connection methods (Pin type, FPC, PCB, Lead wire) to meet specific application requirements.
VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 6 VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 7 VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 8
Our team has over 10 years of experience in micro motor design and manufacturing. We can develop custom solutions to meet your specific requirements, including complete drive systems.
Frequently Asked Questions
1. How about the quality of your products?
We maintain high-quality standards with a complaint rate below 1%. Any issues under warranty are addressed immediately.
2. Are you a manufacturer?
Yes, we are a direct manufacturer with factories in Changzhou, Shenzhen, and Dongguan, all ISO9001:2008 certified.
VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 9 VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 10
Changzhou Vic-Tech Motor Technology Ltd. is a professional manufacturer and research institution specializing in brushless motor development and motor application solutions. Located in Changzhou, Jiangsu Province (known as the 'City of Chinese Micro Motor'), we benefit from convenient logistics and transportation networks.
Our company features an experienced R&D team capable of designing custom solutions including mechanical structures, drive controls, and motor parameters. With four manufacturing facilities across China, we have the capacity to handle large orders while maintaining strict quality standards.
VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 11 VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 12 VSM1519 15mm 2-Phase Micro Stepper Motor 3V 0.3A 13
