3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm

  • 3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm
  • 3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm
  • 3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm
  • 3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm
  • 3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm
  • 3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm
Place of Origin Jiangsu, China
Brand Name Vic-Tech
Certification rohs
Model Number VSM0613
Minimum Order Quantity 1
Price $2-5

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2 Type Permanent Magnet
Current Per Phase 0.2A Voltage 3.3V
Rated Speed 3000rpm Power 3W
Fuselage Diameter 6mm Fuselage Length 7mm
Shaft Diameter 1mm Round Shaft Types DIA3mm, 4mm, 5mm
D-cut Shaft Types DIA3-D2.5, DIA4-D3 Screw Shaft Types M3, M4, M5
Wire Connection Pin Type, FPC, PCB, Lead Wire Axial Length Customizable
Output Devices Gear, Pulley, Worm, Screw
Highlight

3.3V micro stepper motor

,

6mm 2 phase stepper motor

,

4 wire stepper motor 3000rpm
Leave a Message
Product Description
Low Noise High Quality 3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire Stepper Motor
Product Specifications
Attribute Value
Phase 2
Type Permanent Magnet
Current / Phase 0.2A
Voltage 3.3V
Rated Speed 3000rpm
Power 3W
Product Features

This precision mini stepper motor features a 6mm fuselage diameter and 7mm fuselage length with 1mm shaft diameter. The axial length can be adjusted according to demand and can be equipped with various output devices including gears, pulleys, worms, and screws.

3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm 0
Shaft Types

Standard shaft types available with customization options based on user drawings. Contact customer service for more types.

3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm 1
  • Round Type: DIA3mm, 4mm, 5mm
  • D-cut Type: DIA3-D2.5, DIA4-D3 etc
  • Screw Type: M3, M4, M5 Serial
  • Trape Type
  • I-cut Type: DIA3-I2, DIA4-I3
  • Other Type: Shaft with a hole etc
Fixture Cover Types

Regular models shown below with special sizes available for customization.

3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm 2
Wire Connection Types

Motor input methods include Pin type, FPC, PCB, Lead wire etc. Customizable according to customer needs.

3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm 3

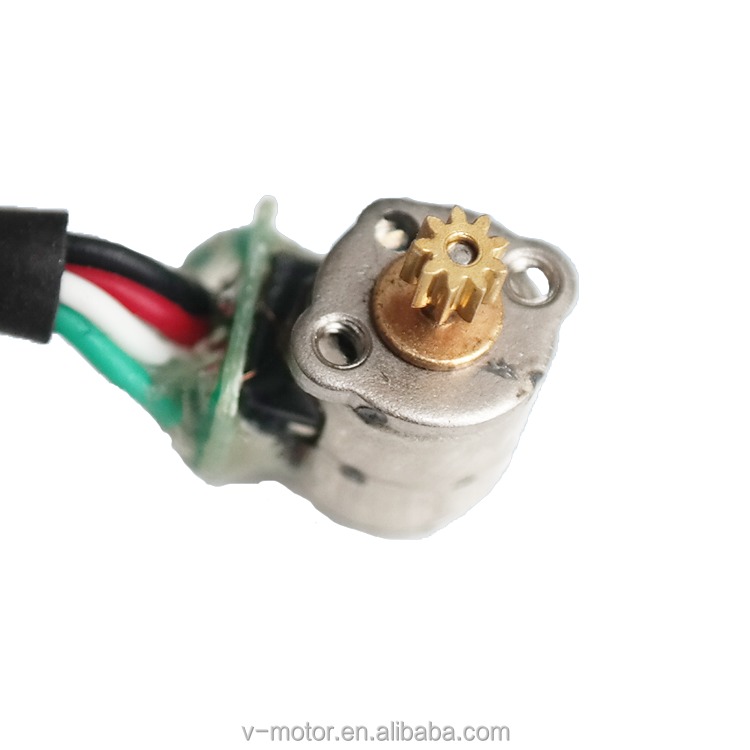

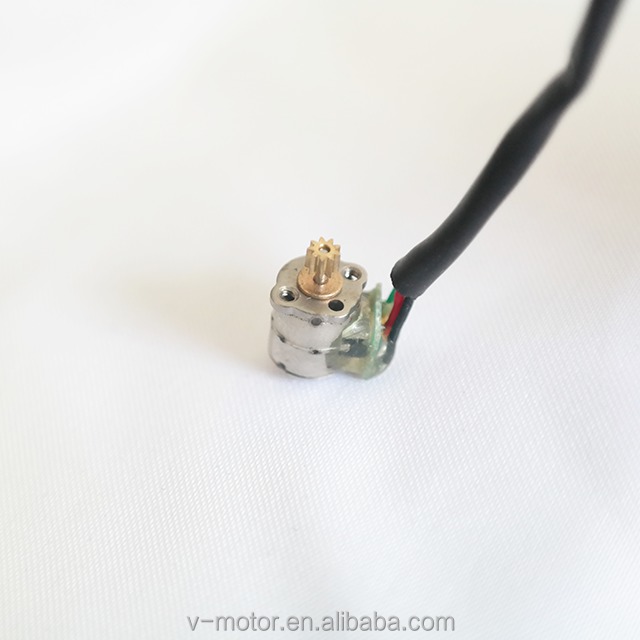

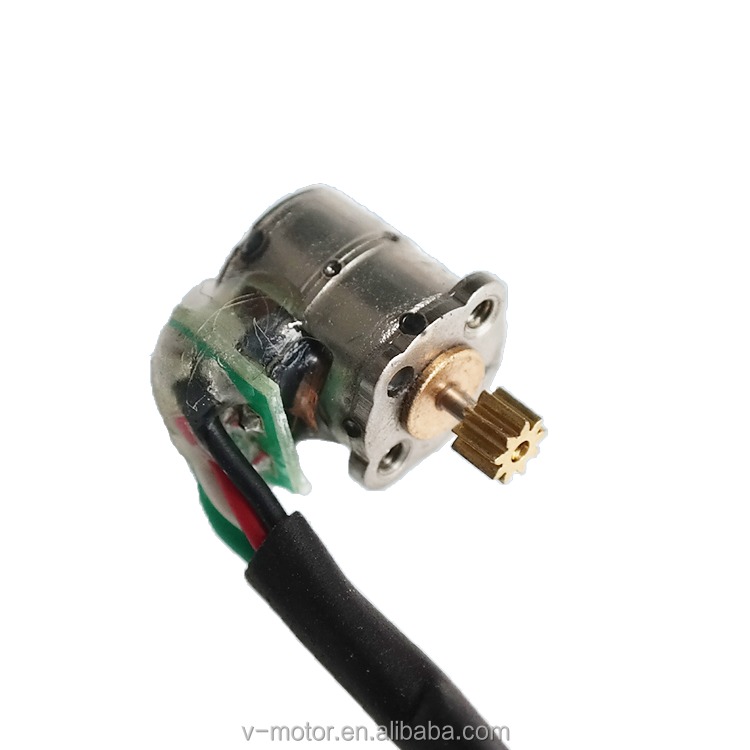

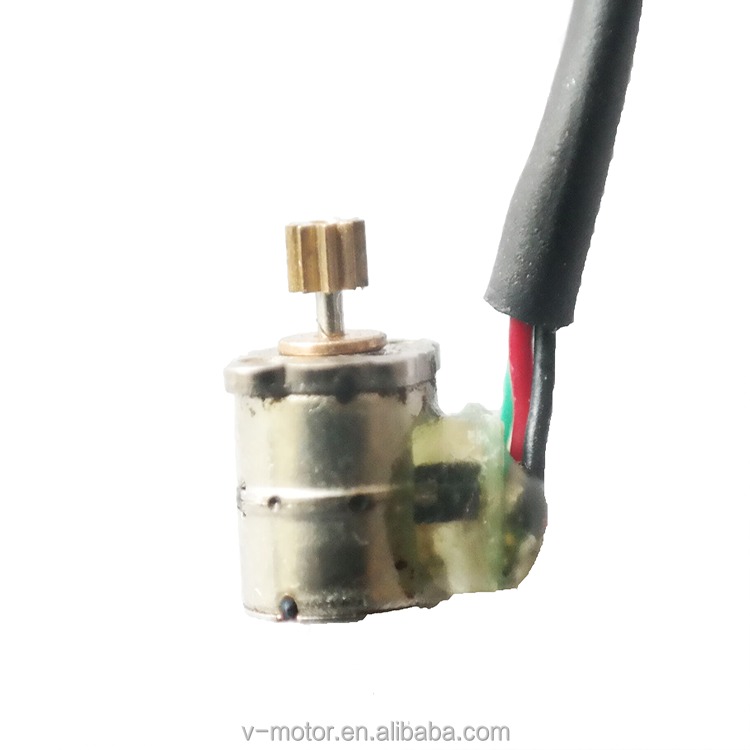

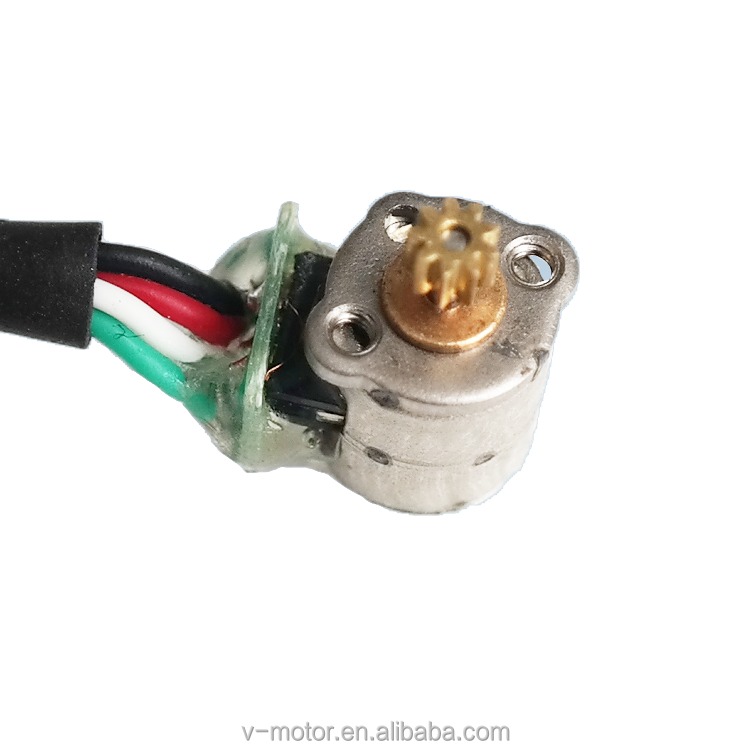

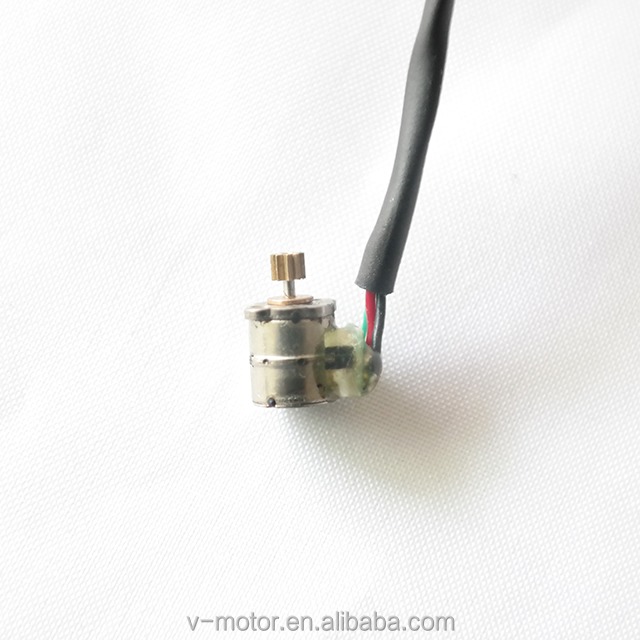

Product Detail Photos
3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm 4 3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm 5
Company Introduction

Changzhou Vic-Tech Motor Technology Co., Ltd. is a professional research and production institution focused on motor R&D, application solutions, and manufacturing.

Located in Changzhou City, Jiangsu Province, China, with convenient transportation access. The company has a strong R&D team with decades of experience in motor design and provides complete design solutions including mechanical structure, drive control, and motor parameters.

With ISO9000:2001 certified production facilities in Changzhou, Dongguan, and Shenzhen, the company specializes in hybrid stepping motors, permanent magnet stepper motors, and DC motor reducer boxes.

The company has developed customized solutions for various applications including electric actuators, planetary motor screw machines, gas valve control, textile machines, and medical devices.

3.3V 6mm Micro Stepper Motor 2 Phase 4 Wire 3000rpm 6
