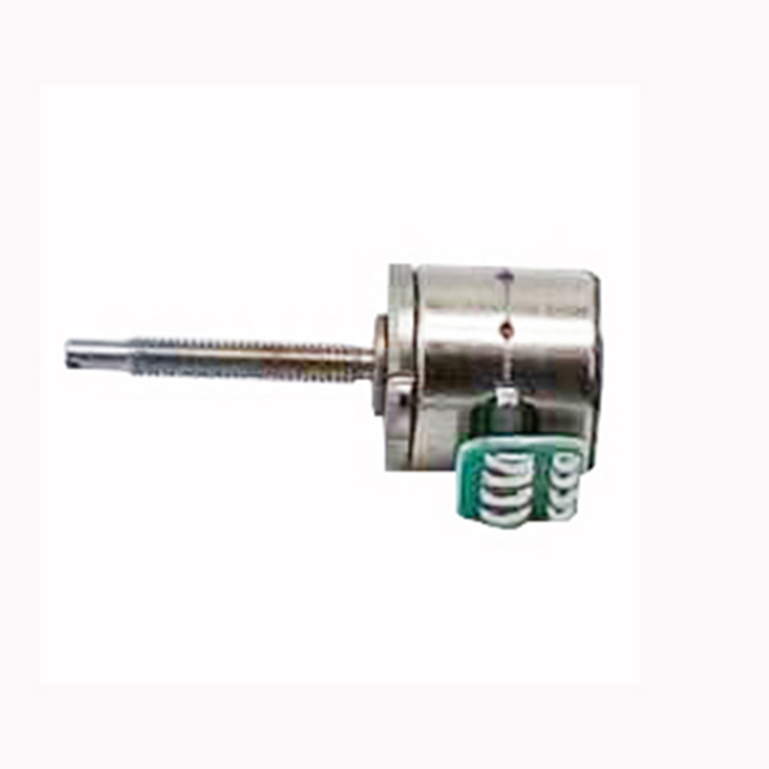

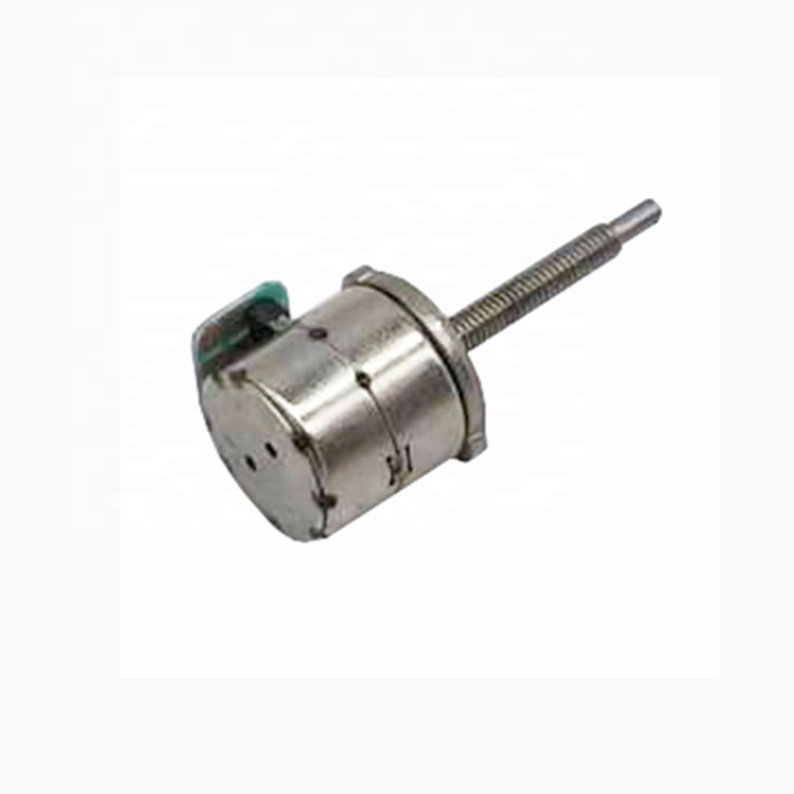

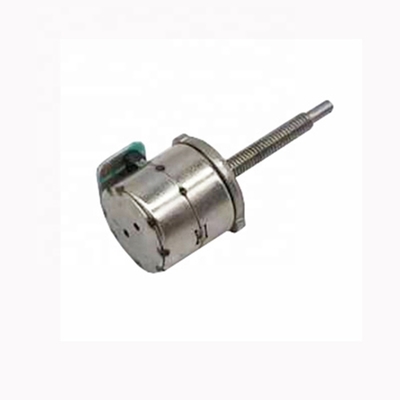

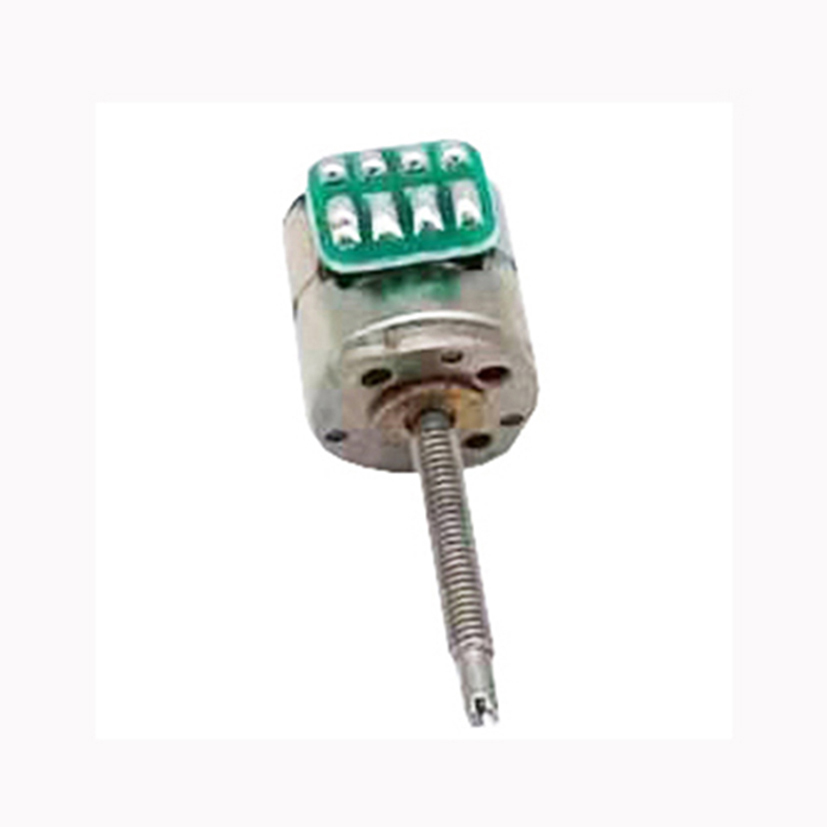

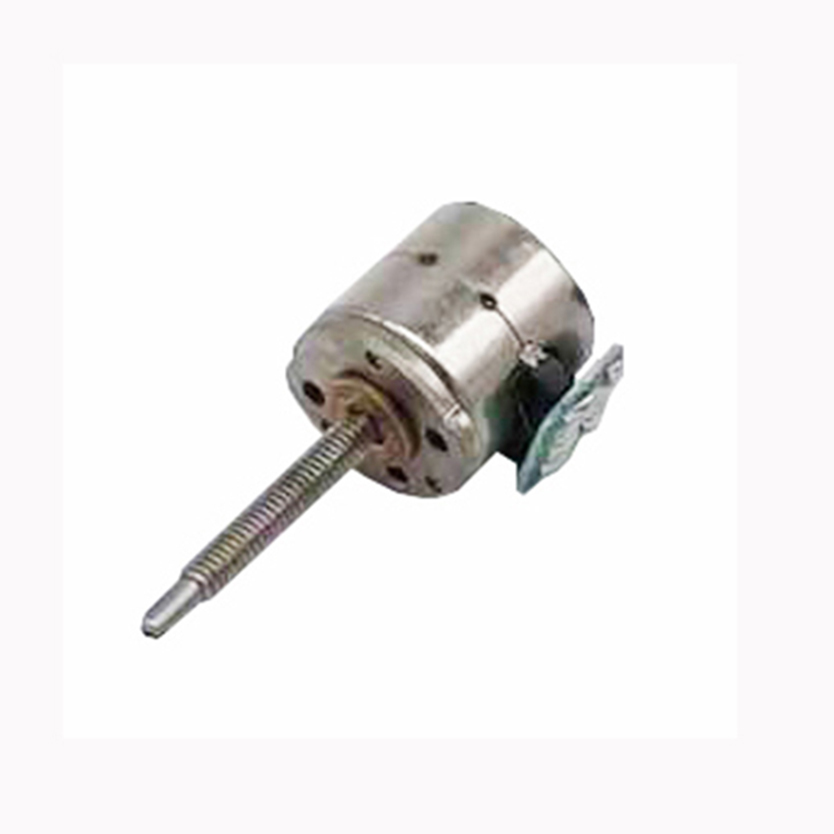

8mm 2 Phase Micro Stepper Motor 18 Degree Step Angle
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM08284 |
| Minimum Order Quantity | 5 |
| Price | $1.90-8 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diameter | 8mm | Rated Voltage | 5V DC |
|---|---|---|---|
| Coil Resistance | 16Ω±10% | No.Of Phases | 2 Phases |
| Step Angle | 18°/Step | Max Starting Frequency | 800 Pps Min.(AT 5.0 V DC) |
| Max Slewing Frequency | 2000 Pps Min.(AT 5.0 V DC) | Pull In Torque | 2.8 Gf-cm Min(AT 480 PPS,5.0 V DC) |
| Pull Out Torque | 3.8 Gf-cm Min(AT 480 PPS,5.0 V DC) | Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100V AC/1s 3mA Max | Insulation Resistance | 1mΩ(DC 100 V) |
| Operating Temperature Range | -30~70℃ | Current Per Phase | 270mA |
| Phase | 2 | ||
| Highlight | 8mm micro stepper motor,2 phase stepper motor,18 degree step angle motor |
||
Product Description
8mm Micro Stepper Motor 2 Phase 18 Degree Step Angle PM Stepper Motor
Product Attributes
| Attribute | Value |
|---|---|
| Warranty | Other |
| Phase | 2 |
| Type | / |
| Current / Phase | 270mA |
| Torque | / |
| Shaft Diameter | / |
| Voltage | / |
| Nema Frame Size | / |
Product Description
VSM08284 8mm micro stepper motor 2 phase 5V 18 degree step angle PM stepper motor.
Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers. Customer needs are our priority - please feel free to contact us!
Product Images
Design Layout (Unit: mm)
Specification
| PRODUCT NAME | VSM08248 MICRO STEPPER MOTOR |
| Motor diameter | 8mm |
| Rated Voltage | 5V DC |
| Coil Resistance | 16Ω±10% |
| No.Of Phases | 2 Phases |
| Step Angle | 18°/Step |
| Max Starting Frequency | 800 pps min.(AT 5.0 V DC) |
| Max Slewing Frequency | 2000 pps min.(AT 5.0 V DC) |
| Pull in Torque | 2.8 gf-cm min(AT 480 PPS,5.0 V DC) |
| Pull out Torque | 3.8 gf-cm min(AT 480 PPS,5.0 V DC) |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100V AC/1s 3mA Max |
| Insulation Resistance | 1mΩ(DC 100 V) |
| Operating Temperature Range | -30~70℃ |
Packing & Delivery
Selling Units: Single item plastic box inner, outer paper box
Package: single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
Package: single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
