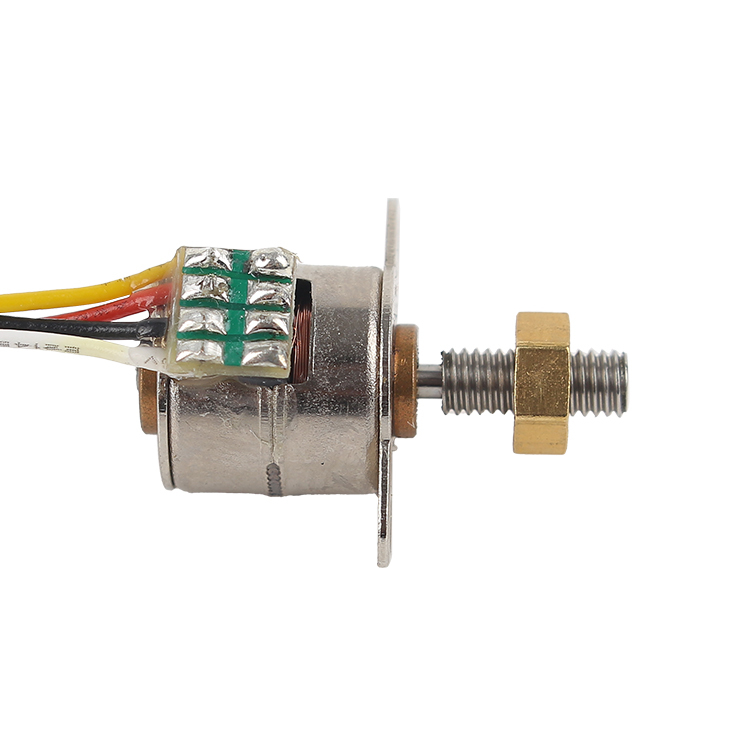

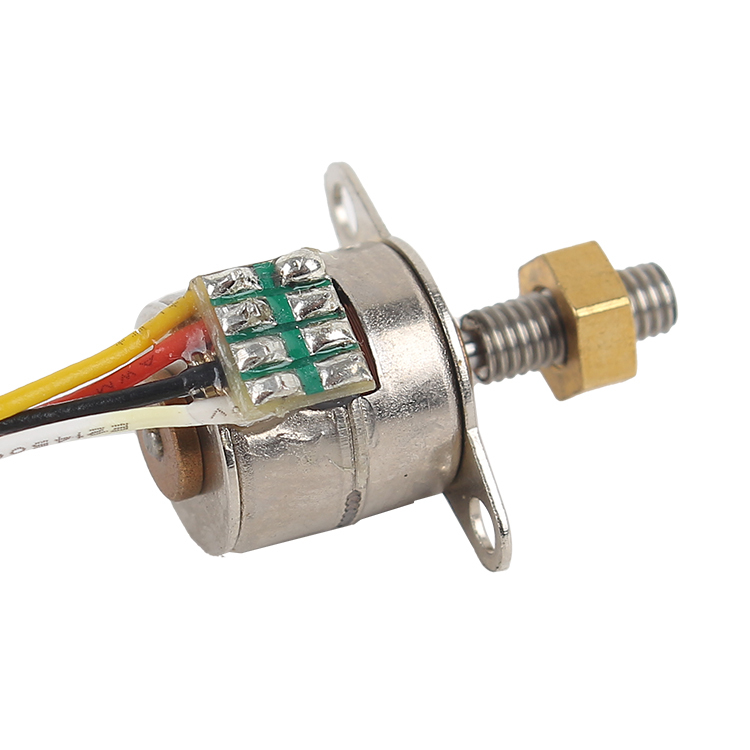

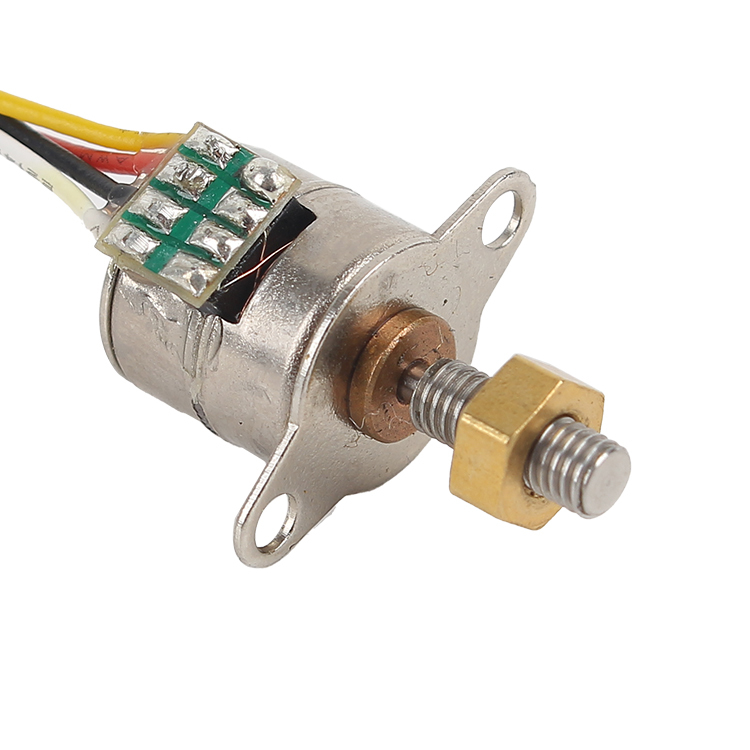

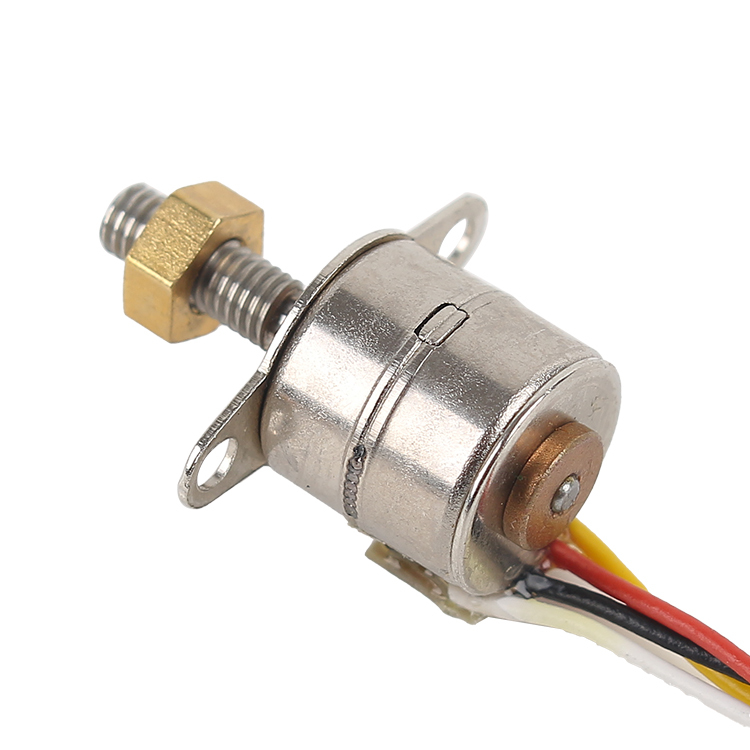

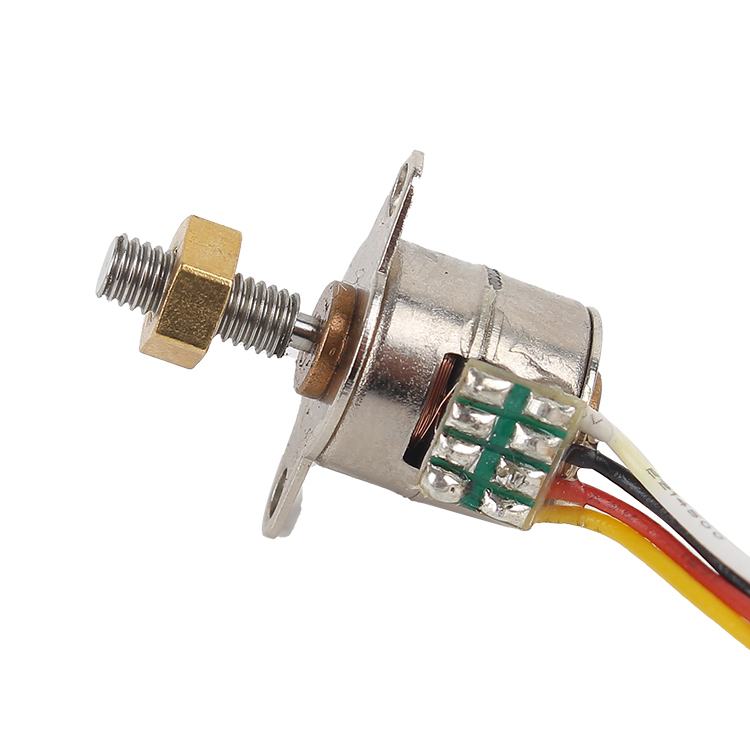

10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut

  • 10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut
  • 10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut
  • 10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut
  • 10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut
  • 10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut
  • 10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut
Place of Origin Jiangsu, China
Brand Name Vic-Tech
Certification RoHS
Model Number SM10-10M3-T
Minimum Order Quantity 1
Price $3-5

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Diameter 10mm Phase 2
Motor Type Permanent Magnet Current Per Phase 500 MA
Voltage 5V Resistance 10Ω±7%
Exciting Method 2-2 Phase Exciting Exciting Mode Bipolar
Screw Type M3P0.5 Step Angle 18°
Steps Per Turn 20 Starting Frequency 1000 PPS Min.
Slewing Frequency 1500 PPS Min. Pull In Torque 5gf-cm Min.
Pull Out Torque 6gf-cm Min.
Highlight

10mm stepper motor 5V

,

2-phase stepper motor M3 screw

,

micro stepper motor copper nut
Leave a Message
Product Description
10mm Micro Step Motor 5VDC 2 Phase Stepper Motor Mini M3 Screw Motor with Copper Nut
Product Specifications
Attribute Value
Warranty 3months-1year
Phase 2
Type Permanent Magnet
Current / Phase 500 mA
Voltage 5V
Resistance 10Ω±7%
Exciting method 2-2 Phase exciting
Exciting mode Bipolar
Rotation CW CCW
Thrust about 250g
Screw M3P0.5
Product Overview

The SM10-10M3 is a precision PM linear stepping motor with a 10mm diameter and M3P0.5 screw. The copper nut can be customized according to installation requirements, making it ideal for medical equipment, printers, scanners, automotive instruments, security systems, and electronic locks.

10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut 0
SM10-10M3-T Stepper Motor

This compact motor features a 3N thrust, 10mm stroke, and 0.067mm displacement per step. The input connection can be customized to wire needle, FPC, or other forms based on customer requirements.

Key Features
  • 18° step angle with 20 steps per revolution
  • 2-phase, 4-wire connection
  • Customizable screw length and connecting wire
  • Compact size for small equipment installation
  • High precision and easy control
  • Wide operating temperature range (-30°C to +70°C)
Technical Specifications
Model SM10-10M3-T
Rated Voltage 5VDC
Current per Phase 500mA/Phase
Max. Starting Frequency 1000 PPS min. (at 5V DC)
Max. Slewing Frequency 1500 PPS min. (at 5V DC)
Pull In Torque 5gf-cm min. (at 500PPS, 5V DC)
Pull Out Torque 6gf-cm min. (at 500PPS, 5V DC)
Applications

This miniature stepping motor is widely used in:

  • Cameras and optical instruments
  • Lens focusing mechanisms
  • Flashlight adjustments
  • Precision medical equipment
  • Automatic door locks
  • Printers and scanners
  • Automotive instruments
  • Security systems
Customization & Support

Our team with over 10 years of stepper motor experience offers:

  • Custom screw length and connection options
  • Product development for special requirements
  • Auxiliary design services
  • OEM & ODM services available
