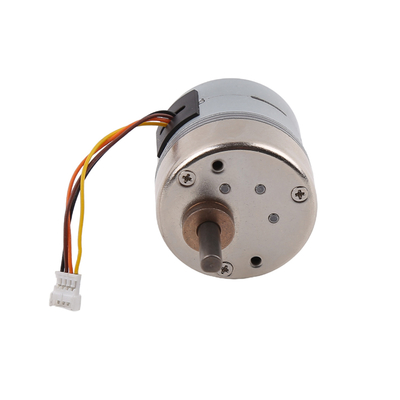

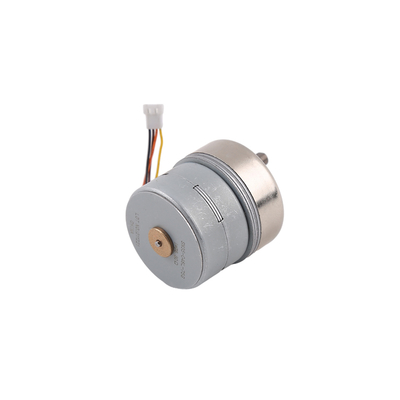

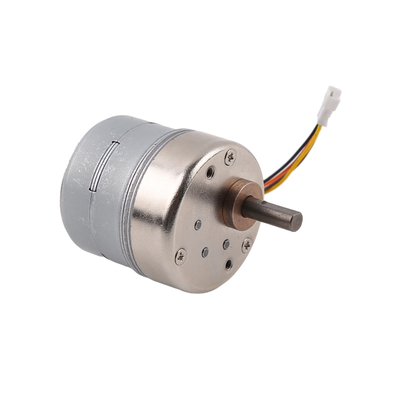

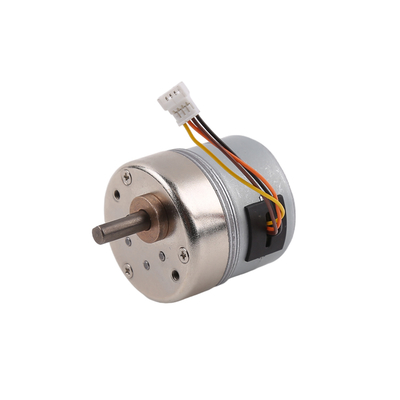

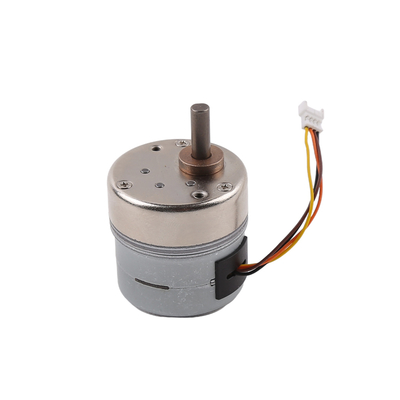

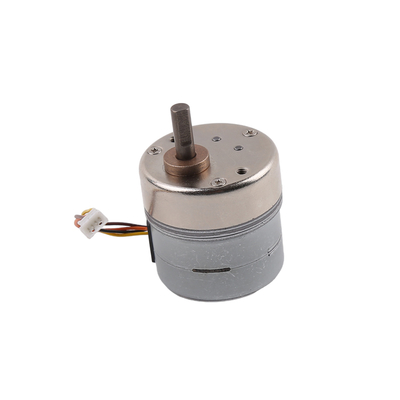

NEMA 11 High Torque 35mm Stepper Motor 12V 2-Phase 7.5°
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM35-048L-30 120 G |
| Minimum Order Quantity | 5 |
| Price | $5-10 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diameter | 35mm | Rated Voltage | 12V |
|---|---|---|---|
| Number Of Phase | 2Phases | Step Angle | 7.5° |
| Gear Ratio | 1:120 | Winding Resistance | 30±7%Ω At 25℃ |
| Current Per Phase | 400mA | Max Pull-in Rate | 400PPS |
| Winding Temperature | ≤65K | Gear Ratio Range | 1:3.7~1:139 |
| Torque | 0.2nm | Shaft Diameter | 5.0mm |
| Body Height | 35.8mm | Motor Type | Permanent Magnet |
| NEMA Frame Size | NEMA 11 | ||
| Highlight | NEMA 11 high torque stepper motor,35mm stepper motor 12V,2-phase micro stepper motor |
||
Product Description
High Torque 35mm Gearbox Stepper Motor 7.5 Degree 2-phase Mini Gear Motor
Product Specifications
| Attribute | Value |
|---|---|
| Warranty | Other |
| Phase | 2 |
| Type | Permanent Magnet |
| Current / Phase | 400mA |
| Torque | 0.2nm |
| Shaft Diameter | 5.0mm |
| Voltage | DV 12V |
| Nema Frame Size | NEMA 11 |
Product Description
This 35mm diameter high torque stepper motor features a body height of 35.8mm with customizable output shaft for gear and pulley installation. The integrated gearbox subdivides the step angle for increased load torque and enhanced control precision.
Available gear reduction ratios include: 3.7, 3.82, 5.2, 5.36, 13.7, 14.62, 19.2, 20.51, 26.85, 28.77, 51, and 71100139. We can recommend suitable ratios based on specific application requirements.
The motor features either standard connecting wires or customizable socket output options. With a mission life exceeding 10,000 hours and gear life over 2,000 hours, this motor delivers reliable long-term performance.
Design Layout (Unit:mm)
Technical Specifications
Motor diameter
35mm
Rated voltage
12V
Number of Phase
2Phases
Step Angle
7.5°
Ratio
1:120
Winding Resistance
30±7%Ω at 25℃
Current Per Phase
400mA
Max Pull-in Rate
400PPS
Winding Temperature at 300PPS
≤65K
Gear ratio
1:3.7~1:139
OEM & ODM SERVICE
AVAILABLE
Packing & Delivery
Selling Units: Single item in plastic box with outer paper box
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an experienced R&D team offering 20+ years of motor development expertise, we provide custom design services while maintaining our commitment to quality, reliability, and innovation in the global market.
