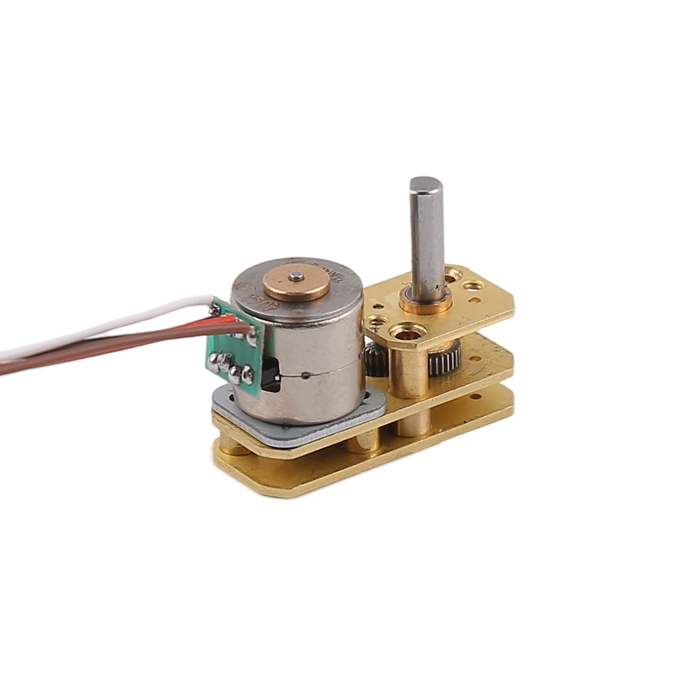

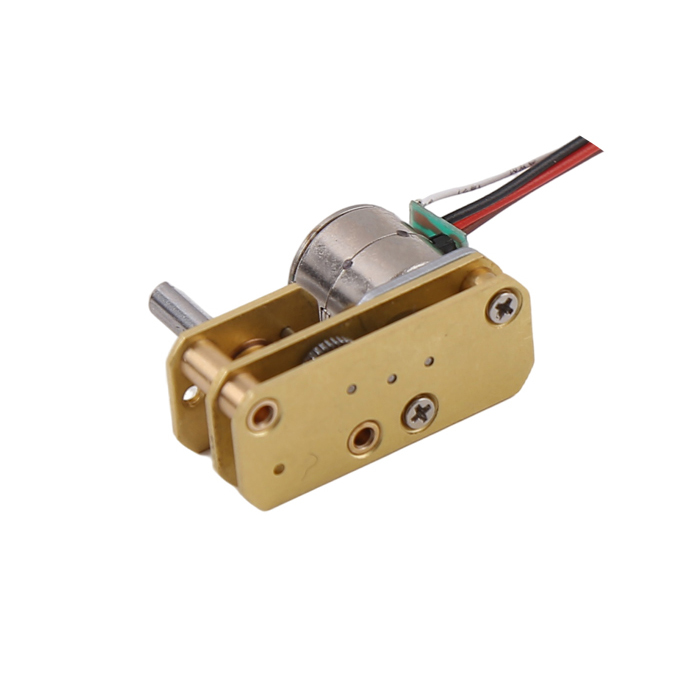

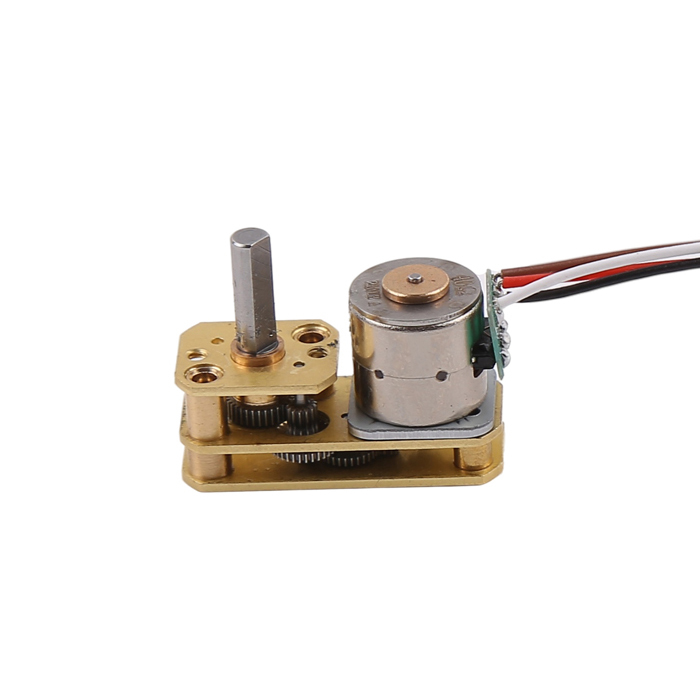

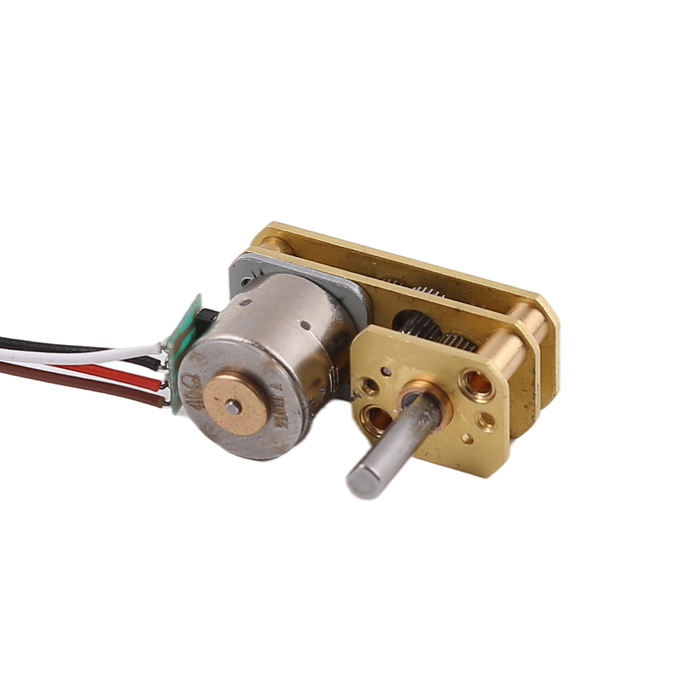

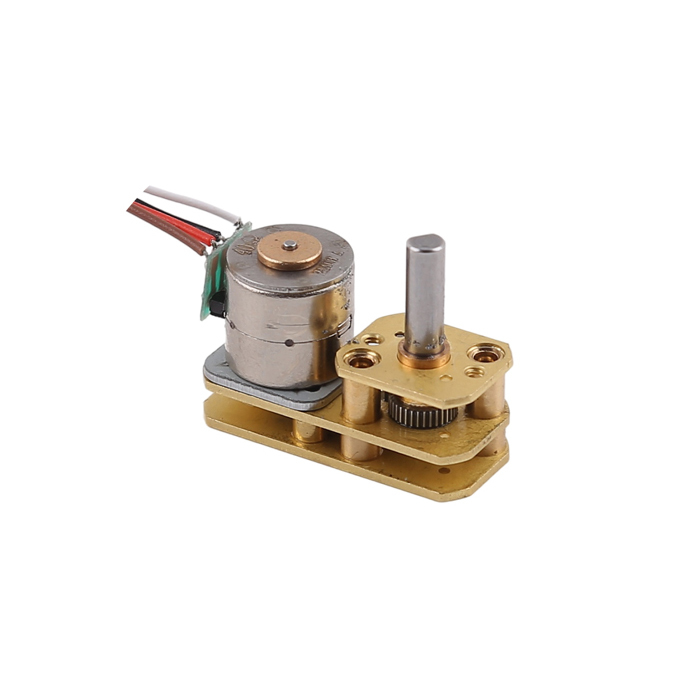

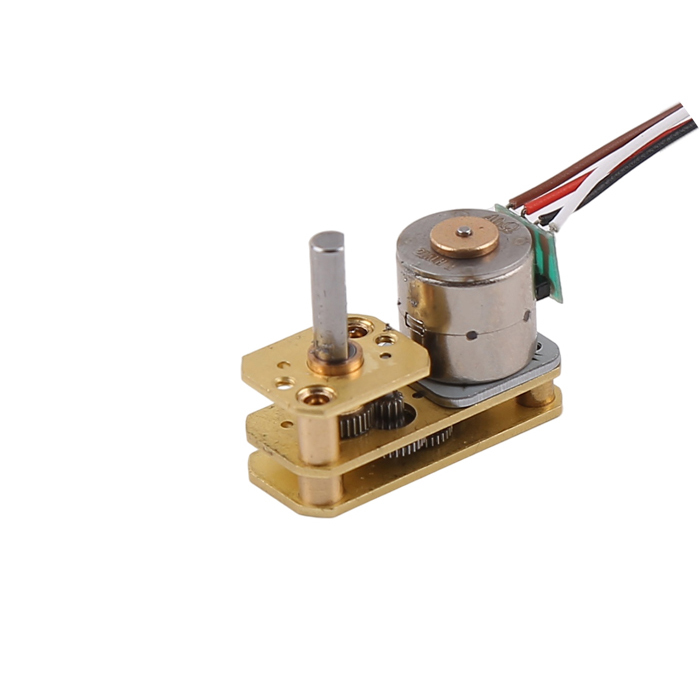

10mm Customizable Stepper Motor Worm Gearbox 2-Phase

  • 10mm Customizable Stepper Motor Worm Gearbox 2-Phase
  • 10mm Customizable Stepper Motor Worm Gearbox 2-Phase
  • 10mm Customizable Stepper Motor Worm Gearbox 2-Phase
  • 10mm Customizable Stepper Motor Worm Gearbox 2-Phase
  • 10mm Customizable Stepper Motor Worm Gearbox 2-Phase
  • 10mm Customizable Stepper Motor Worm Gearbox 2-Phase
Place of Origin Jiangsu, China
Brand Name VIC-TECH
Certification RoHS
Model Number SM10-817G
Minimum Order Quantity 2
Price $3.80-15

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Diameter 10mm Resistance 39Ω
Transmission Ratio 500:1 Gearbox Size 10*24*9 (v)
Reduction Ratio 2:1,5:1,10:1,15:1,20:1,30:1,36:1,50:1,63:1,67:1,89:1,100:1,110:1,120:1,150:1,172:1,210:1,250:1,275:1,298:1,380:1,420:1,500:1,603:1,600:1,1000:1 Step Angle 18°
Line Length 100mm Phase 2
Motor Type Permanent Magnet Current Per Phase 200mA
Highlight

10mm stepper motor worm gearbox

,

customizable 2-phase stepper motor

,

micro stepper motor gearbox
Leave a Message
Product Description
10mm Stepper Motor Worm Gearbox Output Shaft Customizable
Product Attributes
Attribute Value
Warranty Other
Phase 2
Type Permanent Magnet
Current / Phase 200mA
Product Description
10mm Customizable Stepper Motor Worm Gearbox 2-Phase 0 10mm Customizable Stepper Motor Worm Gearbox 2-Phase 0

This 10mm worm motor features adjustable speed through variable reduction ratios. Smaller ratios provide faster speeds while larger ratios deliver slower speeds. Our team brings over 10 years of experience in micro motor design, development, and production, enabling custom solutions for specialized requirements.

10mm Customizable Stepper Motor Worm Gearbox 2-Phase 2 10mm Customizable Stepper Motor Worm Gearbox 2-Phase 2
Design Layout (Unit:mm)
10mm Customizable Stepper Motor Worm Gearbox 2-Phase 4 10mm Customizable Stepper Motor Worm Gearbox 2-Phase 4
Specification
Motor diameter 10mm
Resistance 39Ω
Transmission ratio 500:1
Gearbox size 10*24*9 (v)
Reduction ratio options 2:1, 5:1, 10:1, 15:1, 20:1, 30:1, 36:1, 50:1, 63:1, 67:1, 89:1, 100:1, 110:1, 120:1, 150:1, 172:1, 210:1, 250:1, 275:1, 298:1, 380:1, 420:1, 500:1, 603:1, 600:1, 1000:1
Step angle 18°
Line length 100mm
Packing & Delivery
10mm Customizable Stepper Motor Worm Gearbox 2-Phase 6 10mm Customizable Stepper Motor Worm Gearbox 2-Phase 6

Selling Units: Single item in plastic box with outer paper box packaging. Standard package includes single carton packing with 100-1000 pieces per box. Lead Time: 30 Days After Deposit.

Company Profile
10mm Customizable Stepper Motor Worm Gearbox 2-Phase 8 10mm Customizable Stepper Motor Worm Gearbox 2-Phase 8 10mm Customizable Stepper Motor Worm Gearbox 2-Phase 10 10mm Customizable Stepper Motor Worm Gearbox 2-Phase 10 10mm Customizable Stepper Motor Worm Gearbox 2-Phase 12 10mm Customizable Stepper Motor Worm Gearbox 2-Phase 12

Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we provide custom design services while maintaining our commitment to quality and reliability in global markets.

FAQ
Who are we?

Based in Jiangsu, China since 2011, we serve domestic (35%), North American (25%), Northern European (20%), Western European (10%), and Southeast Asian (10%) markets with a team of 51-100 professionals.

How can we guarantee quality?

Pre-production samples for approval and final inspection before shipment ensure consistent quality control.

What can you buy from us?

Our product line includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.

Why choose us?

Since 2011, Vic-Tech Motor has specialized in micro motor production with custom design capabilities for stepper motors, geared motors, underwater thrusters, and motor controllers.

What services do we provide?

Delivery Terms: FOB, CIF, EXW, DDP. Payment Options: T/T, Credit Card, PayPal, Cash in USD, EUR, or CNY. Languages: English, Chinese.
