15mm Worm Shaft Stepper Motor 5V DC Permanent Magnet 2-Phase
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Vic-Tech |
| Certification | RoHS |
| Model Number | VSM15128 |
| Minimum Order Quantity | 2 |
| Price | $2.55-7 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diameter | 15mm | Motor Type | Permanent Magnet |
|---|---|---|---|
| Phase Number | 2 | Rated Voltage | 5V DC |
| Current Per Phase | 300mA/phase Max | Coil Resistance | 30Ω±10% |
| Step Angle | 18°/step | Screw Type | M0.3 Worm Shaft |
| Worm Gear Modulus | 0.3 | Worm Gear Material | POM (White) |
| Worm Gear Teeth | 19 | Worm Gear Pressure Angle | 20° |
| Pinion Gear Modulus | 0.5 | Pinion Gear Teeth | 13 |
| Pinion Gear Diameter | 6.5mm | ||
| Highlight | 15mm worm shaft stepper motor,5V DC permanent magnet motor,2-phase micro stepper motor |
||
Product Description
Worm Shaft Worm Gear 15mm Permanent Magnet 5V DC Stepper Motor
Product Specifications
| Warranty | Other |
| Phase | 2 |
| Type | Permanent Magnet |
| Current / Phase | 300mA/phase Max |
| Voltage | 5V DC |
| Coil Resistance | 30Ω±10% |
| Screw type | M0.3 worm shaft |
Product Features
- 15mm diameter permanent magnet stepper motor with attached worm shaft
- Worm shaft connects with worm gear, featuring 0.5 Modulus Pinion gear/spurs gear output
- Compatible with custom designed 0.5 Modulus gears for proper operation
- Customizable coil resistance and connector types
- Standard female connector (5AW, pitch 1.25mm) with option for custom connectors
Design Drawing
Motor Parameters
| Model No. | VSM15128 |
| Motor type | Bipolar stepper motor |
| Rated voltage | 30Ω/phase |
| Step angle | 18°/step |
| Phase No. | 2 phases |
| Screw type | M0.3 worm shaft |
| Rated voltage | 5V DC |
Worm Gear Parameters
| Modulus | 0.3 |
| Material | POM (White) |
| Tooth number | 19 |
| Pressure angle | 20° |
| Helical angle | 13° |
Pinion Gear Parameters
| Modulus | 0.5 |
| Material | POM (White) |
| Tooth number | 13 |
| Pressure angle | 20° |
| Pitch circle diameter | 6.5mm |

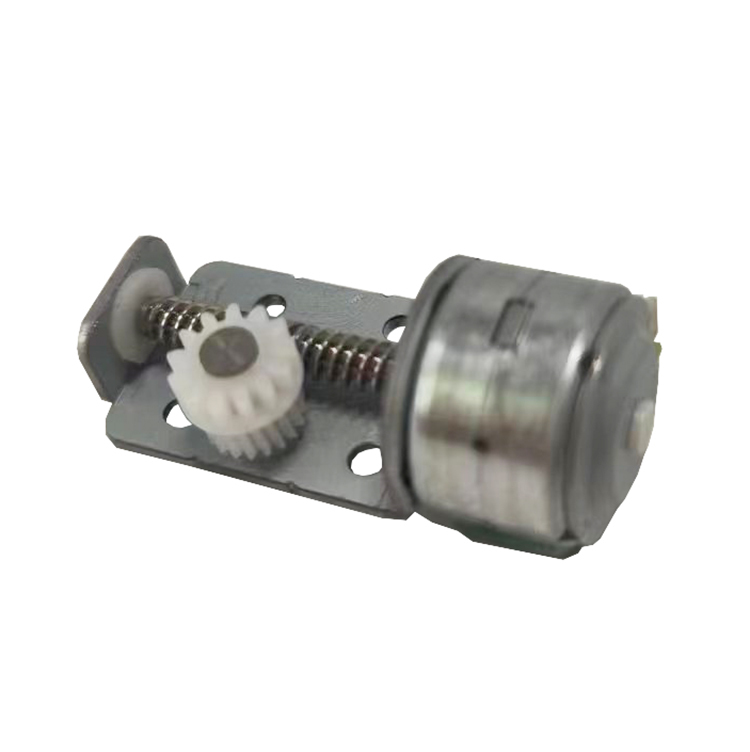

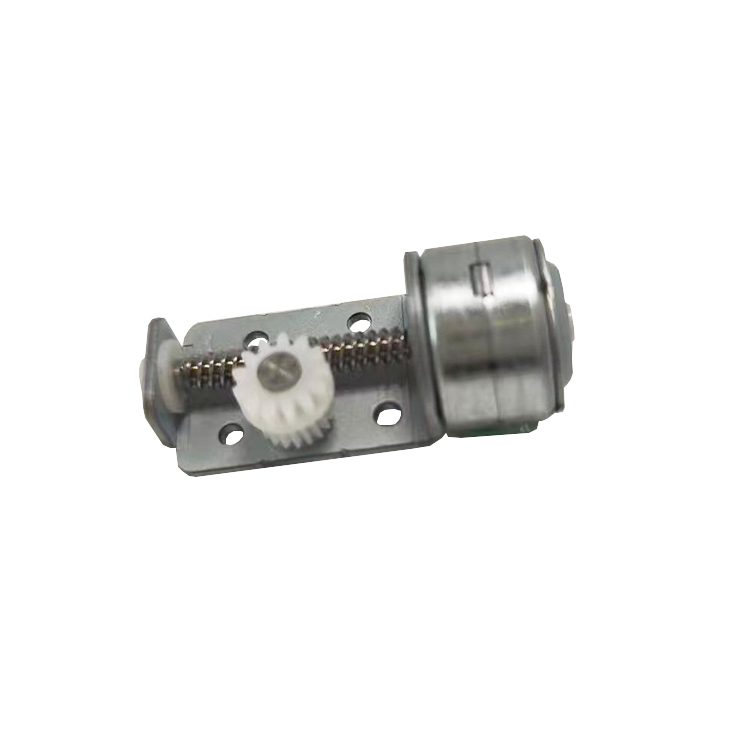

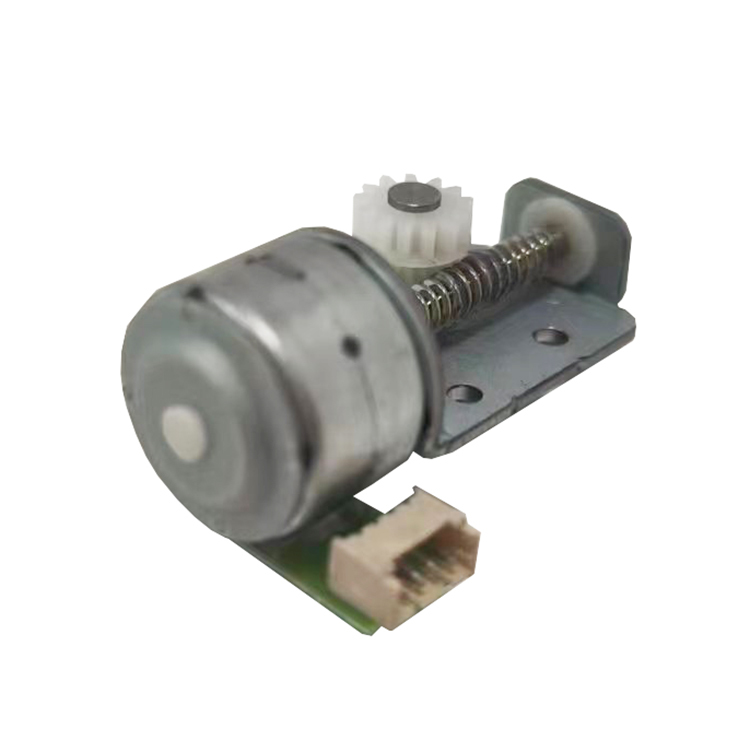

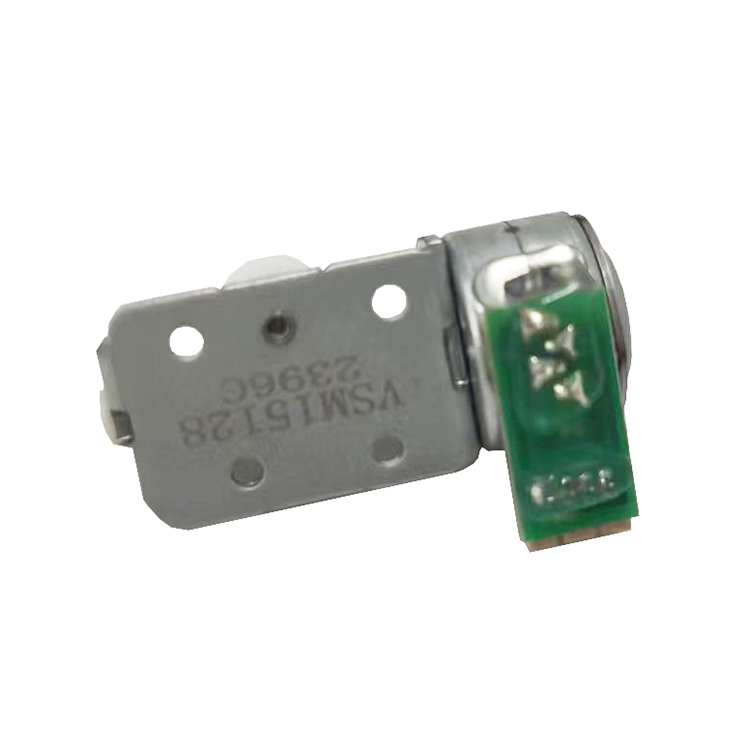

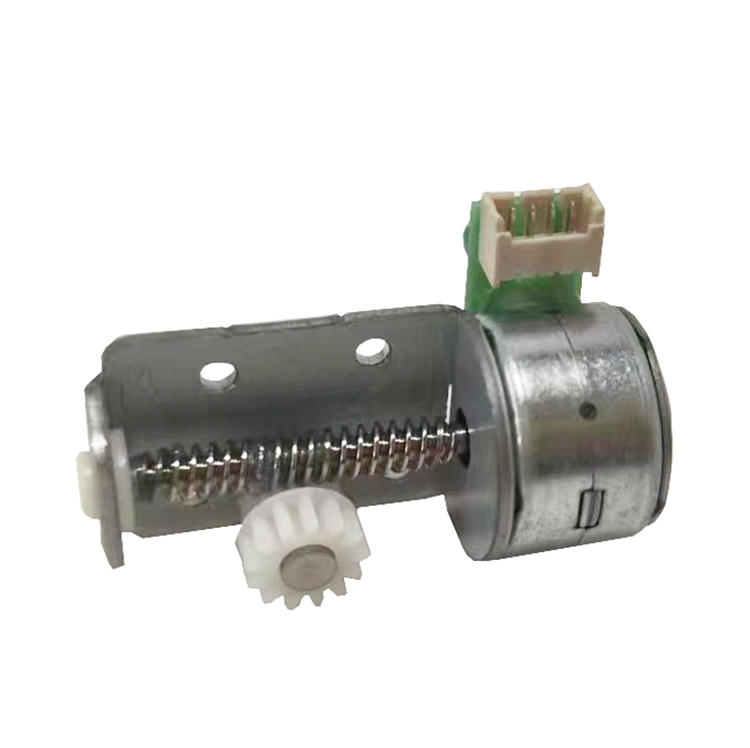

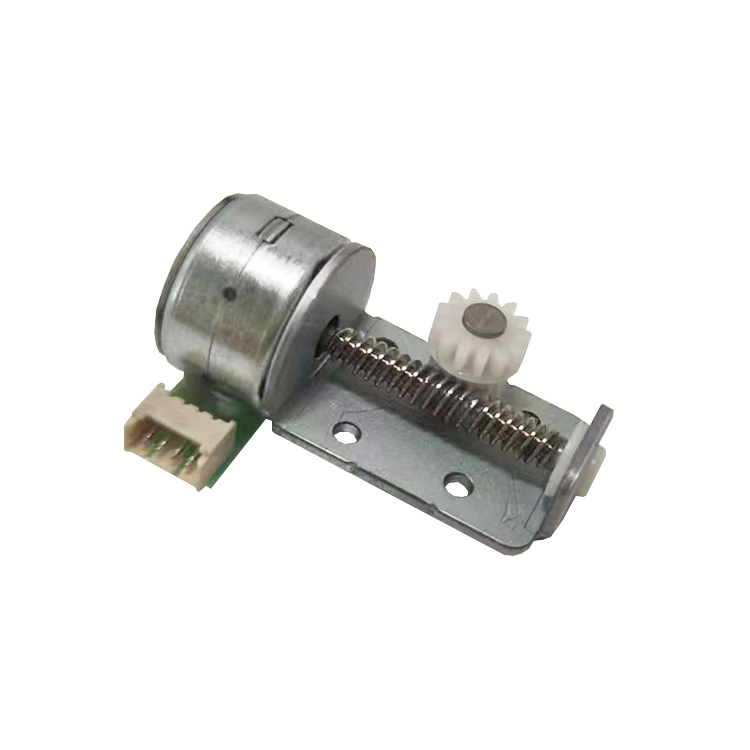

Product Photos
Packaging Information
Packed in corrugated box (mass production)
Company Introduction
Changzhou Vic-Tech Motor Technology Co., Ltd. is a professional research and production institution focused on motor research and development, motor application solutions, and motor product processing and production.
Located in Changzhou City, Jiangsu Province, China, the company has a team of experienced engineers specializing in electronics, mechanics, structures, and motor design. With strong R&D capabilities, we provide complete design solutions including mechanical structures, drive control, and motor parameters.
Our production facilities in Changzhou, Dongguan, and Shenzhen manufacture hybrid stepping motors, permanent magnet stepper motors, and DC motor reducer boxes, all certified under ISO9000:2001 quality standards.
We have developed customized solutions for various applications including electric actuators, planetary motor screw machines, gas valve control systems, textile machines, and medical devices using miniature linear motors.
