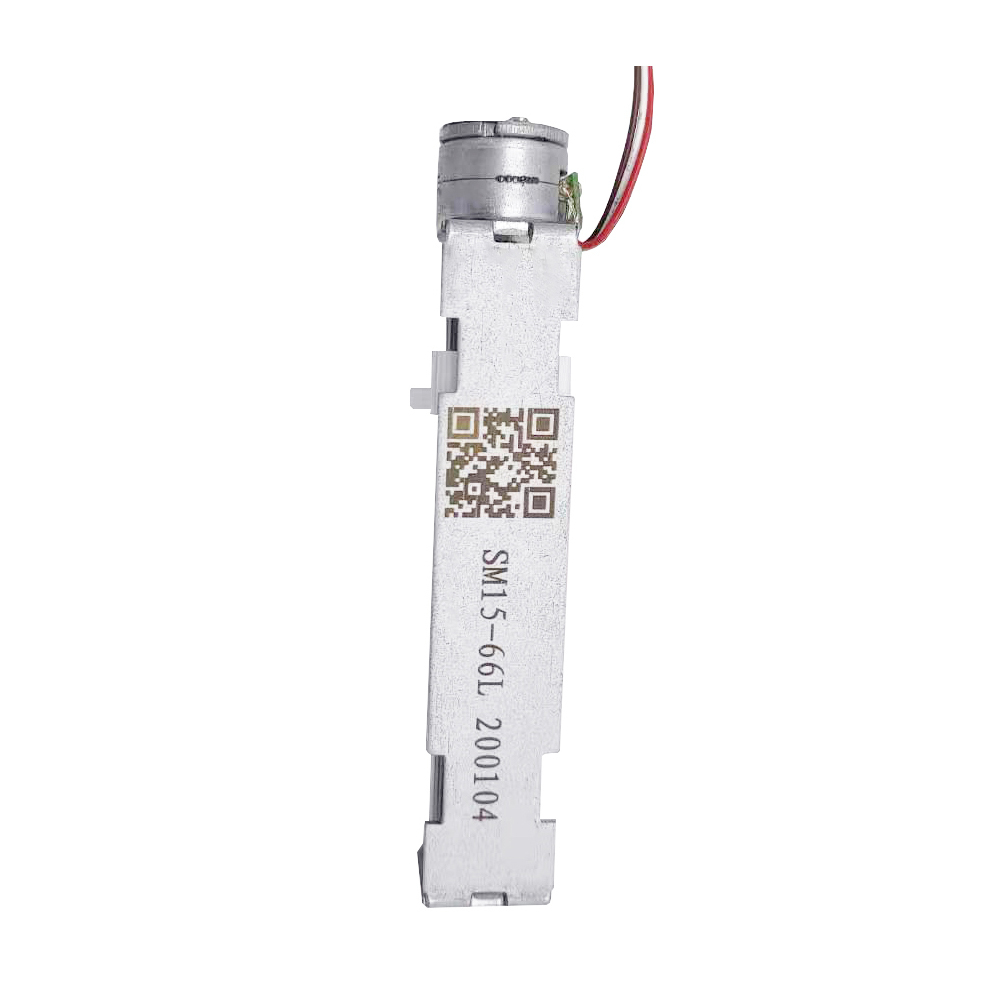

2 Phase 15mm Miniature Linear Stepper Motor 18 Degree Step Angle
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM15-66L-S |
| Minimum Order Quantity | 2 |
| Price | $5.31-15 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diameter | 15mm | Rated Voltage | 9 V DC |
|---|---|---|---|
| Coil Resistance | 15±10% Ohm/PHASE(20℃) | No.Of Phases | 2 Phases |
| Step Angle | 18°/Step | Excitation Method | 1-2 Phase Excitation |
| Drive Mode | Bipolar Drive | Pull-out-Thrust | More Than 230 G AT 125PPS |
| Max Response Frequency | More Than 1500 PPS | Max Starting Frequency | More Than 900 PPS |
| Insulation Class | CLASS E FOR COILS | Insulation Strength | 100V AC FOR ONE SECOND |
| Insulation Resistance | 50mΩ(DC 500 V) | Operating Temperature | -0~55℃ |
| Motor Surface Temperature | 80℃ Or Less | ||
| Highlight | 15mm miniature stepper motor,2 phase linear stepper motor,18 degree step angle motor |
||
Product Description

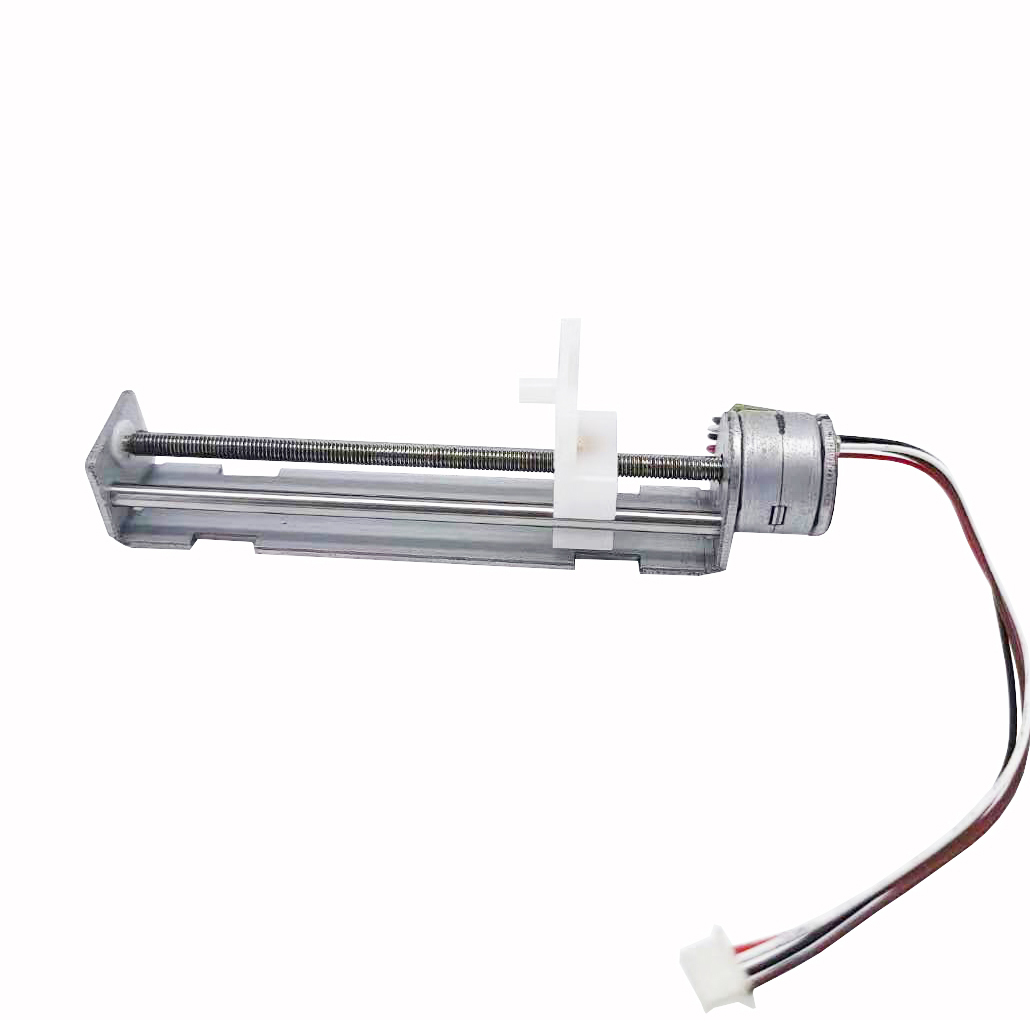

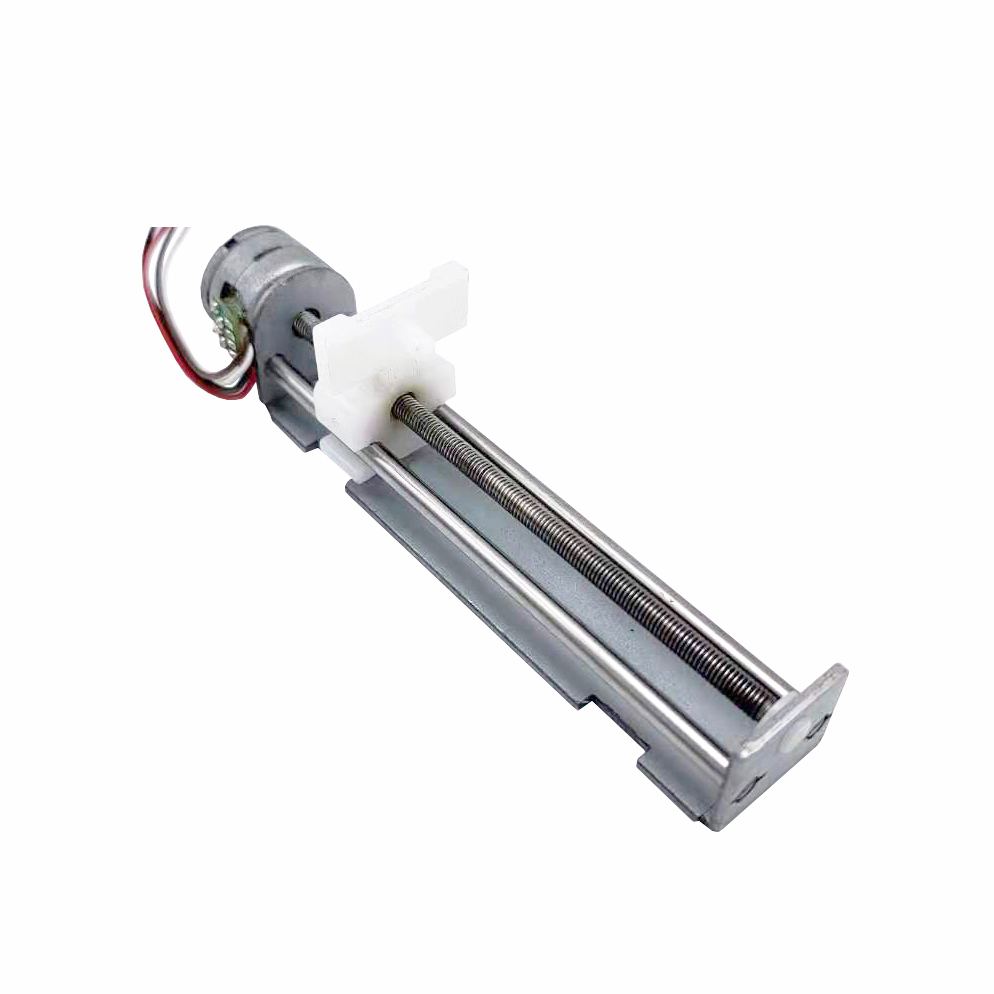

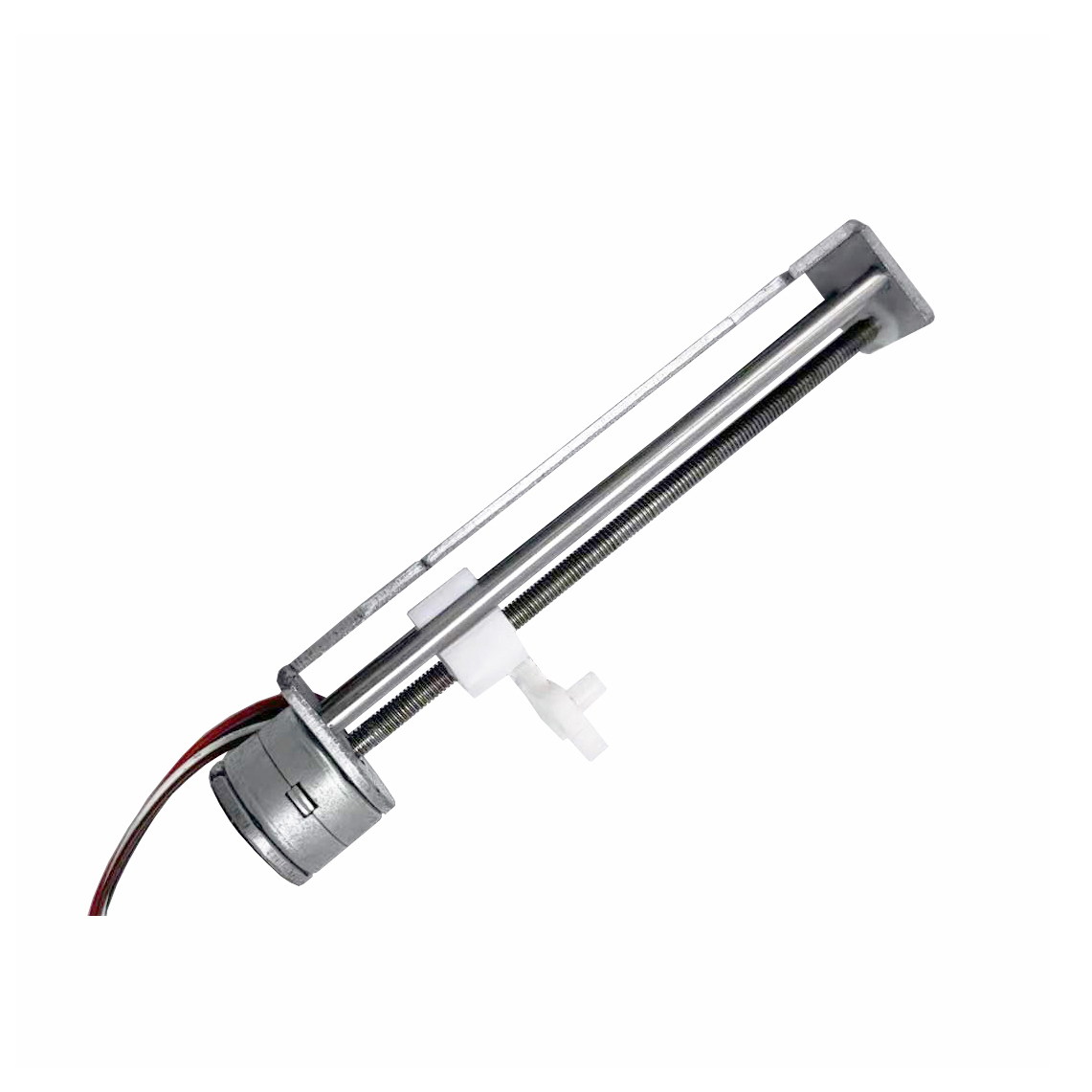

2 Phase 15mm Miniature Linear Stepper Motor 18 Degree Step Angle PM Stepper Motor with Slider Screw
Key Attributes
| Attribute | Value |
|---|---|
| Warranty | Other |
| Phase | 2 |
| Type | Permanent Magnet |
| Current / Phase | 270mA |
Product Description
The SM15-66L-S is a precision screw motor featuring a 0.4mm pitch between the output shaft and screw. The screw rotation generates thrust with the following characteristics:
- Basic step angle: 18 degrees
- 20 steps per revolution
- Displacement resolution: 0.02mm for precise control
- Actuator uses subdivision drive mode
Our team brings over 10 years of stepper motor design, development, and production experience. We offer custom product development and design services tailored to your specific requirements.
Design Layout
Specifications
| Model No. | SM15-66L-S |
|---|---|
| Motor diameter | 15mm |
| Rated Voltage | 9 V DC |
| Coil Resistance | 15±10% ohm/PHASE(20℃) |
| No.Of Phases | 2 Phases |
| Step Angle | 18°/Step |
| Excitation Method | 1-2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| Pull-out-Thrust | More Than 230 g AT 125PPS |
| Max Response Frequency | More Than 1500 PPS |
| Max Starting Frequency | More Than 900 PPS |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100V AC FOR ONE SECOND |
| Insulation Resistance | 50mΩ(DC 500 V) |
| Operating Temperature | -0~55℃ |
| Motor surface temperature | 80℃ or less |
Packing & Delivery
Selling Units: Single item plastic box inner, outer paper box
Package: single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motors and accessories since 2011. Our product range includes:
- Micro stepper motors
- Geared motors
- Underwater thrusters
- Motor drivers and controllers
Our R&D team brings 20 years of motor development experience, offering custom design and development services. Through our commitment to honesty, dependability and quality, Vic-Tech Motor continues to pioneer in global markets.
