8mm Micro Stepper Motor 2 Phase 18 Degree Precision VSM08133
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM08133 |
| Minimum Order Quantity | 2 |
| Price | $1.50-5 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Body Diameter | 8MM | Body Length | 8.2MM |
|---|---|---|---|
| Shaft Diameter | 1MM | Step Angle | 18 Degree |
| Steps Per Revolution | 20 | Rated Voltage | 3.3V |
| Current Per Phase | 100 MA | Coil Resistance | 40 Ω±7% |
| Number Of Phases | 2 | Excitation Method | 2 Phase Excitation |
| Drive Mode | Bipolar Drive | Pull-in Torque | 0.8 Gf.cm |
| Pull-out Torque | 1.0 Gf.cm | Max Response Frequency | 1000 Pps |
| Max Starting Frequency | 1200 Pps | ||
| Highlight | 8mm micro stepper motor,2 phase stepper motor,18 degree precision stepper motor |
||
Product Description
High Precision 2 Phase 4 Wire 18 Degree 8mm Micro Stepper Motor
Product Attributes
| Attribute | Value |
|---|---|
| Warranty | Other |
| Phase | 2 |
| Type | Permanent Magnet |
| Current / Phase | 385mA |
Product Description

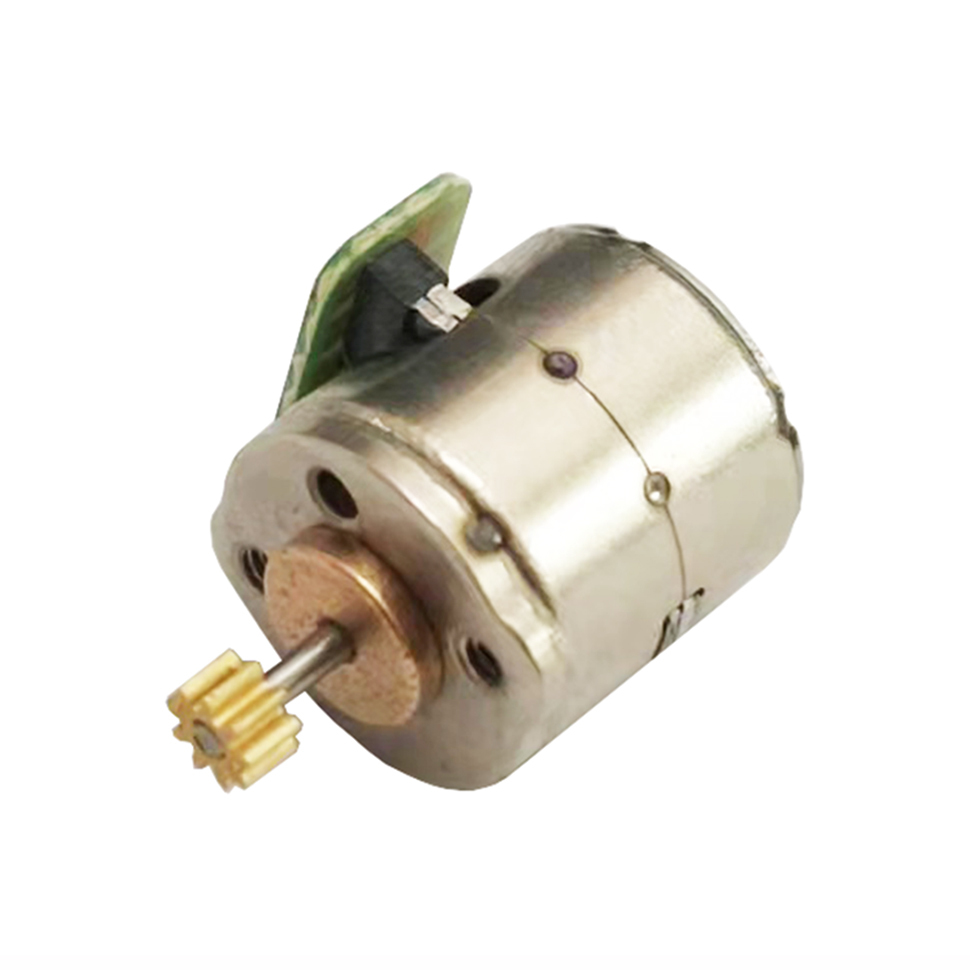

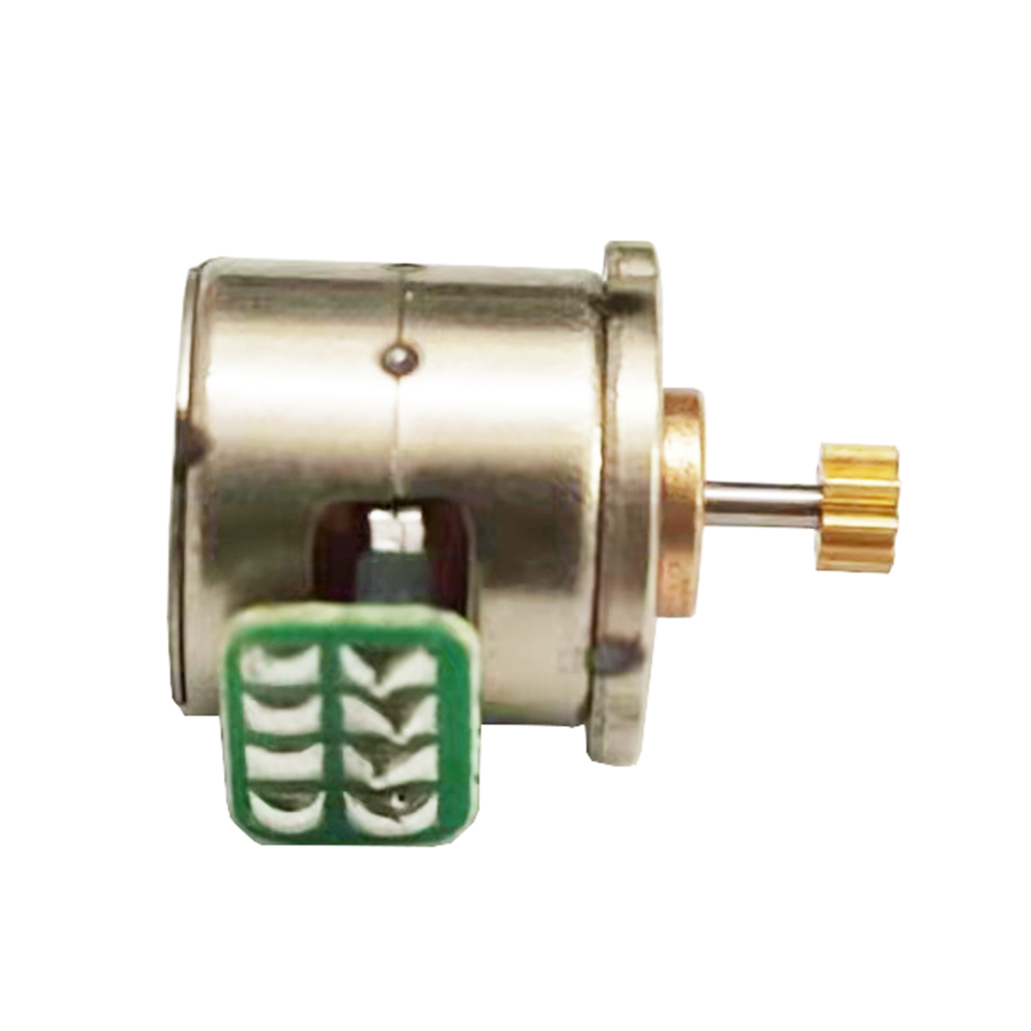

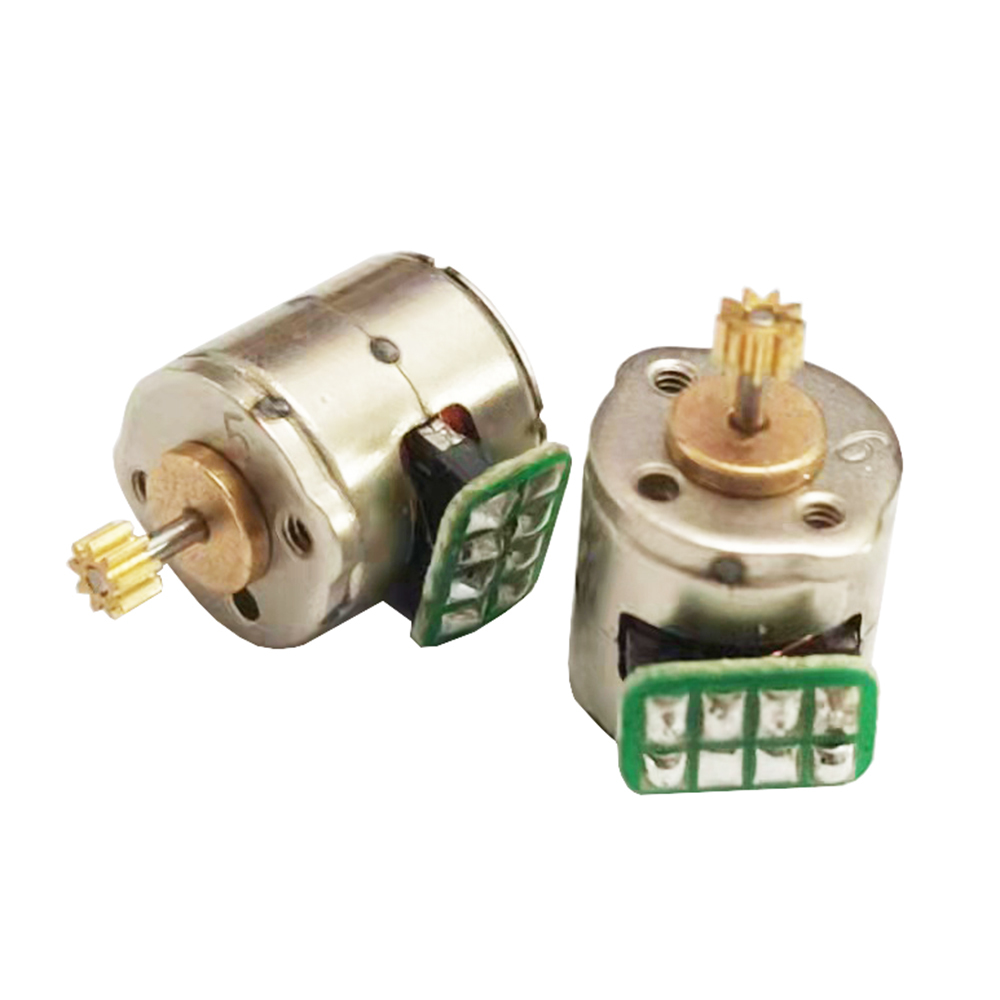

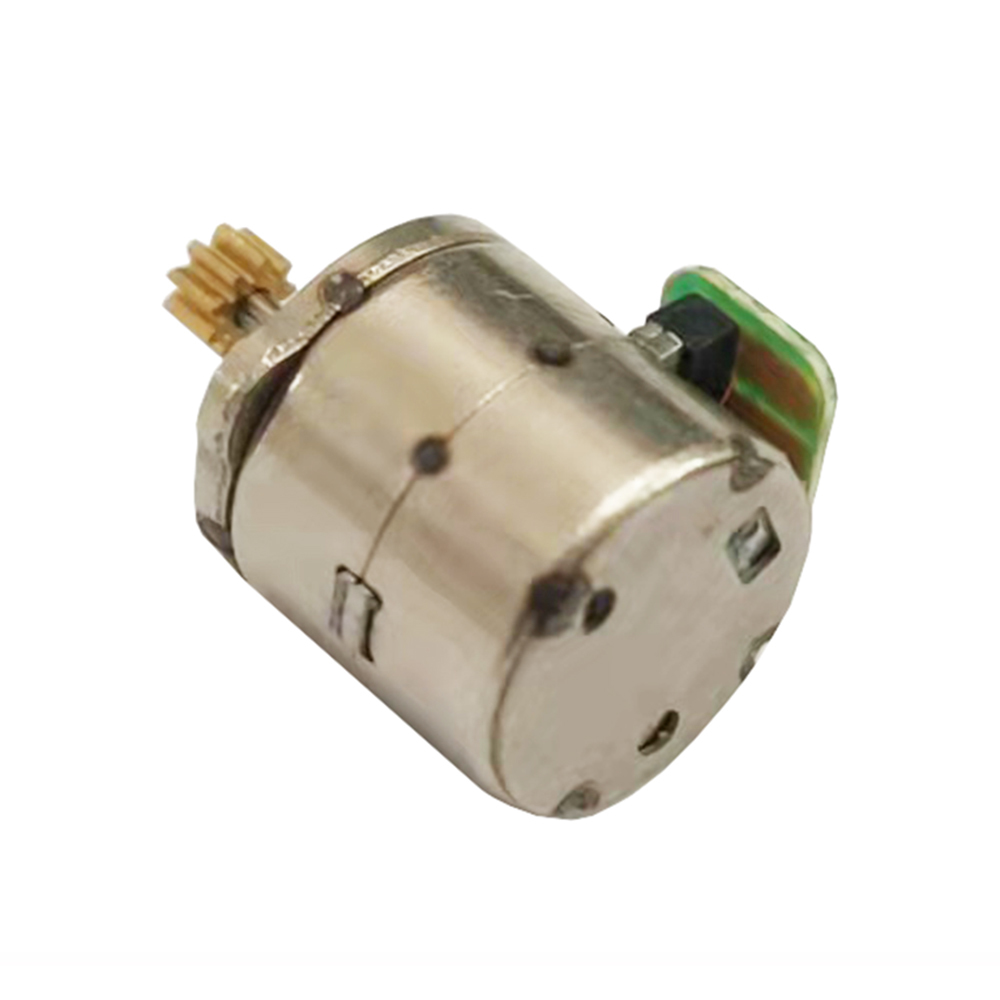

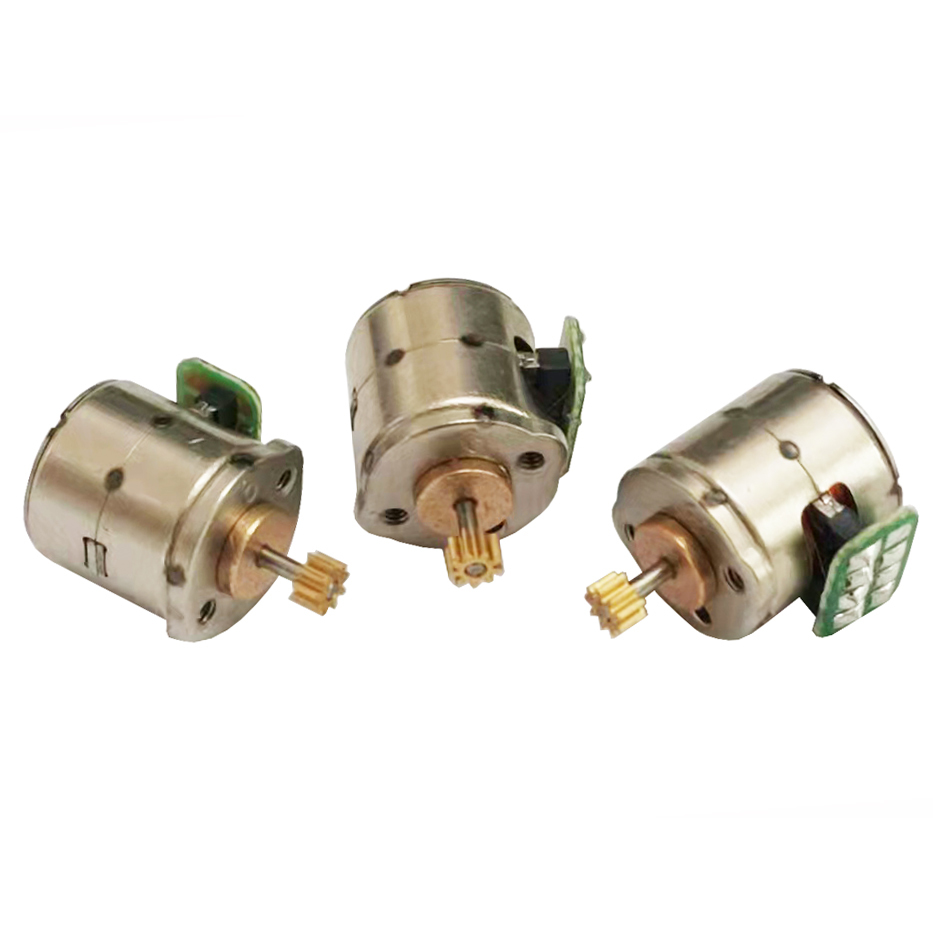

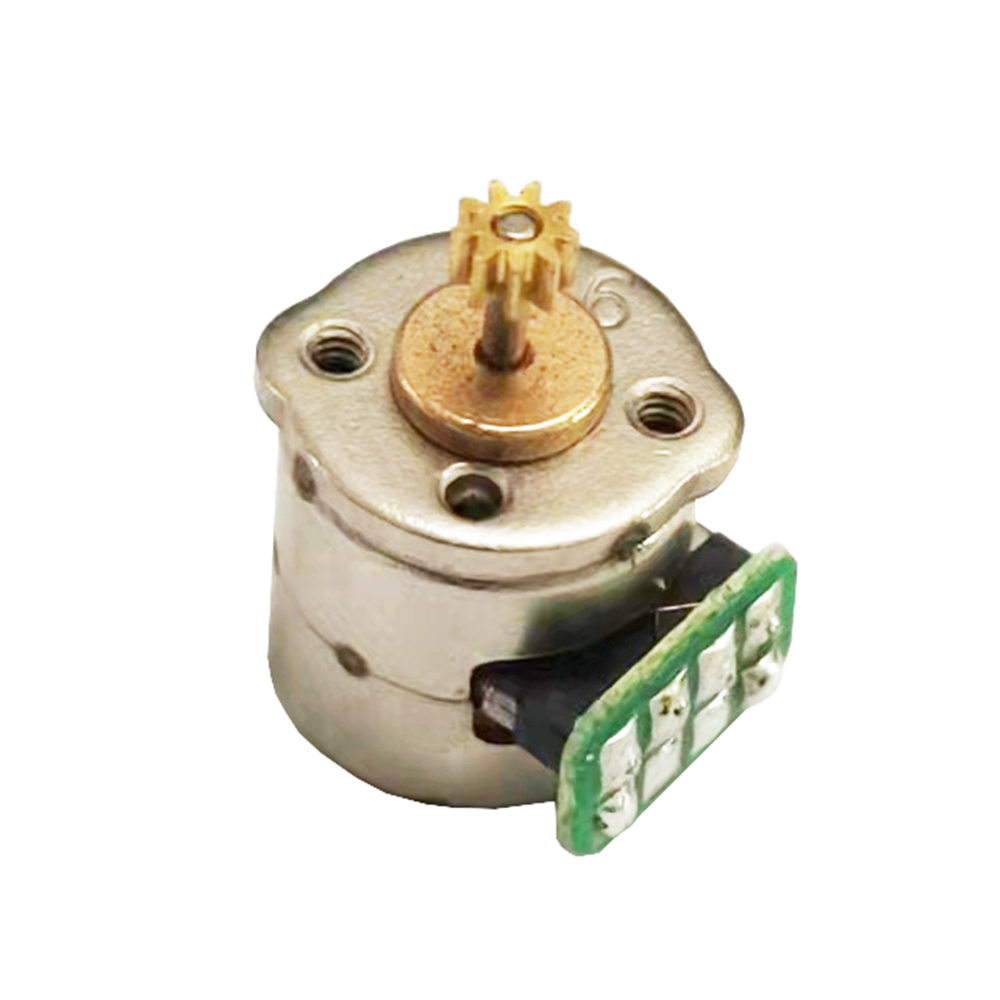

The VSM08133 is a precision long-life micro stepper motor with an 8mm outer diameter and 8.2mm body length. It features a 1mm shaft diameter with customizable length options, and can be equipped with gears, pulleys, worms, screws, and other output devices.
With a basic step angle of 18 degrees, this motor completes 20 steps per revolution. Its compact size, high precision, and easy control make it ideal for applications in cameras, optical instruments, lenses, flashlights, precision medical equipment, and automatic door locks.
The motor input features FPC connectivity, but can be customized with connecting line needles, PCB, or other forms per customer requirements. Mounting brackets can also be modified to suit specific needs. We provide matching drive systems to complete your solution.
Our team brings over 10 years of stepper motor design, development, and production experience, enabling us to deliver custom product development and auxiliary design services for specialized applications.
Design Layout (Unit: mm)
Specification
| Product Name | 8mm micro stepper motor |
|---|---|
| Model | VSM08133 |
| Rated Voltage | 3.3V |
| Current Per Phase | 100 mA /phase |
| Coil Resistance | 40 Ω±7% |
| No. Of Phase | 2 Phases |
| Step Angle | 18 degree |
| Excitation Method | 2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| Pull-In Torque | 0.8 gf.cm (AT 3.3V DC) |
| Pull-Out Torque | 1.0 gf.cm (AT 3.3V DC) |
| Max. Response Frequency | 1000 pps (AT 900 PPS, 3.3V DC) |
| Max. Starting Frequency | 1200 pps (AT 900 PPS, 3.3V DC) |
| Insulation Class | Class E for Coils |
| Insulation Strength | 300 V AC for One Second |
| Insulation Resistance | 1.0 MΩ (DC 100 V) |
| Operating Temperature Range | -30~+70 ℃ |
| Weight | 10 g (Ref.) |
Packing & Delivery
Selling Units: Single item plastic box inner, outer paper box
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
