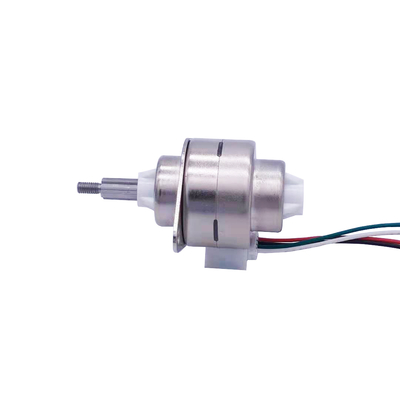

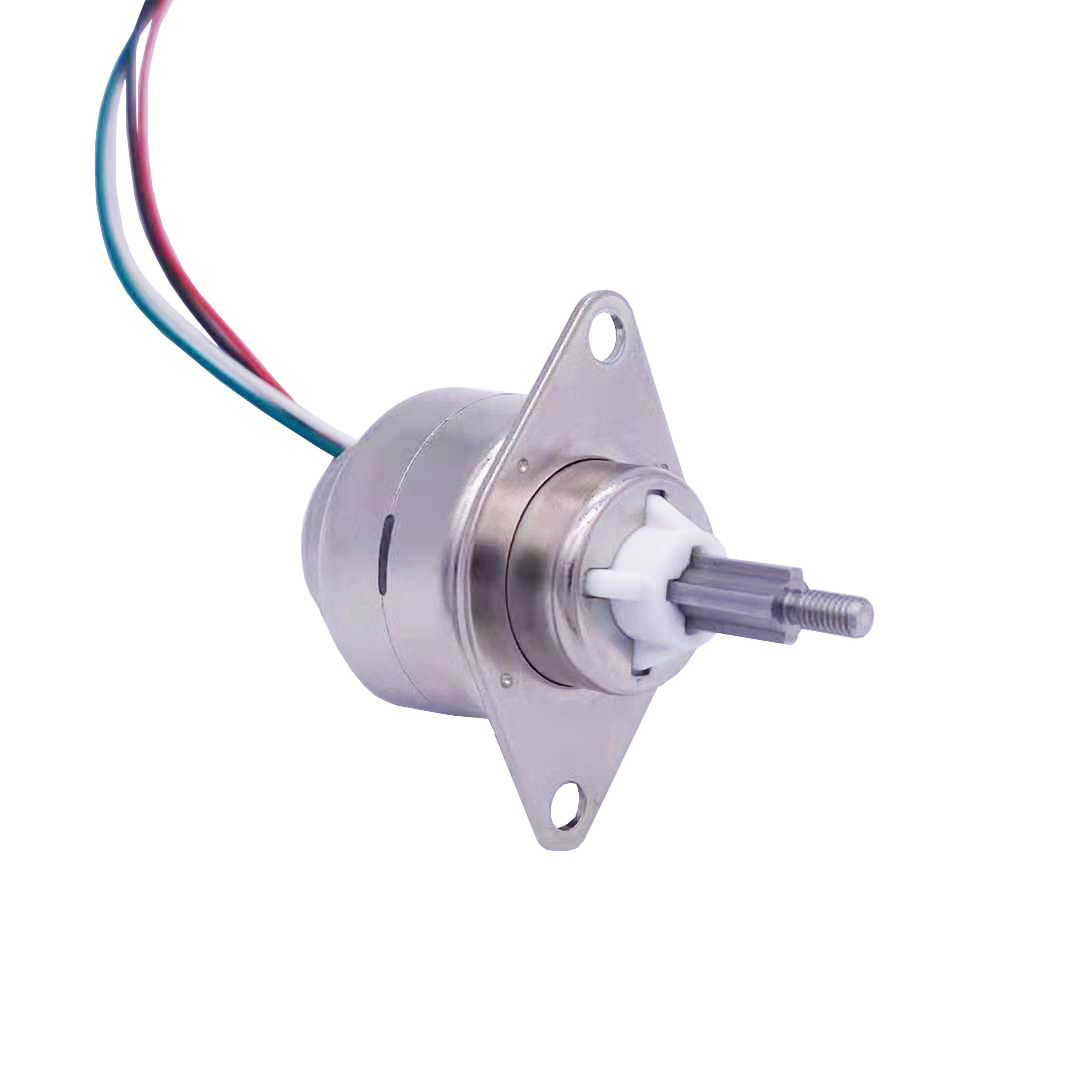

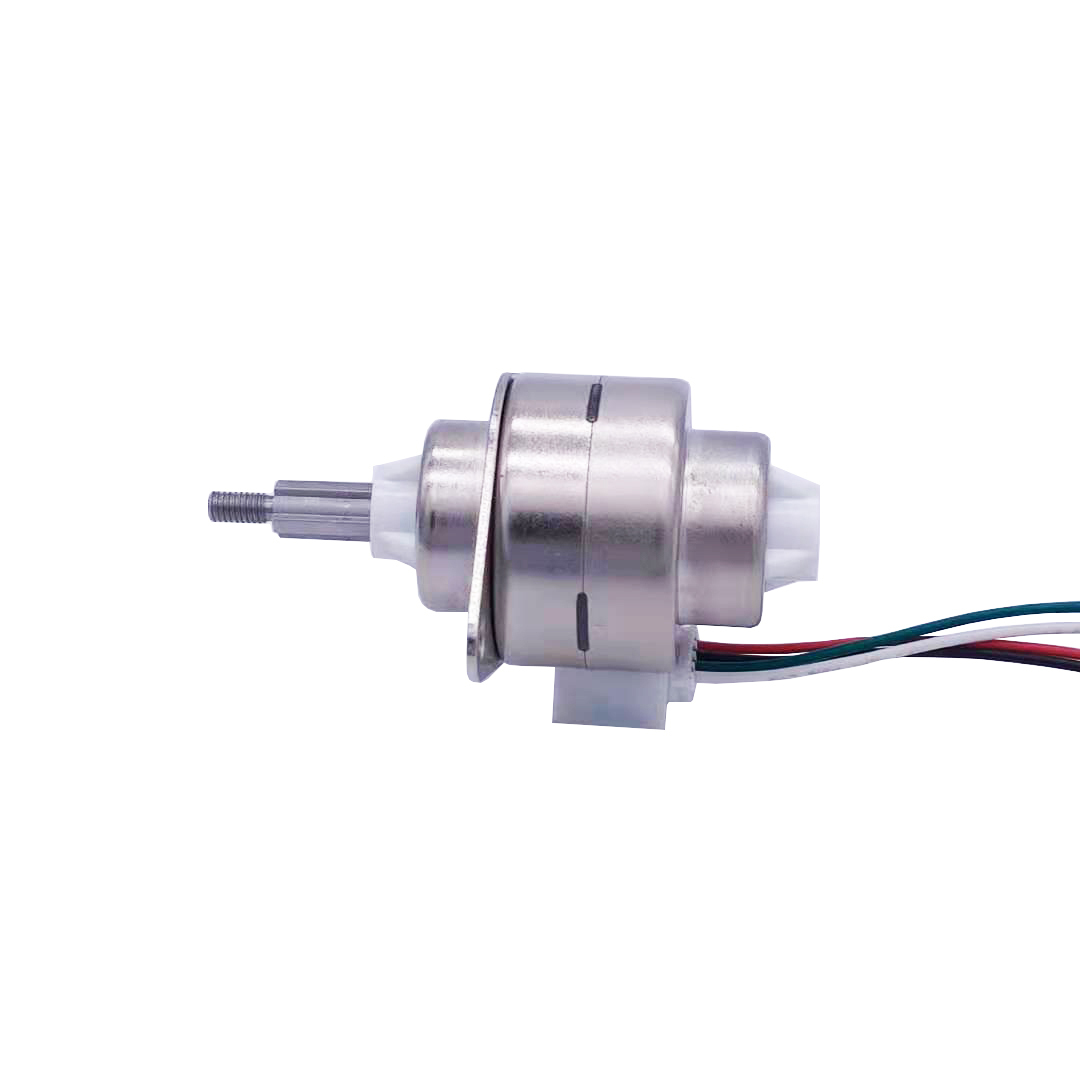

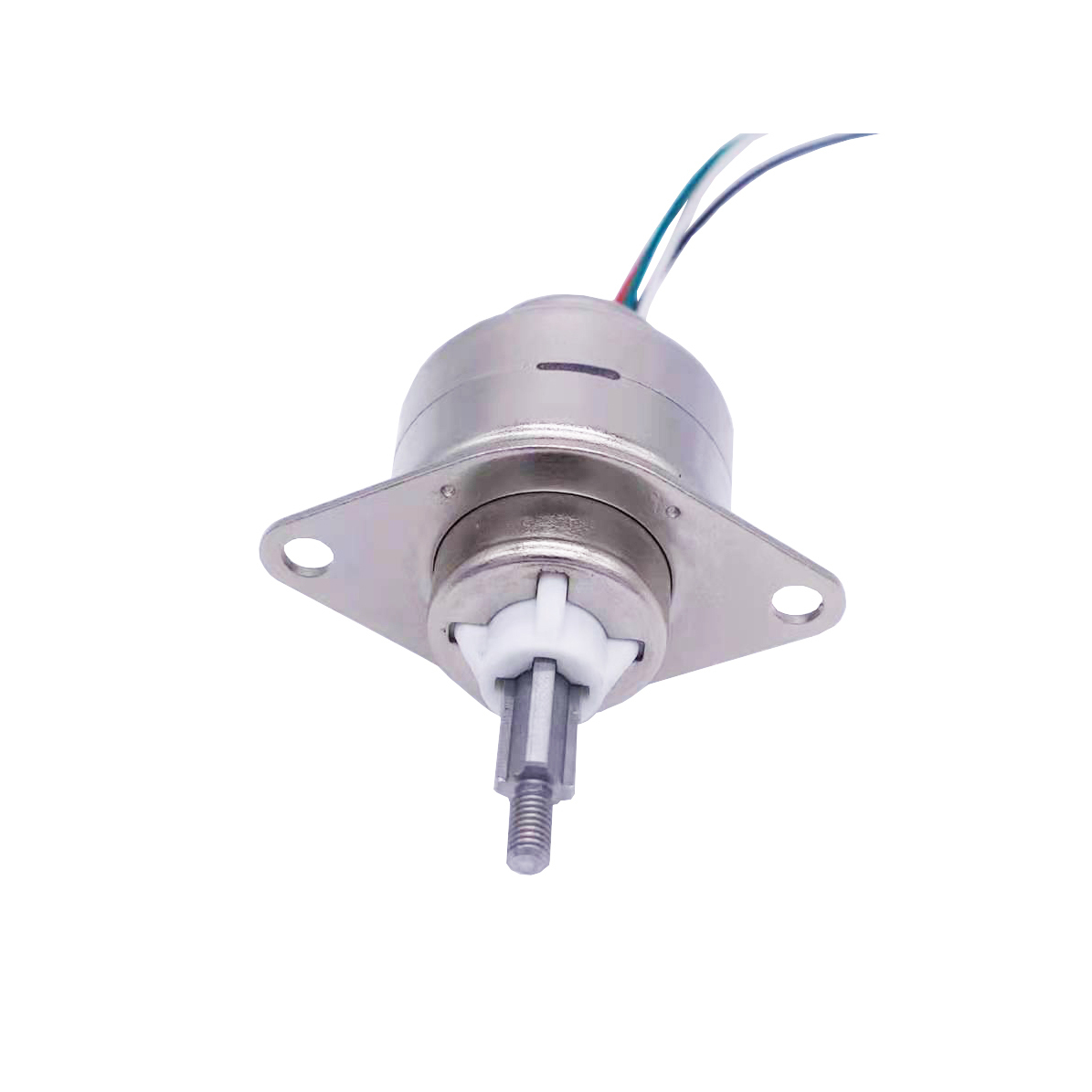

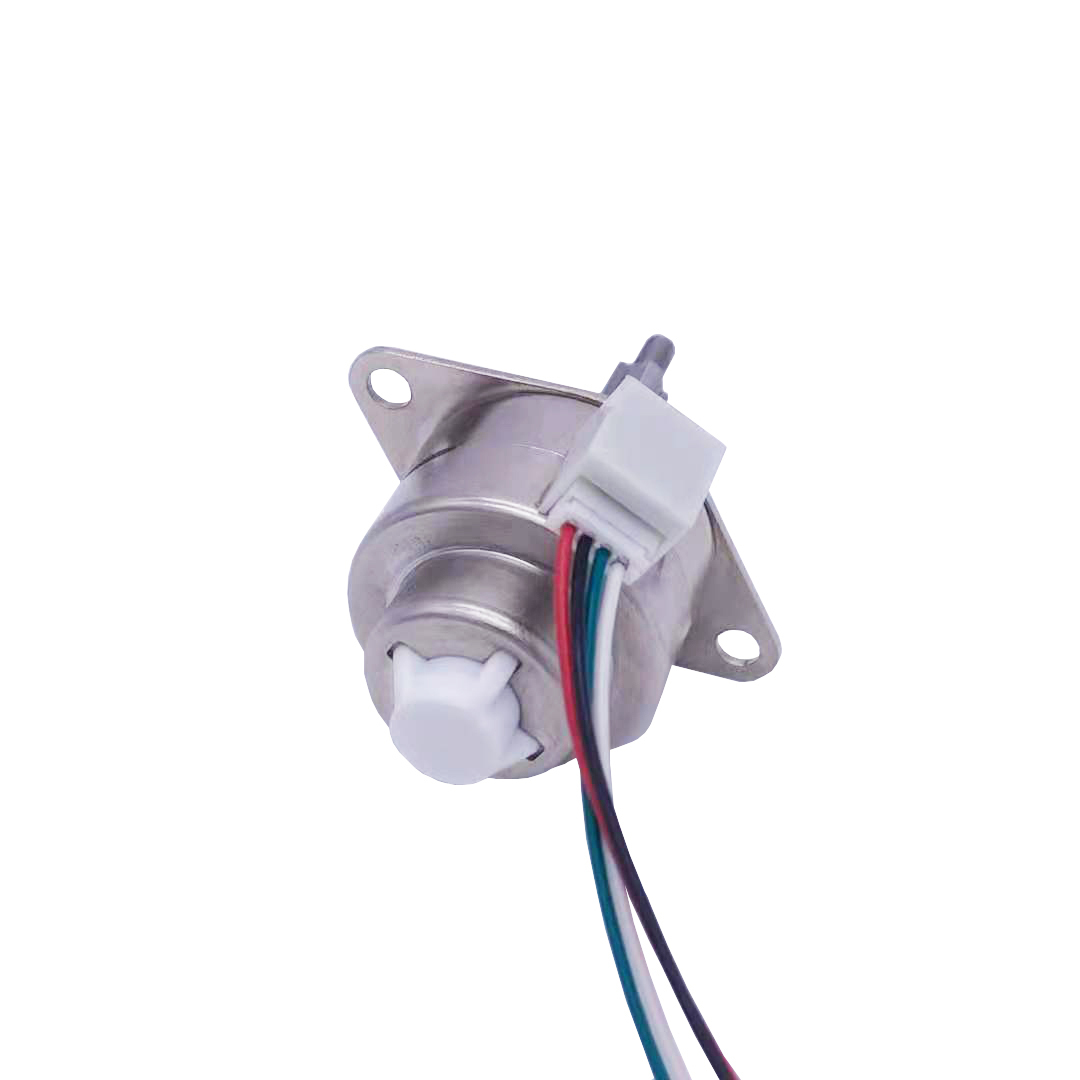

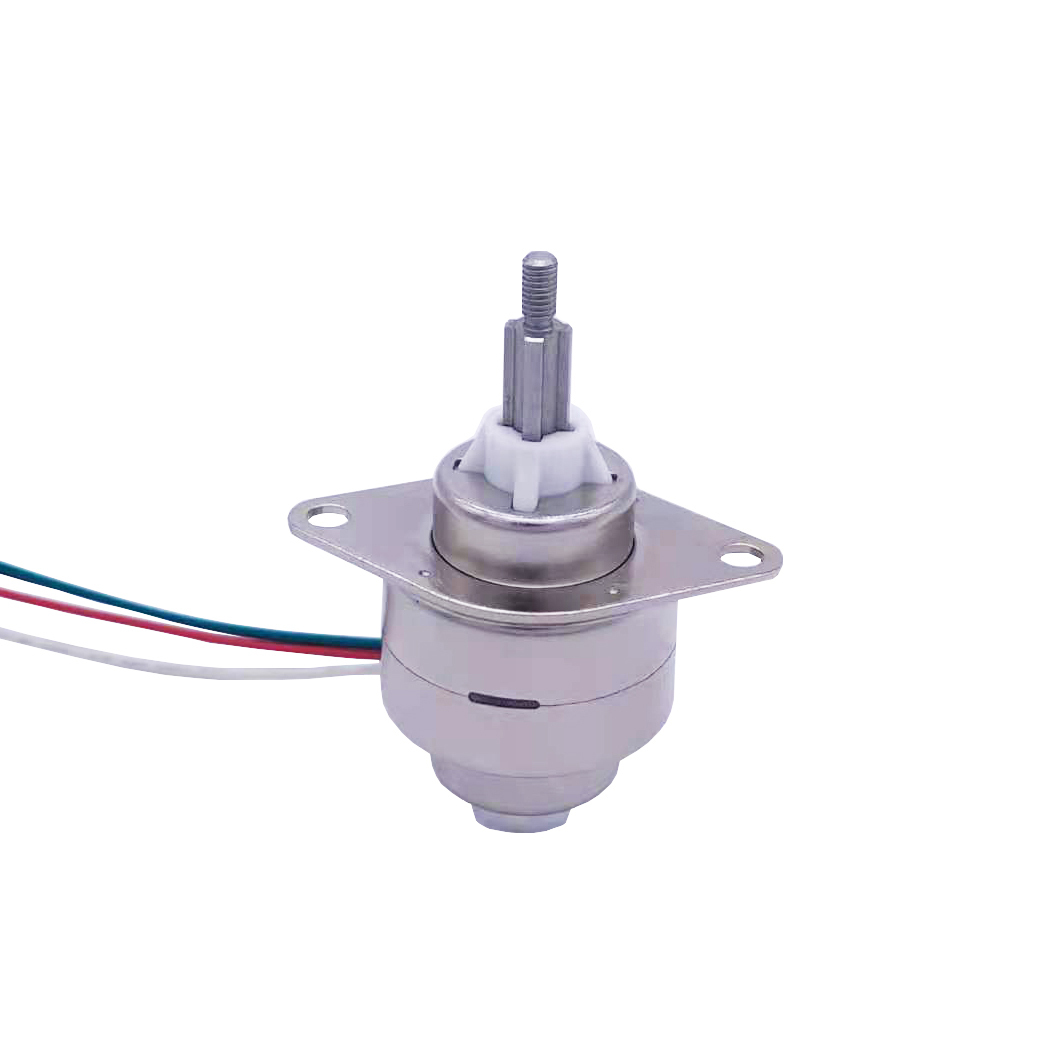

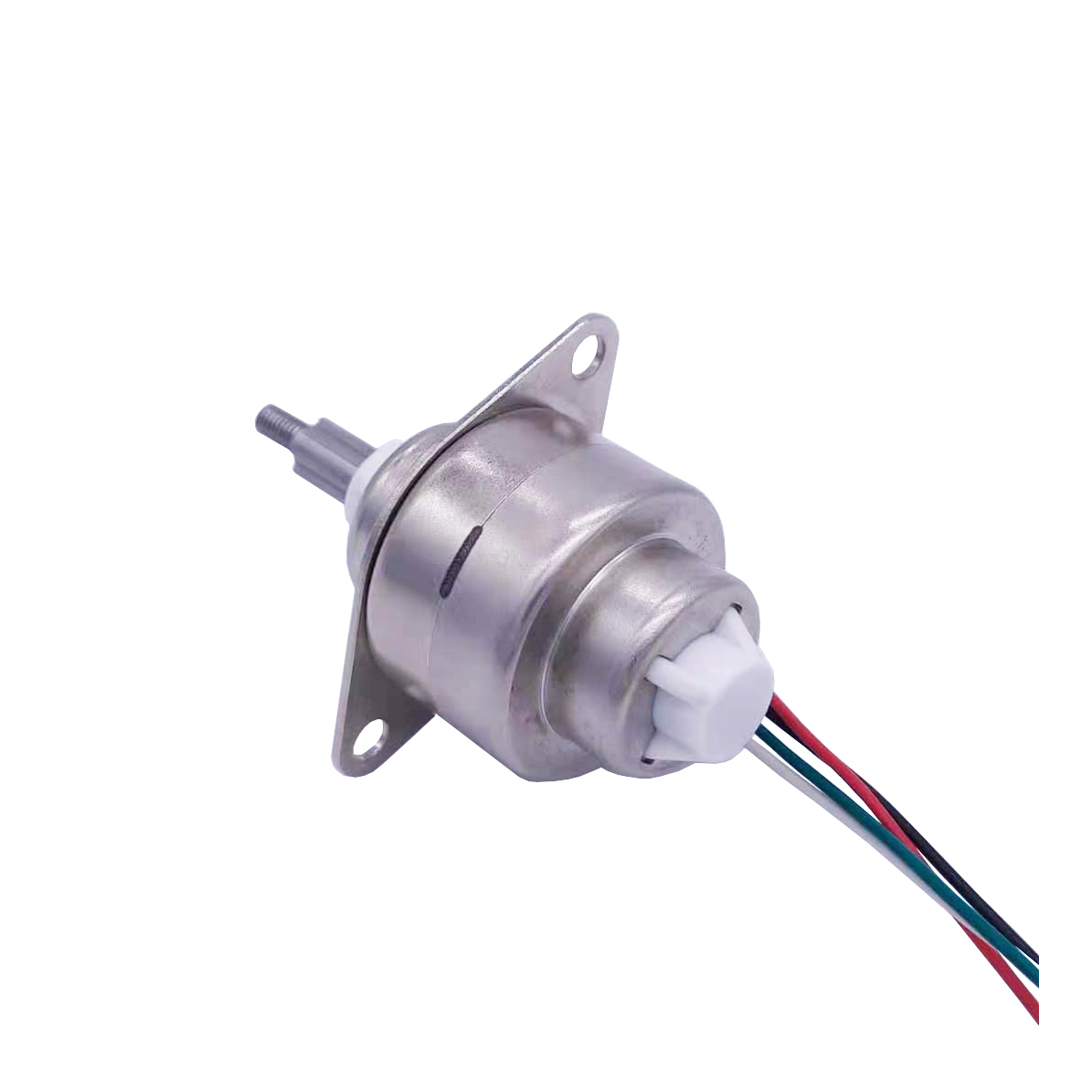

25mm Linear Stepper Motor 7.5 Degree 13mm Stroke
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM25-48S-0127-13-002 |
| Minimum Order Quantity | 2 |
| Price | $6.50-30 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diameter | 25mm | Rated Voltage | 5V |
|---|---|---|---|
| Power | 3.85W | Phase Current | 370mA |
| Phase Resistance | 13.5(±10%) Ohm/20C | Phase Inductance | 12.5(±20%) Mh/1kmz |
| Step Angle | 7.5° | Screw Lead | 0.6096mm |
| Step Travel | 0.0127mm | Linear Force | 55N/300PPS |
| Stroke | 13mm | Insulation Resistance | 20mΩ (DC 500V) |
| Operating Temp Range | -20~+55℃ | Storage Temp Range | -40~+100℃ |
| Mass | 50g | ||
| Highlight | 25mm linear stepper motor,7.5 degree stepper motor,13mm stroke stepper motor |
||
Product Description
High Positioning Accuracy 25mm Diameter 7.5 Degree Linear Stepper Motor 13mm Stroke
Product Attributes
| Attribute | Value |
|---|---|
| Warranty | Other |
| Phase | 2 |
| Type | Permanent Magnet |
| Current / Phase | 385mA |
Product Description
This 25mm diameter stepper motor features a fixed shaft design, making it ideal for applications with short stroke requirements where rotation stop devices cannot be provided. Suitable for precision instruments and electronic products, this motor finds wide application across various industrial fields.
Customization options are available. Please contact us for specific requirements.
Specifications
| Motor diameter | 25mm |
| Rated voltage | 5V |
| Power | 3.85W |
| Phase Current | 370mA |
| Phase Resistance | 13.5(±10%) Ohm/20°C |
| Phase inductance | 12.5(±20%) Mh/1kHz |
| Step angle | 7.5° |
| Screw Lead | 0.6096mm |
| Step Travel | 0.0127mm |
| Linear Force | 55N/300PPS |
| Stroke | 13mm |
| Insulation Resistance | 20mΩ (DC 500V) |
| Insulation Class | B |
| Operating Temp Range | -20~+55°C |
| Storage Temp Range | -40~+100°C |
| Mass | 50g |
Packing & Delivery
Selling Units: Single item plastic box inner, outer paper box
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
