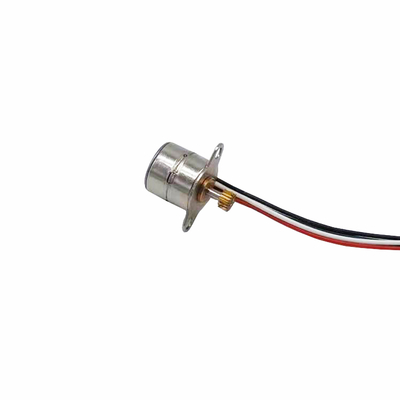

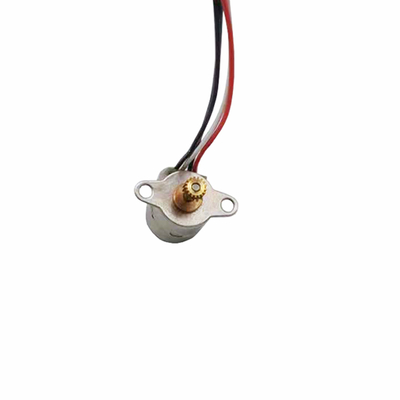

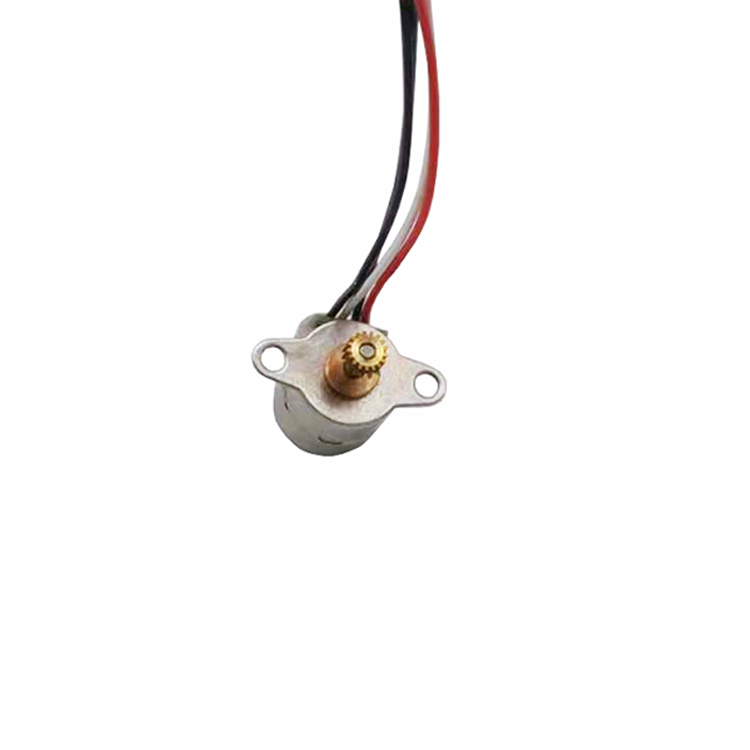

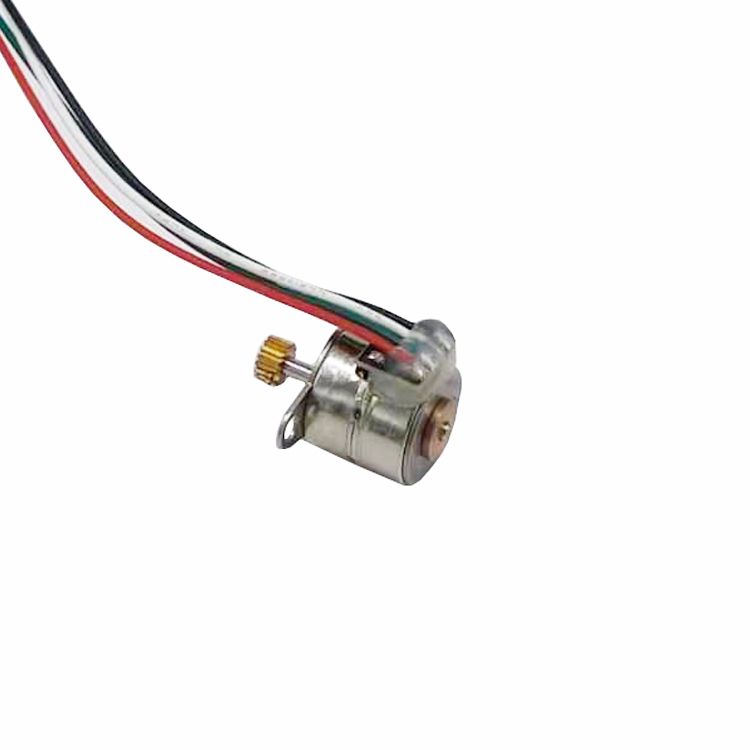

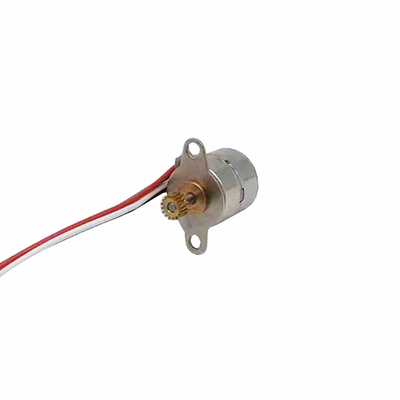

2 Phase 10mm Mini Stepper Motor 18 Degree Step Angle

  • 2 Phase 10mm Mini Stepper Motor 18 Degree Step Angle
  • 2 Phase 10mm Mini Stepper Motor 18 Degree Step Angle
  • 2 Phase 10mm Mini Stepper Motor 18 Degree Step Angle
  • 2 Phase 10mm Mini Stepper Motor 18 Degree Step Angle
Place of Origin Jiangsu, China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1070
Minimum Order Quantity 2
Price $2.20-7

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2 Type Permanent Magnet
Current 270mA Rated Voltage 5V DC
Coil Resistance 40Ω±10% Step Angle 18°/Step
Max Starting Frequency 1250 PPS Min Max Slewing Frequency 1950 PPS Min
Pull In Torque 5.4gf-cm Min Pull Out Torque 6.0gf-cm Min
Insulation Class CLASS E Insulation Strength 100 V AC
Insulation Resistance 1mΩ Operating Temperature -10~+60℃
Model No SM1070
Highlight

10mm mini stepper motor

,

2 phase stepper motor

,

18 degree step angle motor
Leave a Message
Product Description
2 Phase Small Stepper Motor 10mm Mini Stepper Motor 18 Degree Tiny Stepper Motor
Product Specifications
Attribute Value
Warranty Other
Phase 2
Type Permanent Magnet
Current / Phase 270mA
Product Overview
2 Phase 10mm Mini Stepper Motor 18 Degree Step Angle 0 2 Phase 10mm Mini Stepper Motor 18 Degree Step Angle 1
Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers. Customer needs are our priority - please feel free to contact us!
Design Layout (Unit: mm)
2 Phase 10mm Mini Stepper Motor 18 Degree Step Angle 2
Technical Specifications
Model No. SM1070
Rated Voltage 5V DC
Coil Resistance 40Ω±10%
No. Of Phases 2 Phases
Step Angle 18°/Step
Max. Starting Frequency 1250 PPS min. (AT 5.0 V DC)
Max. Slewing Frequency 1950 PPS min. (AT 5.0 V DC)
Pull In Torque 5.4gf-cm min (AT 500 PPS,5.0 V DC)
Pull Out Torque 6.0gf-cm min (AT 500 PPS,5.0 V DC)
Insulation Class CLASS E FOR COILS
Insulation Strength 100 V AC FOR ONE SECOND
Insulation Resistance 1mΩ(DC 100 V)
Operating Temperature Range -10~+60℃
Packaging & Delivery
2 Phase 10mm Mini Stepper Motor 18 Degree Step Angle 3
Selling Units: Single item plastic box inner, outer paper box
Package: Single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
