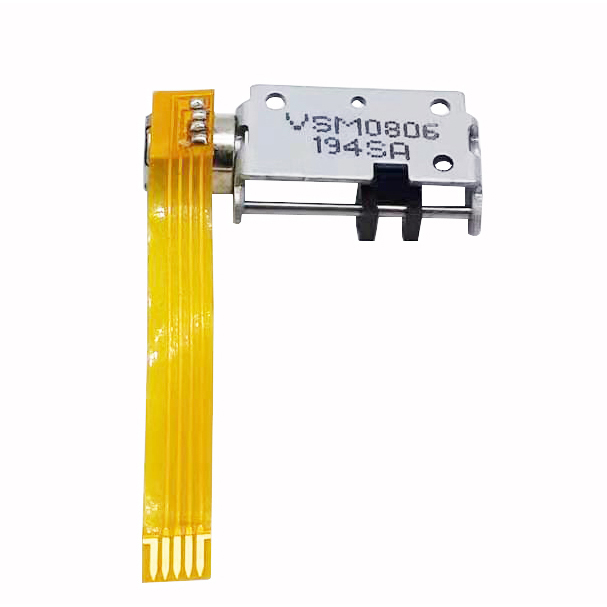

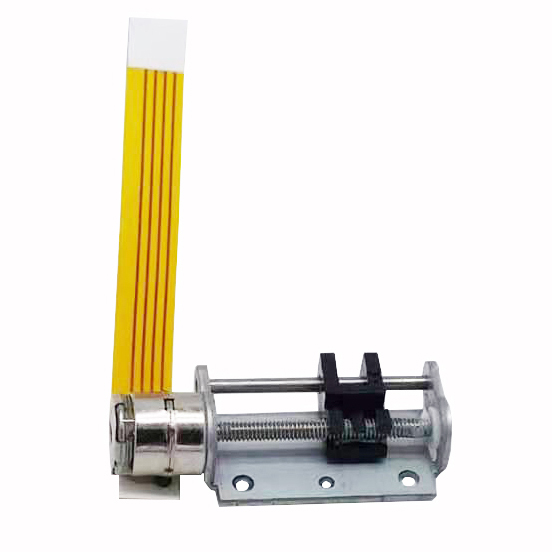

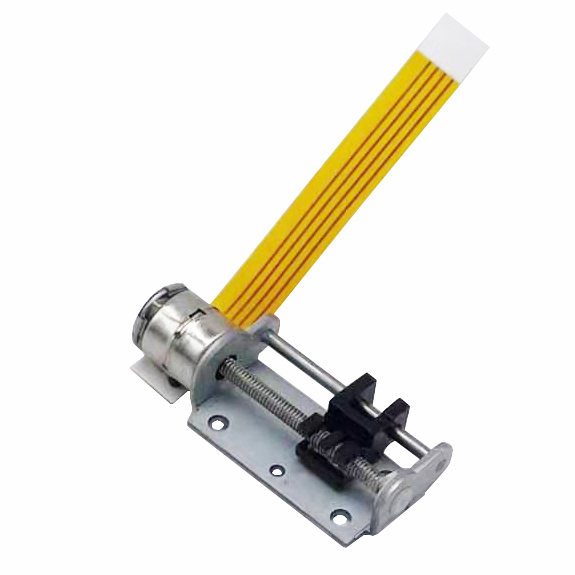

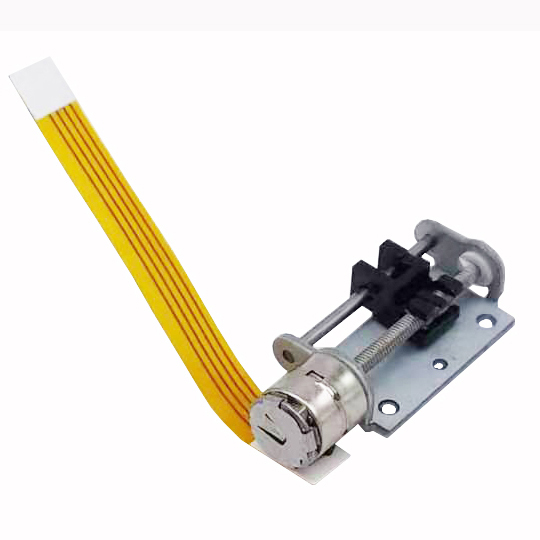

2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder

  • 2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder
  • 2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder
  • 2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder
  • 2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder
Place of Origin Jiangsu, China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM0806
Minimum Order Quantity 2
Price $2.30-8

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Diameter 8mm Rated Voltage 3.3V DC
Coil Resistance 20Ω±10% No.Of Phases 2 Phases
Step Angle 18°/Step Max Starting Frequency 800 PPS Min
Max Slewing Frequency 2000 PPS Min Pull In Torque 1.5 Gf-cm Min
Pull Out Torque 2.0 Gf-cm Min Insulation Class CLASS E FOR COILS
Insulation Strength 100V AC FOR ONE SECOND Insulation Resistance 1.0mΩ(DC 100 V)
Operating Temperature -10~+60℃ Current Per Phase 270mA
Screw Pitch 0.4mm
Highlight

5V DC micro stepper motor

,

8mm micro stepper motor

,

micro stepper motor with screw holder
Leave a Message
Product Description
2 Phase 5V DC 8mm Micro Slider Stepper Motor with Screw Holder
Product Attributes
Attribute Value
Warranty Other
Phase 2
Type Permanent Magnet
Current / Phase 270mA
Product Description
2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 0 2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 0

The VSM0806 is a precision micro step motor featuring an output shaft with a 0.4mm pitch screw that converts rotational motion into linear thrust.

Key features:

  • Basic step angle of 18° (20 steps per revolution)
  • Displacement resolution of 0.02mm for precision control
  • Subdivision drive capability
  • Compact size with high precision and easy control
  • Input options: FPC (flexible printed circuit) or customizable connection types
  • Customizable mounting bracket available

Applications include cameras, optical instruments, lenses, precision medical devices, and automatic door locks. Our team offers over 10 years of stepper motor design and production experience, with custom development services available.

2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 2 2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 2
Design Layout (Unit:mm)
2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 4 2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 4
Specification
Model No. VSM0806
Motor diameter 8mm
Rated Voltage 3.3V DC
Coil Resistance 20Ω±10%
No.Of Phases 2 Phases
Step Angle 18°/Step
Max Starting Frequency 800 PPS min (AT 3.3 V DC)
Max Slewing Frequency 2000 PPS min (AT 3.3 V DC)
Pull in Torque 1.5 gf-cm min (AT 500 PPS,3.3 V DC)
Pull out Torque 2.0 gf-cm min (AT 500 PPS,3.3 V DC)
Insulation Class CLASS E FOR COILS
Insulation Strength 100V AC FOR ONE SECOND
Insulation Resistance 1.0mΩ(DC 100 V)
Operating Temperature -10~+60℃
Packing & Delivery
2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 6 2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 6

Selling Units: Single item plastic box inner, outer paper box. Package: single carton packing, 100-1000 pieces per box. Lead Time: 30 Days After Deposit.

Company Profile
2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 8 2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 9 2 Phase 5V DC 8mm Micro Stepper Motor with Screw Holder 10

Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With a 20-year experienced R&D team, we provide custom design and development services, maintaining our position as an industry pioneer through quality and reliability.
