6mm Micro Stepper Motor VSM0652 2-Phase Precision Mini Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM0652 |
| Minimum Order Quantity | 5 |
| Price | $3.30-8 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diameter | 6mm | Fuselage Length | 7mm |
|---|---|---|---|
| Shaft Diameter | 1mm | Rated Voltage | 4.6 V DC |
| Coil Resistance | 40Ω±10% | No.Of Phases | 1-2 Phases |
| Step Angle | 9°/Step | Max Response Frequency | 1100 Pps,At 4.6VDC |
| Max Slewing Frequency | 2000 Pps,At 4.6VDC | Pull-Out Torque | 36g Min,(5V 200mA,300-400pps) |
| Insulation Class | CLASS E FOR COILS | Insulation Strength | 300 V AC For One Second |
| Insulation Resistance | 1.0 MΩ (DC 100 V) | Operating Temperature | -10~+60℃ |
| Current Per Phase | 270mA | ||
| Highlight | 6mm micro stepper motor,2-phase precision stepper motor,VSM0652 mini stepper motor |
||
Product Description

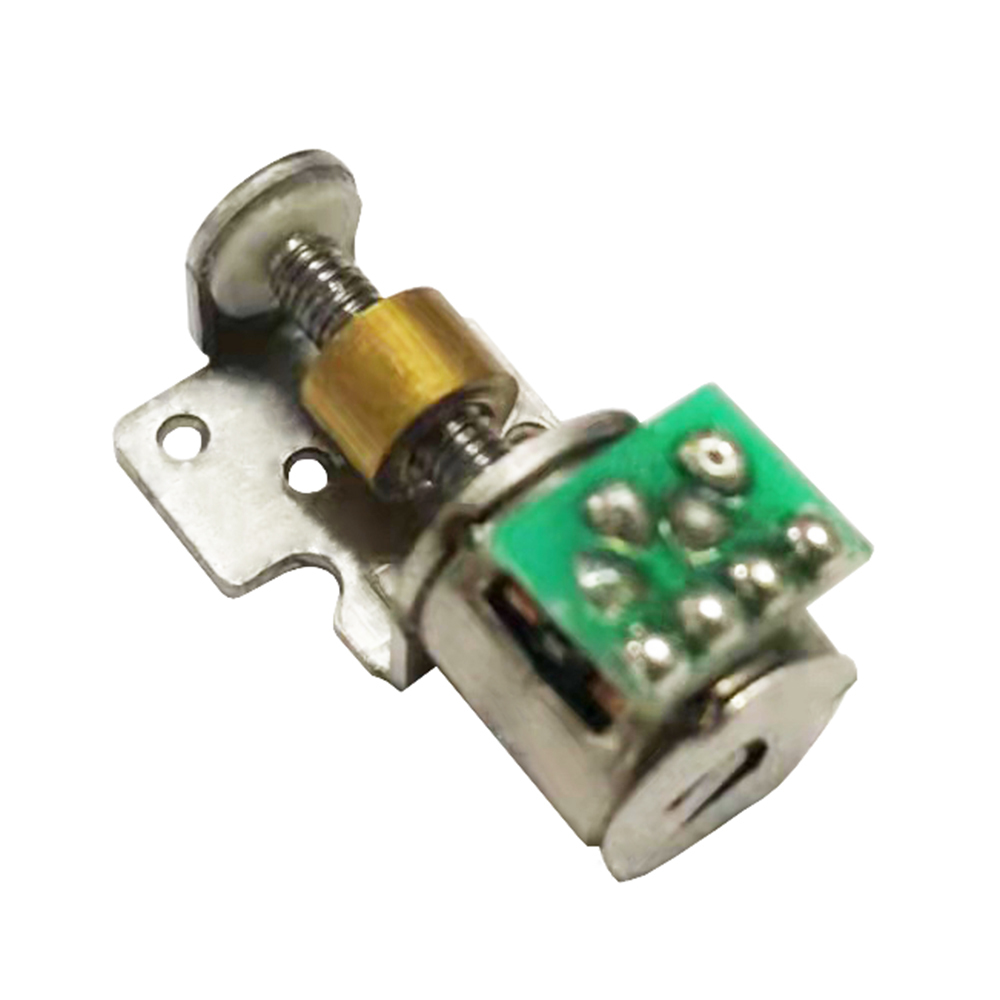

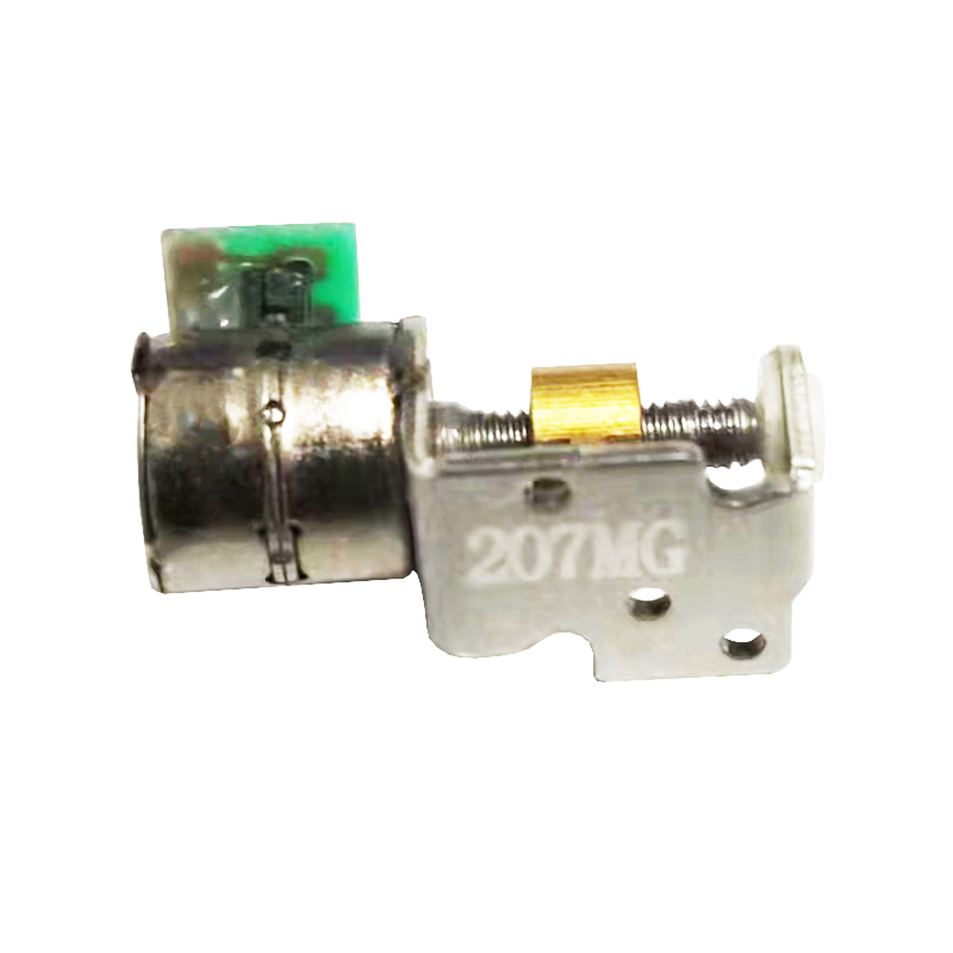

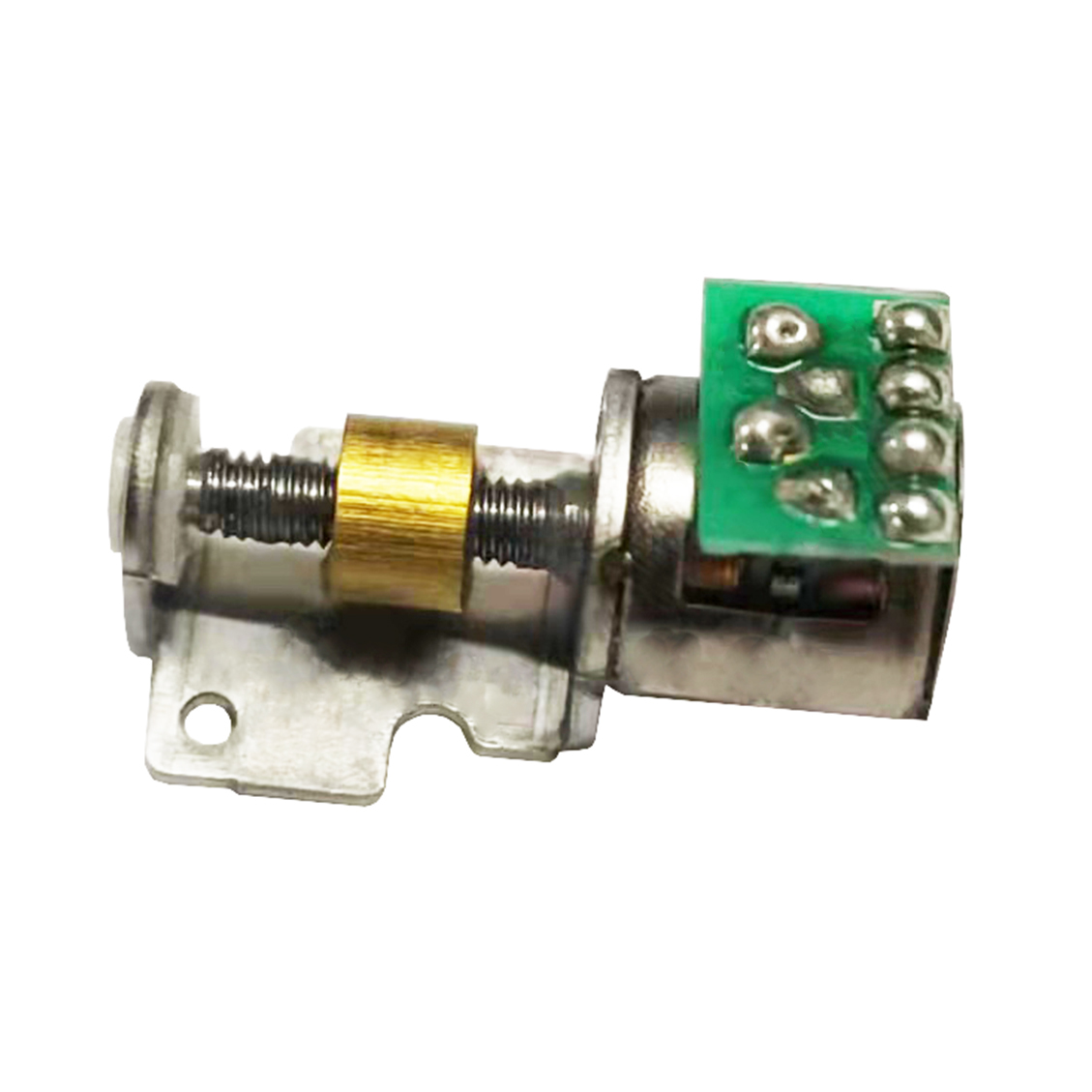

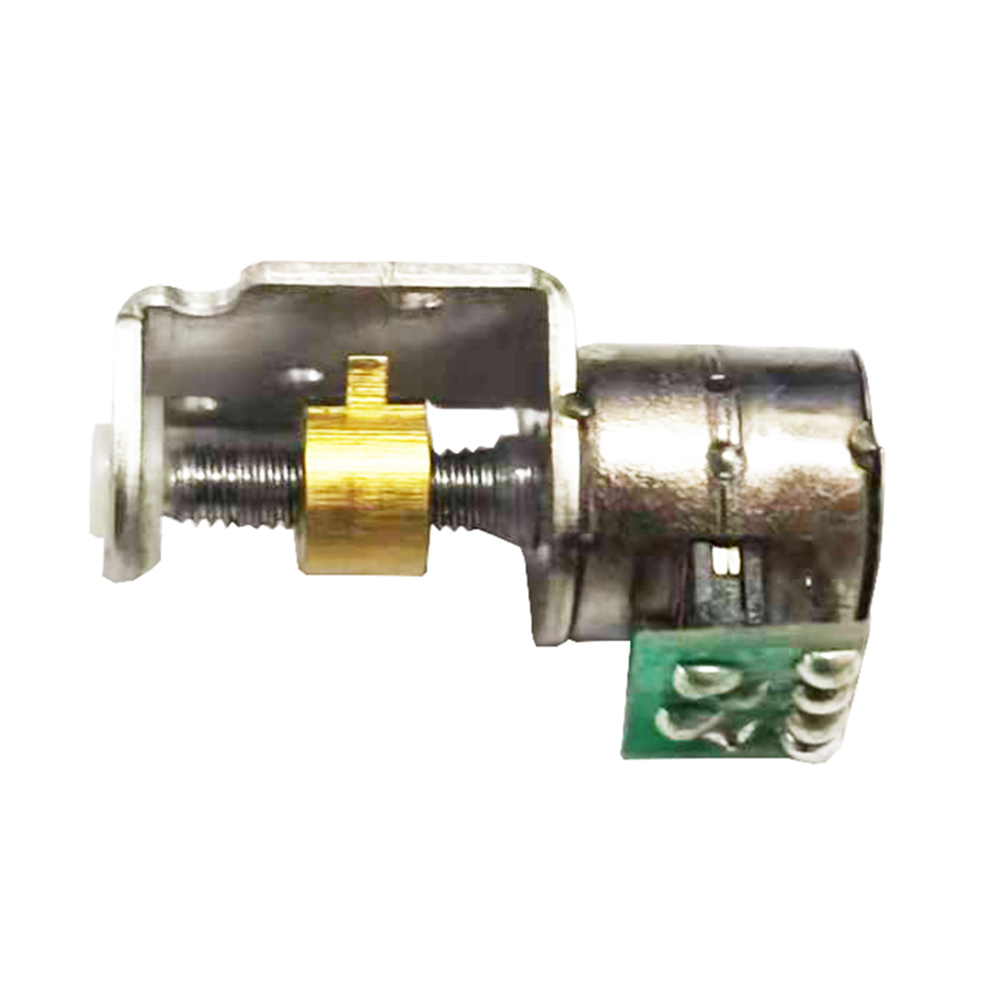

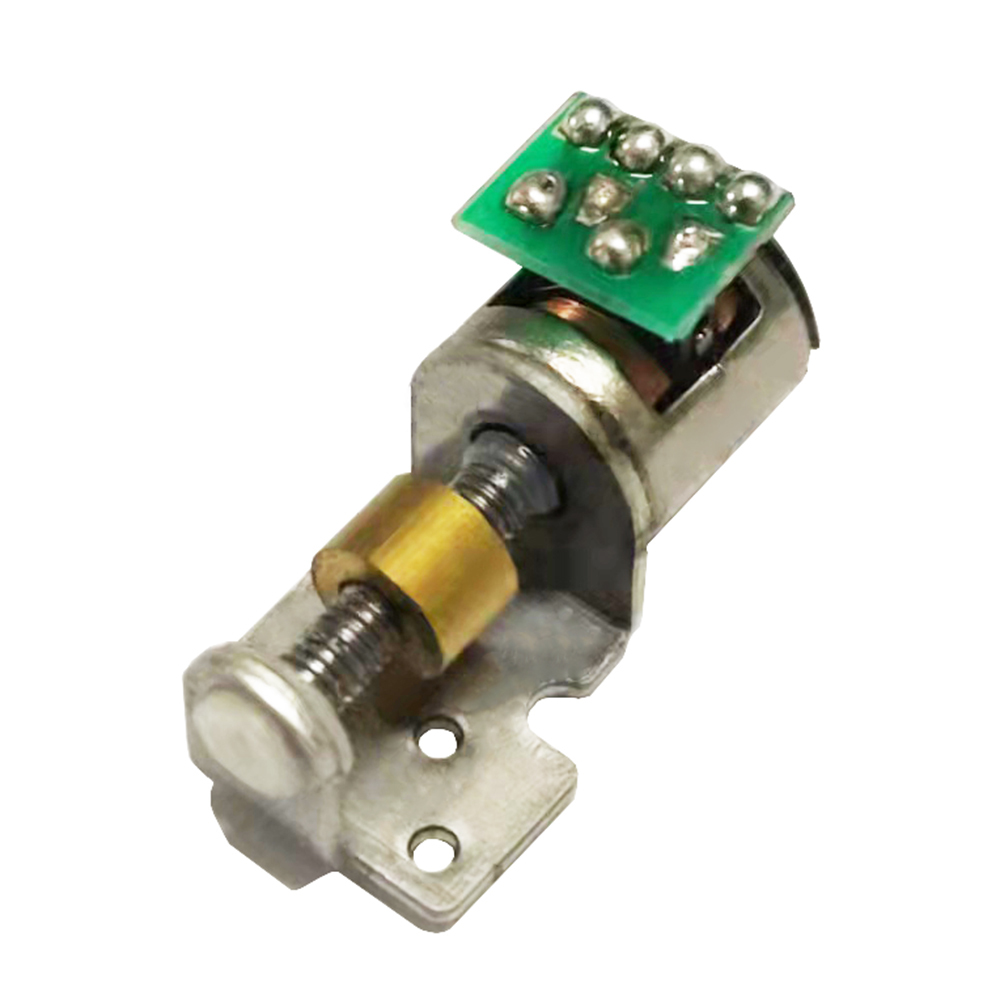

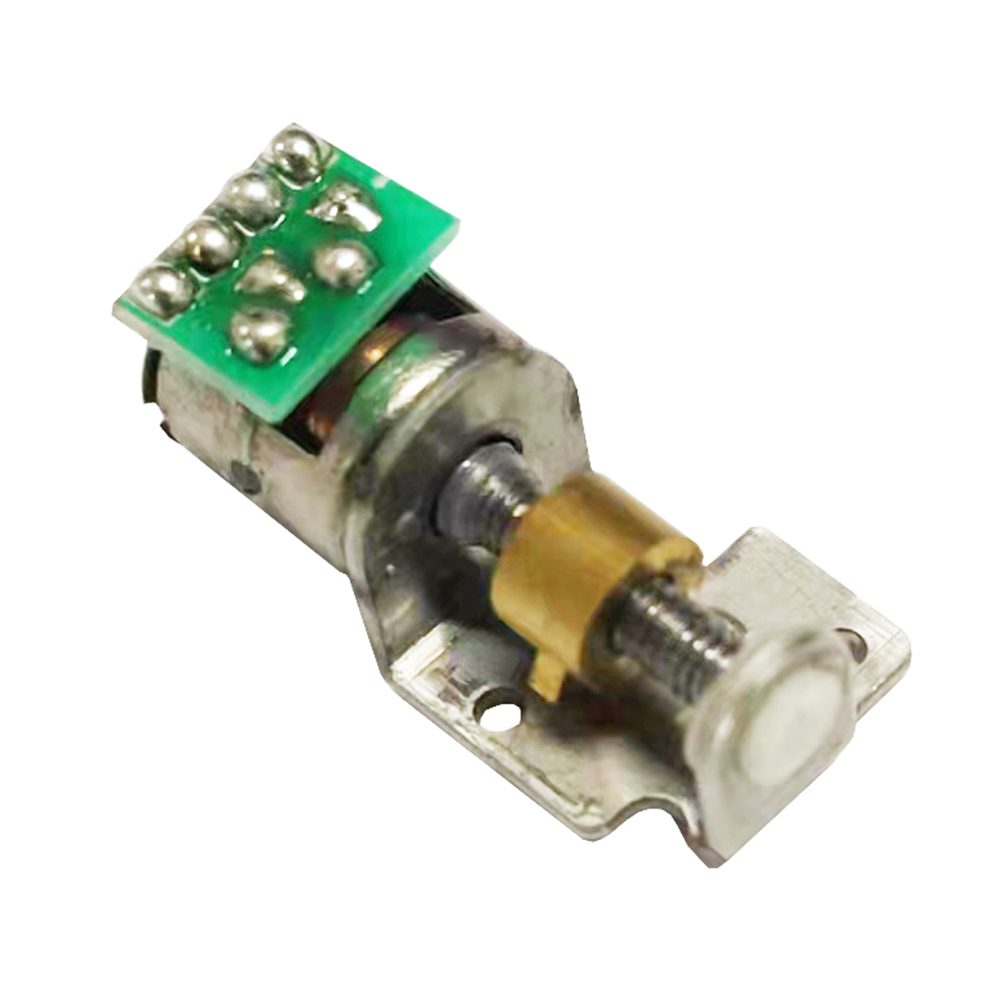

6mm Precision Micro Stepping Motor with Screw Slider
Key Features
- Compact 6mm diameter motor with 7mm fuselage length
- 1mm shaft diameter with customizable axial length
- Compatible with various output devices (gear, pulley, worm, screw)
- High precision and easy control characteristics
- Customizable input options (FPC, connecting line needle, PCB)
- Adjustable mounting bracket available
Technical Specifications
| Attribute | Value |
|---|---|
| Motor Diameter | 6mm |
| Rated Voltage | 4.6 V DC |
| Coil Resistance | 40Ω±10% |
| No. of Phases | 1-2 Phases |
| Step Angle | 9°/Step |
| Max. Response Frequency | 1100 pps, At 4.6VDC |
| Max Slewing Frequency | 2000 pps, At 4.6VDC |
| Pull-Out Torque | 36g min (5V 200mA, 300-400pps) |
| Insulation Class | CLASS E FOR COILS |
| Operating Temperature | -10~+60℃ |
Applications
This micro stepper motor is widely used in cameras, optical instruments, lenses, precision medical devices, automatic door locks, and other fields requiring compact, high-precision motion control.
Packaging & Delivery
Selling Units: Single item plastic box inner, outer paper box. Package: single carton packing, 100-1000 pieces per box. Lead Time: 30 Days After Deposit.
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in producing micro motors and accessories since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we provide custom design and development services to meet specific customer requirements.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2011, we serve domestic and international markets including North America, Europe, and Southeast Asia with a team of 51-100 professionals.
How do we guarantee quality?
We conduct pre-production samples and final inspections before shipment to ensure consistent quality standards.
What products do we offer?
Our product range includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
Why choose us?
With over a decade of specialization in micro motor production, we combine technical expertise with custom design capabilities to meet unique application requirements.
What services do we provide?
We accept various delivery terms (FOB, CIF, EXW, DDP) and payment methods (T/T, Credit Card, PayPal, Cash) with support in English and Chinese.
