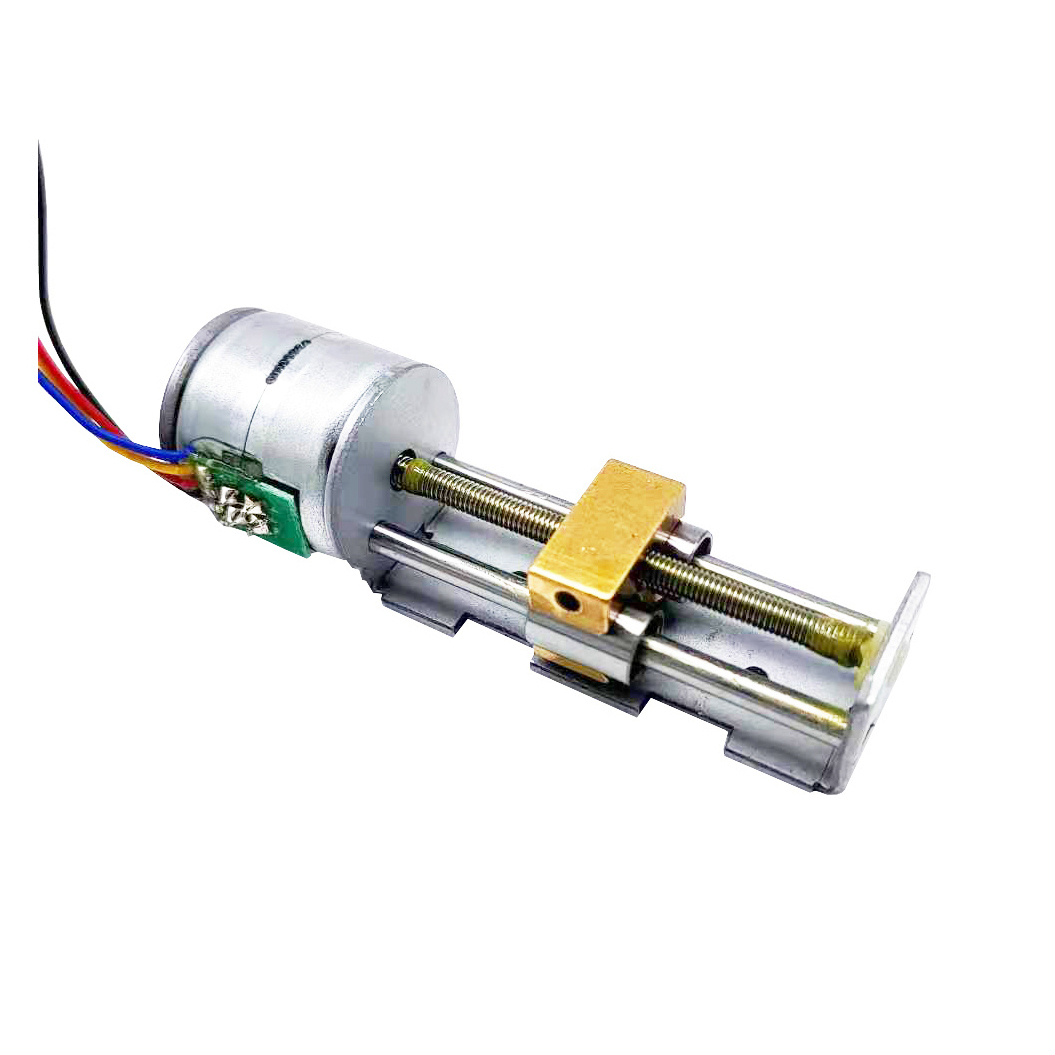

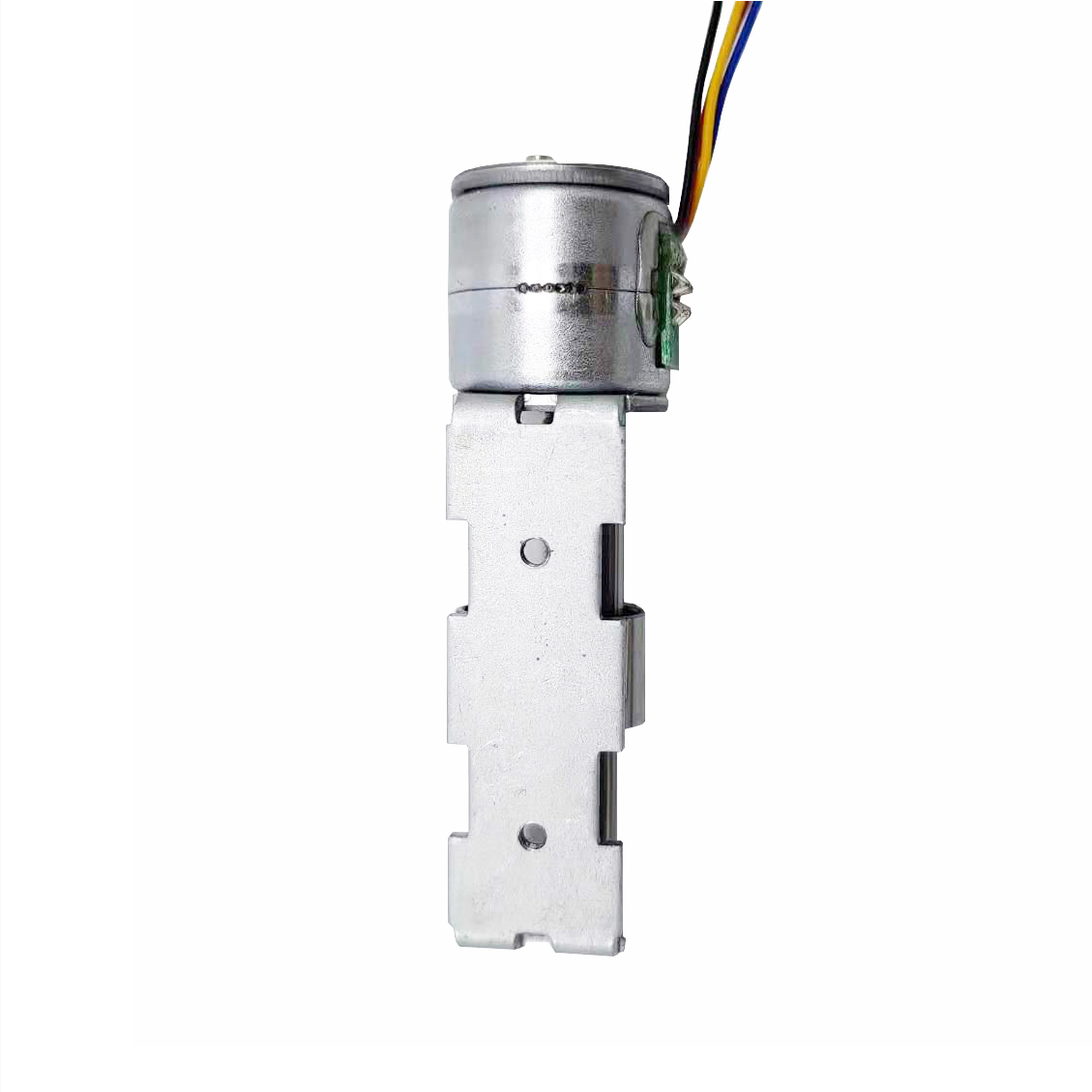

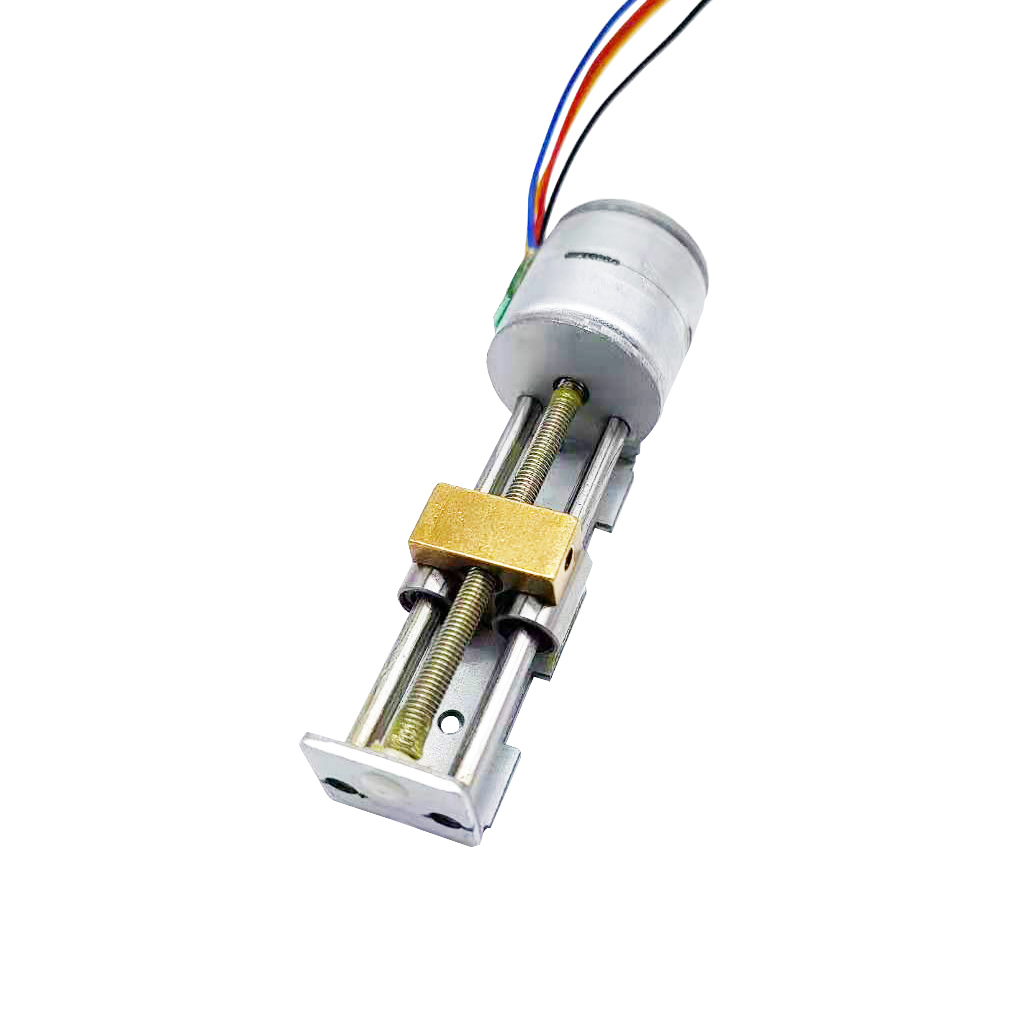

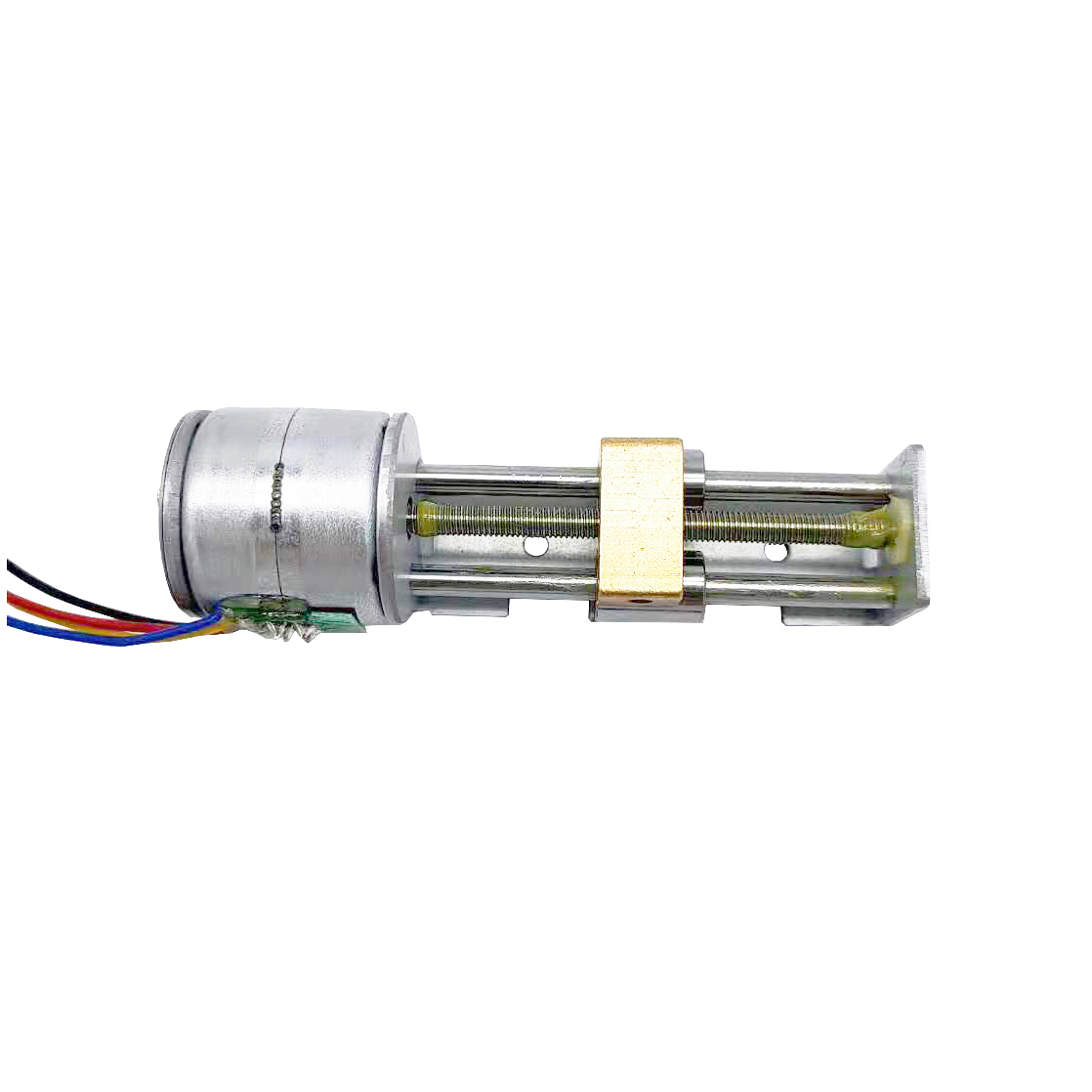

2 Phase 20mm Miniature Slider Screw Stepper Motor 12V DC
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM20-35L |
| Minimum Order Quantity | 2 |
| Price | $7-18.50 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diameter | 20mm | Rated Voltage | 12V DC |
|---|---|---|---|
| Coil Resistance | 20±10%ohm/phase(20℃) | Current Per Phase | 600mA/phase(1000pps) |
| No. Of Phases | 2 Phases | Step Angle | 18°/step |
| Excitation Method | 2-2phases Drive | Max Response Frequency | More Than 1000pps |
| Max Starting Frequency | More Than 1300 PPS | Insulation Class | Class E For Coils |
| Operating Temperature Range | -0~+55℃ | Displacement Resolution | 0.02mm |
| Screw Pitch | 0.4mm | Steps Per Revolution | 20 Steps |
| Phase Current | 385mA | ||
| Highlight | 20mm miniature stepper motor,2 phase 12V DC motor,slider screw stepper motor |
||
Product Description
2 Phase 20mm Miniature Slider Screw Stepper Motor 12V DC PM Stepper Motor
Product Attributes
| Attribute | Value |
|---|---|
| Warranty | Other |
| Phase | 2 |
| Type | Permanent Magnet |
| Current / Phase | 385mA |
Product Description
The SM20-35L is a precision screw motor with a 0.4mm pitch between the output shaft and screw. The screw rotation generates thrust while being supported by the screw mechanism. With a basic step angle of 18 degrees, the motor completes 20 steps per revolution, achieving a displacement resolution of 0.02mm for precise control. The actuator uses subdivision drive mode to meet various application requirements.
Our team brings over 10 years of experience in stepper motor design, development, and production. We offer custom product development and auxiliary design services tailored to your specific needs. Your requirements drive our efforts - please don't hesitate to contact us!
Design Layout (Unit: mm)
Specifications
Motor diameter
20mm
Rated voltage
12V DC
Coil Resistance
20±10%ohm/phase(20℃)
Current Per Phase
600mA/phase(1000pps)
No. of phases
2 phases
Step angle
18°/step
Excitation Method
2-2phases Drive
Max Response Frequency
More than 1000pps
Max starting frequency
More than 1300 PPS
Insulation Class
Class E for coils
Operating Temperature Range
-0~+55℃
Packing & Delivery
Selling Units: Single item in plastic box, outer paper box packaging. Standard package: single carton packing, 100-1000 pieces per box. Lead Time: 30 Days After Deposit.
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motors and accessories since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we provide custom design and development services. Through our commitment to honesty, dependability, and quality, Vic-Tech Motor continues to pioneer international sales by building global partnerships.
FAQ
Who are we?
Based in Jiangsu, China since 2011, we serve Domestic Market (35%), North America (25%), Northern Europe (20%), Western Europe (10%), and Southeast Asia (10%). Our team consists of 51-100 professionals.
How can we guarantee quality?
We conduct pre-production samples before mass production and perform final inspections before shipment.
What can you buy from us?
Our product range includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
Why should you buy from us?
Vic-Tech Motor specializes in micro motor production since 2011, offering micro stepper motors, geared motors, underwater thrusters, and controllers with custom design services.
What services can we provide?
Delivery Terms: FOB, CIF, EXW, DDP
Payment Options: USD, EUR, CNY via T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
Payment Options: USD, EUR, CNY via T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
