12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor

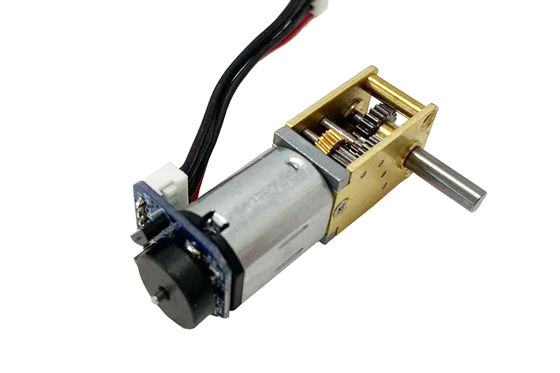

  • 12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor

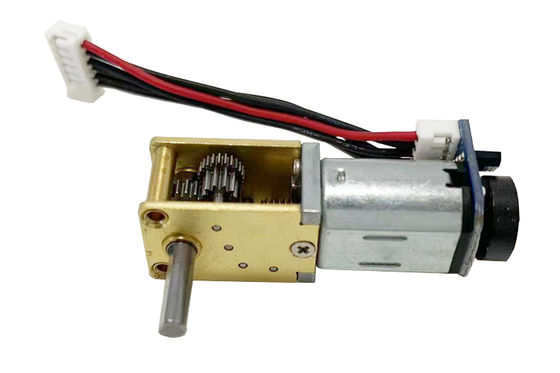

  • 12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor

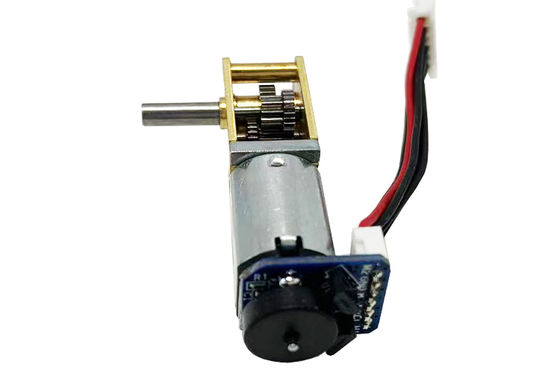

  • 12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor

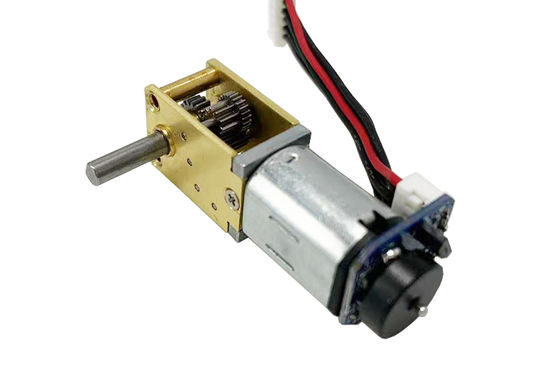

  • 12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor

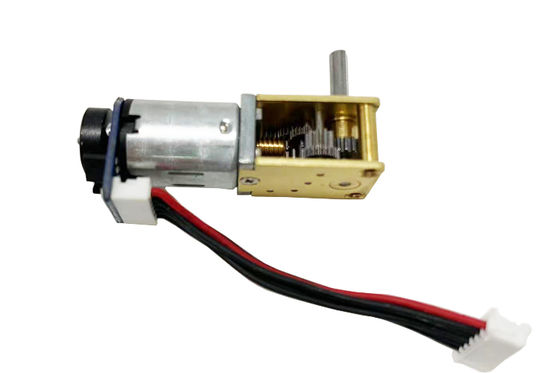

  • 12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor
  • 12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number N20-1812-302G-E
Minimum Order Quantity VIC-TECH
Price $1.99~$6/unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000Units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 3~12( V ) Output Power 0.1~1.6( W )
Type DC Motor Usage Door Locks And 3D Printers
Certification CE, ROHS Torque 0.0005~0.002( NM )
Commutation Brush Speed(RPM) 10~600( Rpm )
Continuous Current(A) 0.05~0.5( A) Gear Ratio 1:42~1:1030
Leave a Message
Product Description

12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder



N20 is a DC gear motor made of precious metal brushed DC motor and precision metal reducer. The external dimensions are flat circle, with an outer diameter of 12 and a flat shape of 10. The motor length is 15mm and the gearbox length is 12 * 18 * 10mm. The right angle gearbox can save space for application, but due to the worm gear reduction process, the efficiency of the motor is lower than that of the spur gear. The gear reduction ratio of 1:21-1030 can be selected
DC motors are widely used in fields such as cameras, copiers, door locks, optical drives, precision instruments, and cameras due to their mature technology, low cost, and simple drive control.
Our gearbox is processed and assembled using imported machine tools, ensuring that the accuracy of each gear is higher than other manufacturers in the same industry. Therefore, the gearbox transmission is stable, low-noise, efficient, structurally reliable, has a long service life, and good quality.
Stability.

Our team has over 10 years of experience in the design, development, and production of micro motors, so we can achieve product development and auxiliary design according to customers' special needs!
Customer needs are our efforts, please feel free to contact us at any time!

12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor 0

N20 DC gear motor has beautiful appearance, small size, light weight, easy to install, long life, low noise technology, high energy saving rate, zero momentum, large torque and high precision.



Mechanical Dimension:MM



12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor 1

Technical Features


1:12*18*10mm gearbox with N20 permanent magnet DC motor
2: Meets EU environmental standards. Low energy consumption, low noise
3: Can be equipped with encoder. The number of pulses is 12ppr
4: Reduction ratio: 1:21.1:42.1:118.1:236.1:302.1:603.1:798.1:1030.
5: The product is suitable for: electronic door locks, intelligent switches, steam hair straighteners (water spray straight hair), label stripping agent, smart wear, smart machine 3D printing equipment products, hair curlers, safes, electric screwdrivers, display stands, etc.

Typical Applications

  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments
  • Safe Box
  • Ad Equipment
  • Household Appliances
  • Electtric Door Locks

Product Detail Presentation

12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor 2



                                        China 12mm 3V 5v 12vdc gear motor special motor for electronic lock

12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor 3



Packaging and Shipping

The Micro Stepper Motor is packaged in a durable box with foam padding to ensure the motor is securely protected during the shipping process. The package is then shipped via a reliable courier service and tracking number is provided.

12mm Metal right angle Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder Small DC Gear Motor for Electronic Lock Dc Electric Brush Motor 4
