Multiple gearbox ratio 180 DC brushed motor with 22RP planetary gearbox

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number 22RP-180
Minimum Order Quantity 1 Unit
Price $4~$21/unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Gearbox Type Planetary Gearbox Gearbox Ratio 4:1 ~ 2418:1
Motor Type 180 DC Brushed Motor Motor Diameter 20mm
Output Shaft D Shaft Rated Voltage 5~24V DC
Leave a Message
Product Description

Multiple gearbox ratio 180 DC brushed motor with 22RP planetary gearbox

Mechanical Dimension (mm)

Multiple gearbox ratio 180 DC brushed motor with 22RP planetary gearbox 0



This is a 180 DC brushed motor attached with a planetary gearbox.

The rated voltage is 5V ~ 24 V DC, and it depends on user’s driving voltage.

We have different gearbox ratios for option:

From 4:1 to 2418:1

Please select suitable gearbox ratio based on your speed and torque requirement.

The gearbox type is planetary gearbox, compared to regular pinion gearbox, planetary gearbox is with higher efficiency, higher precision, and higher price.

We also have other gearbox types for you to choose, if this planetary gearbox does not fit your needs.



Motor parameters:

Motor type 180 DC brushed motor
Motor diameter 20.4 mm
Rated voltage 5~24 V DC
Unloaded output speed 4000~8000 RPM/gear ratio
Loaded current 120~300 mA
Stalled current 470~800 mA
Gearbox ratio 4:1 ~ 2418:1





Gearbox parameters:



Gearbox levels 1 2 3 4 5
Reduction ratio 4:1/ 4.75:1 16:1/ 19:1/ 22.5:1

64:1/ 76:1/

90:1/107:1

256:1/ 304:1/ 361:1/ 428:1/ 509:1

1024:1/ 1216:1/ 1444:1/

1714:1/ 2036:1/ 2418:1

Gearbox length (mm) 13.5 16.9 20.5 24.1 27.6
Gearbox efficiency 90% 81% 73% 65% 59%





Product Detail Presentation

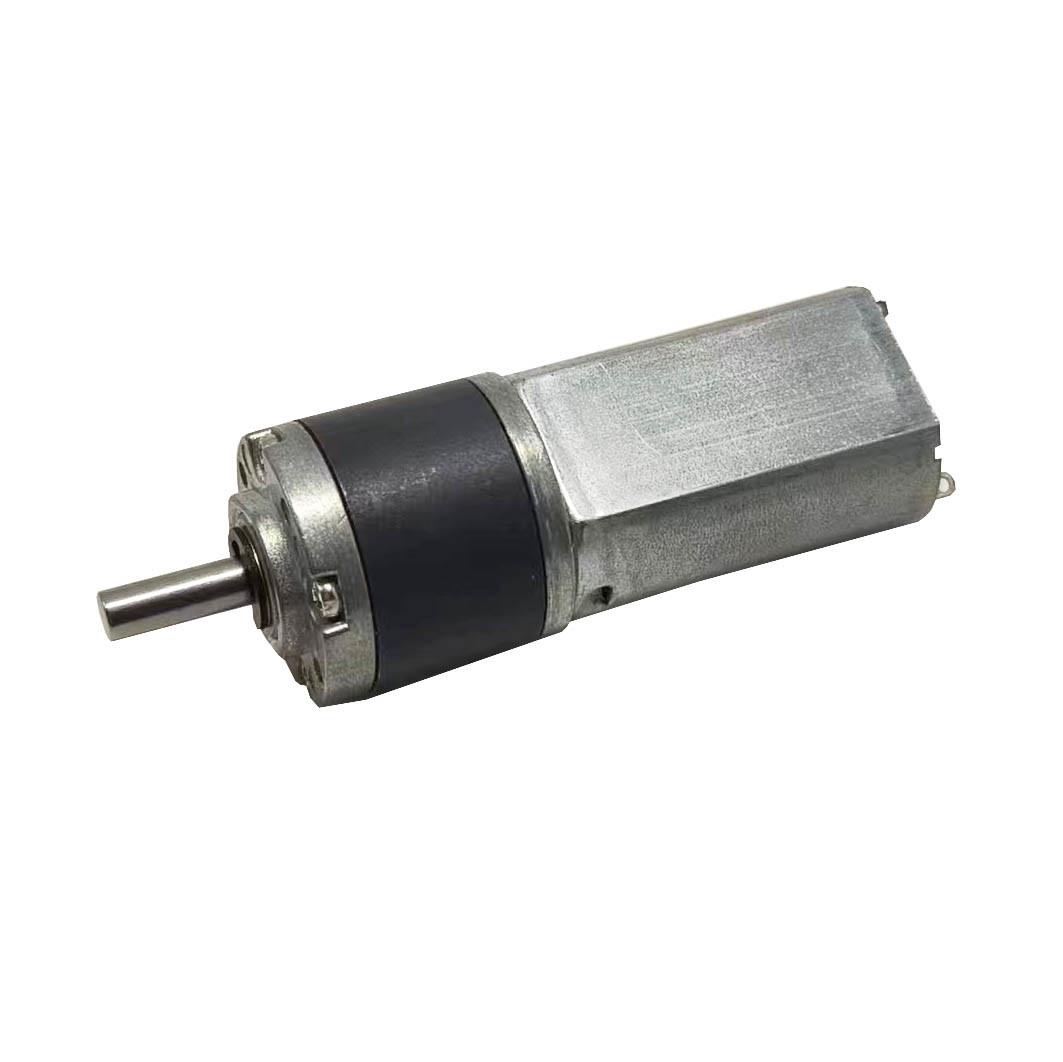

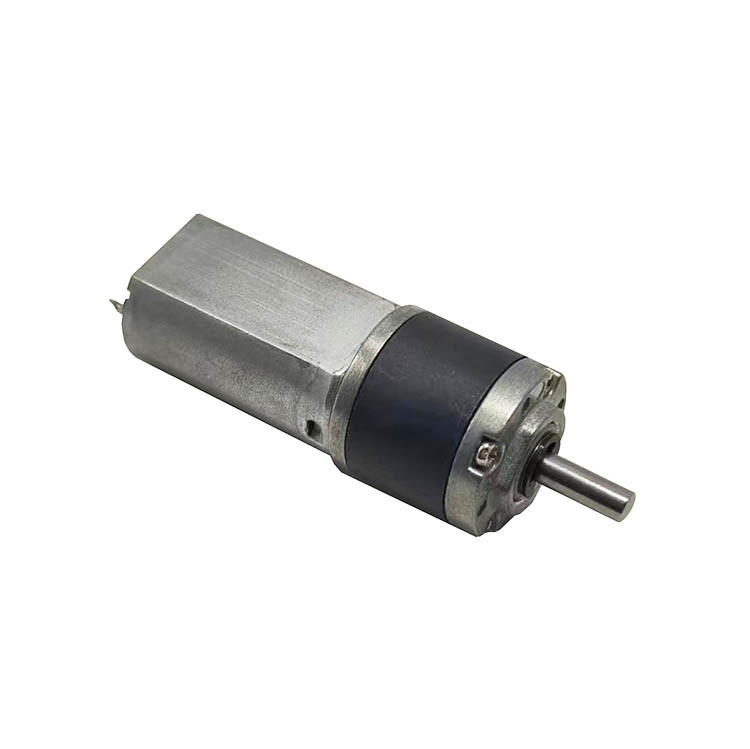

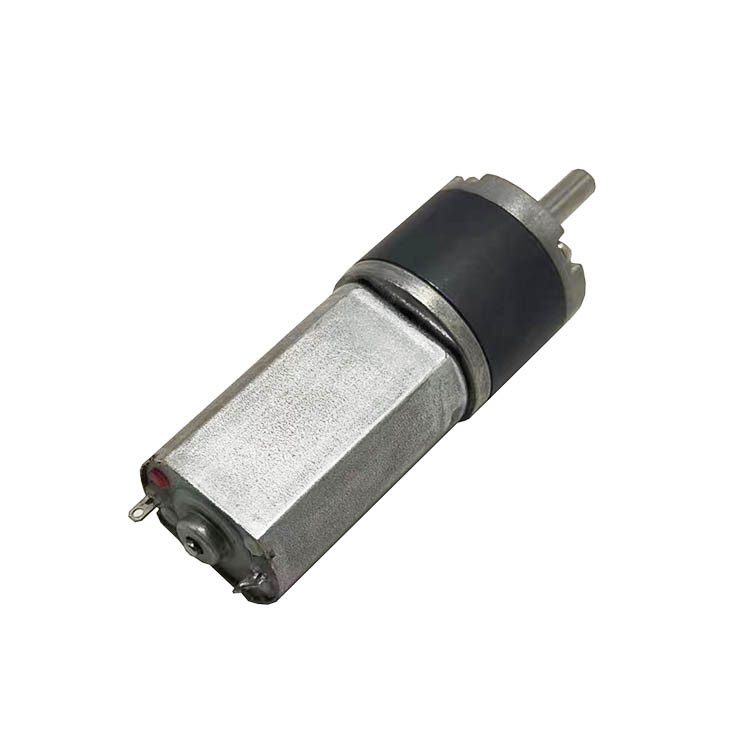

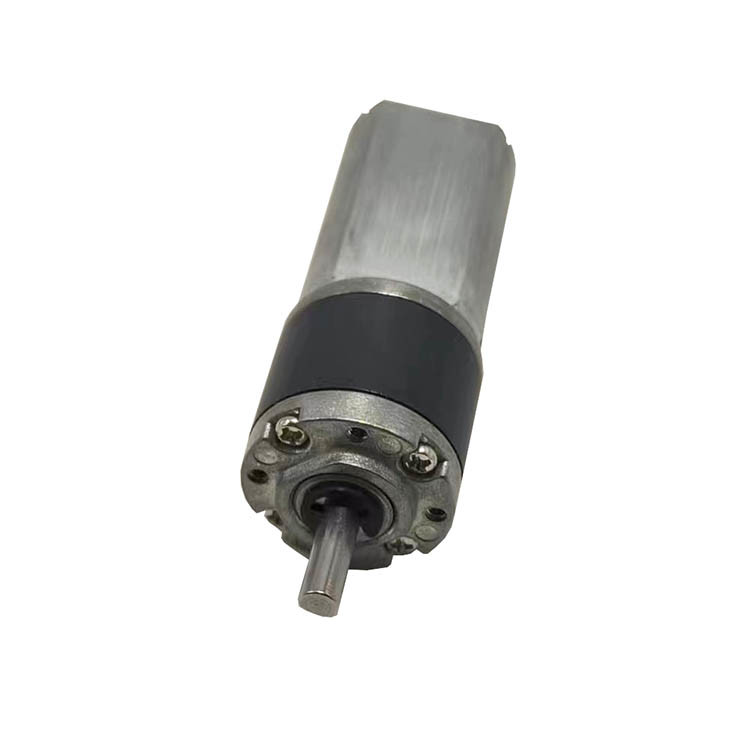

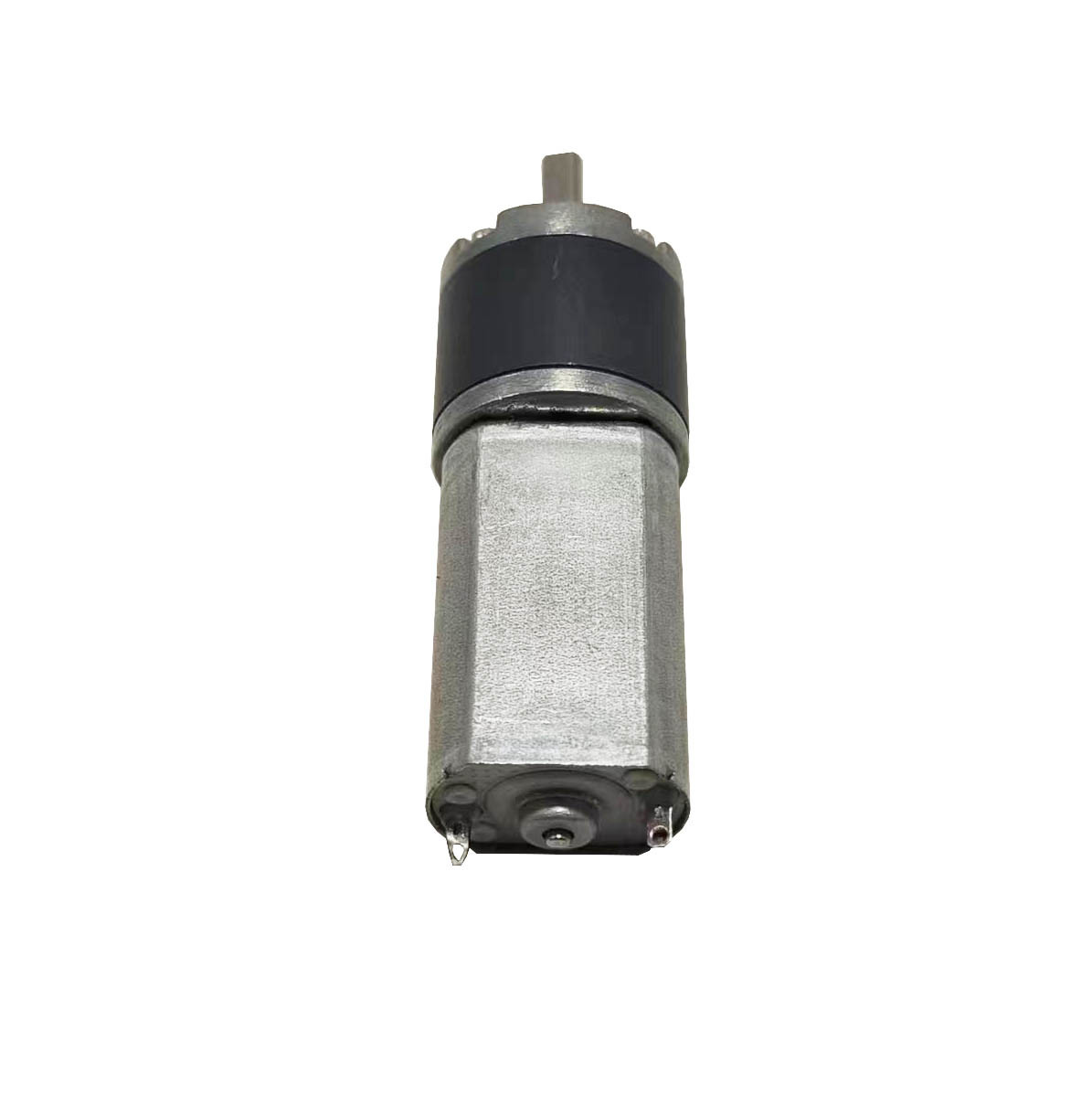

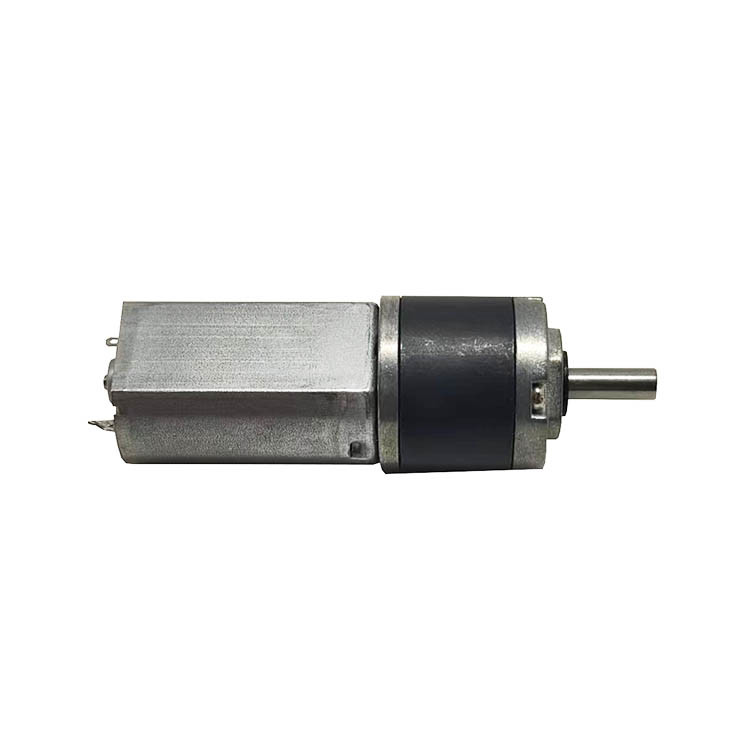

Multiple gearbox ratio 180 DC brushed motor with 22RP planetary gearbox 1

Typical Applications

  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments
  • Safe Box
  • Ad Equipment
  • Household Appliances
  • Electtric Door Locks
