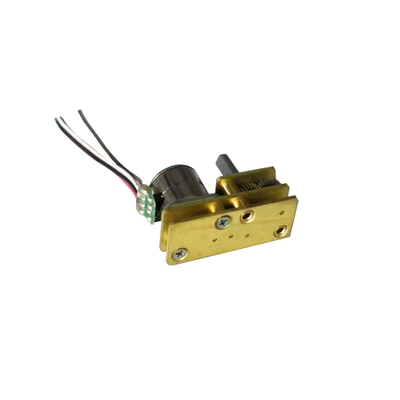

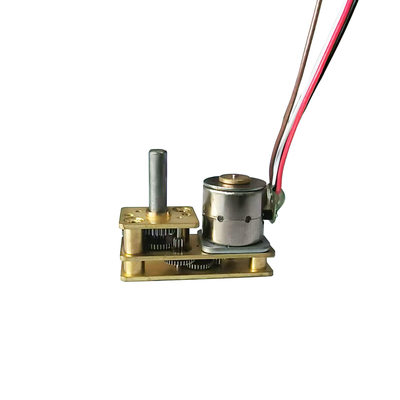

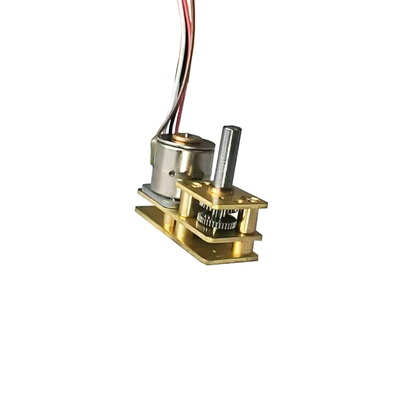

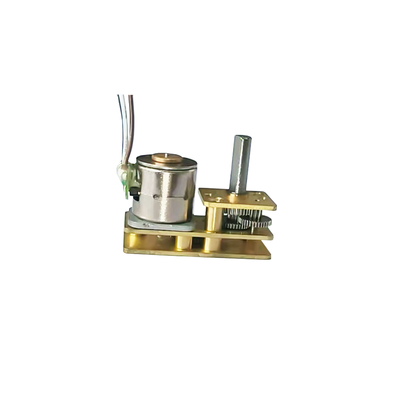

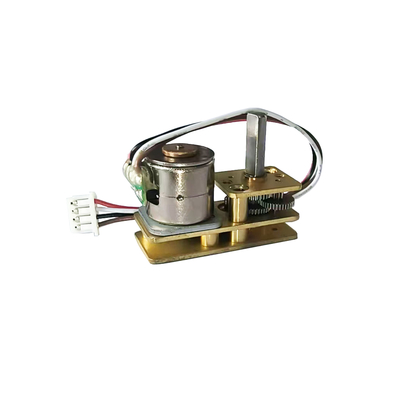

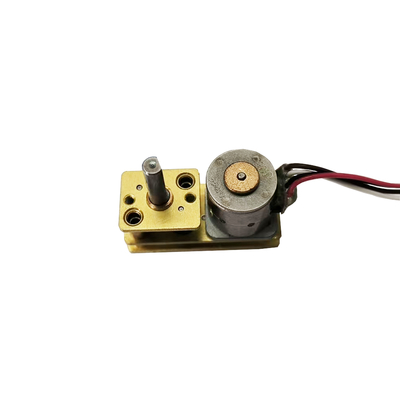

10mm 2 phase 4 wire mini horizontal gear motor stepper motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM10-1024 |
| Minimum Order Quantity | 1Unit |
| Price | $7~18/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 10000Units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gear Motor With Encoder | Torque | High Torque |
|---|---|---|---|
| Construction | Permanent Magnet | Continuous Current(a) | Customized |
| Voltage(v) | 5V DC | Motor Step Angle | 18° |
| Gear Ratio | 1:10-1:1000 | Phase | 2 |
Product Description
10mm 2 phase 4 wire mini horizontal gear motor stepper motor
This is a combination of 10MM micro stepper motor and 10*24 precision metal reducer, the deceleration ratio can be customized according to customer needs.
The basic step Angle of the motor is 18 degrees, that is, 20 steps per revolution.
Reduction ratio of reducer: 1:10, 1:30, 1:50, 1:100, 1:144, 1:150, 1:300, 1:323, 1:483, 1:500, 1:668, 1:945, 1:1000. Customers can match the reduction ratio according to different torque and speed requirements.
Power input parts and standard stepper motors can be used as probe structures, FPC, FFC, PCB cables, etc.
Motor partial output can be used for various output structures, such as circular shaft, D-axis, etc.!
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| PRODUCT NAME | 10mm geared stepper motor |
| MODEL | VSM10-1024 |
| RESISTENCE | 40Ω±7% |
| Lead length | 75mm |
| Motor step angle | 18° |
| Gear ratio | 1:10-1:1000 |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| OEM & ODM SERVICE |
AVAILABLE |
Torque Curve For Reference
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
-
Round Type : DIA3mm. 4mm. 5mm
-
D-cut Type: DIA3-D2.5 DIA4-D3 etc
-
Screw Type: M3 M4 M5 Serial
-
Trape Type
-
I-cut Type: DIA3-I2 DIA4-I3
-
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
Product Detail Presentation
