5V 18° step angle high thrust 15mm diameter captive linear stepper motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | SM36-021L |
| Minimum Order Quantity | 1Unit |
| Price | $7~$30/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resistance Per Phase | 33Ω±10% | Phase | 2 Phases |
|---|---|---|---|
| Type | Linear Stepper Motor | Step Angle | 18° |
| Rated Voltage | 5V DC | Stroke | 13 Mm |
| Dimensions | 15mm Diameter | Step Travel | 0.025mm |
Product Description

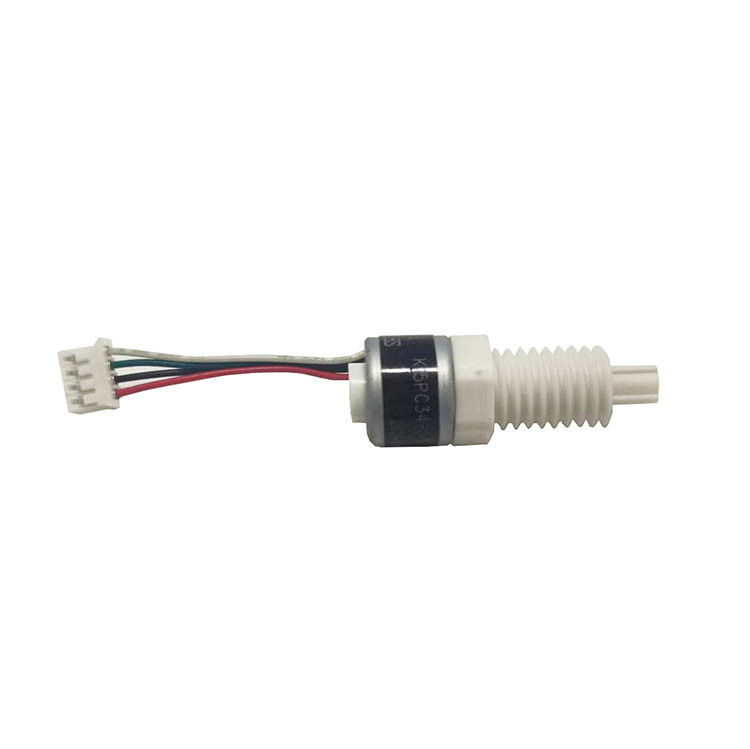

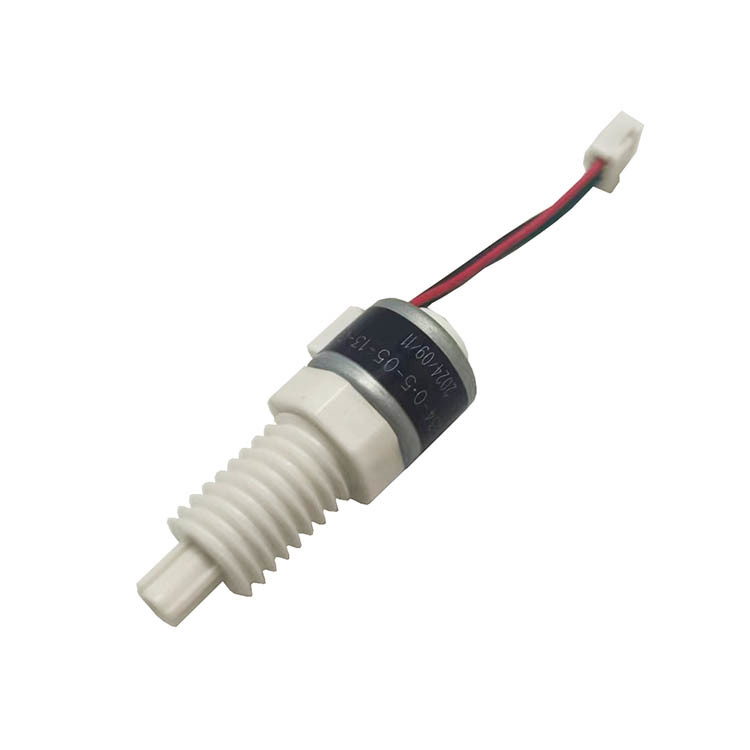

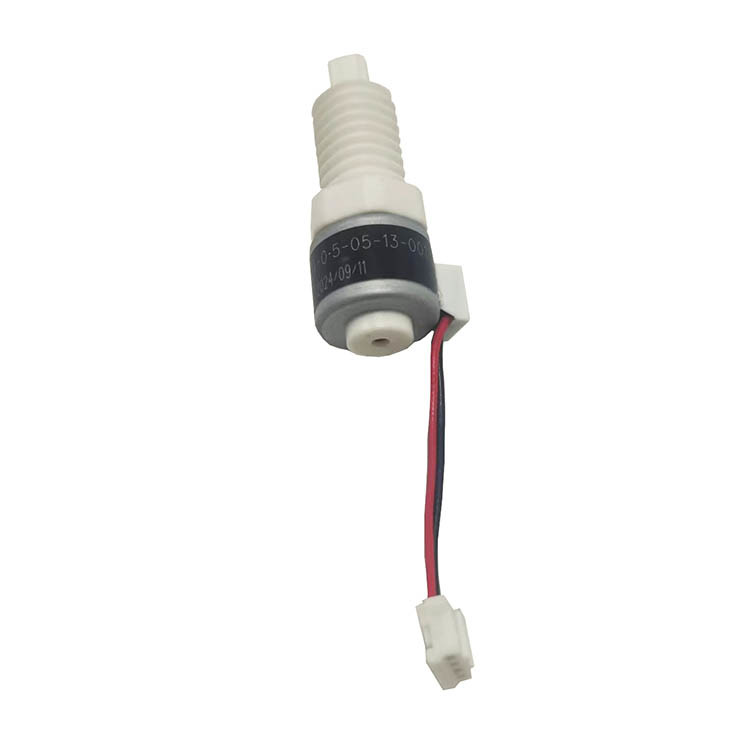

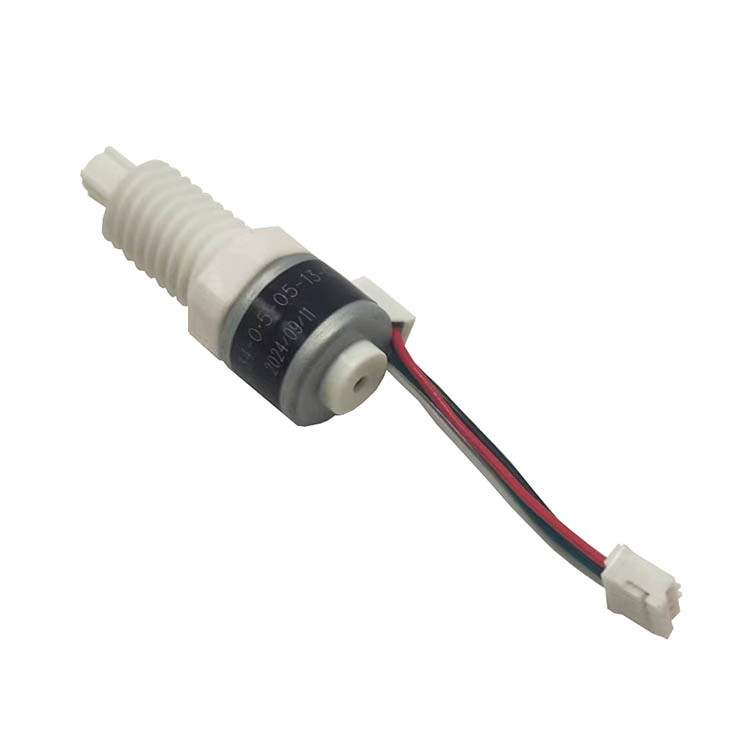

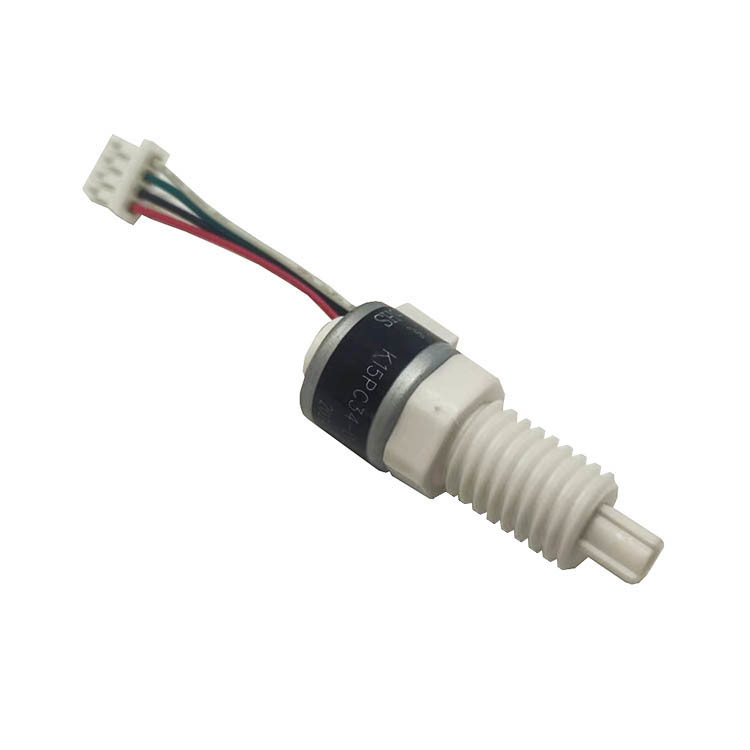

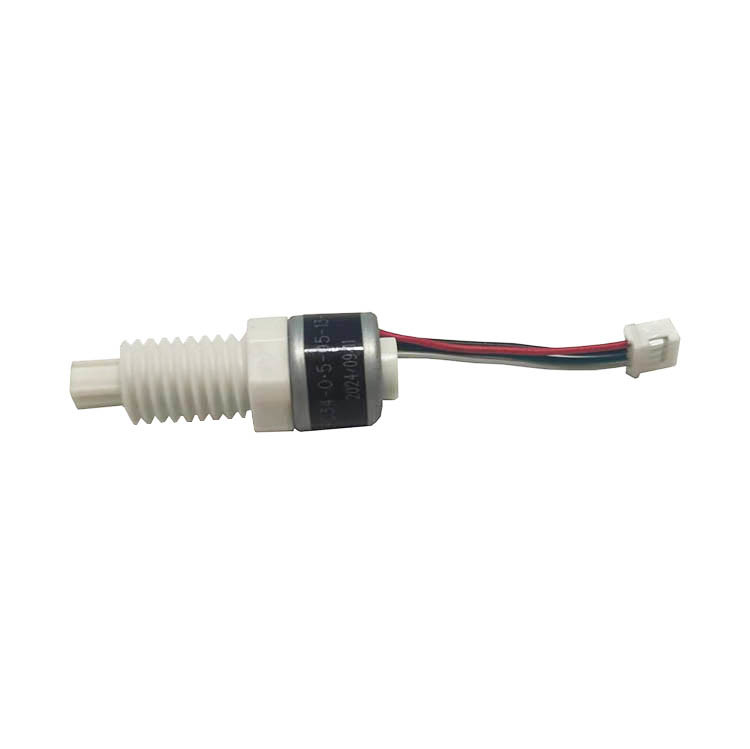

5V 18° step angle high thrust 15mm diameter captive linear stepper motor
This is a 15mm diameter linear stepper motor, designed for high precision linear movement.
The travel distance/stroke of the motor is about 13mm.
It’s a regular 2 phase bipolar stepper motor with 4 wires.
You can run this motor with a regular stepper motor driver.
The screw lead is 0.5mm, and step length is 0.025mm, which means whenever the motor takes one step, it travels 0.025mm. It’s very critical for high precision control.
If you want to customized parameters such as coil resistance, cable length and so on, please feel free to contact us.
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Design Layout (Unit:mm)
Parameters:
| Model No. | K15PC34-0.5-05-13-001 |
| Motor type | Linear stepper motor |
| Power | 1.6 W |
| Phase current | 160 mA/phase |
| Phase resistance | 33 Ω/phase |
| Phase inductance | 8.7mH/phase |
| Step angle | 18° |
| Screw lead | 0.5 mm |
| Step length | 0.025mm/step |
| Travel distance | About 13mm |
