50BYJ46-6 50mm Diameter 5V DC Bipolar Permanent Magnet Gearbox stepper motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 50BYJ46-6 |
| Minimum Order Quantity | 1 Unit |
| Price | $7-$10/unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
| Delivery Time | 15-30 work days |
| Payment Terms | MoneyGram, T/T, Western Union, T/T |
| Supply Ability | 1000000units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle | 15° | Voltage | 15 V DC |
|---|---|---|---|
| Resistance | 23 Ω ± 7% | Gearratio | 1:33.3 |
| No Of Phases | 4 Phase | Motor Model | 50BYJ46-6 |
Product Description

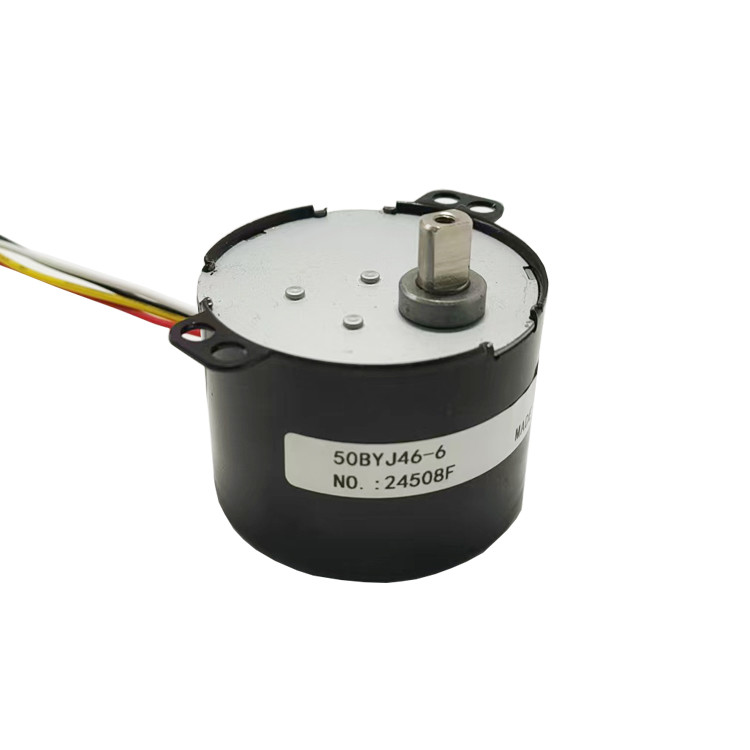

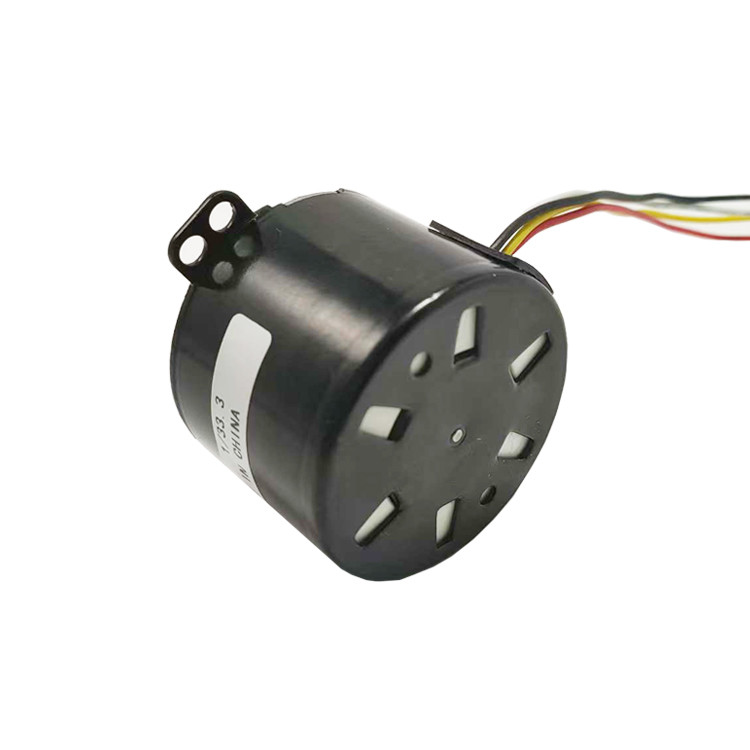

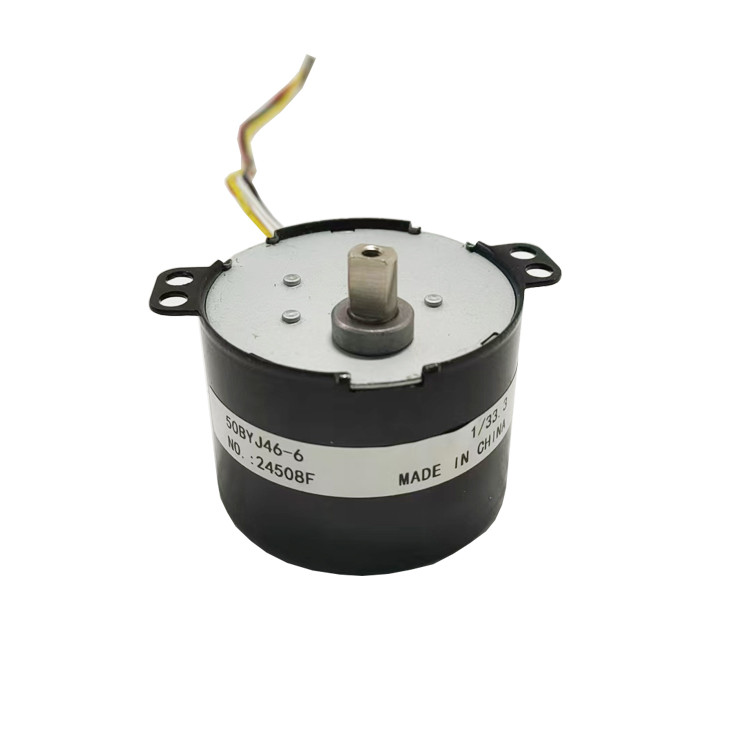

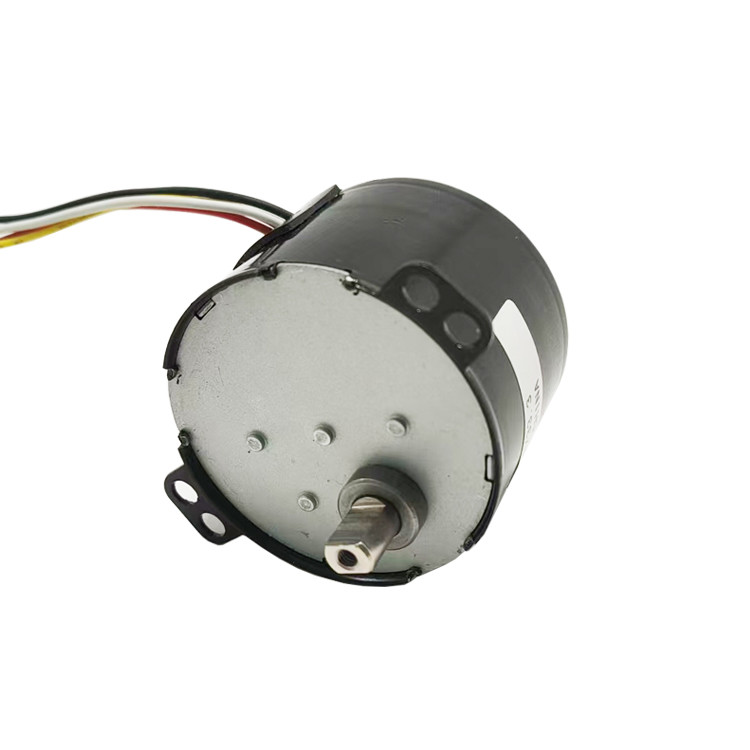

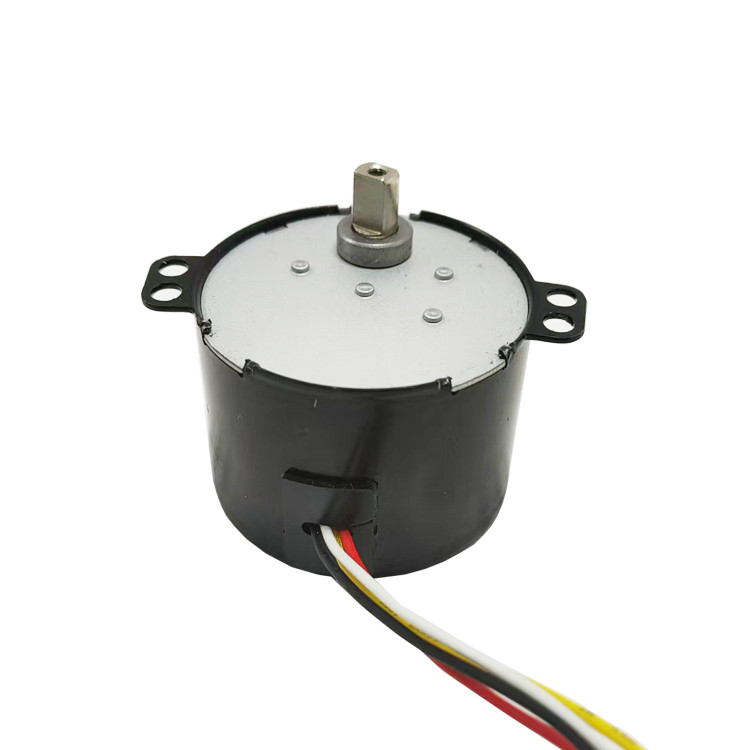

50BYJ46-6 50mm Diameter 5V DC Bipolar Permanent Magnet Gearbox BYJ Stepper Motor
This is a 50mm diameter bipolar stepper motor with 4 cables (2 phases)
This motor has a gearbox inside with a gearbox ratio of 33:1.
This motor can be used in home appliances or other electrical products.
There is an M3 thread on the motor for fixing screws.
So customers can design a small gear with a 3mm diameter round hole on the top, and the gear can be fixed with an M3 screw.
The driving voltage is 15V DC, which is related to the coil resistance of the motor.
The resistance of the motor, shaft design, cable length and connector type are all customizable.
Customers can change the parameters according to their own design requirements.
Mechanical Dimension:MM
Specifications:
| Motor type | 50BYJ Motor |
| Model No. | 50BYJ46-6 |
| Motor diameter | 50 mm |
| Step angle | 15 °/33.3 |
| Coil resistance | 23±7%Ω/phase |
| No of phases |
4 phase |
| Voltage | 15V DC |
| Gear ratio |
33.3:1 |
Typical Applications:
-
Medical instruments
-
Precision instrument
-
Robot
-
Factory automation
-
Game machine
-
ATM equipment
-
Security equipment
Competitive Advantage:
- High quality and the best price.
- Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
Type of Fixture Cover:
The regular models are shown in the figure, and the special sizes can be customized.
Type of Wire Connect:
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Product :
Packaging diagram:
Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products
The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometer away from the high-speed intersection. Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, and the domestic and foreign logistics and transportation are very developed and convenient!
The main technical personnel of the company have worked in related industries for more than 10 years, and have work experience in foreign companies such as Japan, South Korea, Europe and the United States, and have work experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for first-class enterprises at home and abroad, and cooperated with more than 20 large companies.
If you are interested in our products, please feel free to email me.
FAQ:
1. Are you a manufacturer or a trader?
We are a manufacturer. We produce motors ourselves.
2. Where is your factory? Can we visit your factory?
Our factory is located in Changzhou city. Feel free to visit us if you want.
3. Do you provide customized samples/ free samples?
We are able to do customization on samples, and it cost extra customization cost.
No, we don’t send free samples.
4. What’s the lead time on samples?
For samples in stock, lead time is within 3 days.
For samples not in stock, lead time is about 15 days.
For customized samples, lead time is about 25 to 30 days.
5. What customization service do you provide?
We have a developing team for over 20 years experience.
We provide customization service on all sorts of motor’s components.
From motor’s slider, lead screw, gearboxes design.
To cable length, connector type, and FPC design.
