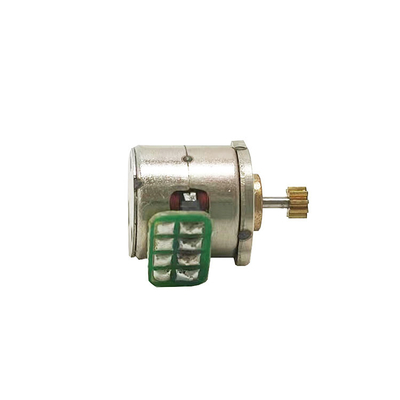

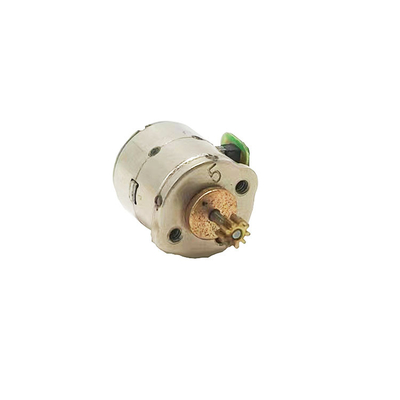

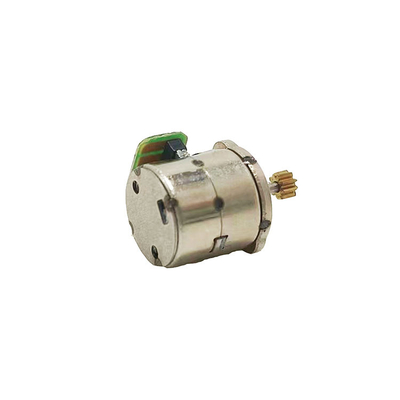

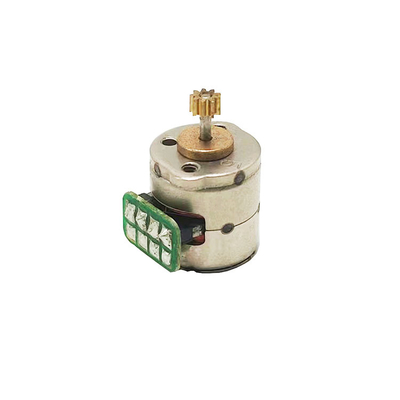

High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM08133 |
| Minimum Order Quantity | 1Unit |
| Price | $2~$5/Unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle(degrees) | 18 Degree | No.of Phase | 2 Phase |
|---|---|---|---|
| Voltage | 3.3V DC | Resistance | 40Ω±7% |
| Weight | 6g | Type | Permanent Magnet |
Product Description
High precision 8mm 2 phase 4 wire 18 degree micro stepper motor OEM/ODM available
VSM08133 is a precision micro stepper motor,
Outer diameter 8MM, body length 8.2MM, shaft outer diameter 1MM, shaft length can be changed as needed, and can be equipped with corresponding output devices such as gears, pulleys, worms, screws, etc.
The basic step angle of the motor is 18 degrees, that is, the motor runs 20 steps per week.
Due to the small size, high precision and convenient control of this micro stepper motor, it is widely used in cameras, optical instruments, lenses, precision medical equipment, automatic door locks and other fields.
The input part of the motor is FPC, but it can be changed to connecting wire pins, PCB and other forms according to customer needs. The mounting bracket can be changed according to customer requirements. At the same time, it can be equipped with a corresponding drive system to meet customer needs!
Our team has 20 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Please feel free to contact us!
Mechanical Dimension:MM
Typical Applications
-
Intelligent Security Products
-
Camera Lenses
-
Door Locks
-
Wearable device
Specifications
| Product Name | 8mm micro stepper motor | |||
| Model | VSM08133 | |||
| Rated Voltage | 3.3 V DC | |||
| Current Per Phase | 100 mA /phase | |||
| Coil Resistance | 40 Ω±7% | |||
| No. Of phase | 2 phases | |||
| Step Angle | 18 ° | |||
| Excitation Method | 2 Phase Excitation | |||
| Drive Mode | Bipolar Drive | |||
| Pull-In Torque | 0.8 gf.cm ,(AT 3.3V DC) | |||
| Pull-Out Torque | 1.0 gf.cm ,(AT 3.3V DC) | |||
| Max. Response Frequency | 1000 pps,(AT 900 PPS , 3.3V DC) | |||
| Max. Starting Frequency | 1200 pps,(AT 900 PPS , 3.3V DC) | |||
| Insulation Class | Class E for Coils | |||
| Insulation Strength | 300 V AC for One Second | |||
| Insulation Resistance | 1.0 MΩ (DC 100 V) | |||
| Operating Temperature Range | -30~+70 ℃ | |||
| Weight | 10 g(Ref.) | |||
| OEM & ODM SERVICE | AVAILABLE | |||
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.

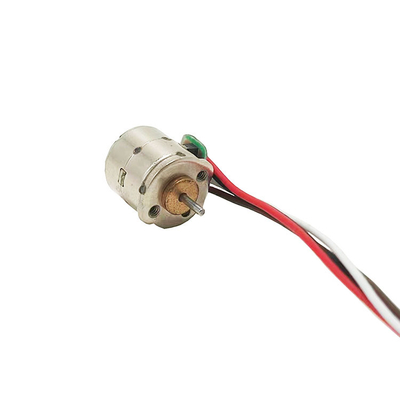

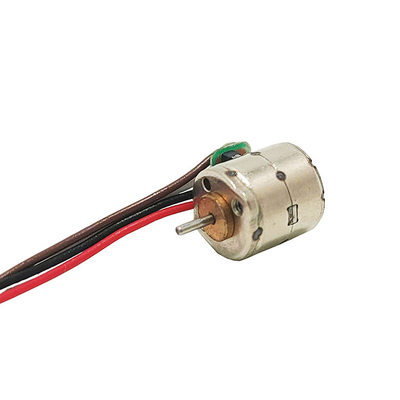

Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
