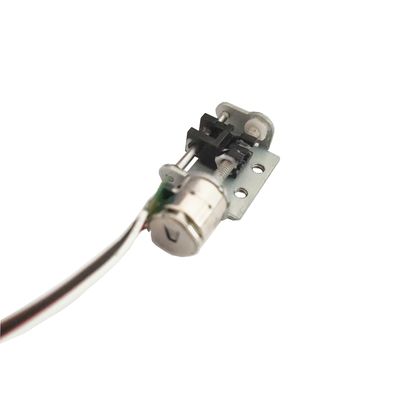

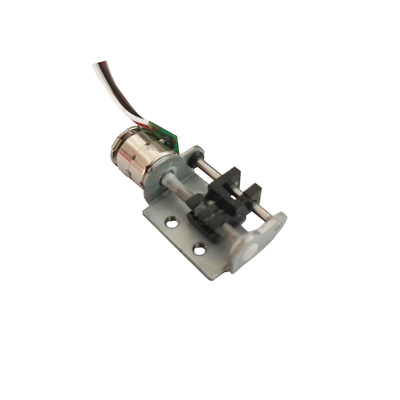

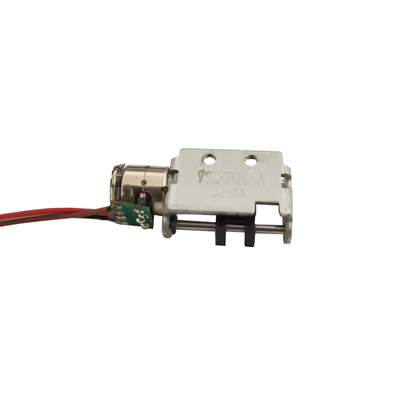

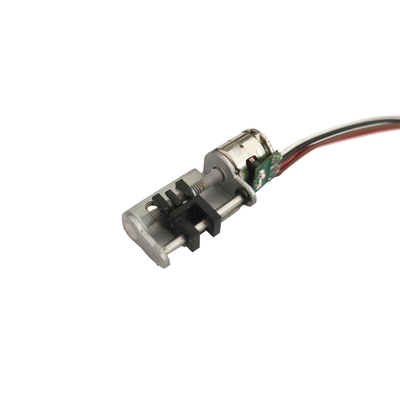

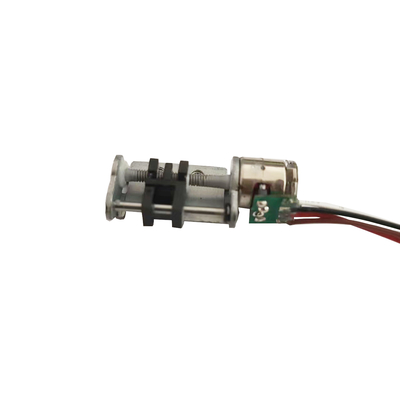

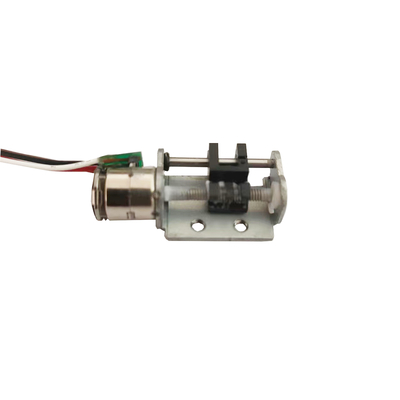

2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket

  • 2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket
  • 2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket
  • 2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket
  • 2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket
  • 2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket
  • 2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket
  • 2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM08102
Minimum Order Quantity 1Unit
Price $3~$7/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18°/Phase Phase 2 Phase
Voltage 3.3V DC Resistance 20Ω±10%
Weight 10g Rotation CW/CCW
Highlight

Micro Slider Linear Stepper Motor

,

8mm Slider Linear Stepper Motor

,

2 Phase slider stepper motor
Leave a Message
Product Description

2 phase 8mm micro slider linear stepper motor 3.3V dc screw motor with bracket stepper motor

This is an 8mm precision micro stepper motor. The pitch between the output shaft and the lead screw is 0.4mm. The lead screw and the lead screw support the lead screw to rotate and generate thrust.
The motor step angle is 18 degrees, the motor runs 20 steps per week, and the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
This micro stepper motor is small in size, high in precision, and easy to control. It is widely used in cameras, optical instruments, lenses, precision medical equipment, automatic door locks and other fields.
The input part of the motor is a connecting wire, but it can be changed to a connecting pin, FPC and other forms according to customer needs.
In addition, the mounting bracket can also be customized according to customer requirements.
Our team has 20 years of experience in stepper motor design and development, and can realize product development and auxiliary design according to customer special needs!
If you are interested in our motors, please feel free to contact us!

2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket 0



Mechanical Dimension:MM

2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket 1

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 8mm micro stepper motor
Model VSM08102
Rated Voltage 3.3V DC

Coil Resistance

20 Ω±10%

No.Of Phases

2 Phases

Step Angle

18°/Step

MAX. STARTING FREQUENCY

800 PPS min. (AT 3.3 V DC)

MAX. SLEWING FREQUENCY

1200PPS min. (AT 3.3 V DC)

PULL IN TORQUE

1.5 gf-cm min. (AT 500 PPS , 3.3V DC)

PULL OUT TORQUE

2.0gf-cm min. (AT 500 PPS , 3.3V DC)

INSULATION CLASS

 CLASS E FOR COILS

INSULATION STRENGTH

100V AC FOR ONE SECOND

INSULATION RESISTENCE

1 MΩ (DC 100 V)

OPERATING TEMPERATURE RANGE

-10~+60℃

OEM & ODM SERVICE

AVAILABLE



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.



Product Detail Presentation

2 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket 22 Phase 8mm Diameter 18 Degree Step Angle Micro Slider Linear Stepper Motor With Bracket 3
