24mm 24BYJ48 Unipolar 4 phases 86.4:1 ratio geared reducer stepping motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 24BYJ48-612 |
| Minimum Order Quantity | 1Unit |
| Price | $0.75~3/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 10000Units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gearbox Stepper Motor | Phase No. | 4 Phases (Uni-polar) |
|---|---|---|---|
| Coil Resistance | 60Ω/phase | Rated Voltage | 5V DC |
| Gear Ratio | 86.4 | Step Angle | 5.625 °/86.4 |
Product Description

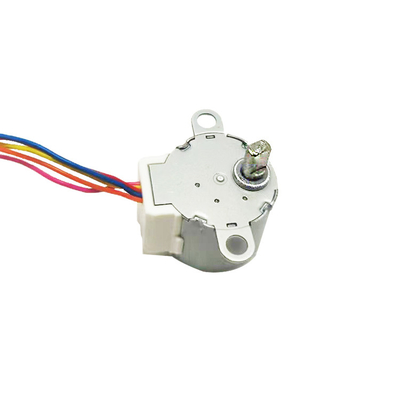

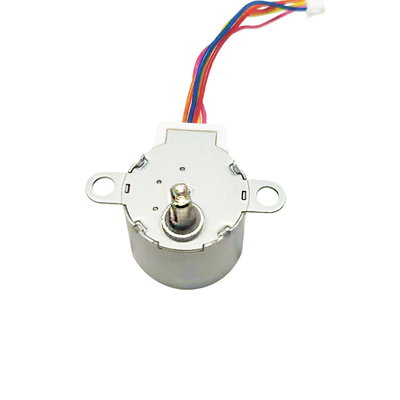

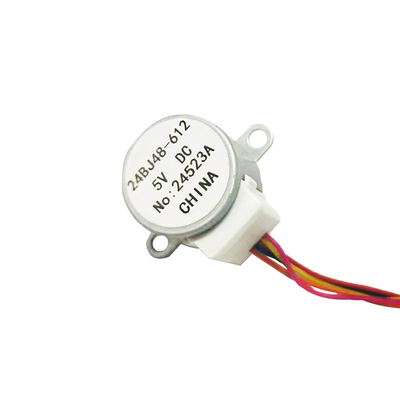

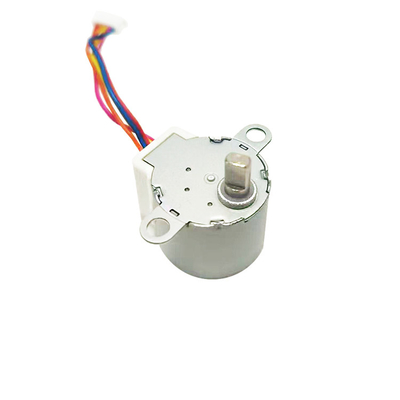

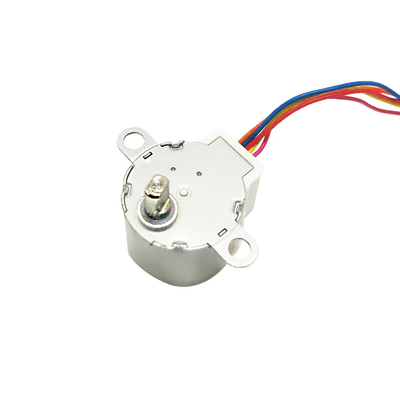

24mm 24BYJ48 Unipolar 4 phases86.4 ratio geared reducer stepping motor
This is a 24mm diameter permanent magnet stepper motor with a gearbox with a gear ratio of 86.4:1.
This is a 4-phase 5-wire unipolar motor.
The red cable is the common wire in the middle of each phase.
The operating ambient temperature is 105℃, insulation grade B
The outlet box is made of PBT material, all-metal gears
The whole machine must meet the requirements of the company's "Environmental Protection Material Management Regulations"
This motor is low-priced and reliable in quality, and is widely used in home appliance industries such as air conditioners, smart home systems, and smart toilets.
In addition, we also provide customized services for gear ratios, coil resistance, number of phases, and connector types.
If you need, you can contact me at any time.
Parameter:
| Product Name | 24BYJ48 motor | |||
| Model No. | 24BYJ48-612 | |||
| Rated Voltage | 5 V DC | |||
| Phase No. | 4 phases | |||
| Resistance (25℃) | 60Ω/phase±7% | |||
| Output step angle | 5.625°/86.4 | |||
| Gear Ratio | 1:86.4 | |||
| Torque | ≥55mN.m (5 V 100PPS) | |||
| Unload pull-in frequency | ≥500Hz | |||
| Unload pull-output frequency | ≥900Hz | |||
| Inssulation resistance | ≥100mΩ | |||
Customization options:
Model No.: 24BYJ48
Step angle:(1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step
Gear ratio: 16:1 / 25:1 / 32:1 / 48.8:1 / 64:1 / 85:1
Customizable items:
Voltage:5~24V; gear ratio, gear material, output shaft, motor’s cap design customizable
|
Voltage (V) |
Resistance (Ω) |
Pull-in torque 100PPS (mN*m) |
Detent Torque (mN*m) |
Unload pull-in Frequency (PPS) |
| 5 | 18 | ≥98 | ≥29.4 | ≥500 |
| 12 | 60 | ≥117 | ≥29.4 | ≥500 |
| 12 | 70 | ≥68.7 | ≥29.4 | ≥500 |
| 12 | 200 | ≥68.7 | ≥29.4 | ≥500 |
| 12 | 300 | ≥58.8 | ≥29.4 | ≥500 |
Design drawing(Unit:mm)
Product display:
Technical Features
Application Highlights
HVAC/R Valve Actuation Winding possibilities – Bipolar
Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless
Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost
Other Industries & Applications Robotics Digitally controlled - Easy to use with a micro processor
Telecommunication Antennae positioning Switching lines Open loop control - No encoders necessary
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
-
Round Type : DIA3mm. 4mm. 5mm
-
D-cut Type: DIA3-D2.5 DIA4-D3 etc
-
Screw Type: M3 M4 M5 Serial
-
Trape Type
-
I-cut Type: DIA3-I2 DIA4-I3
-
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
