2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder

  • 2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder
  • 2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder
  • 2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder
  • 2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder
  • 2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder
  • 2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM10-1024-10G-Encoder
Minimum Order Quantity 1Unit
Price $7~18/unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 10000Units/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Gear Motor With Encoder Torque High Torque
Construction Permanent Magnet Continuous Current(a) Customized
Certification ROHS Voltage(v) 5V
Motor Step Angle 18° Gear Ratio 1:10
Leave a Message
Product Description

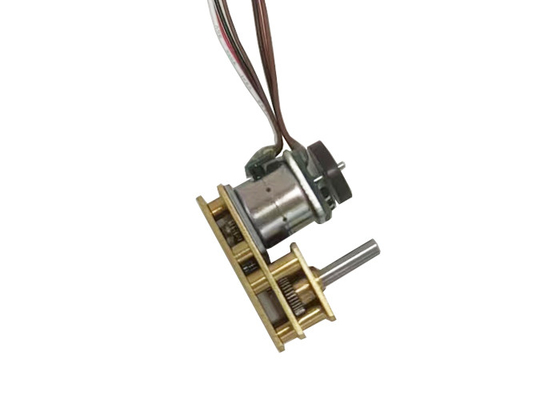

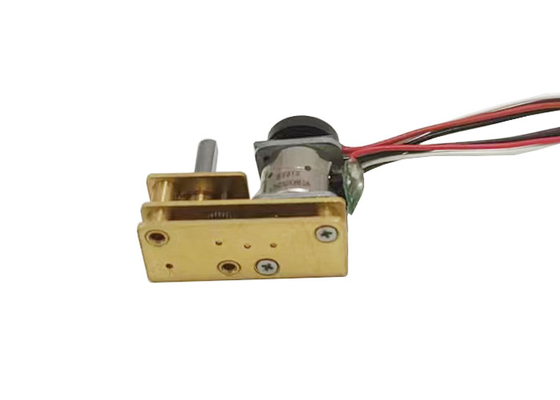

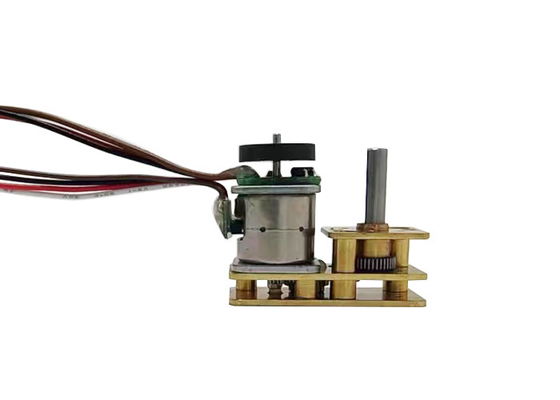

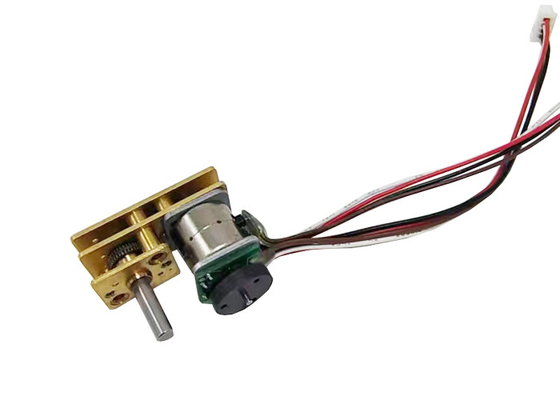

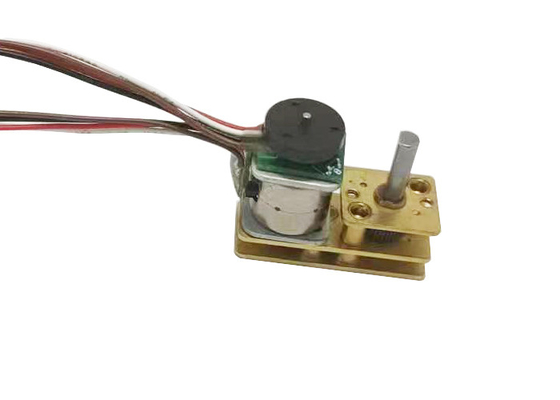

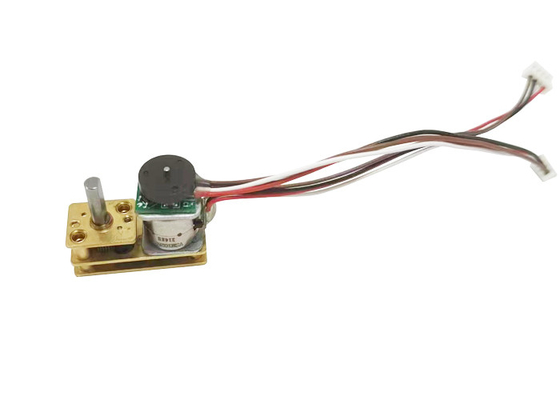

2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder



This is a combination of a 10MM micro stepper motor and a 10 * 24 precision metal gearbox, with an encoder. The reduction ratio can be customized according to customer needs.
The basic step angle of the motor is 18 degrees, which is 20 steps per revolution. Combined with the deceleration effect of the gearbox, the final resolution of the motor rotation angle can reach 0.05-6 degrees, which can be used for various requirements. Accurately control the rotation position of the magnetic field.
Gearbox gear ratio: 1:10, 1:30, 1:50, 1:100, 1:144, 1:150, 1:300, 1:323, 1:483, 1:500, 1:668, 1:945, 1:1000. Customers can match the gear ratio according to different torque and speed requirements.
Given an appropriate driving frequency, a stepper motor can achieve the determination of speed and torque.
The power input section and standard stepper motor can be used as probe structures, FPC, FFC, PCB cables, and other forms.
The partial output of the motor can be used for various output structures, such as circular shafts, D-axes, etc!

2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder 0

Mechanical Dimension:MM



2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder 1

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

PRODUCT NAME 10mm geared stepper motor
MODEL VSM10-1024-10G encoder
RESISTENCE 40Ω±7%
Lead length 75mm
Motor step angle 18°
Gear ratio 1:10
OPERATING TEMPERATURE RANGE -0~+55 ℃
OEM & ODM SERVICE

AVAILABLE



Torque Curve For Reference



Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder 2

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder 3

  • Round Type :  DIA3mm. 4mm. 5mm

  • D-cut Type:     DIA3-D2.5 DIA4-D3 etc

  • Screw Type:    M3 M4 M5 Serial

  • Trape Type

  • I-cut Type:       DIA3-I2   DIA4-I3

  • Other Type:      Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder 4

Product Detail Presentation


2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder 52 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder 62 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder 7
