20mm 2 Phase Bipolar Permanent Magnet Stepper Motor 18° Step Angle Degrees For Automation Equipment, Robots
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 20BY45-37 |
| Minimum Order Quantity | 1Unit |
| Price | US$1.4~5 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2 | Type | Permanent Magnet Stepper Motor |
|---|---|---|---|
| Step Angle(degrees) | 18° | Usage | Printer,Industral,security System |
| Frame Size | Dia.20MMXL17.6mm | Voltage | 12V |
| Current / Phase | 0.2A | Resistance | 100Ω |
| Highlight | 20mm Bipolar Permanent Magnet Stepper Motor,18° Bipolar Permanent Magnet Stepper Motor,Bipolar Permanent Magnet Stepper Motor |
||
Product Description
20mm 2 Phase Bipolar Permanent Magnet Stepper Motor 18° Step angle(degrees) for automation equipment, robots
SM35-048-372 is a micro stepping motor with an outer diameter of 35mm.
This model is only a typical product. There are many choices according to the thickness of the motor, step angle, assembly method, etc., and can also be customized according to customer requirements.
The basic step angle of this type of motor is 7.5 degrees (15 degrees are optional), and under the condition of full-step driving, each revolution requires 48 steps. If it is equipped with a gearbox, in the case of the deceleration effect of the gearbox, the final motor angle resolution can reach 0.05~6 degrees, which can meet various needs. The thickness of the motor body also has different thickness options such as 12.5, 15, 22, etc.
Therefore, the product can be used where precise control of the position is required. Generally can be used in medical equipment, printers, automation equipment, robots, etc.
PM stepper motor parameters:
| PRODUCT NAME | 20mm stepper motor |
| MODEL | 20BY45-53 |
| RESISTANCE | 100Ω±10% |
| VOITAGE | 12VDC |
| Step angle | 18°±7% |
| Detent Torque | 1.2mN.m |
| OEM & ODM SERVICE | AVAILABLE |
PM stepper motor outdrawing:

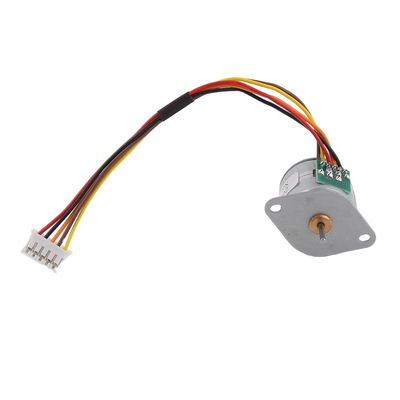

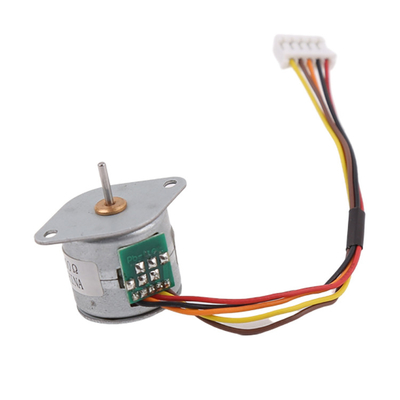

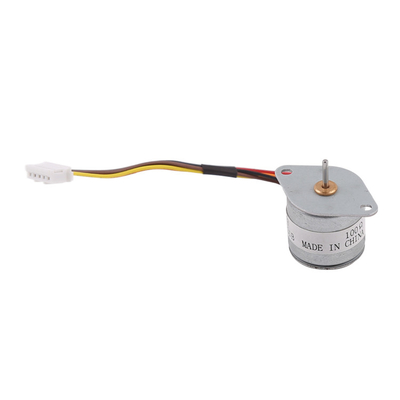

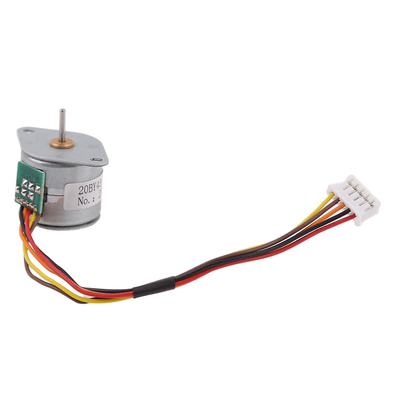

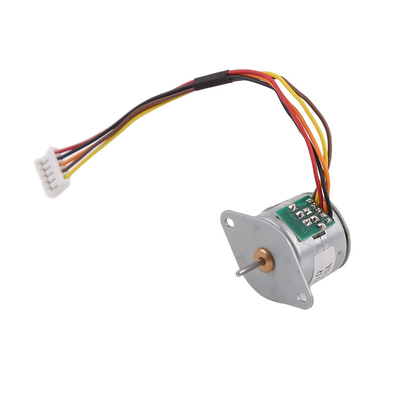

Product display:
This product is mainly used for printers, fax machines, photocopiers, camera devices, monitoring pan-tilts, etc.
The output part can use various methods such as gears, pulleys, and V-shaped groove wheels.
The shape of the mounting plate and the outlet can be adjusted according to customer needs!
Packing And Shipping Information
Packaging: single carton packing, 600 pieces per box.
Shipping time:
DHL: 3-5 working days ；
UPS: 5-7 working days；
TNT: 5-7 working days；
FedEx: 7-9 working days；
EMS: 12-15 working days；
China Post: Depends on ship to which country；
Sea: Depends on ship to which country
