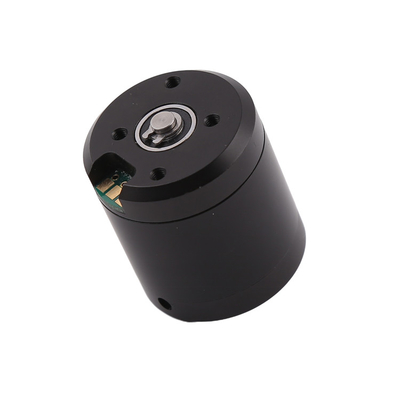

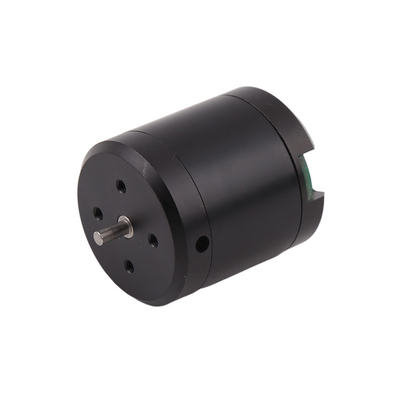

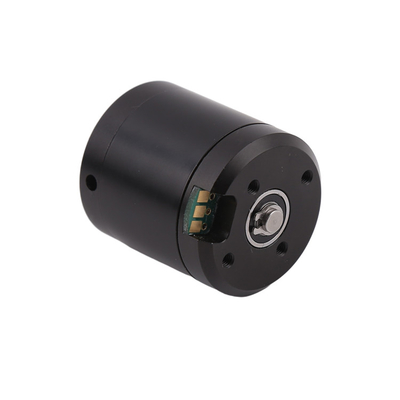

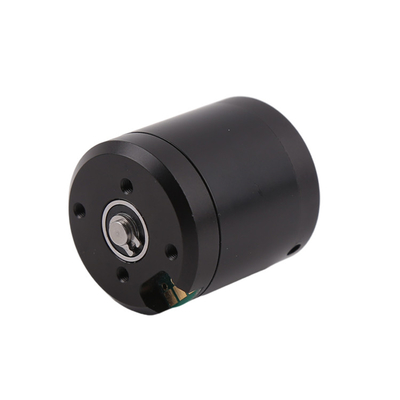

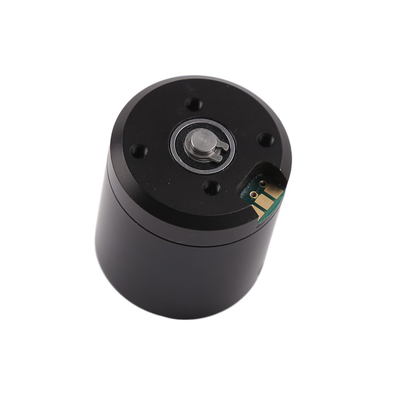

13.5A Underwater Thruster Motor 6657rpm - 7000rpm Submarine Brushless Motor for automation equipment, ROV Robots Drones
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SW2216 |
| Minimum Order Quantity | 1Unit |
| Price | US$18~30.8 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | DC Brushless Motor | Voltage | 12-24V DC |
|---|---|---|---|
| No-load Current | 0.3A | No-load Speed | 6657-7000rpm |
| Rated Load Current | 13.5A | Weight | 76g |
| Highlight | 7000rpm Underwater Thruster Motor,Submarine Underwater Thruster Motor,13.5A Underwater Thruster Motor |
||
Product Description
Thrust 1.5KG FPV Underwater Submersible Submarine ROV Offshore Scooter Motor
SW2216 ROV thruster diving equipment model submarine brushless motor
For underwater use,deep sea,up to 200 meters depth
1. Imported stainless steel bearing, anti-rust, anti-corrosion and salt spray test can reach more than 192 hours, far higher than IP68 waterproof level.
2. Independent PCB patent design, PCB and lead wire extraction are built into the motor, which can be used to package and solidify the lead wire of the welding point for customers and directly adjust the wire.
3. The shaft is made of special stainless steel, heat treatment and other special anti-rust treatment.
4. The magnetic disk is made of ndfeb high temperature resistant material, and the surface is specially treated with waterproof and anti-corrosion.
5. The stator is made of imported materials from kawasaki, Japan, and its surface has been specially treated with waterproof and anti-corrosion.
6. Balance test is carried out before each motor leaves the factory, and the balance is less than 10mg.
7. In order to facilitate the customer research and development and testing of aquatic and underwater equipment products, our r&d personnel specially designed and printed this type of paddle according to the independent patent design of fluid mechanics, so as to provide customers with this need to carry out the supporting test of SW2820 underwater motor.
|
Characteristic Table:
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
| 2216 | 3S~4S | 12 | 6300 | 0.34 | 170.3 | 3150 | 8 | 56.2 | 340.5 | 15.64 |
| 2216 | 3S~4S | 14.8 | 8120 | 0.38 | 208 | 4070 | 10.54 | 89 | 416.8 | 20.8 |
| 2216 | 3S~4S | 16 | 8951 | 0.41 | 226.7 | 4476 | 11 | 106.3 | 453.4 | 21.6 |
| 2216 | 3S~4S | 24 | 13000 | 0.62 | 329 | 6500 | 15.43 | 224 | 658.1 | 30.25 |
Note: the above rated load is mainly used in underwater
Design drawing:
Performance Curve:
Product display:
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
