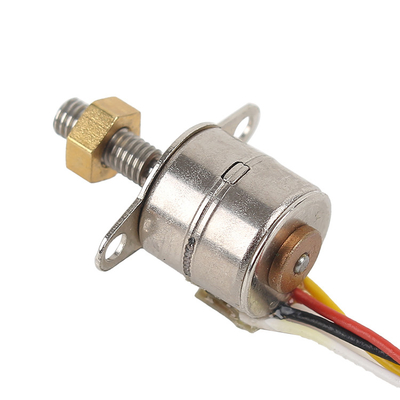

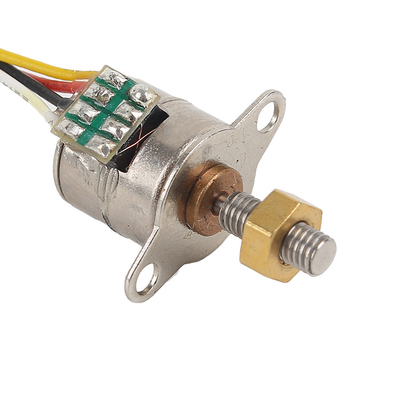

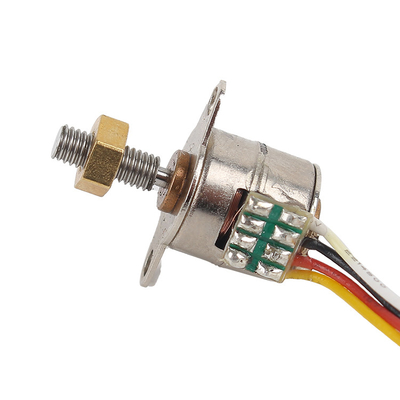

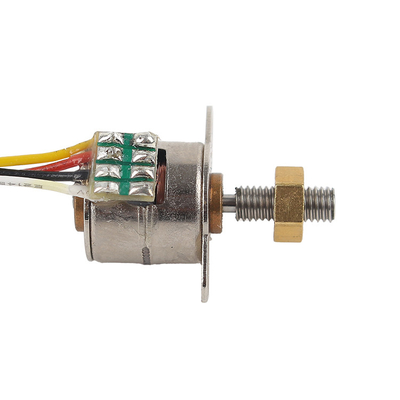

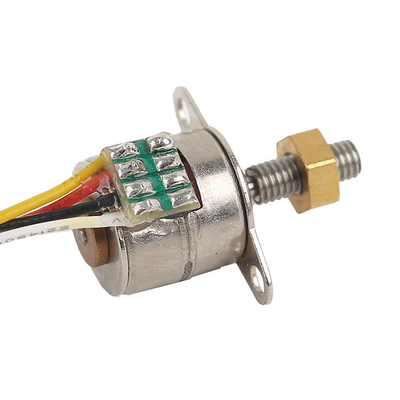

10mm Mini Stepping Motor 2 Phase 4 Wire Stepper Motor With Copper Nut Applied To Precision Medical Equipment
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM10-10M3-T |
| Minimum Order Quantity | 1 Unit |
| Price | $2.5-$7/unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
| Delivery Time | 15-30 work days |
| Payment Terms | MoneyGram, T/T, Western Union, T/T |
| Supply Ability | 1000000units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle | 18 ° | Voltage | 5.0 V |
|---|---|---|---|
| Resistance | 10 Ω ± 10% | Phase | 2 |
| Current | 500 MA | Effective Stroke Of Screw | 10mm |
| Screw Pitch | M3P0.5 | Mounting Hole Spacing | 14mm |
| Nut | Hexagonal Nut | Connection Line Length | 90mm±10 |
| Highlight | 4 wire mini stepping motor,10mm mini stepping motor,2 phase mini stepping motor |
||
Product Description
10mm mini PM MOTOR 5V Micro Electric Motor 2 phase stepper motor M3 lead screw with copper nut
SM10-10M3 is a precision PM linear stepping motor, the motor diameter is 10mm, the screw M3P0.5, the nut can be customized according to the customer's installation requirements, used in medical equipment, printers, scanners, automotive instruments, security systems, electronic locks Wait.
Mini body, 3N thrust, 10mm stroke, 0.067mm displacement per step, can be applied to install small equipment due to its small size
The input part of the motor is a connecting wire, but it can be changed into a connecting wire needle, FPC and other forms according to customer needs.
The length of the motor screw can be customized according to customer needs, if you are interested in our motor, you can contact me at any time
10mm micro stepper motor parameter sheet:
| PRODUCT NAME | 10 MM MICRO STEPPER MOTOR |
| MODEL | SM10-10M3 |
| RATED VOLTAGE | 5vDC |
| CURRENT PER PHASE | 500mA/PHASES |
| Resistance | 10±7%Ω /PHASES |
| NO.OF PHASES | 2 PHASES |
| STEP ANGLE | 18°/STEP |
| MAX. STARTING FREQUENCY | 1000 PPS min. (AT 5.0 V DC) |
| MAX. SLEWING FREQUENCY | 1500 PPS min. (AT 5.0 V DC) |
| PULL IN TORQUE | 5 gf-cm min. (AT 500 PPS , 5.0V DC) |
| PULL OUT TORQUE | 6 gf-cm min. (AT 500 PPS , 5.0V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 100V AC FOR ONE SECOND |
| INSULATION RESISTENCE | 1 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -0~+55℃ |
| OEM & ODM SERVICE | AVAILABLE |
10mm micro stepper motor torque curve:
10mm micro stepper motor outside drawing:
Product display:
10BY micro 5v 10mm diameter mini stepper motor PM stepping motor
Service and Customization:
This kind of small motor is mainly used in cameras, lenses, optical instruments and other fields, with small size and precise control. Customers can customize the motor resistance, installation size, outlet shape and size. For special occasions, the planetary gearbox can be matched with the motor to obtain low speed and high torque. The needs of customers are the direction we should strive for, and meeting the needs of customers will be our highest pursuit. Please keep in close contact with us.
our company:
Packaging and Shipping Information:
Packing: single carton/box packing, sample packing box size: 28*17*16cm
Packaging according to quantity
Shipping time:
DHL: 5~7 working days;
UPS: 5~7 working days;
TNT: 5~7 working days;
FedEx: 7~9 working days;
EMS: 12~15 working days;
China Post: Depends on which country it is sent to;
Sea: depends on which country the ship goes to
