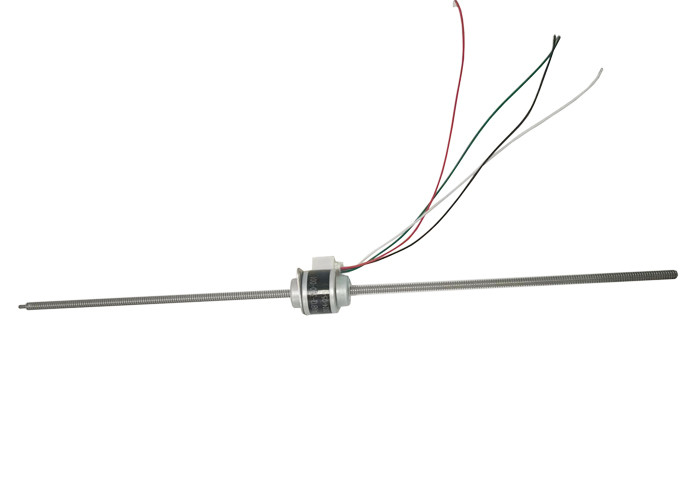

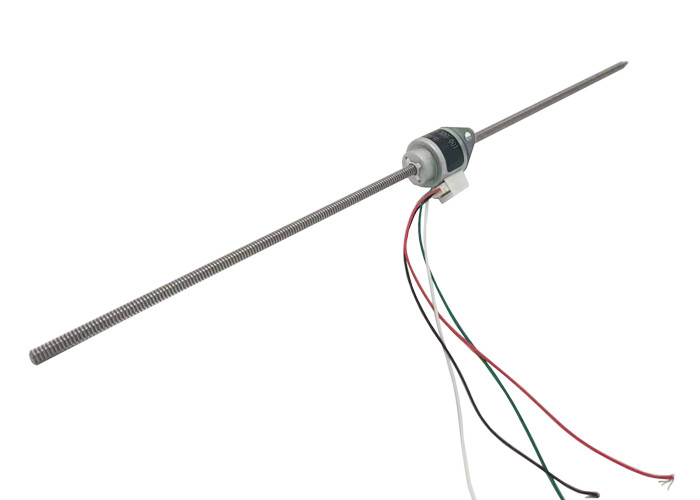

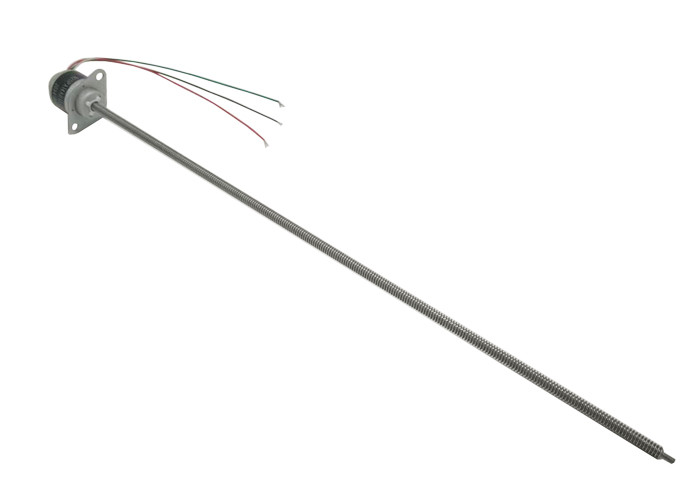

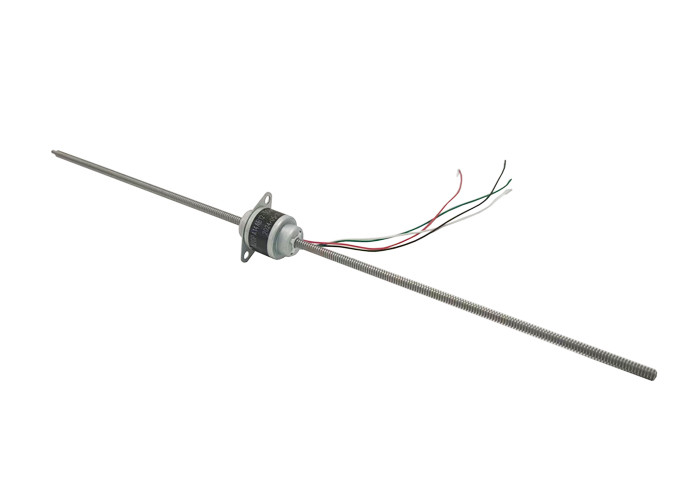

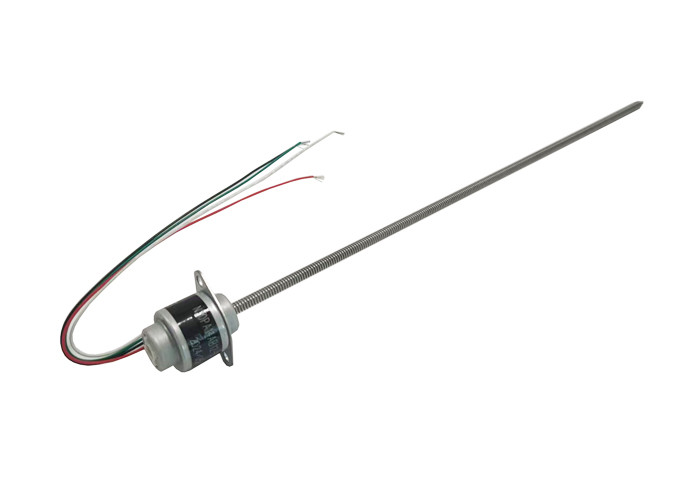

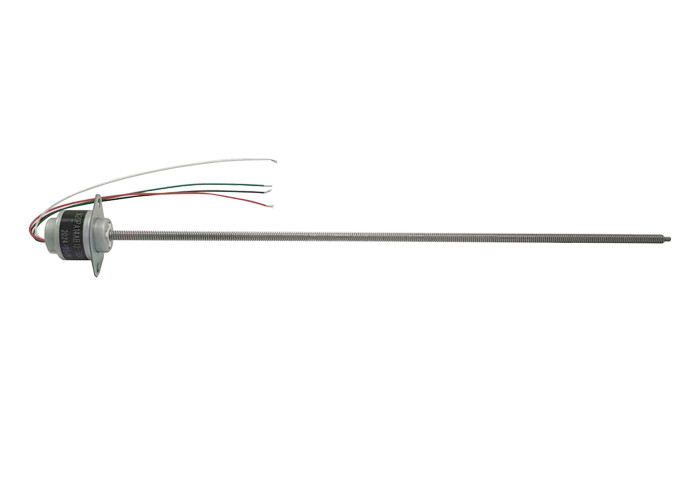

7.5 degrees step angle 20mm linear stepper motor stroke selectable
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | VSM20B-48S-0208-300 |
| Minimum Order Quantity | 1Unit |
| Price | $6.5~$30/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diameter | VSM20L-linear Stepper Motor | Rated Voltage | 12V |
|---|---|---|---|
| Power | 3.4W | Phase Current | 160mA |
| Phase Inductance | 74.5±10% Ohm/20C | Phase Inductance | 36(±20%）mH/1kHz |
| Step Angle | 7.5° | Screw Lead | 1 Mm |
| Step Travel | 0.0208mm | Screw Length | 300mm (customizable) |
| Insulation Class | B | Mass | 50g |
| Highlight | 20mm linear stepper motor,selectable stroke linear stepper motor,7.5 degrees linear stepper motor |
||
Product Description
7.5 degree step angle 20mm diameter stepper motor
15 Degree Stepping Angle 20mm Diameter Stepper Motor
Stepper motors for 20mm straight lines are available in fixed-shaft, through-shaft, and externally driven versions.
Step angle 7.5
Lead 1mm
Step length 0.0208mm
Voltage 12V
Screw length can be customized
If you need this motor, please don't hesitate to contact me anytime.
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Design Layout (Unit:mm)
Parameter sheet:
|
Motor diameter |
20 mm |
|
Rated voltage |
12V DC |
|
Power |
3.4W |
|
Phase Current |
160mA |
|
Phase Inductance |
74.5(±10%)Ohm/20C |
|
Phase inductance |
36(±20%)mH/1KHz |
|
Step angle |
7.5 degrees |
|
Screw Lead |
1mm |
|
Step Travel |
0.0208mm |
|
Insulation Resistance |
20mΩ(DC 500V) |
|
Insulation Class |
B |
|
Operating Temp Range |
-20~+55℃ |
|
Storang Temp Range |
-40~+100℃ |
|
Mass |
50g |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
