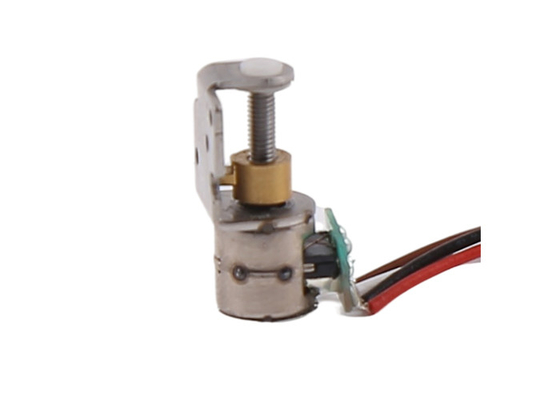

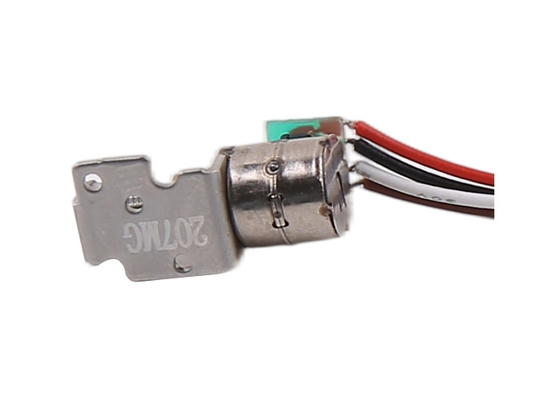

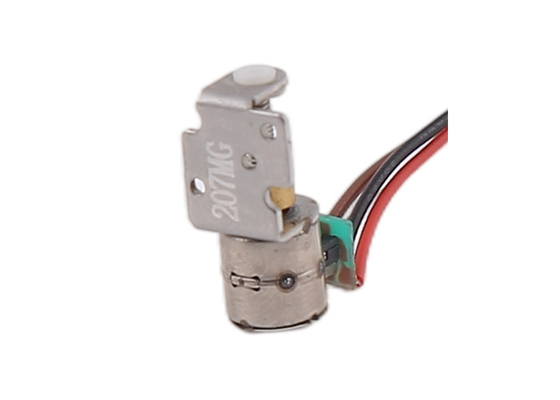

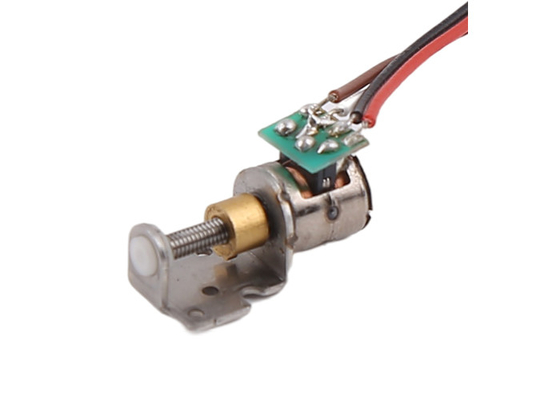

VSM0652 6mm Slider Stepper Motor 5VDC 18 Degrees Step Angle M1.7*P0.3 Lead Screw

  • VSM0652 6mm Slider Stepper Motor 5VDC 18 Degrees Step Angle M1.7*P0.3 Lead Screw
  • VSM0652 6mm Slider Stepper Motor 5VDC 18 Degrees Step Angle M1.7*P0.3 Lead Screw
  • VSM0652 6mm Slider Stepper Motor 5VDC 18 Degrees Step Angle M1.7*P0.3 Lead Screw
  • VSM0652 6mm Slider Stepper Motor 5VDC 18 Degrees Step Angle M1.7*P0.3 Lead Screw
  • VSM0652 6mm Slider Stepper Motor 5VDC 18 Degrees Step Angle M1.7*P0.3 Lead Screw
  • VSM0652 6mm Slider Stepper Motor 5VDC 18 Degrees Step Angle M1.7*P0.3 Lead Screw
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM0652
Minimum Order Quantity 1Unit
Price $3~$8/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type Linear PM Stepper Motor With Slider Motor Diameter 6 Mm
Step Angle 18°/step Lead Screw Type M1.7*P0.3
Rated Voltage 3~5V DC Coil Resistance 40Ω/phase
Leave a Message
Product Description

Micro VSM0652 6mm diameter 18 degrees step angle M1.7*P0.3 linear stepper motor



This VSM0652 stepper motor is linear motor with slider, designed for micro electronic products.

The lead screw is M1.7*P0.3, pitch is 0.3mm, and the thrust of slider is about 30~35 grams.

Due to the restriction of small size (6mm), this motor can not provide very high thrust.

This motor is only suitable for small load such as camera lens.



The PCB+ cable length+connector is customizable.

Customers can choose different connector type based on their need.

Such as 1mm/1.25mm/1.5mm/2mm/2.5mm pitch connectors are all available.



Parameters:



Model No. VSM0652
Motor type Bipolar permanent magnet stepper motor
Rated voltage 3~5 V DC
Coil resistance 40Ω/phase
Phase No. 2 phases
Lead screw type M1.7*P0.3
Step angle 18°/step
Step length 0.015/step





Design drawing:

VSM0652 6mm Slider Stepper Motor 5VDC 18 Degrees Step Angle M1.7*P0.3 Lead Screw 0

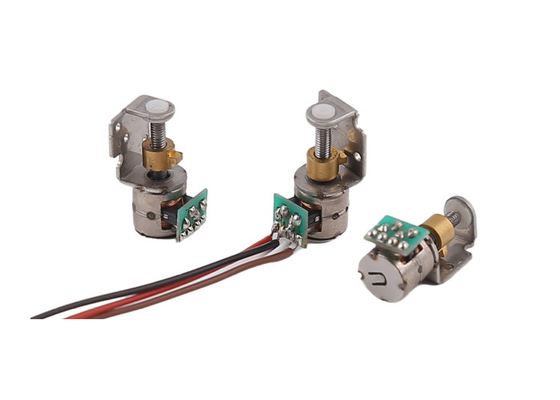

Product display:

VSM0652 6mm Slider Stepper Motor 5VDC 18 Degrees Step Angle M1.7*P0.3 Lead Screw 1





About linear stepper motor with slider:

Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.

Motor’s step angle is generally 18°/step, which means 20 steps for each turn.

When motor rotates one turn, slider moves one lead.

For single start lead screws: pitch =lead.



So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):

Lead screw lead/steps of each rotation



For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.



Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

VSM0652 6mm Slider Stepper Motor 5VDC 18 Degrees Step Angle M1.7*P0.3 Lead Screw 2



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
