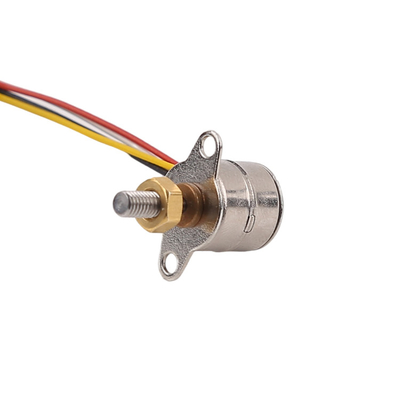

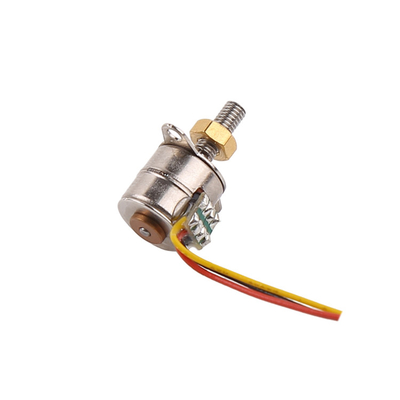

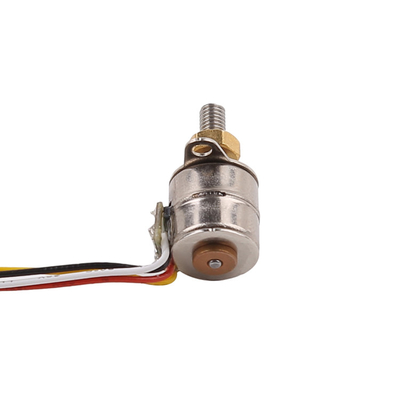

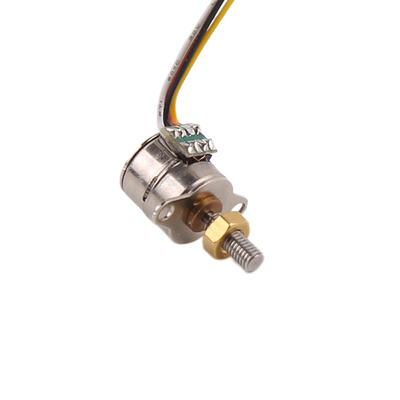

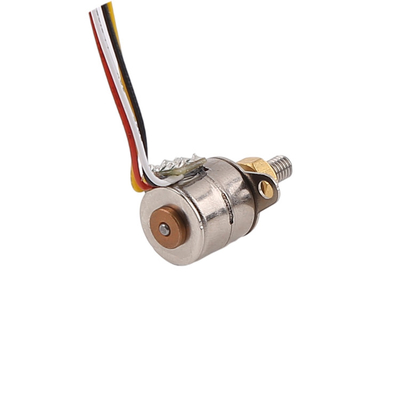

10mm Diameter 5V PM Stepper Motor Small Size With Lead Screw for medical equipment
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM10-10M3 |
| Minimum Order Quantity | 1Unit |
| Price | $1.5~$6.5/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Stepper Motor With Lead Screw | Motor Size | 10 Mm |
|---|---|---|---|
| Step Angle | 18°/step | Lead Screw Type | M3*P0.5 |
| Coil Resistance | 10Ω/phase | Driving Voltage | 5V DC |
Product Description
Small 10mm diameter 5V PM stepper motor with M3 lead screw and nut
Description:
This is a 10mm diameter stepper motor with M3 lead screw on top.
M3 lead screw has 0.5mm pitch which is the most commonly used triangle lead screw.
Customer can change lead screw into other types, such as M2*0.4P and trapezoidal screw.
If customers think the lead screw is too short, we can also customize the lead screw length.
The is a nut matching with lead screw, and the nut is used for linear movement.
Motor parameters:
| Model No. | SM10-10M3 |
| Motor diameter | 10 mm |
| Step angle | 18°/step |
| Coil resistance | 10Ω/phase |
| Driving voltage | 5V DC |
| Lead screw type | M3*0.5P |
| Connector type | Molex 51021-0400(1.25mm pitch) |
| Screw length(travel distance) | 8mm(Adjustable) |
Design drawing:
Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Our company information:
Changzhou Vic-tech Co., Ltd is founded in 2011. It has been specializing in producing micro motors and accessories , with over 20 years of R&D experience in motor industry.
After ten years of continuous innovation and development, we started to expand international business, with exports to Europe, South America, Canada, USA, Asia, and Australia.
We offer OEM/ODM service, and ensure timely response, personal test, safe packaging, on time delivery. One of the biggest reasons behind this success is our efficient after-sale service, ensure timely and professional assistance for clients.
Our service:
- Independent research and development team, supports customization service
- High standard Quality Control
- 12-hours in time response, timely and professional reply
- Fast delivery and safe shipping
FAQ:
1. Are you a manufacturer or a trader?
We are a manufacturer. We produce motors ourselves.
2. Where is your factory? Can we visit your factory?
Our factory is located in Changzhou city. Feel free to visit us if you want.
3. Do you provide customized samples/ free samples?
We are able to do customization on samples, and it cost extra customization cost.
No, we don’t send free samples.
4. What’s the lead time on samples?
For samples in stock, lead time is within 3 days.
For samples not in stock, lead time is about 15 days.
For customized samples, lead time is about 25 to 30 days.
5. What customization service do you provide?
We have a developing team for over 20 years experience.
We provide customization service on all sorts of motor’s components.
From motor’s slider, lead screw, gearboxes design.
To cable length, connector type, and FPC design.
