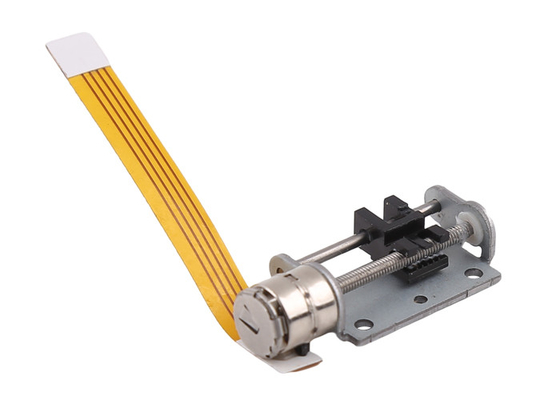

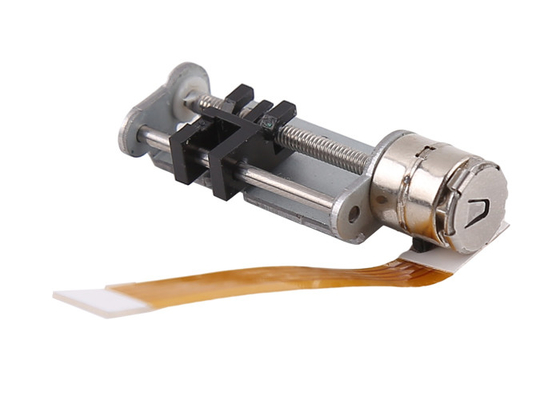

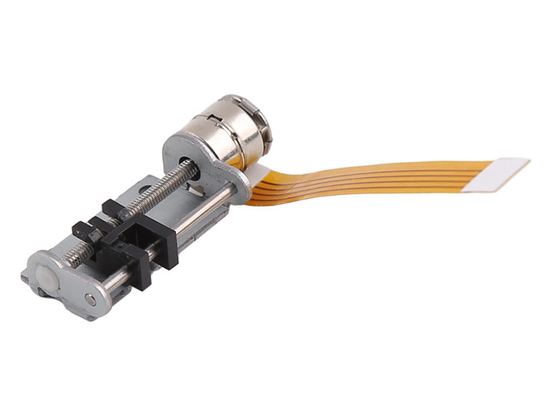

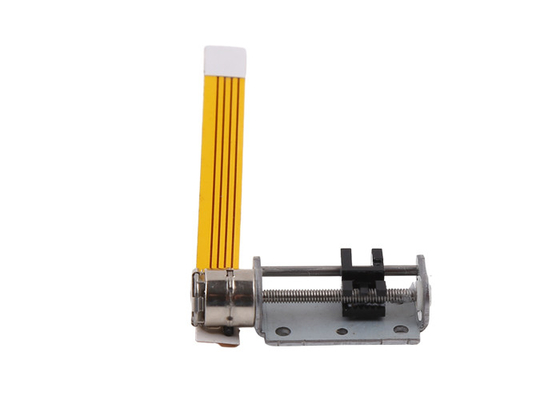

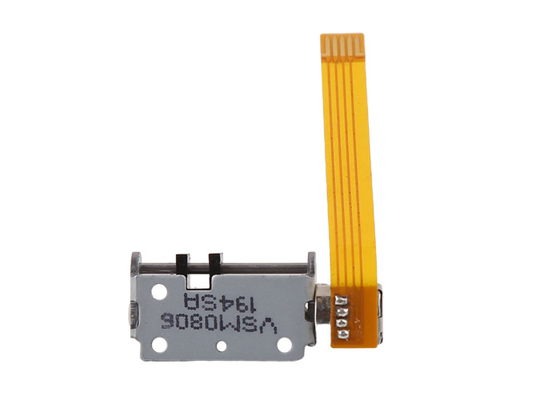

3.3V VSM0806 DC POM Slider Linear Stepper Motor 15mm Travel Distance M2 Lead Screw

  • 3.3V VSM0806 DC POM Slider Linear Stepper Motor 15mm Travel Distance M2 Lead Screw
  • 3.3V VSM0806 DC POM Slider Linear Stepper Motor 15mm Travel Distance M2 Lead Screw
  • 3.3V VSM0806 DC POM Slider Linear Stepper Motor 15mm Travel Distance M2 Lead Screw
  • 3.3V VSM0806 DC POM Slider Linear Stepper Motor 15mm Travel Distance M2 Lead Screw
  • 3.3V VSM0806 DC POM Slider Linear Stepper Motor 15mm Travel Distance M2 Lead Screw
  • 3.3V VSM0806 DC POM Slider Linear Stepper Motor 15mm Travel Distance M2 Lead Screw
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM0806
Minimum Order Quantity 1Unit
Price $3~$7/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type PM Stepper Motor+slider Motor Size 8mm Diameter
Step Angle 18°/step Lead Screw M2*P0.4
Connector Type FPC Stroke About 15mm
Highlight

3.3V Slider Stepper Motor

,

15mm Travel Distance Slider Stepper Motor

,

DC POM Slider Stepper Motor
Leave a Message
Product Description

3.3V VSM0806 15mm travel distance M2 lead screw DC POM slider linear stepper motor



Description:

This VSM 0806 motor is 8mm stepper motor attached with lead screw+slider+bracket.

The lead screw is standard M2*P0.4 lead screw, and motor step angle is standard 18 degrees.

Thus it takes 20 steps to rotate one turn, and motor’s step length is 0.02mm/step (step length means the linear distance it travels when the step motor takes one single step.)

The stroke of this motor is about 15mm, and we also have other strokes if customers require different travel distance (it’s related to lead screw length)





Parameters:

Model No. VSM0806
Motor type Linear stepper motor with slider
Rated voltage 3.3~5V DC
Phase No. 2 phases (4 wires)
Step angle 18°
Lead screw M2*P0.4
Travel distance About 15mm



Design drawing:

3.3V VSM0806 DC POM Slider Linear Stepper Motor 15mm Travel Distance M2 Lead Screw 0



Product display:

3.3V VSM0806 DC POM Slider Linear Stepper Motor 15mm Travel Distance M2 Lead Screw 1



About linear stepper motor with slider:

Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.

Motor’s step angle is generally 18°/step, which means 20 steps for each turn.

When motor rotates one turn, slider moves one lead.

For single start lead screws: pitch =lead.



So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):

Lead screw lead/steps of each rotation



For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.



Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

3.3V VSM0806 DC POM Slider Linear Stepper Motor 15mm Travel Distance M2 Lead Screw 2



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
