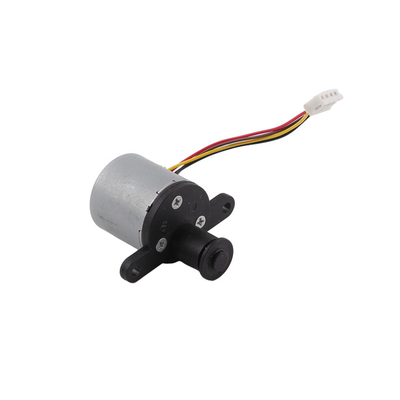

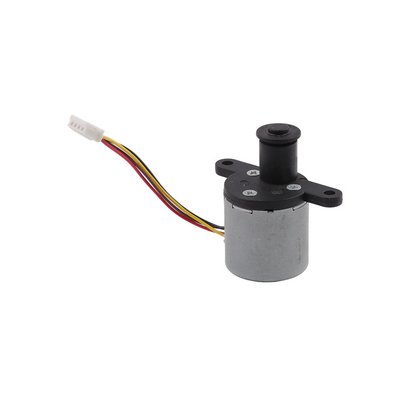

25mm Linear Stepper Motor With Customizable TRV Gear Stepper Motor 3.2V Electric Constant Temperature Radiator Valve
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 25BYJ412-9L |
| Minimum Order Quantity | 1Unit |
| Price | $5~7/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 10000Units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gear Motor | Construction | Permanent Magnet |
|---|---|---|---|
| Continuous Current(a) | Customized | Certification | ROHS |
| Voltage(v) | 5V | ||
| Highlight | TRV Gear Stepper Motor 3.2V,25mm Linear Stepper Motor,TRV gear stepper motor |
||
Product Description
25mm High Quality stepper motor valve 3.2v geared stepper motors
This product is mainly used in the fields of printer, valve, fluid control, position control, etc. This motor has the characteristics of small size, high precision and high strength.
The stepping motor has a built-in reduction gearbox to achieve a reduction ratio of 1:10, improve the torque, and finally use the output ejector with a stop-stop structure, so that the ram can be moved back and forth without rotation. General thrust
More than 10 kg.
At the same time, the external wiring part can be used according to customer requirements for various types and lengths of connecting lines, or FPC FFC.
The shape of the mounting plate and the angle of the outlet can be adjusted according to customer needs!
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 25 mm geared stepper motor |
| Model | 25BYJ412-9L |
| Resistance | 100 mΩ±7%/phase |
| Starting Frequency | 500 pps ,400 PPS min. (AT 5V DC) |
| Response Frequency | 900 pps ,450PPS min. (AT 5V DC) |
| Detent Torque | 29.4mN.m |
| Operating Temperature Range | -0~+55 ℃ |
| OEM & ODM SERVICE |
AVAILABLE |
Torque Curve For Reference
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.

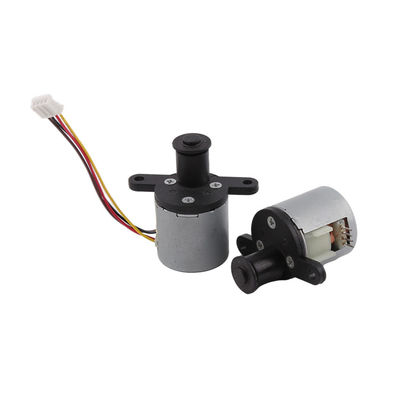

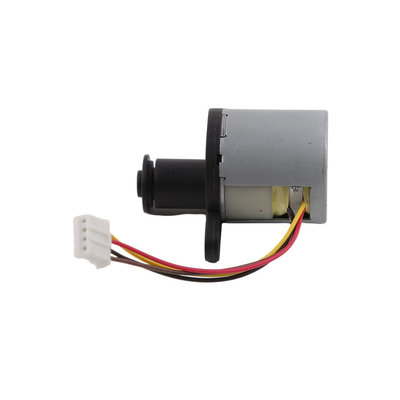

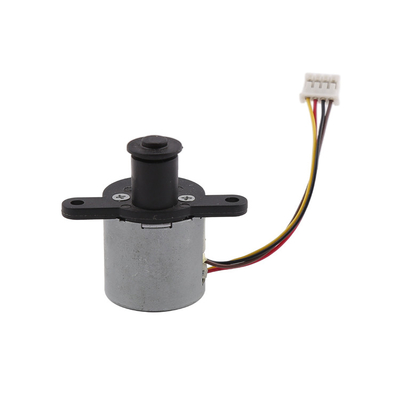

Product Detail Presentation
Packaging and Shipping information:
All samples are packed in foam sponges in cartons.
For mass production, mass-produced products are packaged in cartons.
For sea shipping (mass production), cartons are packed on pallets.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
Some informations about us:
Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products
The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!
The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.
For motors with special specifications (number of phases, voltage, reduction ratio) and other size modifications, we can customize them according to the actual needs of customers. If customers need more information, please feel free to contact me.
