18 Degree Step Angle Chinese Manufacturer Of 2-phase 5V DC Micro Stepper Motors
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM1070 |
| Minimum Order Quantity | 1Unit |
| Price | $3~$8/Unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle(degrees) | 18 Degree | Phase | 2 |
|---|---|---|---|
| Voltage | 5V DC | Resistance | 40Ω±10% |
| Drive Mode | Bipolar Drive | Insulation Class | Class E FOR COILS |
| Highlight | 5V DC micro stepper motors,2 phase micro stepper motors,18 Degree Step Angle Stepper Motors |
||
Product Description

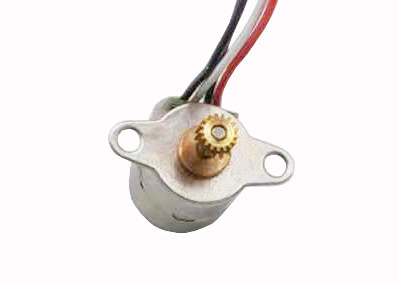

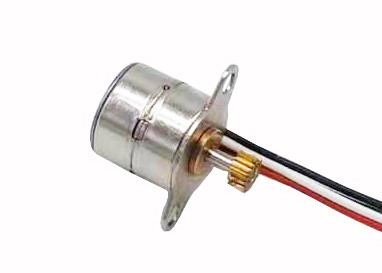

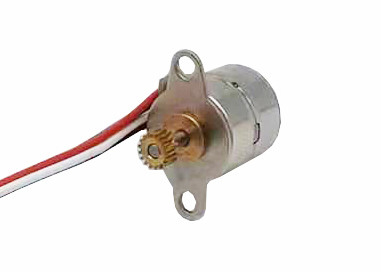

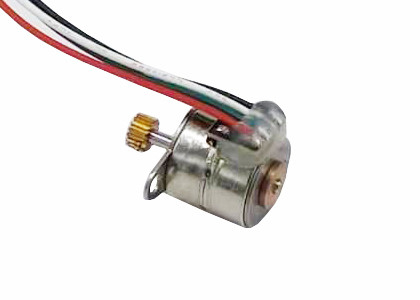

18 degree step angle Chinese manufacturer of 2-phase 5V DC micro stepper motors
Chinese manufacturer of 2-phase 5V DC micro stepper motors
This is a 2-phase stepper motor with an 18 degree step angle micro stepper motor. It is recommended to drive at a voltage of 5V
Resistance 40 ohms
Gear parameters:
Modulus 0.20
Pressure angle 20 °
Teeth 17
Pitch circle Φ three point four
Outer ring Φ 3.75 0-0.05
Correction coefficient -0.125
Precision JGMA 5
If you are interested in our products, please feel free to email me at any time.
Mechanical Dimension:MM
Typical Applications
-
Intelligent Security Products
-
Camera Lenses
-
Door Locks
-
Wearable device
Specifications
| Product Name | 10mm micro stepper motor | |||
| Model |
SM1070 |
|||
| Rated Voltage | 5V DC | |||
|
Coil Resistance |
39Ω±10% |
|||
|
No.Of Phases |
2 phase |
|||
|
Step Angle |
18 degree |
|||
|
Max.Staring Frequency |
1000 PPS min.(AT 5.0 V DC) |
|||
|
Max.Slewing Frequency |
1800 PPS min.(AT 5.0 V DC) |
|||
|
Pull In Torque |
4.5gf-cm min(AT 500 PPS,5.0 V DC) |
|||
|
Pull out Torque |
5.0gf-cm min(AT 500 PPS,5.0 V DC) |
|||
|
Insulation Class |
Class E FOR COILS |
|||
|
Insulation Strength |
100 V AC FOR ONE SECOND |
|||
|
Insulation Resistance |
1mΩ(DC 100 V) |
|||
|
Operating Temperature |
-10~60℃ |
|||
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
