Two Phase Bipolar Small Stepper Motor 3.3VDC 10mm Screw Stroke With Brackets

8mm micro slider screw stepper motor 3.3V DC pm stepper motor of Camera Lens linear stepper motor:

This is a special precision stepping motor with brackets and guide rails (when the motor rotates, the guide rails move), the moving speed can be controlled by the pulse frequency, and the moving distance can be controlled by the number of pulses. For this typical motor, when the motor drives 2-2 phases, 1 pulse leads the motor by 0.02 mm.

It is a stepper motor equipped with a bracket, a lead screw and a relative motion slider.
Since the output shaft of the motor is a lead screw, during the rotation of the lead screw, the lead screw drives the slider to move back and forth. This conveniently provides actions such as forward and backward. In addition, the stepping motor can precisely control the speed, the number of revolutions, etc., which also determines the movement speed of the slider, and the movement position is accurately controllable. The positioning accuracy can be controlled within 0.05mm.

This motor has excellent characteristics such as small size, high precision and easy control.
The input part of the motor is FPC, but it can be changed to the form of connecting wire, PCB, etc. according to customer needs.
Mounting brackets can be replaced according to customer requirements.
Due to the above characteristics, such motors are widely used in cameras, optical instruments, lenses, precision medical equipment, automatic door locks, beauty equipment, medical equipment, vending machines, rapid testing and other fields.

Main Application

1) vending machine

2) Optical instruments

3) Precision medical devices

4) beauty equipment

Other precise control application

8mm M2 lead screw slider stepper motor Specifications:

Drawing of 8mm plastic slider stepper motor with 10mm stroke:

TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.

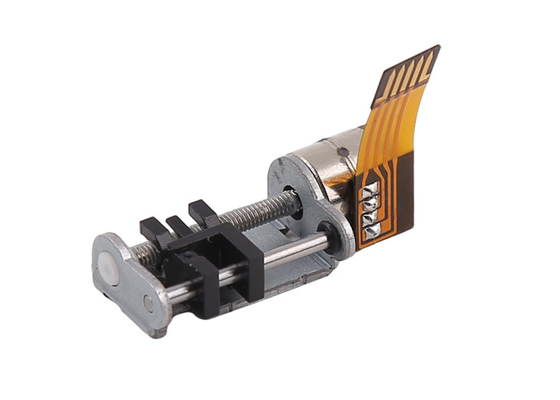

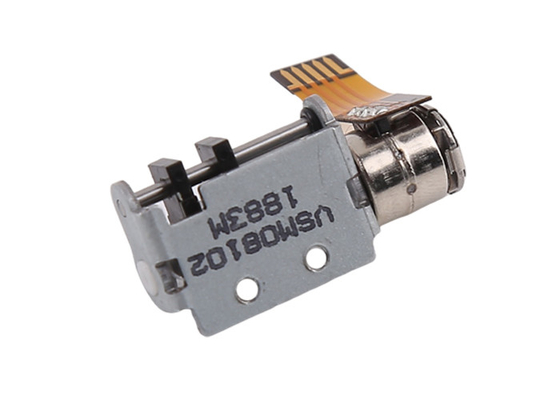

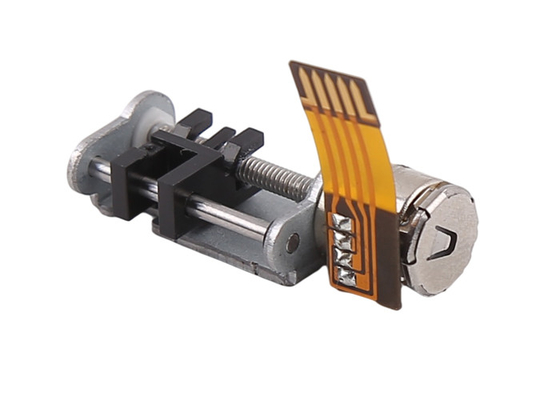

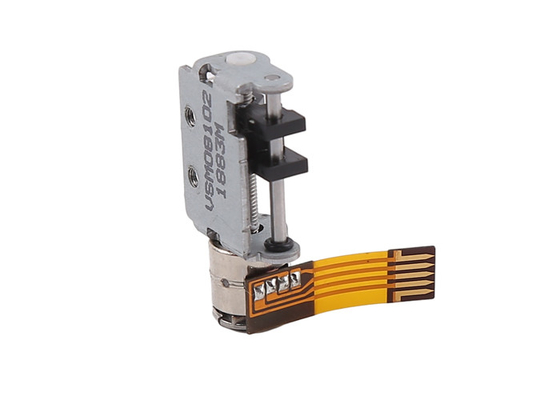

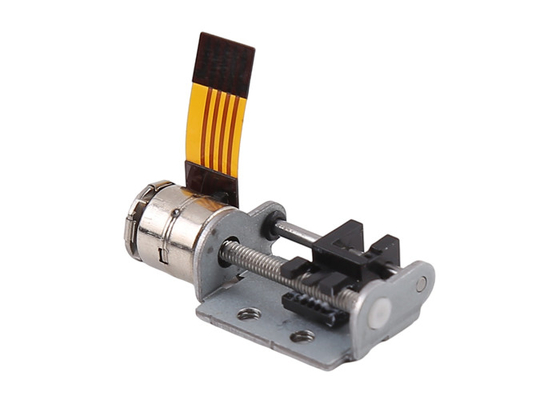

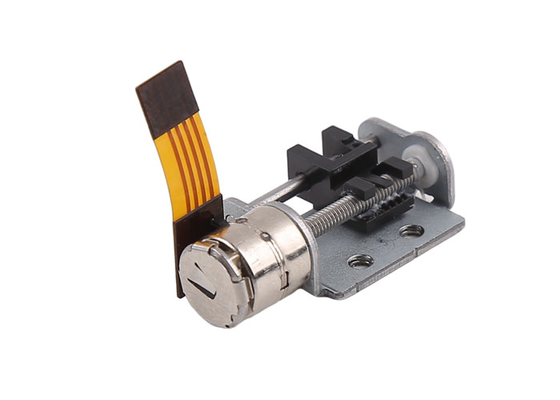

Product display for 8 mm plastic slider stepper motor:

8mm mini linear motor 3.3VDC micro slider screw stepper motor of Camera Lens

Customers can customize content:

1. In terms of the outer diameter of the motor, different sizes such as 6mm, 8mm, 10mm, 15mm, 20mm, 25mm can be selected according to the customer's use environment and space strength.

2. The outlet position of the motor can be freely selected within a range of 360 degrees to meet the installation requirements in the best state. At the same time, the connector can choose lead, PCB, bare pin.

2. The effective stroke of the motor can be customized within a certain range according to customer requirements, mainly considering the diameter and length of the lead screw.
Usually the maximum length of M2 screws can be 50mm, M3 screws can be 100mm, and M4 screws can be 100mm. Can also do 150mm. Small motors use lead screws with too large diameters, which consume a lot of power. Therefore, customers should consider comprehensively when selecting motors.

4. The material of the slider is generally plastic, which is easy to form and economical.
When customers have special use environment and requirements, the slider can also use metal parts.
Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.

Patent certification:
